Cormak KDP350TOP - 350L Sandblaster with Dust Extraction

Cormak KDP350TOP - 350L Sandblaster with DC15 Dust Extraction

Machine Description

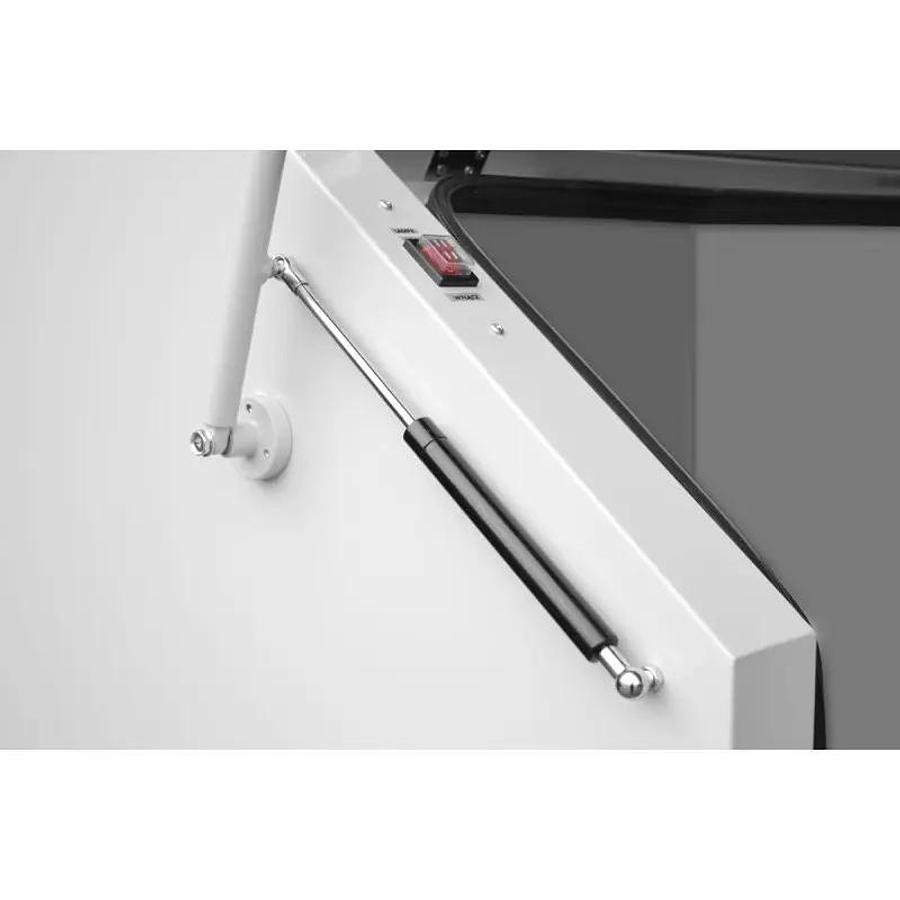

A sandblasting cabinet with a front and top-opening design is a significant convenience when working with large and heavy workpieces. Telescopic gas struts mounted in the door facilitate smooth and safe opening. The sandblaster is supplied as standard with an integrated dust extraction system that removes dust generated during blasting. It is equipped with a set of nozzles, a blasting gun and protective films for the viewing window.

Sandblaster Cabinet KDP350TOP with DC15 Cyclone Dust Extractor – a professional cabinet for blasting metal and rims

The KDP350TOP sandblaster cabinet is an advanced industrial machine designed for cleaning and surface preparation of metal components. Thanks to its spacious 350-litre working chamber and top-opening design, this model ensures excellent operating comfort and enables blasting of large workpieces. The integrated DC15 cyclone dust extractor maintains a dust-free working environment. It is a reliable sandblaster cabinet for rims, machine parts, engine components and many other steel or aluminium elements.

Main advantages of the KDP350TOP sandblaster

Large working chamber – 330 litres of capacity for handling large components.

Top-opening working chamber – facilitates loading and unloading of workpieces.

DC15 cyclone dust extractor – effective removal of dust generated during blasting.

Dust-free operation – doors with perimeter gaskets and extraction connections (63 mm and 90 mm).

Sandblasting gun – supplied with 8 ceramic nozzles for precise surface treatment.

Internal lighting – 12 V fluorescent lamp powered from 230 V improves visibility.

Integrated protective gloves – abrasion-resistant, ensuring operator safety and ergonomics.

Replaceable protective films for the viewing window – ensure clear, unobstructed visibility.

High abrasive compatibility – quartz sand, glass beads, emery and plastic media.

Applications

The KDP350TOP sandblaster cabinet is ideal wherever precise surface treatment is required. Perfect as:

• a sandblaster for aluminium and steel rims up to 20 inches,
• a cabinet for preparing components prior to painting or welding,
• a machine for removing rust, paint, coatings and technological residues,
• a tool for refurbishing automotive, engine and industrial components.

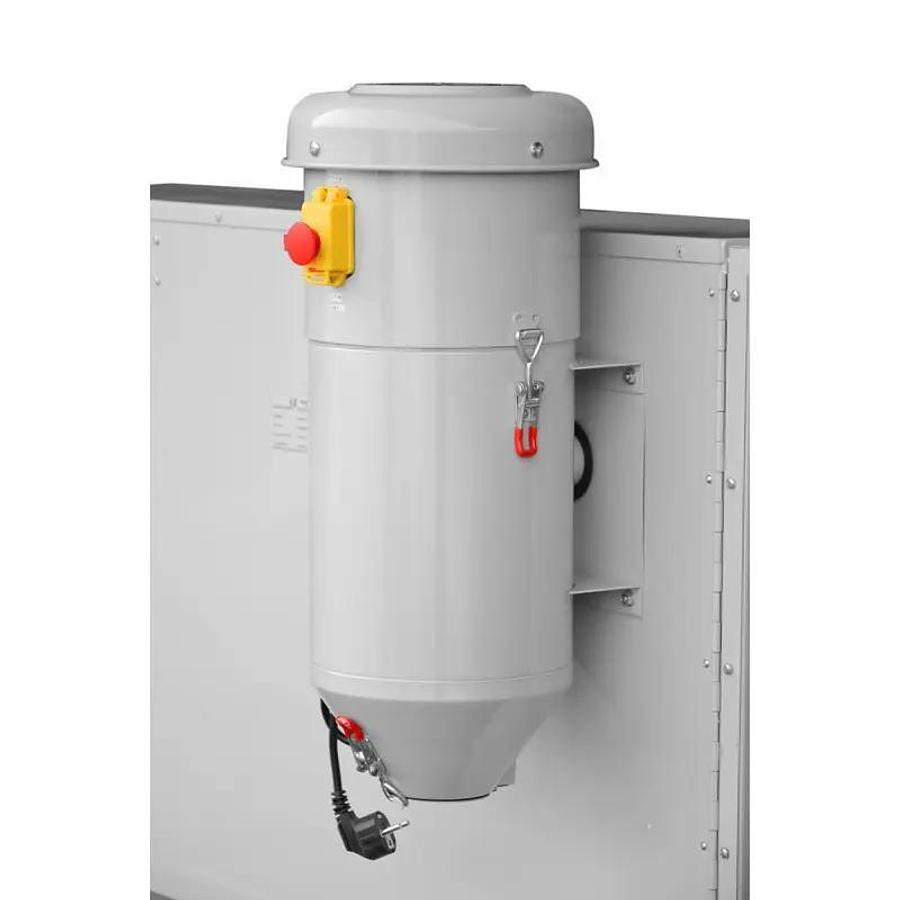

Dust extraction system – DC15 cyclone dust extractor

The set includes the DC15 dust extractor, which, combined with the extraction connections, efficiently removes contaminants generated during sandblasting. Thanks to the cyclone operating principle, the filter maintains high efficiency over a long period, while the working area remains clean. This solution significantly improves operator comfort and safety, especially during prolonged use.

Standard equipment

DC15 cyclone dust extractor with filter

Connection hose

12 V fluorescent lamp (230 V power supply) with on/off switch

2 rubber protective gloves integrated with the cabinet

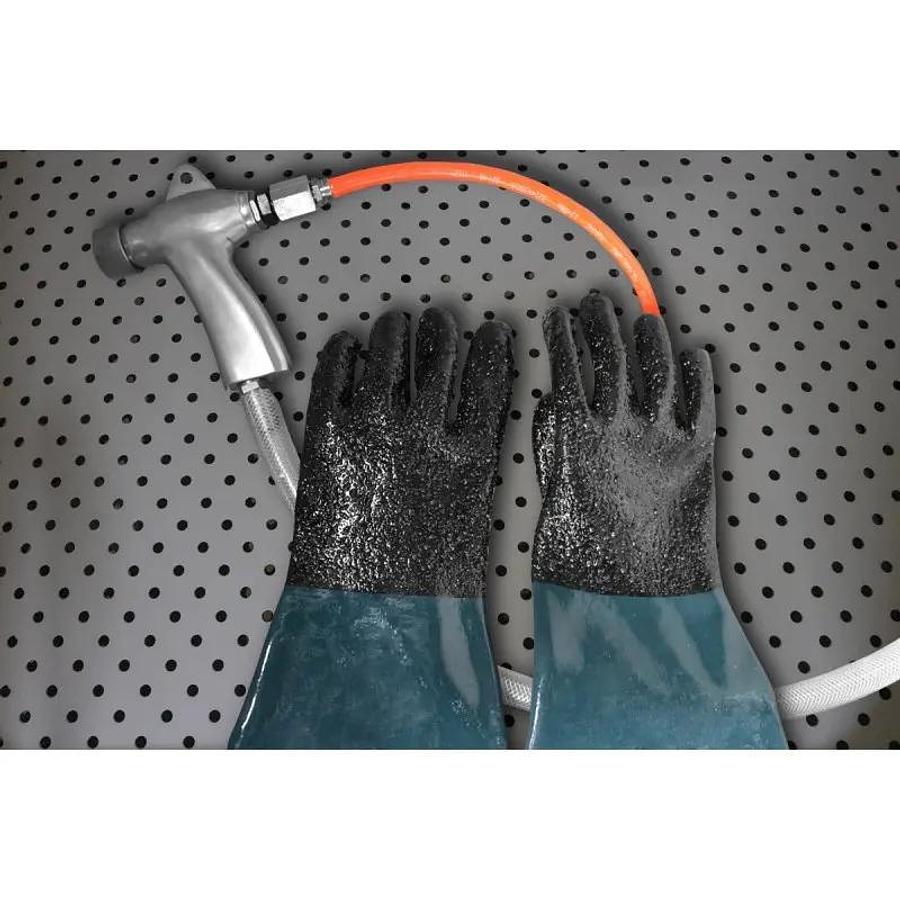

Sandblasting gun with 8 ceramic nozzles

4 protective films for the viewing window

Front door with perimeter rubber gaskets

2 extraction connections (63 mm and 90 mm) Technical Specification

Capacity: 330L (0.33m3)

Air Usage: 400 - 700 L/min Air connection: quick coupling 1/4 " Extraction connection : 63 & 90 mm Viewing Window: 580 x 270 mm Internal dimensions of cabin (LxW): 850 x 670 mm

Internal height of cabin (min/max): 360/610 mm Dimensions(LxWxH): 960 x 720 x 1500 mm Weight: 88 kg

Note: The machine requires self-assembly in accordance with the supplied instructions.
