Cormak KDP350 - 350L Sandblaster with Dust Extraction

Cormak KDP350 - 350L Sandblaster with DC25 Dust Extraction

Machine Description

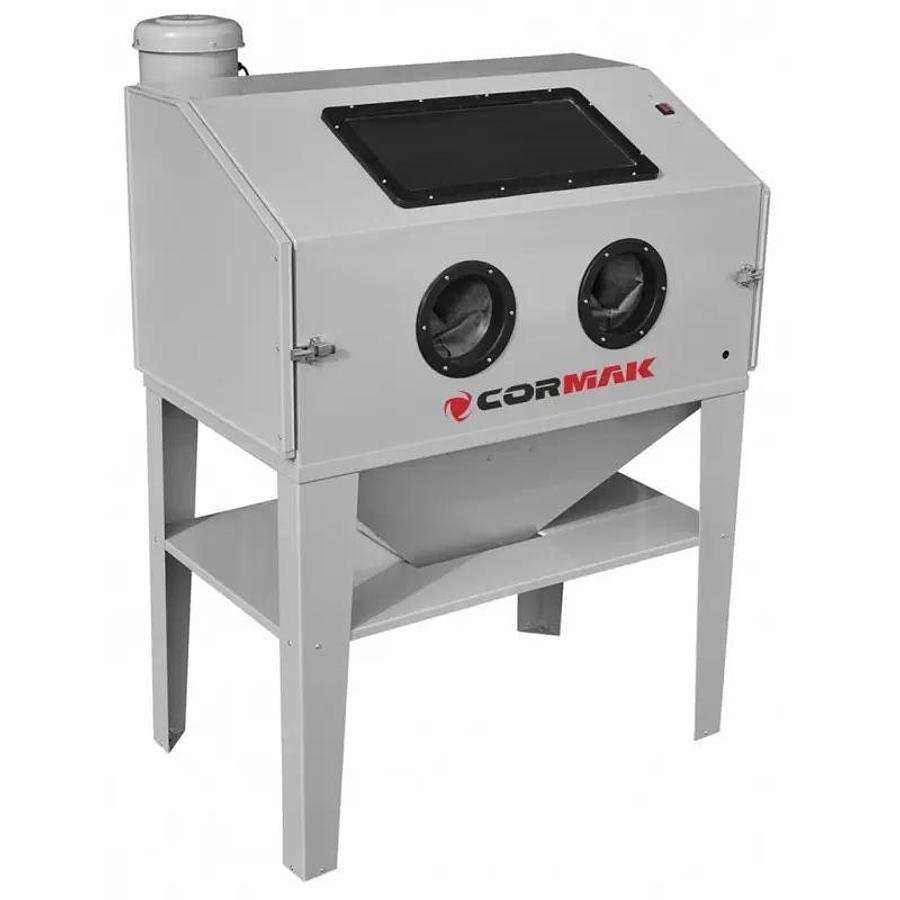

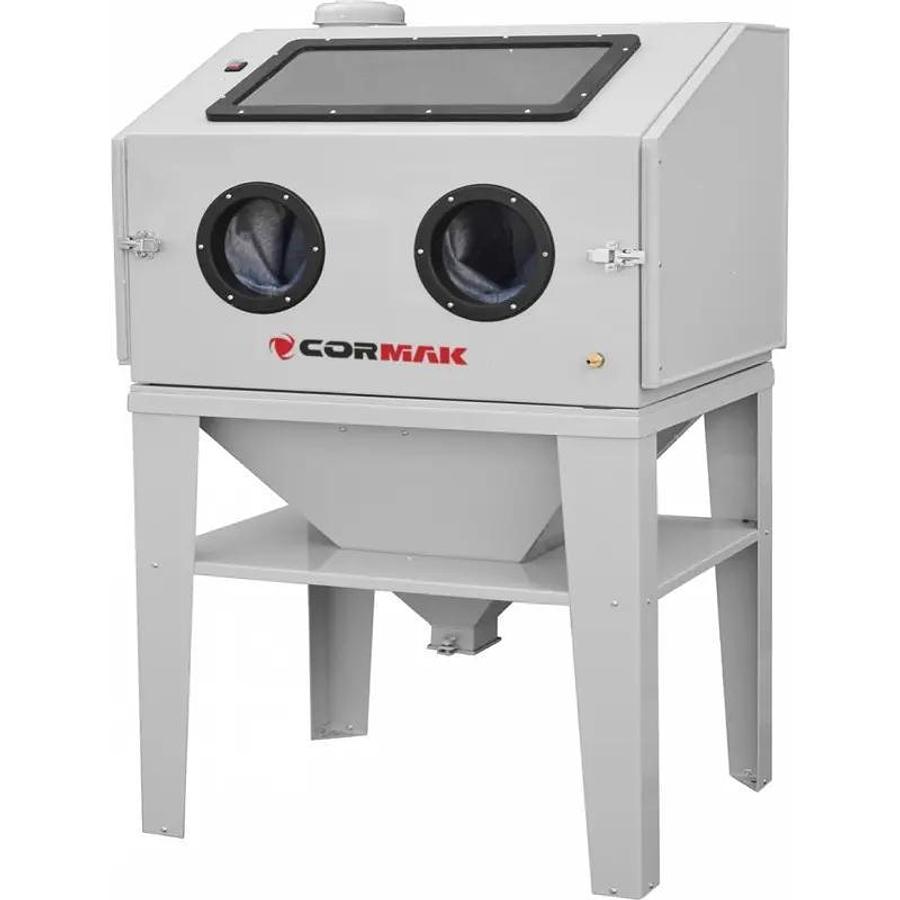

We offer a brand-new 350-litre sandblaster cabinet, fully complete and ready for operation immediately after installation. The machine is equipped with a proven control system, a large and robust cabinet with double side-opening doors, a sandblasting gun, four ceramic nozzles, high-quality protective gloves, internal working light and a large viewing window with no blind spots. In addition to its compact design and spacious working area, the cabinet offers ease of use, reliability and a high level of operational safety.

Sandblaster Cabinet KDP350 with DC15 Cyclone Dust Extractor – an industrial solution for cleaning metal and rims

KDP350 sandblaster cabinet is a high-performance machine designed for cleaning and surface treatment of metal components in professional workshops, industrial plants and refurbishment services. The working chamber with a capacity of 330 litres and two side-opening doors sealed with perimeter gaskets provide convenient access to the working area and ensure dust-free operation.

The set includes a DC15 cyclone dust extractor, which efficiently removes dust generated during operation. The machine is ideally suited as a sandblaster for rims and metal components requiring precise cleaning.

Key advantages of the KDP350 sandblaster cabinet

Large working chamber – 330 litres allow processing of larger workpieces.

Two side-opening doors – left and right access simplifies loading and handling of components.

Dust-free operation – thanks to perimeter sealing and extraction connections of 63 mm and 90 mm.

Sandblasting gun with ceramic nozzles – 4 interchangeable tips (4, 5, 6, 7 mm) ensure precise blasting.

Working area lighting – improves visibility and accuracy during operation.

Integrated protective gloves – abrasion-resistant and designed to protect the operator’s hands.

Compatibility with various abrasives – quartz sand, glass beads, silicon carbide, emery and plastic granulate.

Precision, efficiency and versatile applications

The KDP350 sandblaster cabinet is used for removing rust, paint, scale and technological residues from steel, aluminium and other metal surfaces. It is an ideal sandblaster cabinet for rims, engine blocks, hinges, machine housings and other components requiring precise abrasive blasting. Adjustable working pressure (4–8 bar) and air consumption (400–700 L/min) allow the process to be adapted to the specific material and abrasive used.

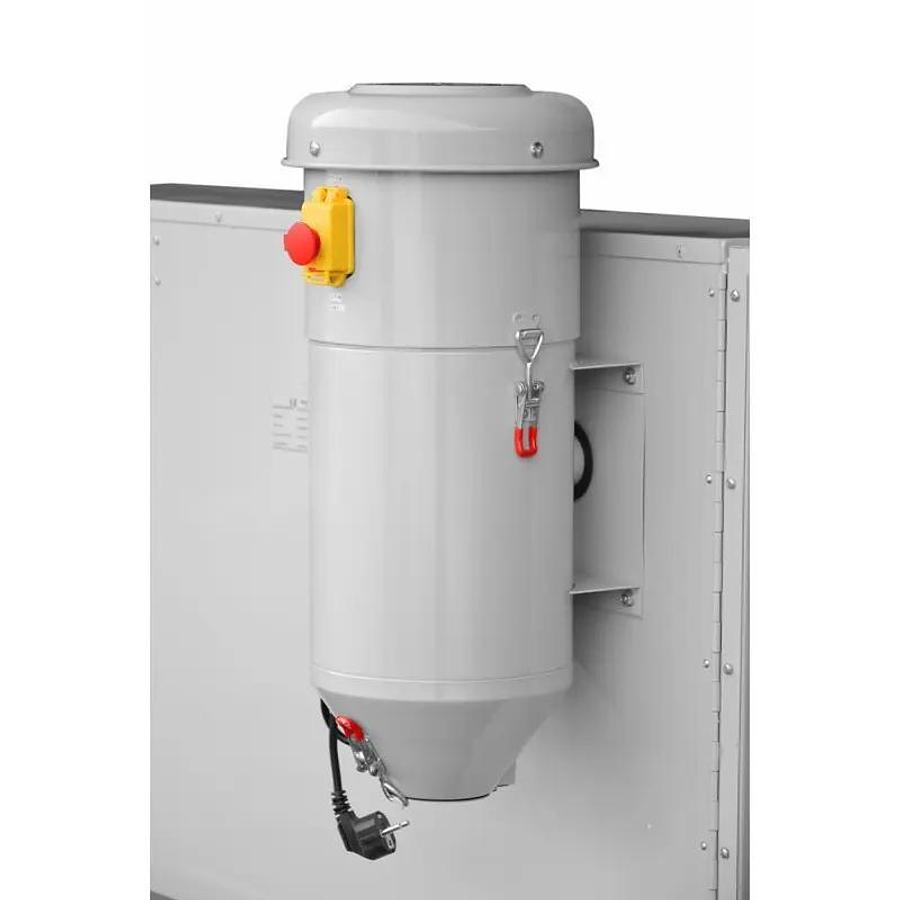

Dust extraction system – DC15 cyclone dust extractor

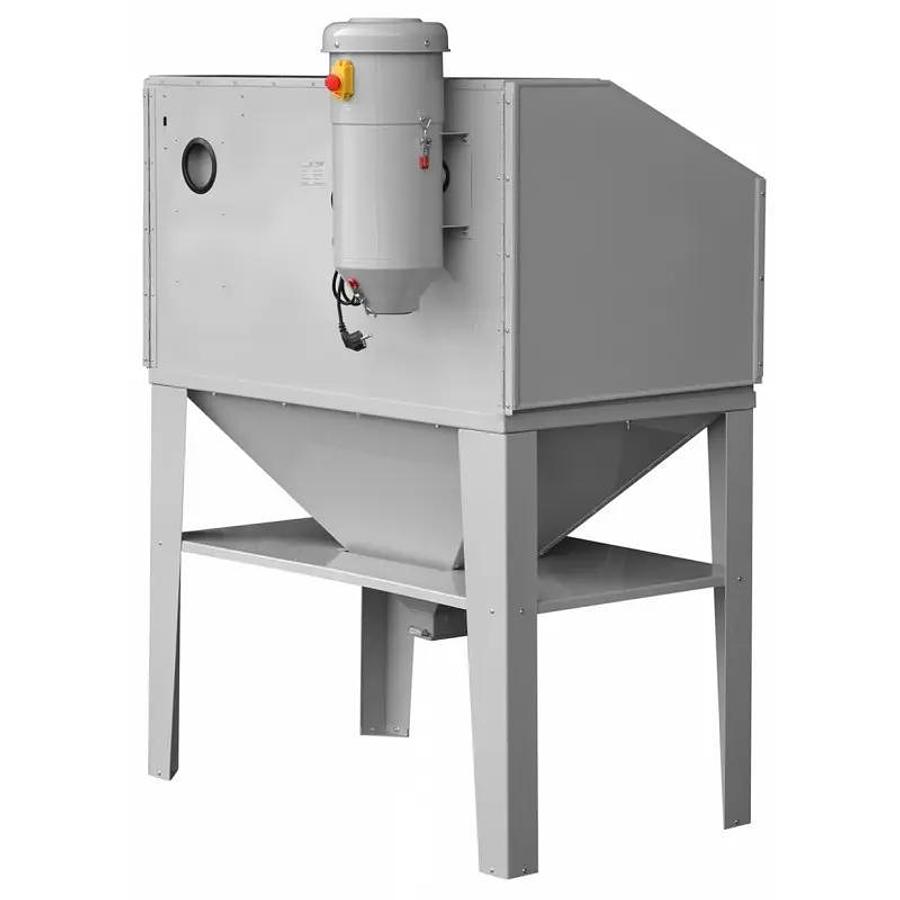

The set includes a high-performance DC15 cyclone dust extractor, which effectively separates dust and fine particles generated during blasting. The integrated filter and flexible connection hose ensure safe and comfortable operation, maintaining cleanliness both inside the cabinet and in the workplace. The cyclone operating principle extends filter life and reduces the need for frequent replacement.

Standard equipment

DC15 cyclone dust extractor with filter and hose

12 V fluorescent working lamp (230 V power supply with switch)

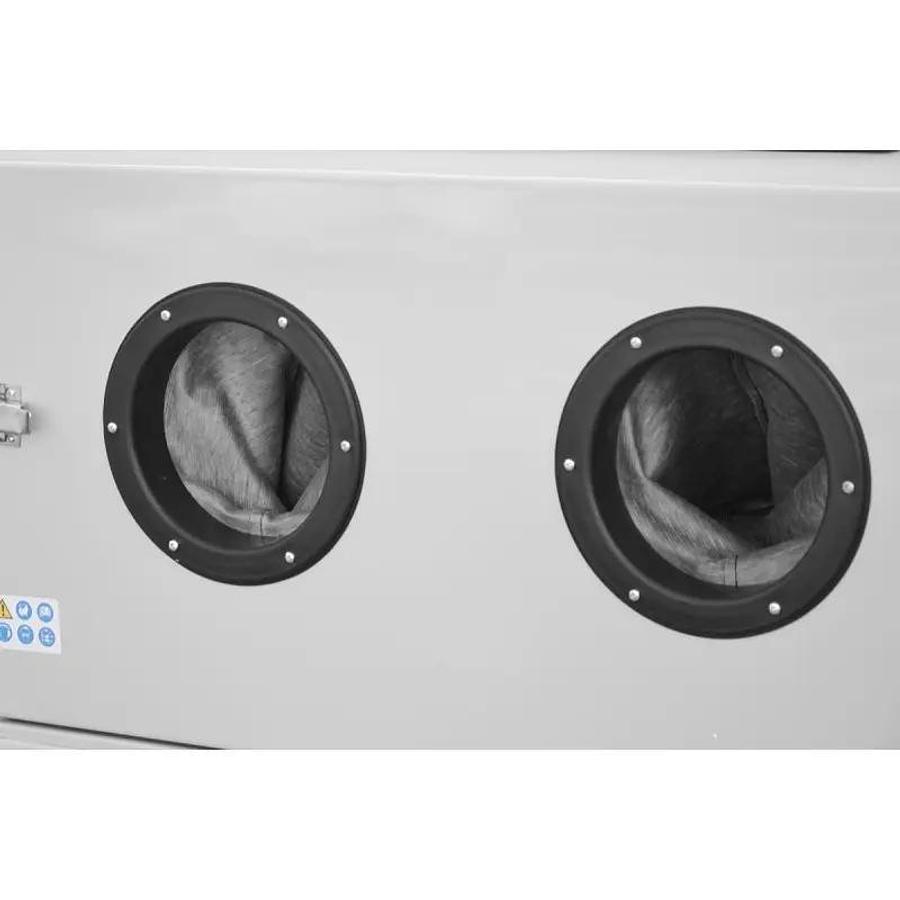

2 integrated rubber protective gloves

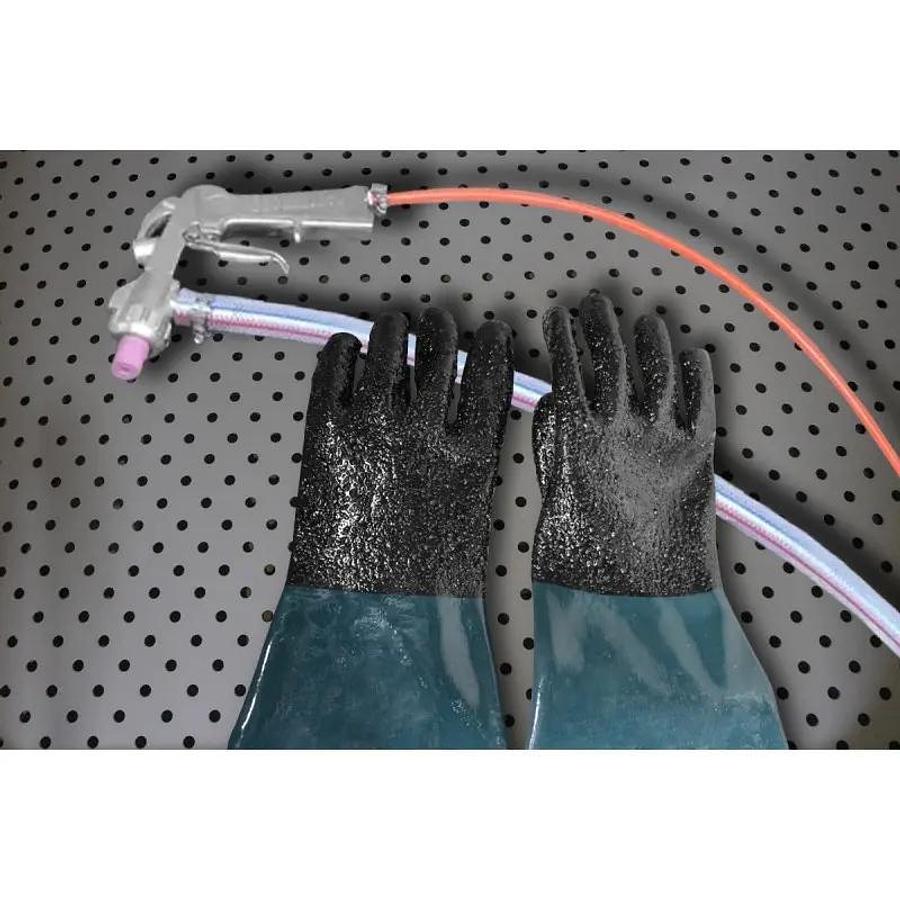

Sandblasting gun with 4 ceramic nozzles (sizes: 4, 5, 6, 7 mm)

4 protective films for the viewing window

2 extraction connections: 63 mm and 90 mm

2 side-opening doors with perimeter gaskets Technical Specification

Capacity: 330L (0.33m3)

Doors: 2 (left & right) Air Usage: 400-700 L/min

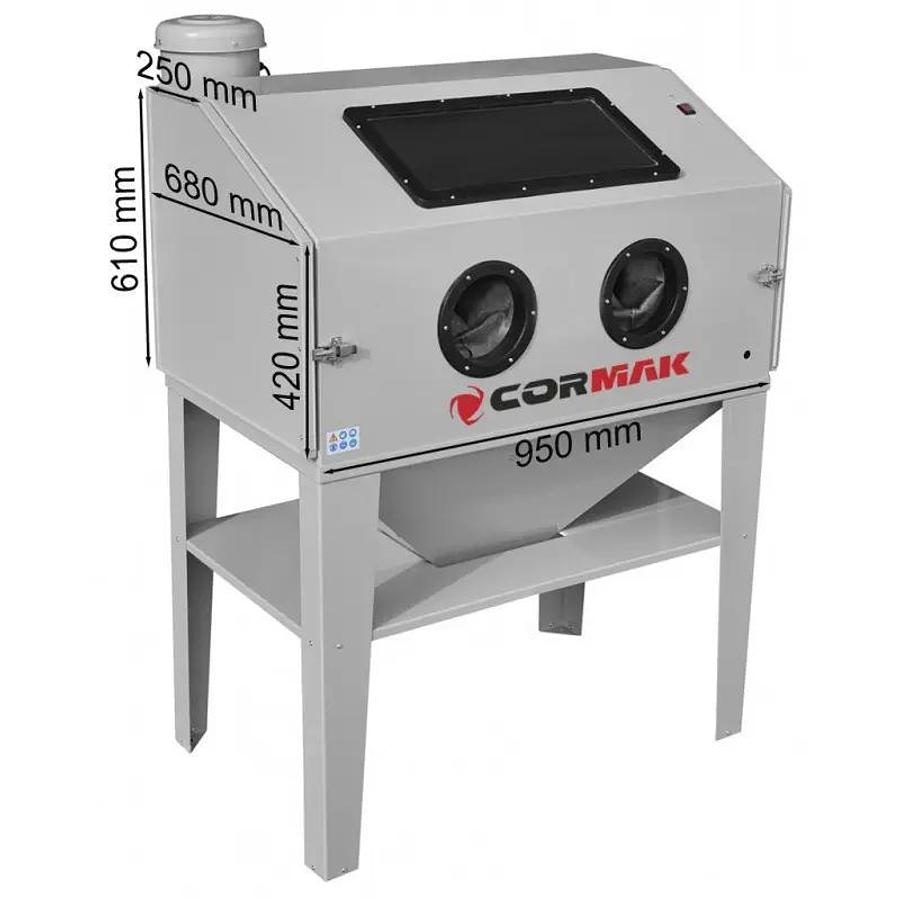

Air connection: quick coupling 1/4 " Extraction connection : 63 & 90 mm Viewing Window: 580 x 270 mm Internal dimensions of cabin(LxW): 850 x 670 mm

Internal height of cabin (min/max): 360/610 mm Dimensions(LxWxH): 960 x 720 x 1500mm Weight: 88 kg

Note: The machine is supplied in parts and requires self-assembly according to the instructions.
