Cormak KDP220TOP - 220L Sandblaster with Dust Extraction

Cormak KDP220TOP - 220L Sandblaster with DC23 Dust Extraction

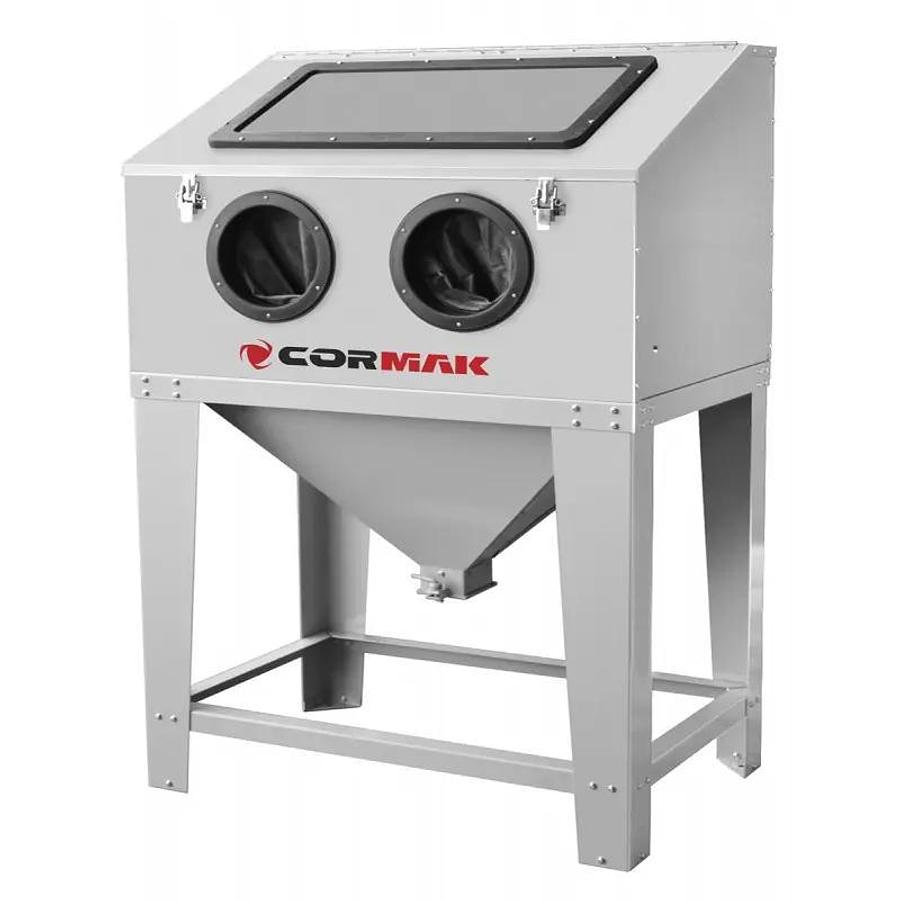

Machine Description A 220-litre sandblaster cabinet with top loading supported by telescopic gas struts, designed for sandblasting and cleaning surfaces from rust, paint, greasy deposits and other contaminants. The top-opening design significantly improves ergonomics when handling heavy workpieces. Supplied as standard with a set of nozzles, a blasting gun and protective films for the viewing window. The sandblaster cabinet is an essential tool in the metalworking, automotive, construction and shipbuilding industries. Thanks to its capacity and adjustable abrasive stream, it ensures fast and effective surface cleaning.

Sandblaster Cabinet KDP220TOP with DC23 Dust Extractor – a professional solution for cleaning metal surfaces and rims

The KDP220TOP sandblaster cabinet is an industrial machine for metal sandblasting, designed for professionals seeking a precise, safe and efficient surface treatment solution. Thanks to its top-opening design with telescopic gas struts and spacious working chamber, this model is ideal as a sandblaster for rims, engine components, hinges and steel structures.

The integrated DC23 dust extractor ensures cleanliness and working comfort in industrial environments.

Key advantages of the machine

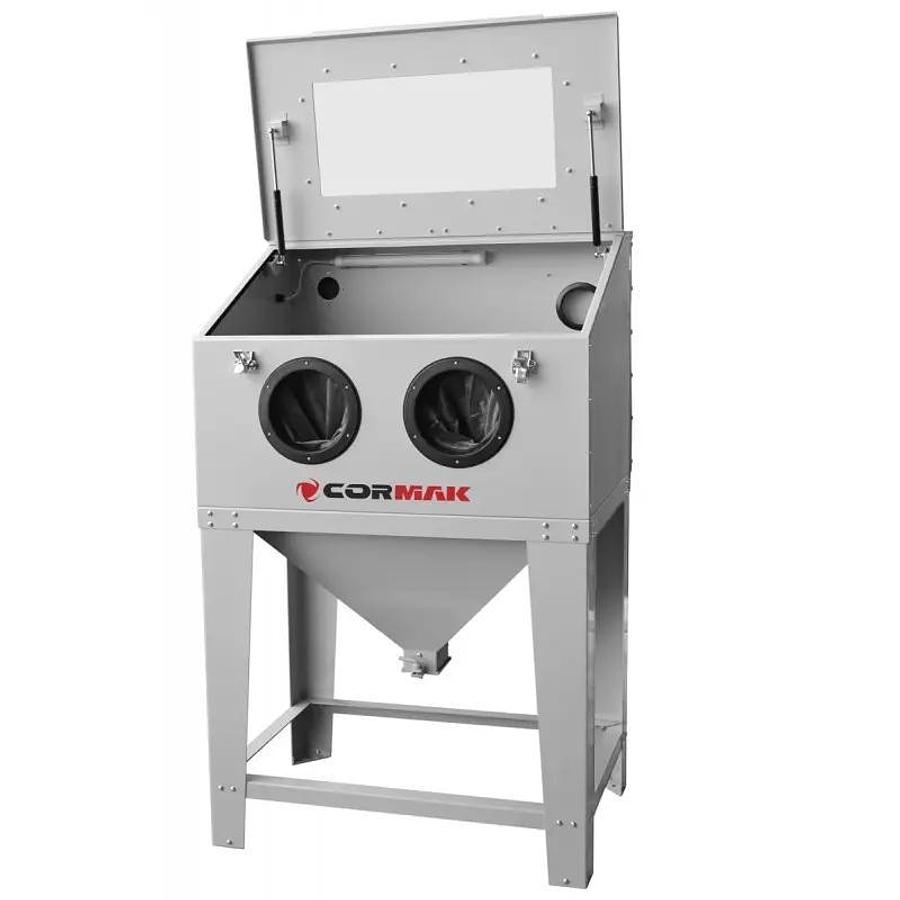

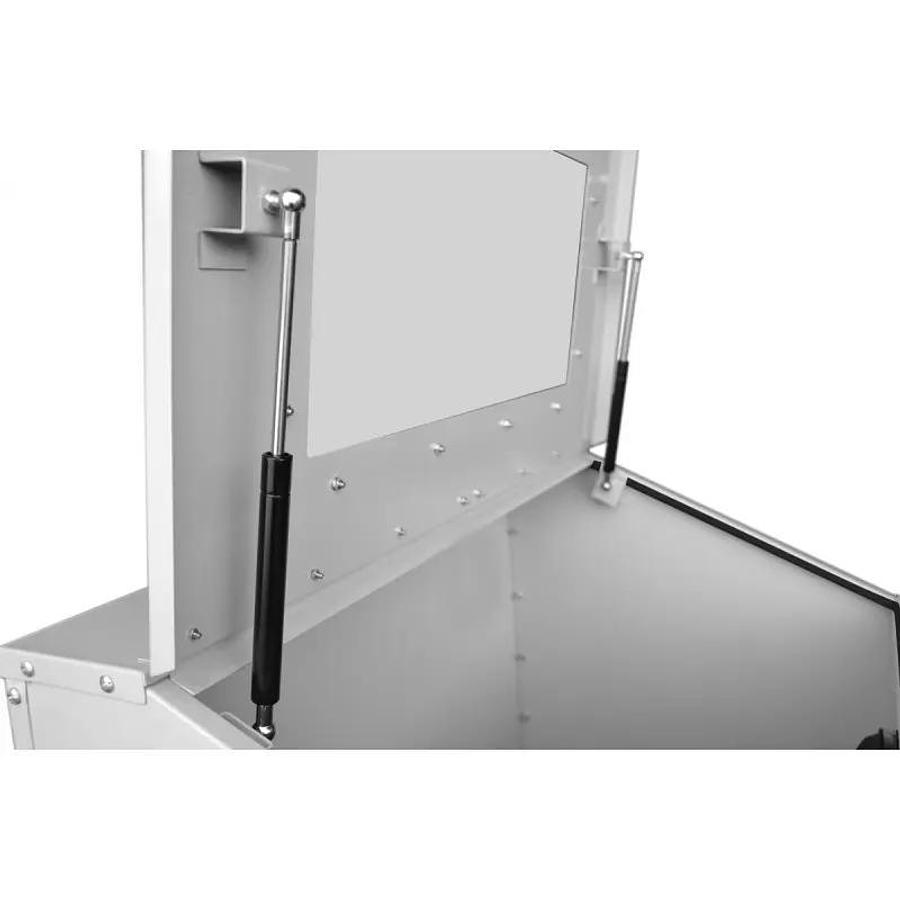

Top-opening cabinet with telescopic gas struts – facilitates loading of heavy and large workpieces.

Efficient working chamber – 220 litres of internal capacity.

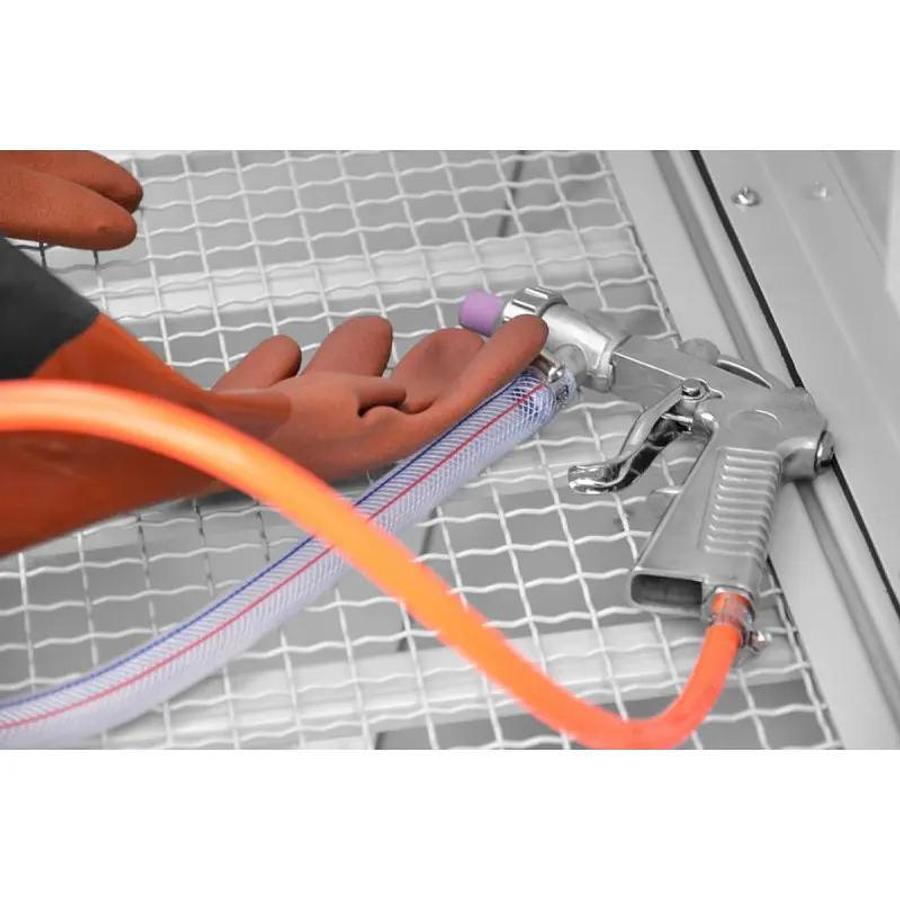

Professional blasting gun with four replaceable ceramic nozzles (4, 5, 6, 7 mm).

Dust-free operation thanks to perimeter sealing and an effective dust extraction system.

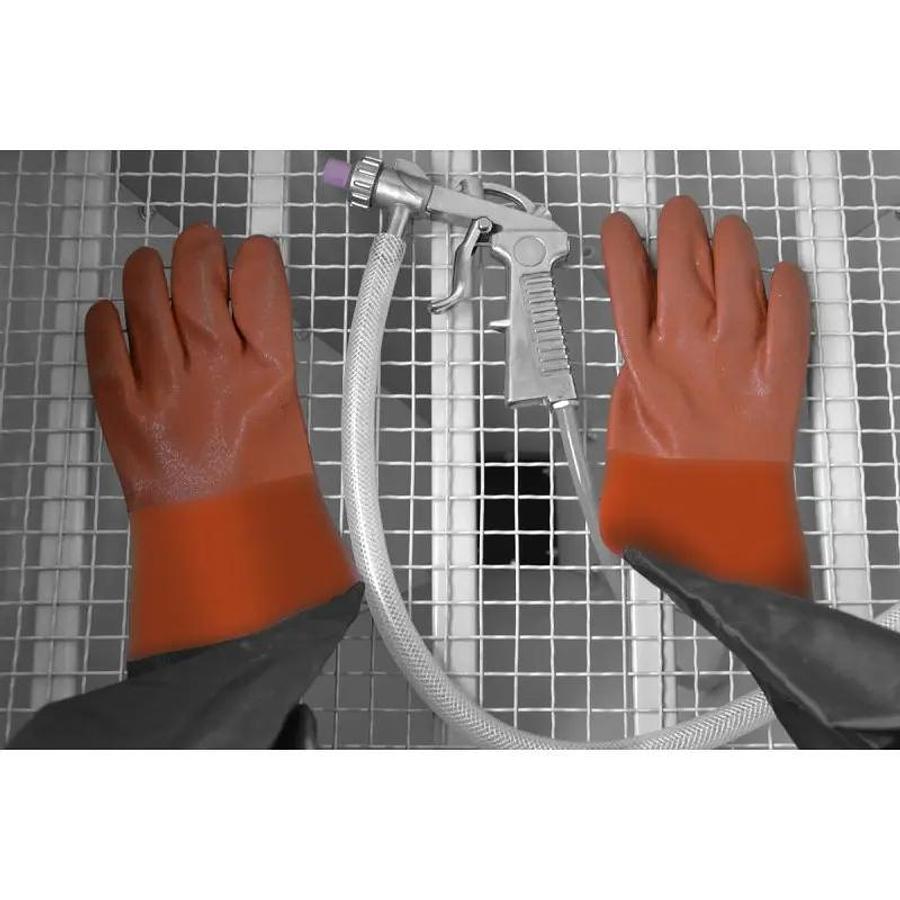

Abrasion-resistant protective gloves integrated with the cabinet.

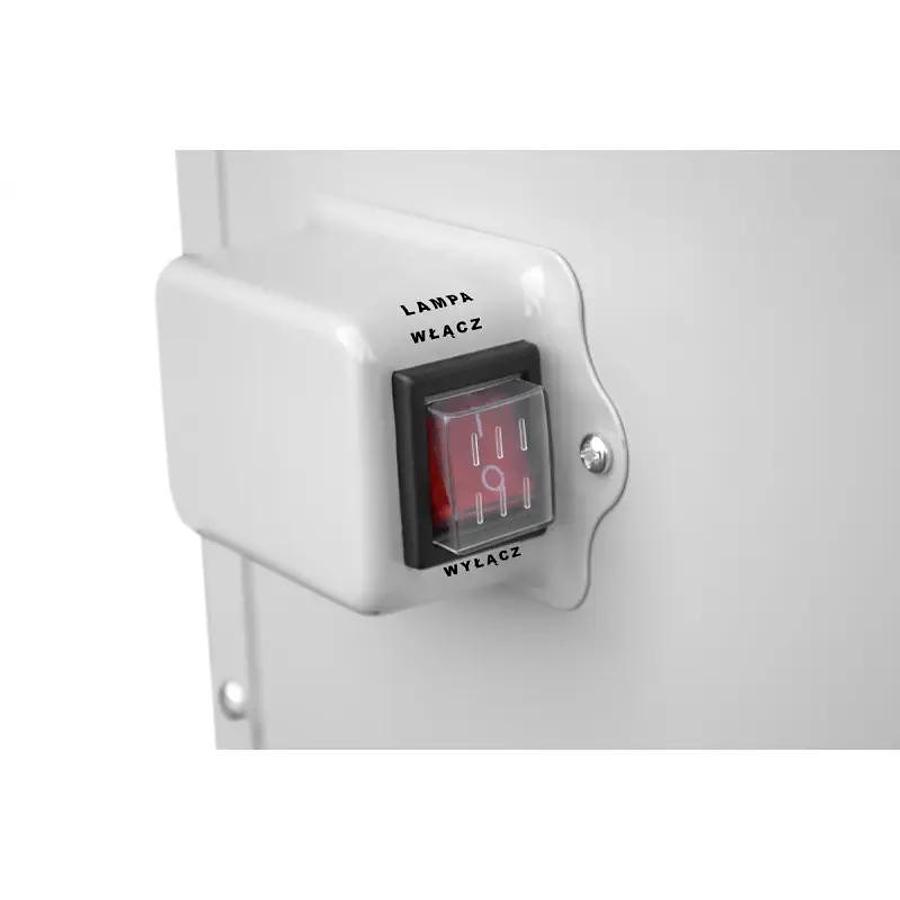

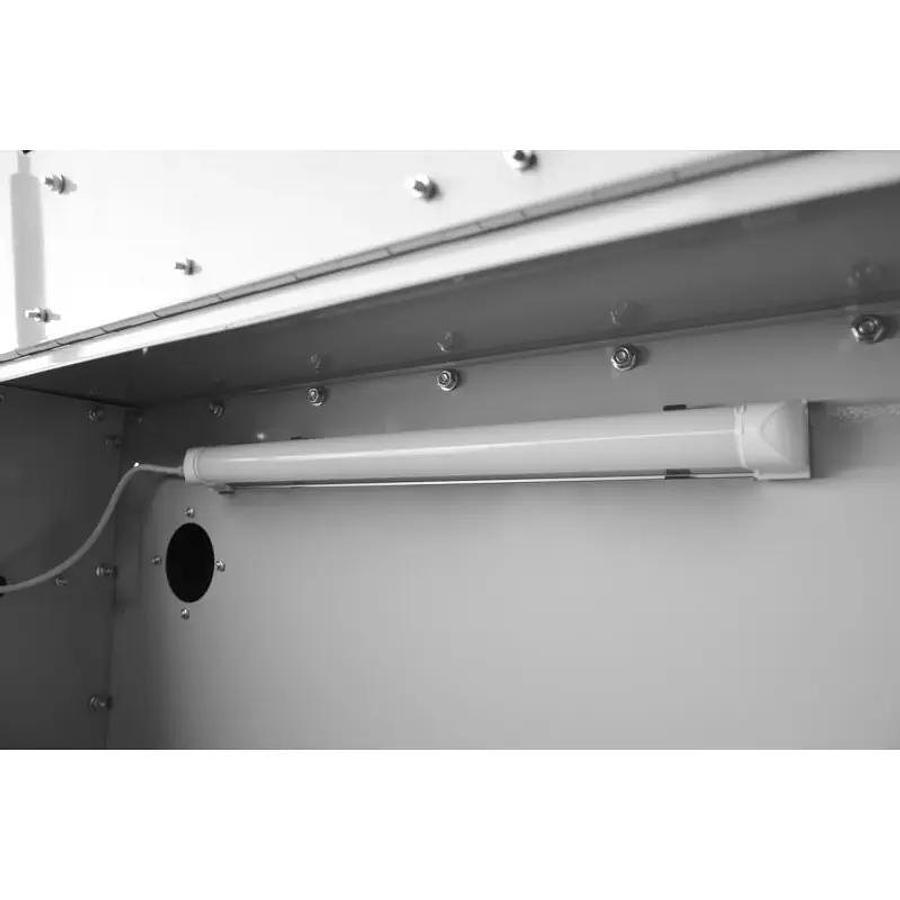

Efficient internal lighting – improves visibility during operation.

Compatibility with various abrasives – aluminium oxide, quartz sand, glass beads, granulate.

Bottom blasting hose – ensures optimal ergonomics during operation.

Cabinet design and technology

The KDP220TOP sandblaster is a robust sandblasting cabinet manufactured from reinforced steel and designed for intensive industrial use. The top lid with telescopic gas struts simplifies loading, while the large front opening with a perimeter rubber seal ensures airtight operation. A 540 x 250 mm viewing window with replaceable protective film provides a wide, unobstructed field of view. The interior is equipped with a stable working grate and efficient lighting, enabling precise surface cleaning.

Precision and blasting efficiency

Thanks to an adjustable abrasive flow and compatibility with a wide range of blasting media, the KDP220TOP metal sandblaster delivers excellent results in cleaning, matting and surface preparation prior to painting, galvanising or welding. Ideal as a sandblaster cabinet for aluminium and steel rims, it enables fast removal of rust, paint, scale and technological residues.

Applications

The KDP220TOP model is intended for professional use in industries such as:

• automotive – sandblasting of rims, cylinder heads and engine blocks,
• metalworking and toolmaking,
• construction and shipbuilding,
• maintenance and refurbishment operations,
• metal production and processing.

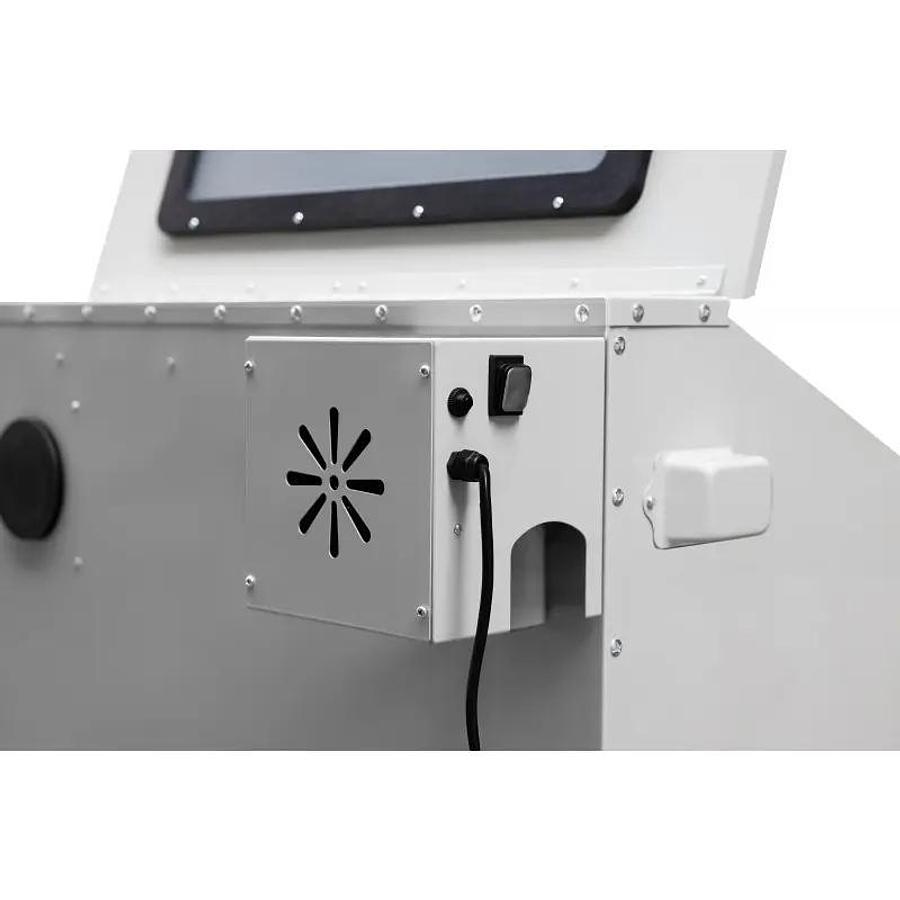

Dust extraction system – DC23 dust extractor

The integrated DC23 dust extractor effectively removes fine dust from the cabinet interior, improving operator safety and comfort. A fabric filter with a capacity of 16 litres captures solid particles, while the 1200 W motor power and suction pressure of >12 kPa ensure high extraction efficiency. A flexible 2 m connection hose allows easy installation of the system.

Standard equipment

KDP220TOP sandblaster cabinet

Blasting gun with 4 ceramic nozzles (sizes 4, 5, 6, 7 mm)

4 protective films for the viewing window

Rubber gloves integrated with the cabinet

Working light 12 V powered from 230 V

2 extraction connections: 63 mm and 90 mm

Stable working grate

DC23 dust extractor with filter and connection hose Technical Specifications - KDP220TOP Air requirement: 400-700 l / min Max permissible pressure: 8 bar Air connection: quick coupling 1/4 " Abrasives capacity: 18 kg Extraction connection : 63 mm Viewing Window: 540 x 250 mm

Front height: 370 mm Internal dimensions of cabin(LxW): 840 x 550 mm

Internal height of cabin(min/max): 370/550 mm Dimensions(LxWxH): 890 x 570 x 1380 mm Weight: 49 kg

Technical Specifications - DC23 Extraction Unit

Model: DC23

Voltage: 220 V

Power: 1200 W

Suction Pressure: >12 kPa

Inlet Diameter: 45 mm

Filter Capacity: -16 L

Note: The machine is supplied in components and requires self-assembly according to the instructions.
