€5,400 + VAT

Alfra GmbH PRESS AP 250 - stationary punching machine

5

Germany

orCall +353 838108745

Description

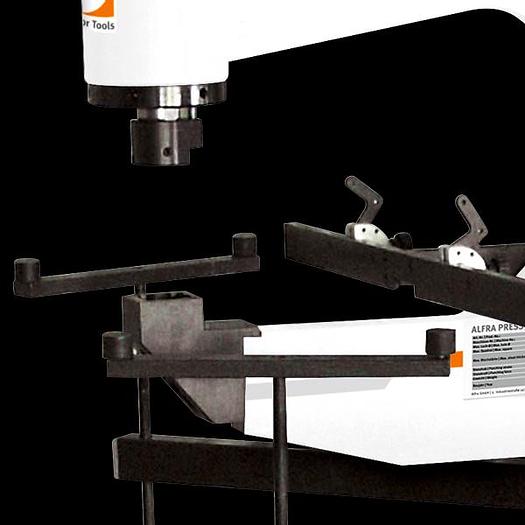

ALFRA PRESS AP 250 - Stationary Punching Machine


Includes:

Alfra AHP-S Electro Hydraulic Power Pack

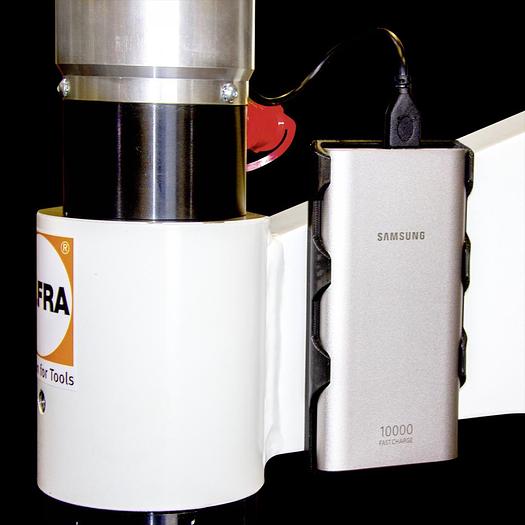

Laser Pointer for Optical Display of Tool Centre and Power Bank

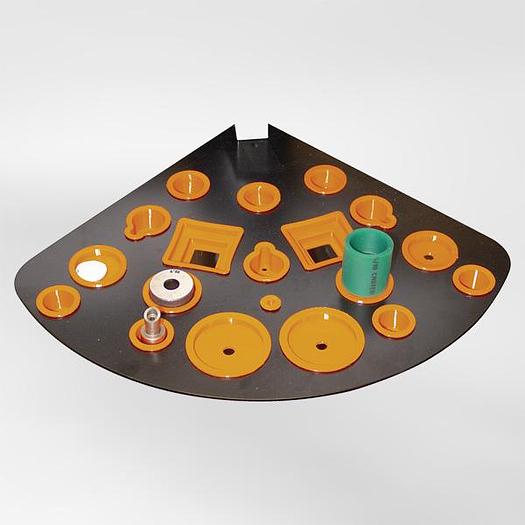

Pivoting Tool Drawer

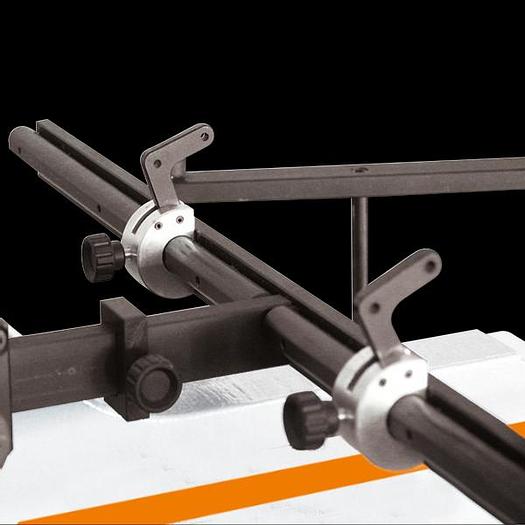

Length & Depth Limit Stop with Foldable add-on Stops

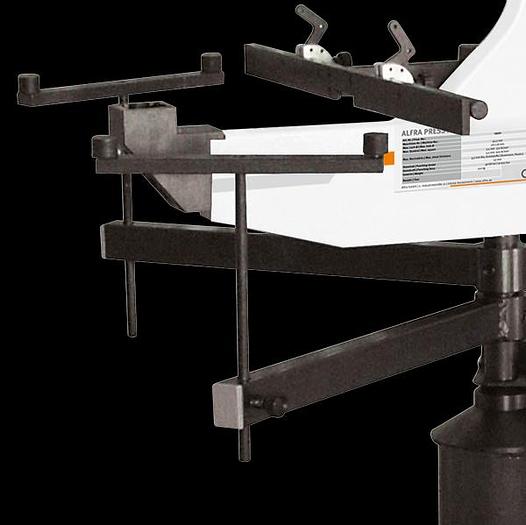

Picoting Support Arms, height adjustable with 2 rubber supports


Press Product No: 03170

Power Pack Product No: 03854


Machine Description

The AP 250 for punching without pre-drilling. When the tasks are getting bigger, the devices from our AP line show their full potential. For example, for quick and easy punching of round, square, rectangular or special shapes in control cabinet doors, terminal boxes, cable routing plates or housings with a projection of up to 250 mm - right up to the edge. The laser pointer optically indicates the tool center. A simple reticule with a pen is sufficient as a marker. In addition, attachable flip stops even allow row punching. The AP 250 is mobile due to its mobile base and can be used at any location. With 46 kN at 600 bar it is punching sheet steel, stainless steel, aluminum and plastic.



Technical Specifications:

Overhang with limit stop: 250 mm

Overhang without limit stop: 265 mm

Punching stroke: 50 mm

Punching force F: 46 kN at 600 bar

Hydraulic connection: R 1/4"

Weight without base: 50 kg

Mounting: For Work Bench Mounting

Space requirement with base approx.: 1,000 mm x 1,000 mm


Punching capacity:

Circular: Ø 3.2 - 40.5 mm

Square: 28.0 x 28.0 mm

Rectangle: 22.0 x 30.0 mm

Special forms up to a max. diagonal of: 40.0 mm


Material thicknesses (max):

Sheet steel (S235): 2.5 mm

Stainless steel (F = 600 N/mm2): 2.0 mm

Aluminum (F = 22 N/mm2): 4.0 mm

Punchable plastics: 4.0 mm




Specifications

ManufacturerAlfra GmbH
ModelPRESS AP 250 - stationary punching machine
ConditionNew
Press Product No03170
Power Pack Product No03854
Overhang with limit stop250 mm
Overhang without limit stop265 mm
Punching stroke50 mm
Hydraulic connectionR 1/4"
Weight without base50 kg
MountingFor Work Bench Mounting
Square28.0 x 28.0 mm
Rectangle22.0 x 30.0 mm
Sheet steel (S235)2.5 mm
Punchable plastics4.0 mm
