Alfra GmbH BS120 Busbar Bending, Punching Machine with AHP-M Electro Hydraulic Pump 03912

Alfra BS120 Busbar Bending, Punching Machine with AHP-M Electro Hydraulic Pump

Product ID: 03912

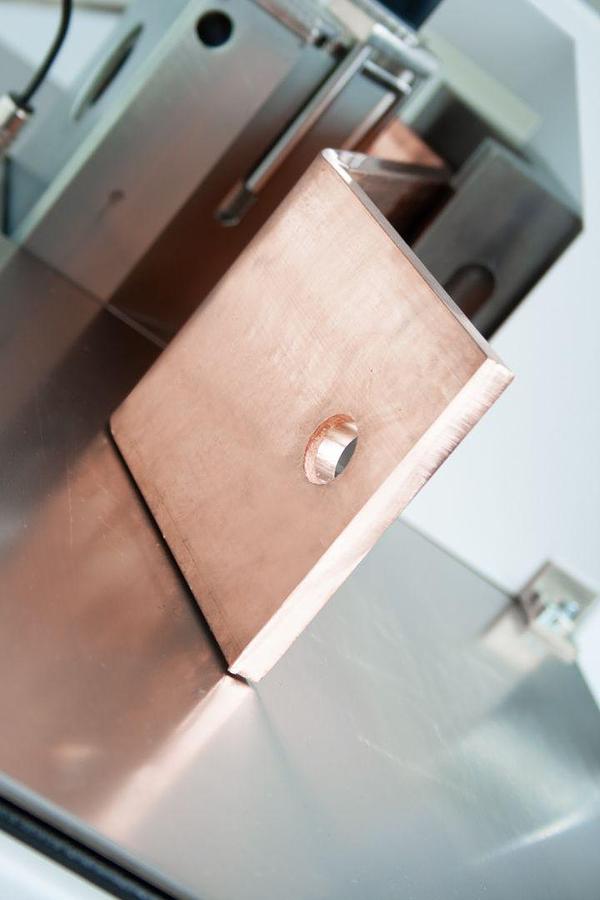

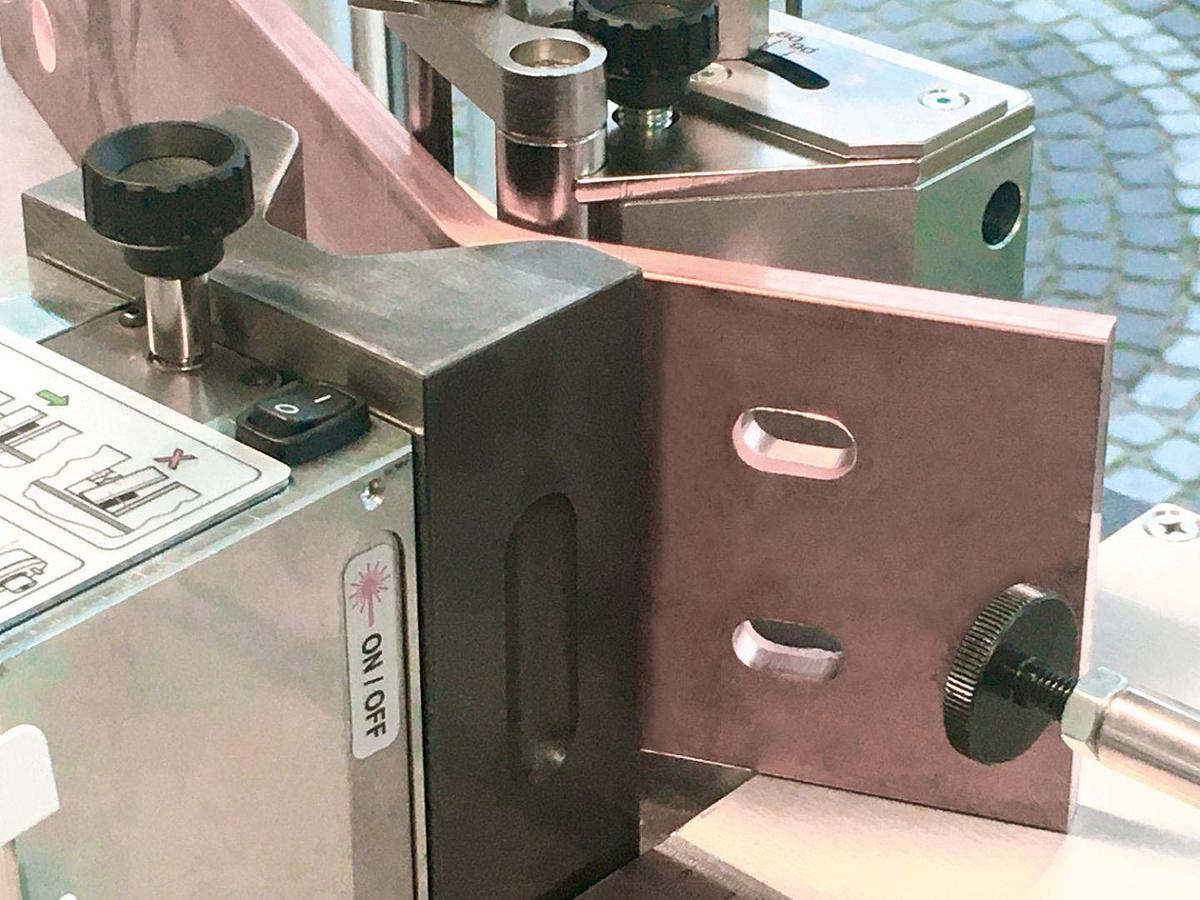

Where electricity flows, millimeters matter. Alfra's busbar bending and hole punching machine ensures that the conductive copper busbars fit precisely into the switch cabinet - thanks to an electrical angle reader, bending die and length stop. When the switch is set to 'Bending', the bending die only has to be inserted into the hydraulic piston. The desired angle is fixed by means of a set screw. The universal working cylinder is bending conductor rails with the dimensions 120 mm X 12 mm. One device, two functions: When the switch is set to 'Punch', the BS120 punches holes with a diameter between 6.6 mm and 21.5 mm or oblong holes, depending on the used hole puncher.

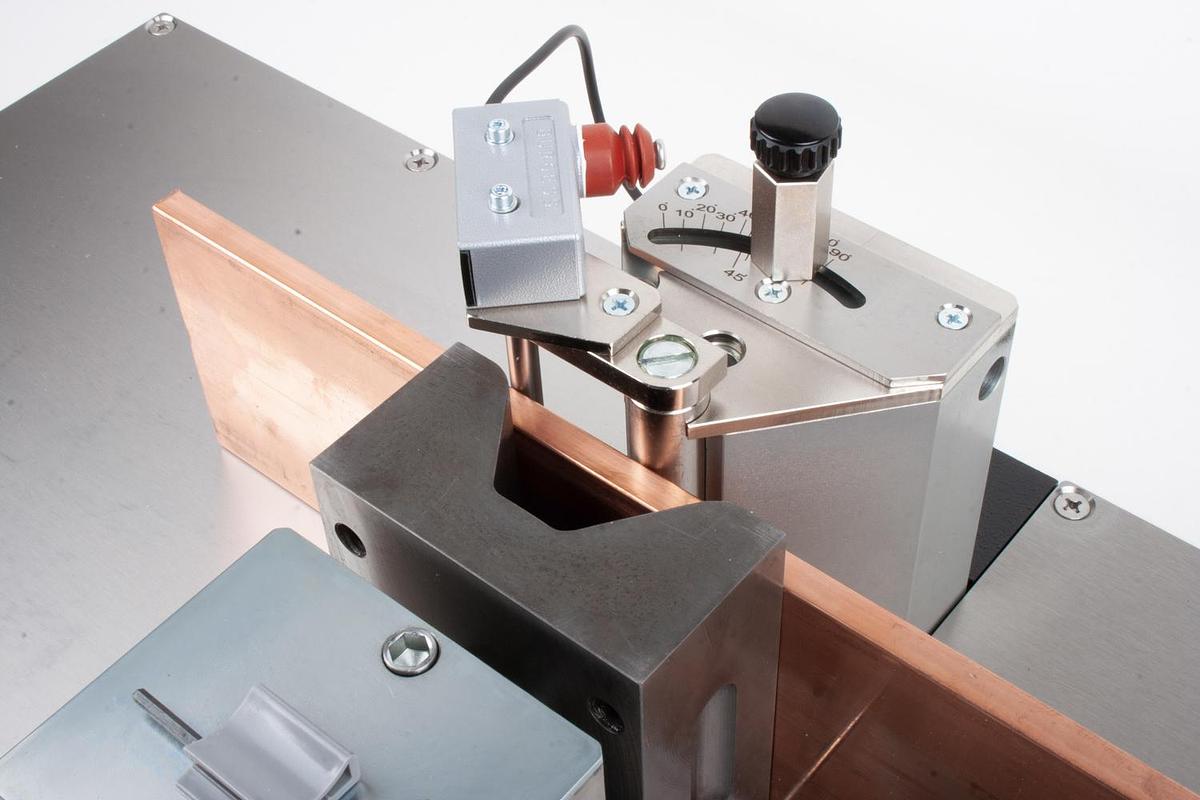

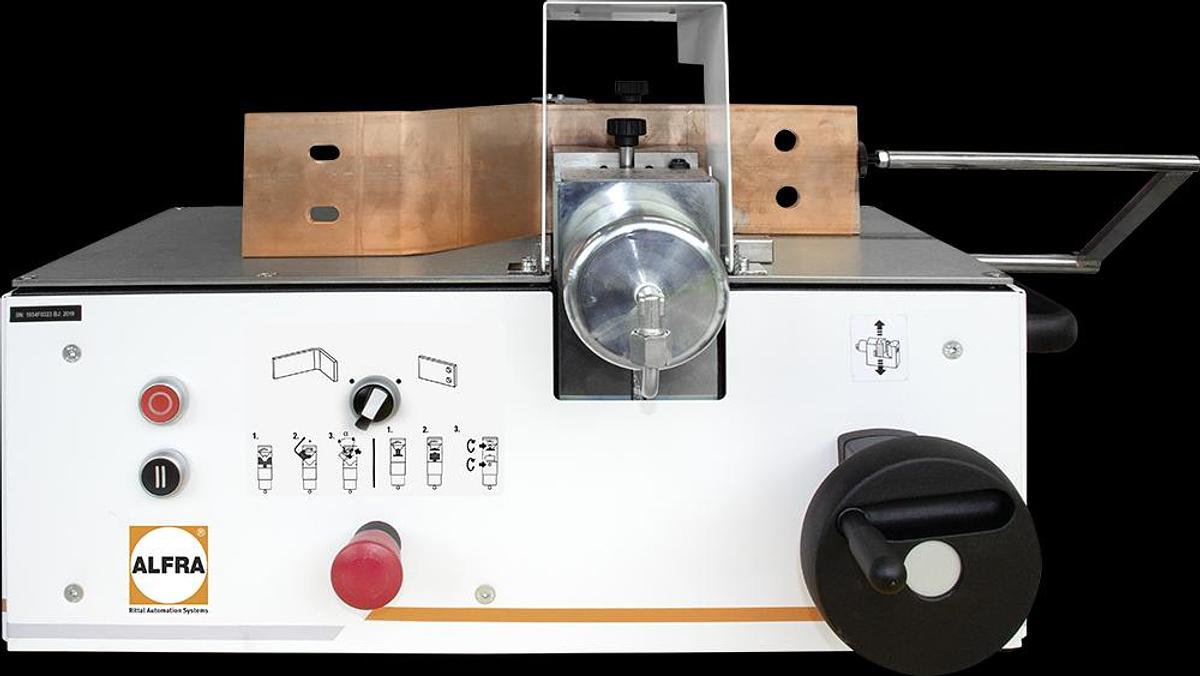

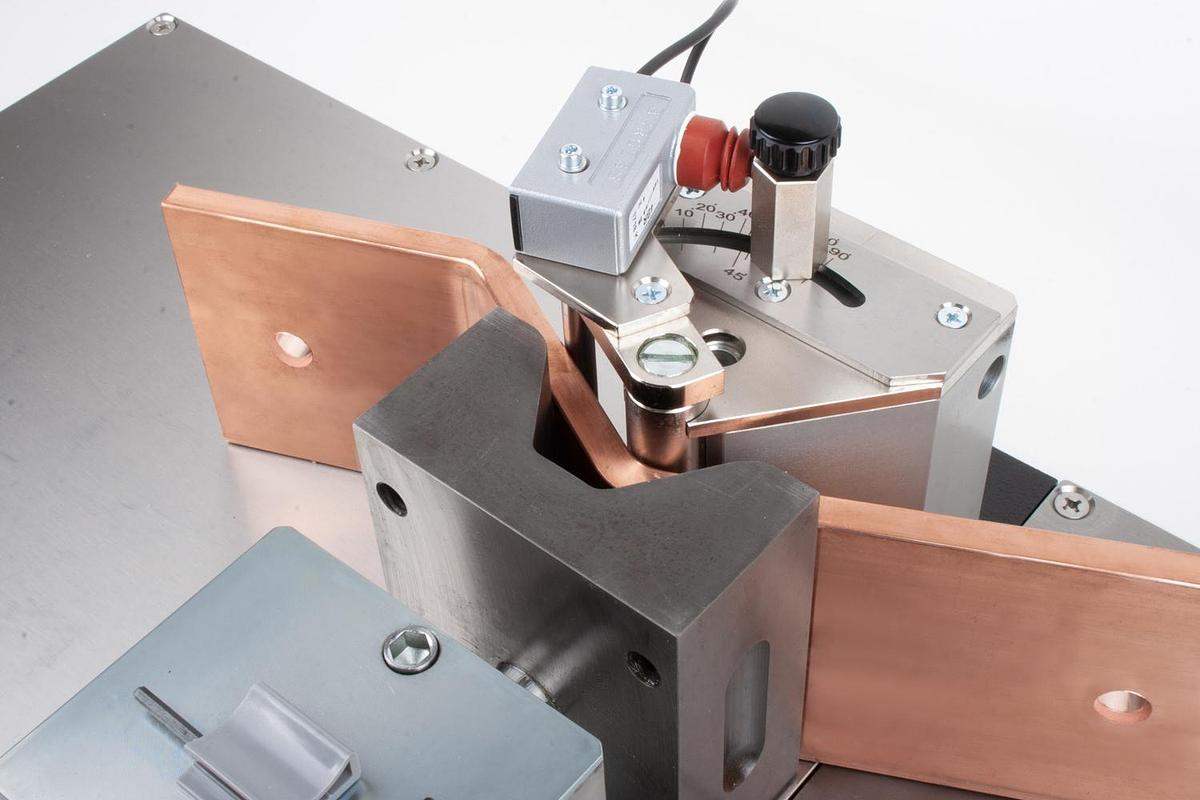

ALFRA busbar bending and hole punching device with electrical angle measurer R10, bending die R10

and length limit stop and electro-hydraulic pump AHP M1 & Foot Pedal

Technical Specifications:

Bending Bending Cu max: 120 x 12 mm

Bending up to: more than 90°

smallest leg length: 50 mm

smallest U-bend: 100 mm

smallest Z-bend: 72 mm (depending on material thickness)

The values stated are based on copper rails 120 x 10 mm

Punching Punching Cu: 6.6 - 21.5 mm also longitudinal hole up to max. L = 21 mm

Material thickness Cu max: 12 mm

Material width up to: 110 mm central

External dimensions L x W x H: 700 x 410 x 410 mm

Weight: 60 kg
