Alfra GmbH Busbar Bending/Punching Unit Set 03200SET.NG

5

Germany

orCall +353 838108745

Description

Alfra Busbar Bending/Punching Unit


Product ID: 03200SET.NG

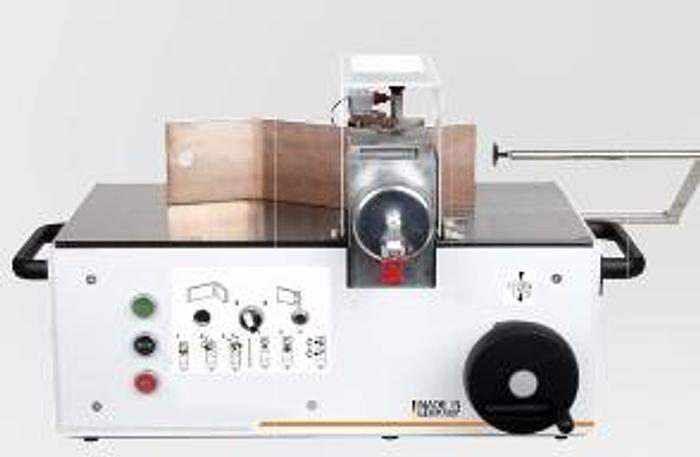

ALFRA busbar bending and hole punching machine complete with electrical angle measurer R10, bending die R10

and length limit stop


Where electricity flows, millimeters matter. Alfra's busbar bending and hole punching machine ensures that the conductive copper busbars fit precisely into the switch cabinet - thanks to an electrical angle reader, bending die and length stop. When the switch is set to 'Bending', the bending die only has to be inserted into the hydraulic piston. The desired angle is fixed by means of a set screw. The universal working cylinder is bending conductor rails with the dimensions 120 mm X 12 mm. One device, two functions: When the switch is set to 'Punch', the BS120 punches holes with a diameter between 6.6 mm and 21.5 mm or oblong holes, depending on the used hole puncher.


Technical Specifications:

Bending Bending Cu max: 120 x 12 mm

Bending up to: more than 90°

Smallest leg length: 50 mm

Smallest U-bend: 100 mm

Smallest Z-bend: 72 mm (depending on material thickness)

The values stated are based on copper rails 120 x 10 mm

Punching Punching Cu: 6.6 - 21.5 mm also longitudinal hole up to max. L = 21 mm

Material thickness Cu max: 12 mm

Material width up to: 110 mm central

External dimensions L x W x H: 700 x 410 x 410 mm

Weight: 60 kg

Specifications

ManufacturerAlfra GmbH
ModelBusbar Bending/Punching Unit Set 03200SET.NG
ConditionNew
Product ID03200SET.NG
Bending Bending Cu max120 x 12 mm
Bending up tomore than 90°
Smallest leg length50 mm
Smallest U-bend100 mm
Material thickness Cu max12 mm
Material width up to110 mm central
Weight60 kg
