€3,322 + VAT

Alfra GmbH AHP-M1 Electro Hydraulic Pump

5

Germany

orCall +353 838108745

Description

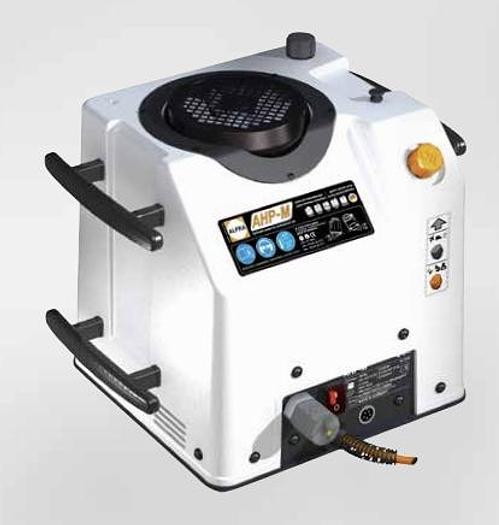

ALFRA electro-hydraulic pump AHP M1


Product No: 03855


Product Description

Curtain up for the power package among our hydraulic pumps. The AHP M1 is the most powerful pump in the ALFRA product range with a maximum flow rate of 1.1 liters per minute. The possibilities for application are correspondingly wide. The AHP -M1 supplies the required drive energy for our numerous devices for the processing of conductor rails, just as reliably as for our large stationary hole punchers AP 250 and AP 400. In connection with the optionally available hand or foot switch, you can even operate our hydraulic cylinders SKP-1 and SKP-1 mini with the high-performance pump.


Technical specifications:

Max. pressure: 700 bar

Max. pumping capacity: 1.1 l/min

Oil type: HLP 46

Fill volume: 3.2 l

Active volume: 2.2 l

Weight: 29 kg

Operating voltage: 230 V / 50 Hz

Rating: 1.3 kW

Power consumption: 5.65 A

Motor speed: 2800 1/min

Specifications

ManufacturerAlfra GmbH
ModelAHP-M1 Electro Hydraulic Pump
ConditionNew
Product No03855
Max. pressure700 bar
Max. pumping capacity1.1 l/min
Oil typeHLP 46
Fill volume3.2 l
Active volume2.2 l
Weight29 kg
Rating1.3 kW
Power consumption5.65 A
Motor speed2800 1/min
