Alfra GmbH SP-V Universal Magnetic Drill Stand
Description
Alfra SP-V Universal Magnetic Drill Stand
Type: Universal Drill Stand
Product No: 18343
Description

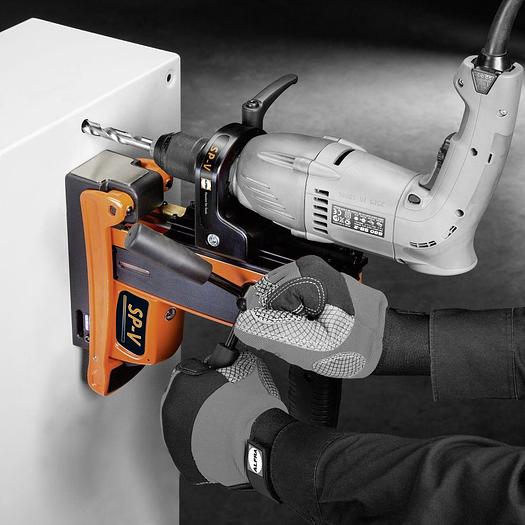

One for all! Our universal drill rig SP-V is a flexible partner for a large variety of dilling machines. The principle: maximum holding power even on thin-walled materials. The permanent magnet in the drill stand is based on our patented technology TML (Thin Material Lifting) and is fixing your core drilling machine on metals from a thickness of only 2mm. The variable holders and the Euro collar are offering a wide range of combination possibilities with different drill neck diameters. Another advantage: With only 6.8 kg the SP-V is a genuine lightweight and therefore a valuable and handy assistant on construction sites, in shipyards or in metal processing companies.
Technical Specifications:
Twist drill: Ø depending on the respective drilling machine used

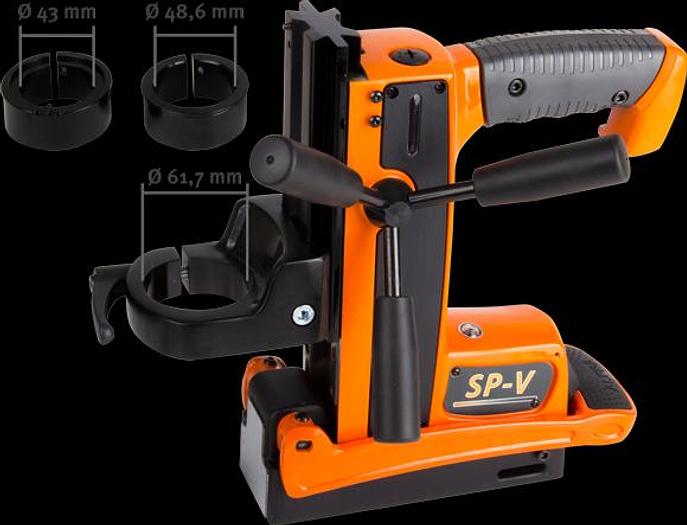

Arbor: Euro Adaptor Ø 43 mm
Stroke: 105 mm
Height adjustment: 80 mm
Magnetic holding force: 17,000 N
Tool-Force (10 mm): 2,800 N
Min. material thickness: from 2 mm

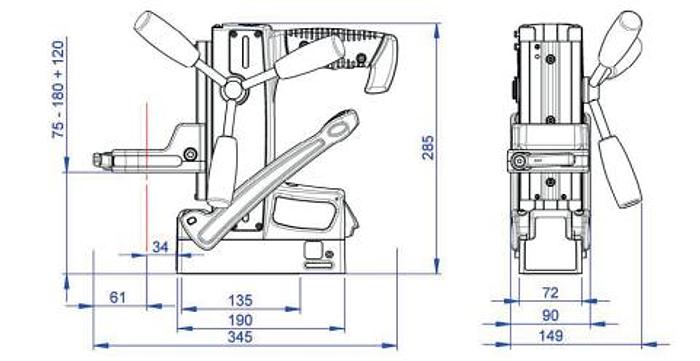

Magnetic base: 72 x 190 mm
Weight: 6.8 kg
Features:
Operation
Soft-touch grips
Magnet
Permanent magnet
Specifications
| Manufacturer | Alfra GmbH |
| Model | SP-V Universal Magnetic Drill Stand |
| Condition | New |
| Type | Universal Drill Stand |
| Product No | 18343 |
| Stroke | 105 mm |
| Height adjustment | 80 mm |
| Magnetic holding force | 17,000 N |
| Tool-Force (10 mm) | 2,800 N |
| Min. material thickness | from 2 mm |
| Magnetic base | 72 x 190 mm |
| Weight | 6.8 kg |
| Twist drill: | Ø depending on the respective drilling machine used |
| Arbor: | Euro Adaptor Ø 43 mm |
