€1,960 + VAT

Alfra GmbH Alfra Rotabest Vacuum System Vacubest

5

Germany

orCall +353 838108745

Description

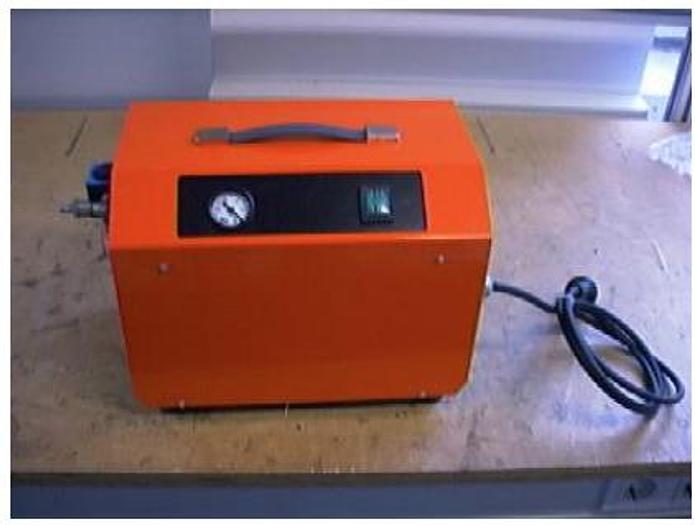

Alfra Rotabest Vacuum System Vacubest

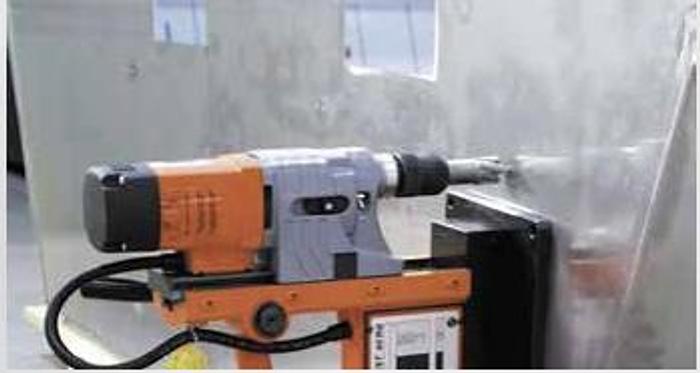

The Vacubest vacuum system is perfect in teamwork with our RB 50 X Vacubest core drilling machine and with any other core drilling machines. The suction pump is ensuring maximum grip on non-ferromagnetic materials. Thanks to a maximum pressure of 200 bar, the 400 X 200 mm suction plate is adhering securely to the substrate - for safe and precise drilling of surfaces made of aluminum, copper, brass, stainless steel, plastics and structured surfaces, such as checker and bulb plates.

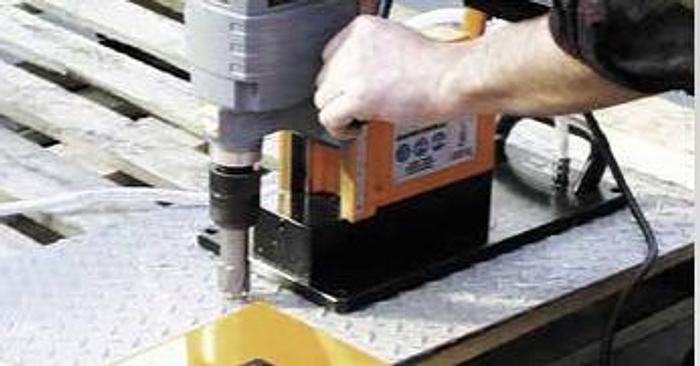

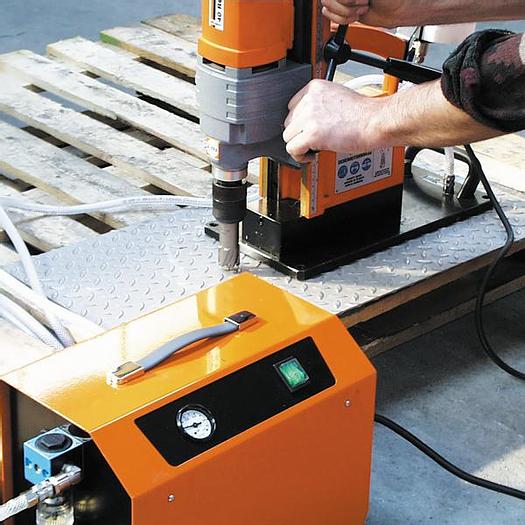

Simply lay the vacuum plate onto the material to be drilled and turn on the vacuum system. The Magnetic Drill can then be placed on the vacuum plate and turned on.


Technical Specifications:

Rated voltage: 230 V

Frequency: 50 Hz

Input: 320 W

Nominal Current: 1,4 A

Fuse: 2,0 AT

End vacuum: -830 mbar ( 83 % )

Contactor: IP 44

Environmental temperature: 10°C – 40°C

Weight: 8,5 kg

Suction capacity: 1.5 m3 /h – 25l/min

Max. vacuum mbar (abs.): 200

Overpressure mbar: 300

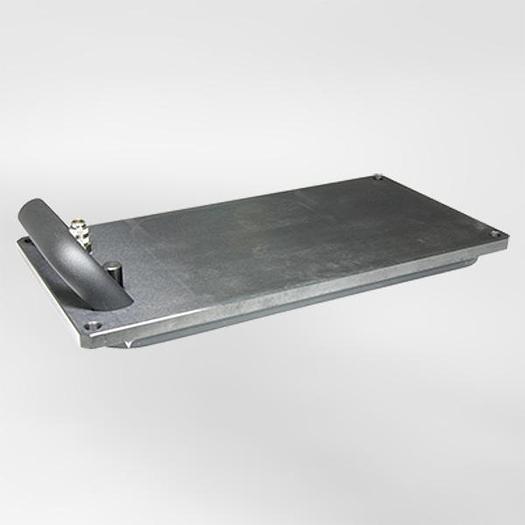

Dimensions suction plate: 400 x 200 mm

Scope of delivery: Pump (230 V, 50 Hz), vacuum plate, 3, mtr. suction pipe


Specifications

ManufacturerAlfra GmbH
ModelAlfra Rotabest Vacuum System Vacubest
ConditionNew
Stock Number18150
Rated voltage230 V
Frequency50 Hz
Input320 W
Nominal Current1,4 A
Fuse2,0 AT
ContactorIP 44
Environmental temperature10°C – 40°C
Weight8,5 kg
Max. vacuum mbar (abs.)200
Overpressure mbar300
Dimensions suction plate400 x 200 mm
