€2,459 + VAT @ 23%

Alfra GmbH RB 100 RL-E , 230V

5

Germany

orCall +353 838108745

Description

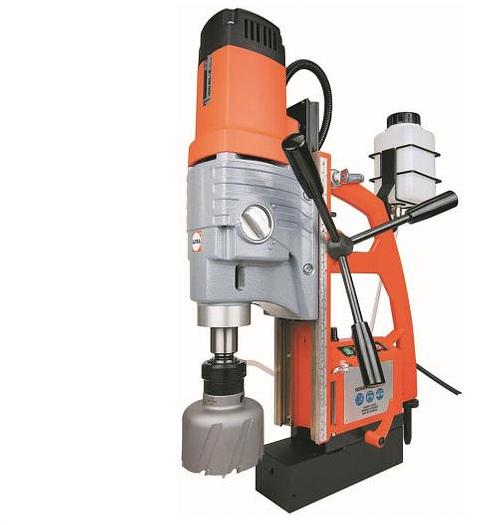

Alfra Drilling Machines RB 100 RL-E , 230V

The magnetic core drilling machine can be fixed with a switchable electromagnet on ferromagnetic workpieces. The electromagnet and the motor can be switched on and off with the large buttons of the control panel.

This device is destined to cut material with magnetisable surface with core cutters, twist drills and to tap threads in sheltered environment for commercial use industry and craft. The device is suitable for drilling vertical, horizontal and overhead.


Technical Specifications:

Core drill dimensions: Ø 12.0 - 100.0 mm / Ø 20.0 - 50.0 mm (extra long 110 mm)

Cutting depth: 50.0 mm / 110.0 mm

Twist drill: Ø 1.0 - 16.0 mm with drill chuck up to Ø 32.0 mm with MT3 DIN 345

Counterboring: Ø 10.0 - 55.0 mm

Tapping: with tapping chucks: up to M30 with tapping attachment: up to M30

Arbor: MT3

Stroke: 245 mm

Height adjustment: 116 mm

Gearbox – on-load speed: right/left 1. Step 50 - 150 rpm 2. Step 75 - 230 rpm 3. Step 100 - 310 rpm 4. Step 160 - 490 rpm

Power consumption: 2,500 W (230 V) 2,400 W (110 V)

Voltage: 230 V 50/60 Hz 110 V 50/60 Hz

Magnetic holding force: 20,000 N

Tool-Force (10 mm): 4,000 N

Min. material thickness: 10 mm

Magnetic base: 92 x 238 mm, 30° adjustable right and left, 10 mm front and back

Weight: 28.0 kg



Features:

Motor

Smooth Start

Full-wave control electronics

Right/left run

Overload protection



Gearboxes

Oil bath gearbox

Mechanical slipping clutch



Slide

Stepless adjustment



Operation

Soft-touch grips

Membrane keyboard



Magnet

Metal Rings


Specifications

ManufacturerAlfra GmbH
ModelRB 100 RL-E , 230V
ConditionNew
ArborMT3
Stroke245 mm
Height adjustment116 mm
Magnetic holding force20,000 N
Tool-Force (10 mm)4,000 N
Min. material thickness10 mm
Weight28.0 kg
