€6,950 + VAT

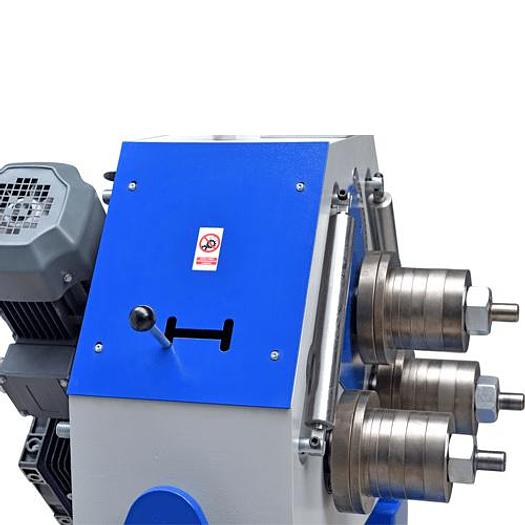

RHTC PB 50-3H (Hydraulic) Profile Bending Machine

5

Netherlands

orCall +353 838108745

Description

RHTC Presses PB 50-3H


he Profi Bend PB 50-3H is a profile bending machine with a shaft diameter of 50 mm. With the Profi Bend you can bend a huge variety of different profiles. And in almost any desired radius. The profile bender consists of two lower guide rolls and one top roll whose working position can be adjusted by means of the hand pump / hydraulic system. Thanks to this hydraulic system you can set and adjust the position of the top roll very precisely.


Our Profi Bend profile bending machines have 2 working positions: a vertical position and a horizontal position. It is very easy to switch between these two positions. The 3 rolls are driven by a motor. It is possible to disconnect the upper bending roll from the drive, so you can work with 2 or with 3 driven rolls. The turning directions of the rolls is controlled by the foot pedal of this roll bender.


Available in:

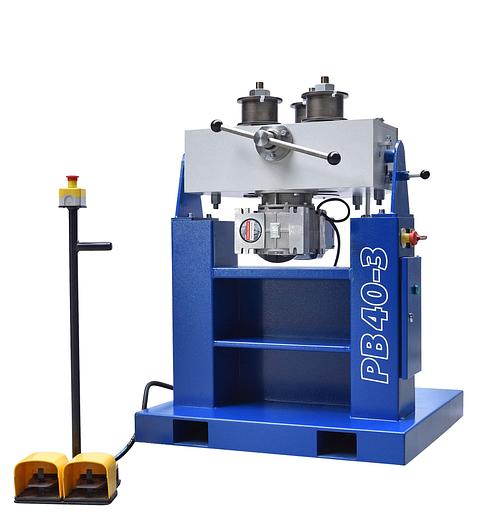

PB 40-3

PB 50-3

PB 50 -3H (hydraulic)


Technical specifications:

Shaft diameter [mm]: 50

Roll diameter [mm]: 150

Rotational speed of rollers [rpm]: 10

Voltage [v/Hz]: 400/50

Driving motor [kW]: 1.5

Adjusting way [mm]: 120

Weight [kg]: 355

Total length [mm]: 1200

Total width [mm]: 800

Overall height [mm]: 1750


Features:

Vertical and horizontal working position

Three driven rolls

Foot pedal

Delivered with standard set of rollers


Capacities

20 x 6mm ø300mm

60 x 10mm ø500mm


50 x 10mm ø300mm

100 x 15mm ø400mm



15mm ø250mm

35mm ø600mm



25 x 25 x 4mm ø350mm

50 x 50 x 6mm ø500mm



30 x 30 x 4mm ø350mm

60 x 60 x 6mm ø800mm



30 x 30 x 4mm ø350mm

60 x 60 x 6mm ø800mm



30 x 15 x 4mm ø300mm

80 x 45 x 6mm ø600mm



30 x 15 x 4mm ø350mm

80 x 45 x 6mm ø800mm



10mm ø250mm

35mm ø500mm



30 x 1.5mm ø600mm

70 x 1.5mm ø1500mm



20 x 20 x 2mm ø250mm

50 x 50 x 3mm ø1400mm



Optional accessories:

Special sets of rollers (steel or plastic)

Spiral bending device

Yoke

Distance rollers

Specifications

ManufacturerRHTC
ModelPB 50-3H (Hydraulic) Profile Bending Machine
ConditionNew
Shaft diameter [mm]50
Roll diameter [mm]150
Voltage [v/Hz]400/50
Driving motor [kW]1.5
Adjusting way [mm]120
Weight [kg]355
Total length [mm]1100
Total width [mm]800
Overall height [mm]1400
