€108,435 + VAT

RHTC PPRM - 500 Production Press

5

Netherlands

orCall +353 838108745

Description

RHTC Presses PPRM - 500


This heavy-duty 500 ton hydraulic press is suitable for stamping, die-cutting, deep-drawing and forming of sheet metal. This production press can be incorporated in automated production lines as well.

We produce this robust production press in Europe. Delivered according to the latest CE-standards: high quality guaranteed!

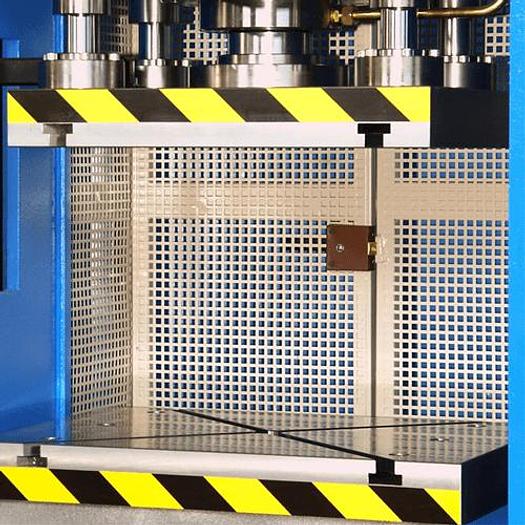

The production presses are equipped with a mechanized upper- and lower table with T-grooves. Four cylindrical, lateral guides are installed to ensure perfect alignment in the vertical movement of the upper table.

Adjustments to the position of the upper table (piston stroke) and changes in speed are controlled from a side control panel.

The control panel features a selector for manual, semi-automatic or automatic operation and a selector for the two different cylinder speeds (fast approach speed and slow working speed). It also contains a pressure switch and manometer. Operation of these PPRM-models is carried out by a foot pedal.

The production presses are equipped with level IV light guards situated at the front of the press, two fixed lateral protection panels and protection panels (which can be opened) with a magnetic detector disconnection switch situated at the rear.


Available in:

PPRM-80

PPRM-100

PPRM-150

PPRM-220

PPRM-300

PPRM-500


Technical specifications:

Pressure force [tn]: 500

Motor power [kW]: 15

Working speed [mm/sec]: 2.4

Approaching speed [mm/sec]: 10

Returning speed [mm/sec]: 17

Piston stroke [mm]: 500

Vertical light [mm]: 700

Frontal light [mm]: 1150

Lower table size [mm]: 1000 x 850

Upper table size [mm]: 1000 x 800

Guides diameter [mm]: 80

Table- / working height [mm]: 1000

Total length (lateral) [mm]: 1470

Total width (frontal) [mm]: 2585

Overall height [mm]: 3610

Weight [kg]: 12150


Features:

Rigid and robust machine frame

Upper- and lower table with T-grooves

Four cylindrical lateral guides for a perfect alignment of the upper table

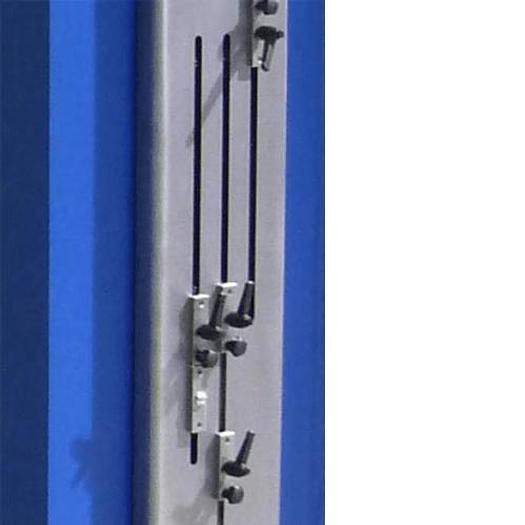

Adjustable piston stroke with end-stroke switches

Selector for manual / semi-automatic / automatic operation

Selector for working with 1 or 2 speeds

Pressure switch and manometer


Optional accessories:

PLC SIEMENS mod. SIMATIC S7 1200 with 7” touch screen mod. KTP-700

High speed approach by prefilling valves and lateral cylinders

Hydraulic cushion

Hydraulic ejector placed in the upper- or lower table or in both tables

Cooling equipment for the hydraulic group by an air-oil cooling system



Specifications

ManufacturerRHTC
ModelPPRM - 500 Production Press
ConditionNew
Pressure force [tn]500
Motor power [kW]15
Working speed [mm/sec]2.4
Approaching speed [mm/sec]10
Returning speed [mm/sec]17
Piston stroke [mm]500
Vertical light [mm]700
Frontal light [mm]1150
Lower table size [mm]1000 x 850
Upper table size [mm]1000 x 800
Guides diameter [mm]80
Total length (lateral) [mm]1470
Total width (frontal) [mm]2585
Overall height [mm]3610
Weight [kg]12150
