€124,275 + VAT

RHTC PPMV-220 4 Column Press

5

Netherlands

orCall +353 838108745

Description

RHTC Presses PPMV-220


This 220 ton hydraulic press with four columns is manufactured with 4 cylindrical columns to ensure a perfect parallelism of the upper table. We recommend this type of hydraulic press when you have work that requires a high accuracy or for special deep-drawing tasks.

Profi Press four column presses have a manual, semi-automatic or automatic mode and the presses work with 2 different cylinder speeds. The cylinder stroke and the speed-change position are easy to set with limit-switches. Furthermore, these models include a pressure switch, a manometer in tons and are operated by an electric foot pedal.

All our hydraulic presses comply with CE-regulations and work with a hydraulic pressure lower than 320 bar to guarantee a great durability. Our 220 ton hydraulic press with four columns is made in Europe and we guarantee an extremely high quality of this press.


These hydraulic four column presses are suitable for forming, stamping, die-cutting and deep-drawing. Made in Europe.

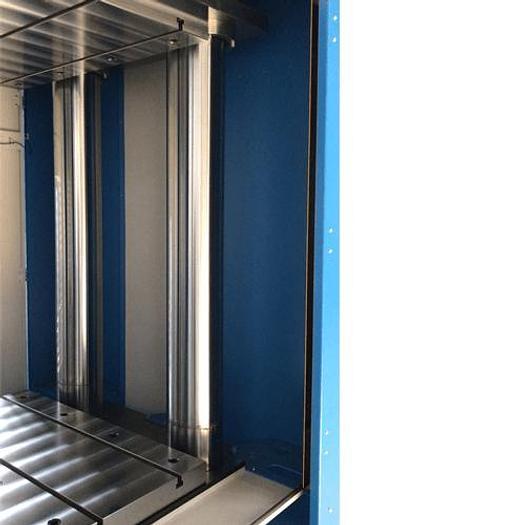

The four column presses are equipped with a mechanized upper- and lower table with T-grooves. Four cylindrical, chromed columns are installed to ensure perfect parallelism and alignment in the vertical movement of the upper table. Also equipped with level IV light guards situated at the front of the press, two fixed lateral protection panels and one protection panel (which can be opened) with a magnetic detector disconnection switch situated at the rear.

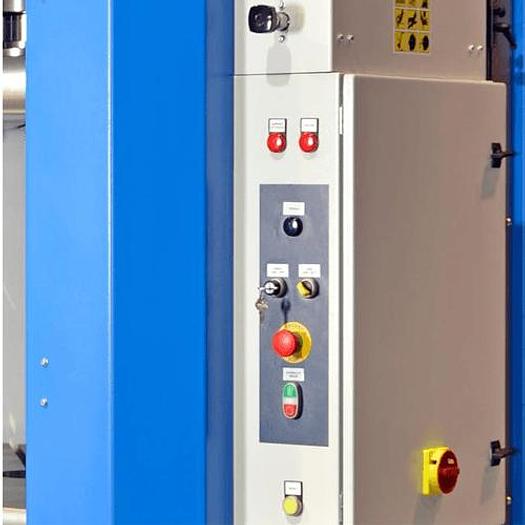

The control panel features a selector for manual, semi-automatic or automatic operation and a selector for the two different cylinder speeds (fast approach speed and slow working speed). It also contains a pressure switch and manometer. Operation of these PPMV-models is carried out by a foot pedal and the cylinder stroke is easy to adjust with the end-stroke switches on the side of the presses.


Available in:

PPMV-50

PPMV-80

PPMV-100

PPMV-150

PPMV-220

PPMV-300


Technical specifications:

Force [tn]: 220

Motor power [kw]: 11

Working speed [mm/sec]: 3.8

Approaching speed [mm/sec]: 17

Return speed [mm/sec]: 30

Piston stroke [mm]: 450

Guides diameter [mm]: 120

Useful table size [mm]: 1200 x 950

Between columns [mm]: 1200 x 590

Vertical light [mm]: 750

Working height [mm]: 900

Total length (lateral) [mm]: 1450

Total width (frontal) [mm]: 2240

Overall height [mm]: 3125

Weight [mm]: 8500


Features:

Rigid and robust machine frame, made out of S355JR steel

Upper- and lower table with T-grooves

Four chromed and rectified cylindrical columns for a perfect parallelism

Adjustable piston stroke with end-stroke switches

Selector for manual / semi-automatic / automatic mode

Selector for working with 1 or 2 speeds

Pressure switch and manometer


Optional accessories:

Proportional valves for pressure and flow

PLC SIEMENS mod. SIMATIC S7 1200 with 7” touch screen mod. KTP-700

A frontal sliding lower table

Adaptations to robotics

Hydraulic connections for peripheral systems

Higher speeds by prefilling valves and auxiliary cylinders

Hydraulic cushion or ejector

Cooling equipment for the hydraulic group by an air-oil cooling system



Specifications

ManufacturerRHTC
ModelPPMV-220 4 Column Press
ConditionNew
Force [tn]220
Motor power [kw]11
Working speed [mm/sec]3.8
Approaching speed [mm/sec]17
Return speed [mm/sec]30
Piston stroke [mm]450
Guides diameter [mm]120
Useful table size [mm]1200 x 950
Between columns [mm]1200 x 590
Vertical light [mm]750
Working height [mm]900
Total length (lateral) [mm]1450
Total width (frontal) [mm]2240
Overall height [mm]3125
Weight [mm]8500
