€114,885 + VAT

RHTC PPTL-300 Portal Press

5

Netherlands

orCall +353 838108745

Description

RHTC Presses PPTL-300


This 300 ton straightening press with movable frame is eminently suitable for straightening large and heavy structures and sheets. These Profi Press portal presses have an electric movable frame and a movable cylinder. Thanks to these features you have an easy access the different pressing and straightening points of the material. The longitudinal displacement of the frame is carried out by a frequency inverter and cogged belt to ensure precise slides. The lateral movement of the cylinder / headstock is motorised.

The large, lower table (2.600 x 4.000 mm) facilitates the loading and unloading of large parts and sheets. Operation of this 300 ton straightening press with movable frame is carried out by means of a pendant control station. This control station has an operation confirmation button and an emergency stop.

All our hydraulic portal presses meet and satisfy the essential health and safety requirements in accordance with the CE standards.


These portal presses are designed to carry out efficacies like the straightening of large sheets and structures. Thanks to the movable frame and the movable headstock you have easy access to all different points of the surface. Made in Europe.


Available in:

PPTL-150

PPTL-220

PPTL-30


Technical Specifications:


Force [tn]: 300

Motor power [kw]: 7.5

Working speed [mm/sec]: 2

Approaching speed [mm/sec]: 9.9

Return speed [mm/sec]: 14.7

Maximum pressure [bar]: 320

Piston stroke [mm]: 450

Table size (L x W) [mm]: 4000 x 2600

Horizontal light [mm]: 2620

Vertical light [mm]: 700

Headstock displacement [mm]: 1960

Frame displacement [mm]: 2940

Working height [mm]: 700

Total length [mm]: 4280

Total width [mm]: 3660

Overall height [mm]: 3120

Weight [kg]: 14000


Features

Motorised movable portal

Motorised movable cylinder

Cylinder stroke is easy to regulate with the end-stroke switches

Selector for manual / semi-automatic operation

Pressure regulator and manometer



Optional accessories

Milling table-plate (4000 x 2600 x 95 mm)

Small cylinders fitted in the lower table to lift pieces (each 2 ton power), connected to a second hydraulic group

Additional extension for the cylinder

Larger table sizes

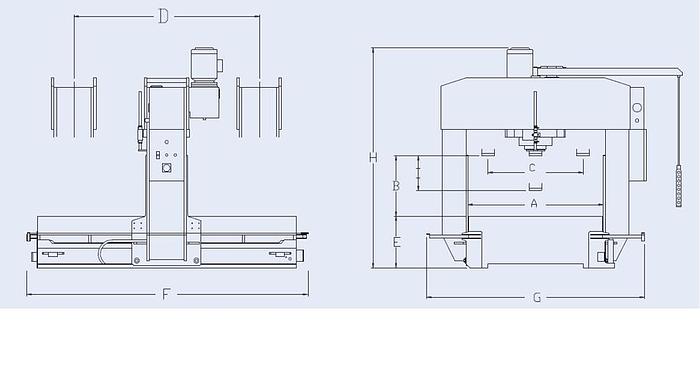

Dimensions in mm

A: 2620

B: 700

C: 1960

D: 2940

E: 700

F: 4280

G: 3660

H: 3120

( See diagram above)




Specifications

ManufacturerRHTC
ModelPPTL-300 Portal Press
ConditionNew
Force [tn]300
Motor power [kw]7.5
Working speed [mm/sec]2
Approaching speed [mm/sec]9.9
Return speed [mm/sec]14.7
Maximum pressure [bar]320
Piston stroke [mm]450
Horizontal light [mm]2620
Vertical light [mm]700
Headstock displacement [mm]1960
Frame displacement [mm]2940
Working height [mm]700
Total length [mm]4280
Total width [mm]3660
Overall height [mm]3120
Weight [kg]14000
