1995 Hurco Hawk 5M CnC Toolroom Milling Machine
Sold
Description
1995 Hurco Hawk 5M CNC Toolroom Milling Machine
Year: 1995

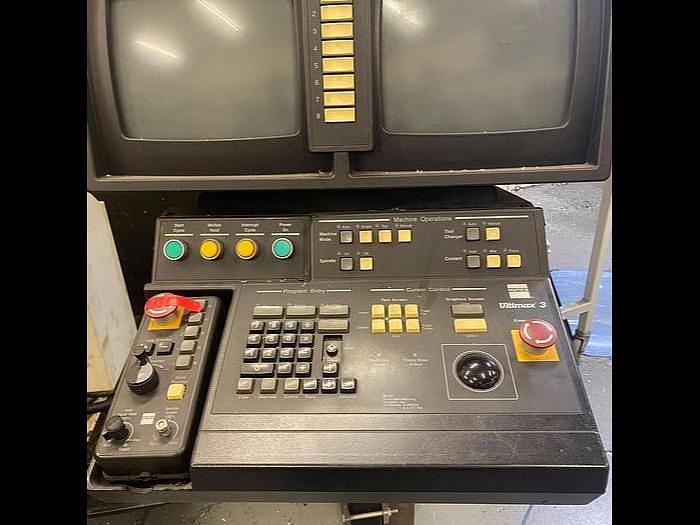

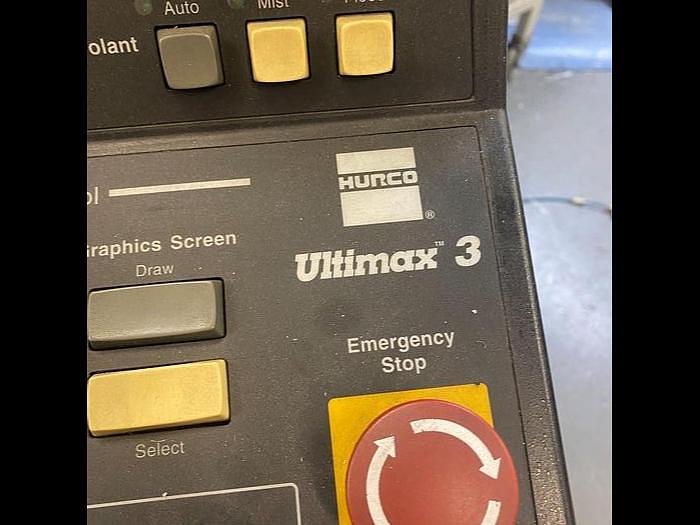

Control: Hurco Ultimax 3 Control
No. of Screens: 2
Technical Specifications
Table Size: 1070 x 330mm
X Axis Travel: 800mm
Y Axis Travel: 350mm
Z Axis Travel: 125mm
Knee Travel: 375mm
Spindle Taper: CAT 40

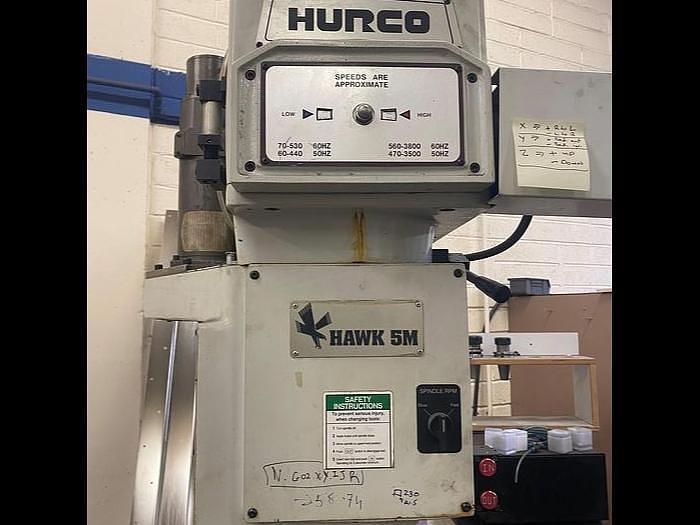

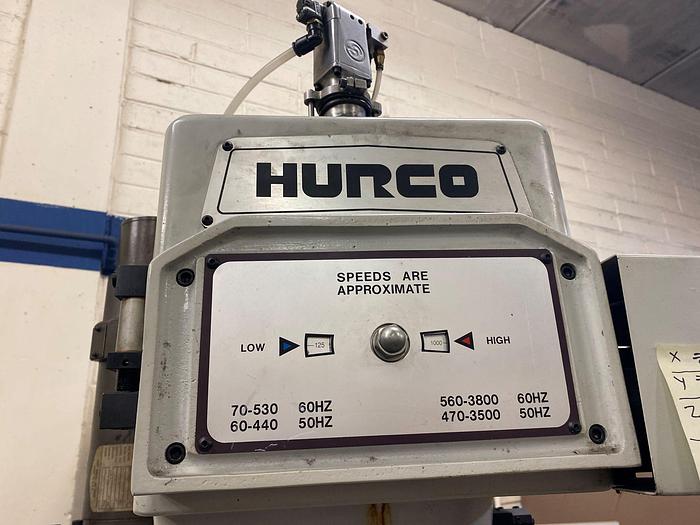

Spindle Speeds: 60 - 3500rpm
Spindle Drive: 5 HP
Rapid Traverse Rates (X,Y): 10m/min
Includes:
Coolant Equipment
Powerdraw Bar
Chip/Coolant Tray
Machine Footprint: 1600 x 1600 x 2400mm
Machine Weight: 2400kg
Specifications
| Manufacturer | Hurco |
| Model | Hawk 5M CnC Toolroom Milling Machine |
| Year | 1995 |
| Condition | Used |

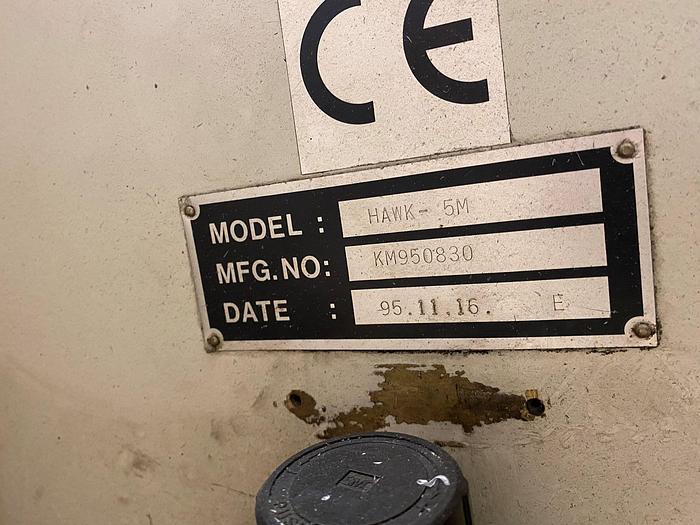

| Serial Number | KM950830 |
| Year | 1995 |
| Control | Hurco Ultimax 3 Control |
| No. of Screens | 2 |
| Table Size | 1070 x 330mm |
| X Axis Travel | 800mm |
| Y Axis Travel | 350mm |
| Z Axis Travel | 125mm |
| Knee Travel | 375mm |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 60 - 3500rpm |
| Spindle Drive | 5 HP |
| Rapid Traverse Rates (X,Y) | 10m/min |
| Machine Footprint | 1600 x 1600 x 2400mm |
| Machine Weight | 2400kg |
