€19,950 + VAT

RHTC PPTL-160 Portal Press

5

Netherlands

orCall +353 838108745

Description

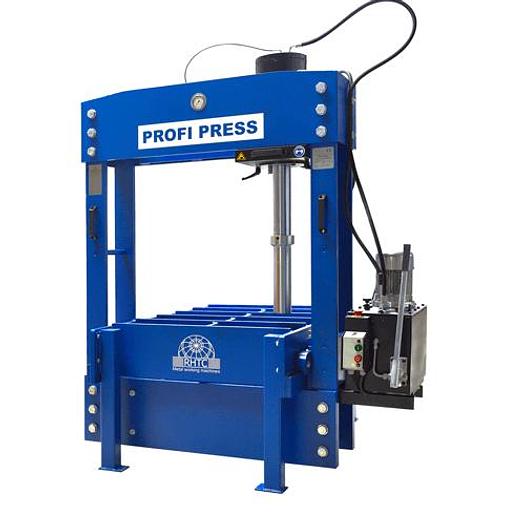

RHTC Presses PPTL-160


This 160 ton portal press has a manually movable portal and is exclusively made in the Netherlands.

Thanks to the movable portal and movable cylinder you can easily reach every point of the ‘to be pressed’ surface.

The design of this portal press makes it possible to place heavy material on the table with a crane and to slide the portal over the material when the pressing starts.

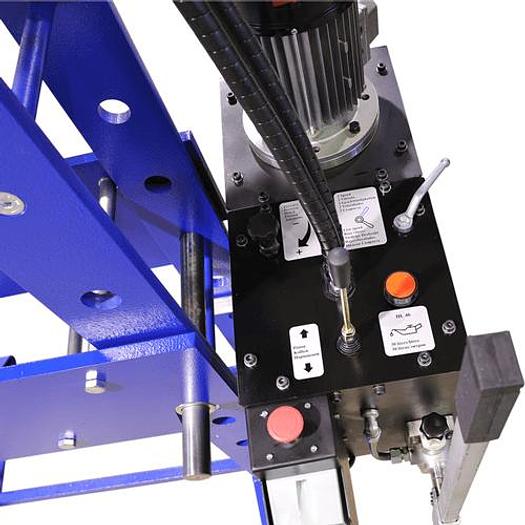

The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.

The operation of these presses is the same as our motorised workshop presses.


The portal presses with a manual movable portal are made out of quality steel, exclusively made in the Netherlands and eminently suitable for the straightening of large sheets and structures.

These presses are equipped with a movable headstock / cylinder (lateral) and a movable bridging frame (longitudinal) to have easy access to all different points of the surface. The movement of the cylinder and frame can be done manually



Technical specifications:


Pressure force [kN]: 1570

Motor power [kW]: 3

Working speed [mm/sec]: 2.40

Approaching speed [mm/sec]: 7.48

Return speed [mm/sec]: 9.35

Maximum pressure [bar]: 255

Piston stroke [mm]: 400

Table size (L x W) [mm]: 1740 x 996

Working width [mm]: 1100

Vertical light [mm]: 700

Working height [mm]: 760

Manual movable cylinder and frame

Total height [mm]: 2104

Total length [mm]: 1740

Total width [mm]: 1725

Weight [kg]: 2265


Features:

Movable portal

Movable cylinder

Cylinder extension to reach the table

Integrated pressure manometer

Pressure regulation

Hydraulic unit with two speeds

Joystick for the control of the piston

Hand pump for precise press work



Specifications

ManufacturerRHTC
ModelPPTL-160 Portal Press
ConditionNew
Pressure force [kN]1570
Motor power [kW]3
Working speed [mm/sec]2.40
Approaching speed [mm/sec]7.48
Return speed [mm/sec]9.35
Maximum pressure [bar]255
Piston stroke [mm]400
Working width [mm]1100
Vertical light [mm]700
Working height [mm]760
Total height [mm]2104
Total length [mm]1740
Total width [mm]1725
Weight [kg]2265
