RHTC PPTL-100 Potal Press
RHTC Presses PPTL-100

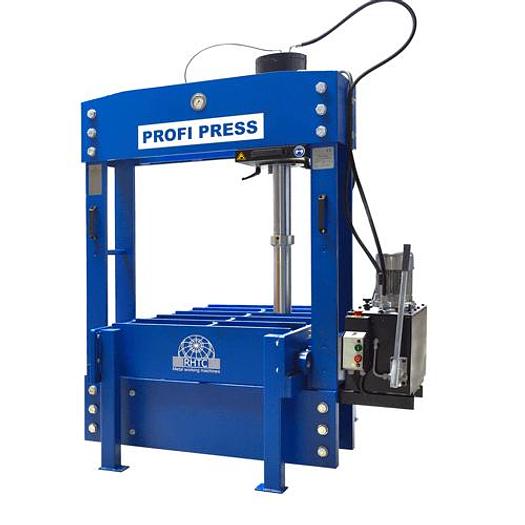

This 100 ton portal press has a manually movable portal and is exclusively made in the Netherlands.
Thanks to the movable portal and cylinder you can easily reach every point of the ‘to be pressed’ surface. The design of this portal press makes it possible to place heavy material on the table with a crane and to slide the portal over the material when the pressing starts.

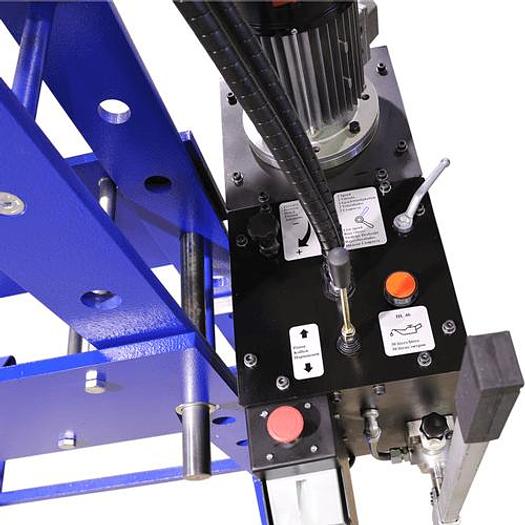

The quality of these hydraulic straightening presses is very high. Furthermore, the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.
The operation of these presses is the same as our motorised workshop presses.
The portal presses with a manual movable portal are made out of quality steel, exclusively made in the Netherlands and eminently suitable for the straightening of large sheets and structures.
These presses are equipped with a movable headstock / cylinder (lateral) and a movable bridging frame (longitudinal) to have easy access to all different points of the surface.
The movement of the cylinder and frame can be done manually.
Pressure force [kN]: 981
Motor power [kW]: 2.2
Working speed [mm/sec]: 2.47
Approaching speed [mm/sec]: 7.54
Return speed [mm/sec]: 9.06
Maximum pressure [bar]: 258
Piston stroke [mm]: 380
Table size (L x W) [mm]: 1740 x 996
Vertical light [mm]: 700
Working height [mm]: 720
Manually movable cylinder and frame
Total height [mm]: 2034
Total length [mm]: 1740
Total width [mm]: 1670
Weight [kg]: 1685
Manually movable portal
Movable cylinder (left – right)
Cylinder extension to reach the table
Integrated pressure manometer
Hydraulic unit with two speeds
Joystick for the control of the piston
Hand pump for precise press work
|Model||PPTL-100 Potal Press|
|Pressure force [kN]||981|
|Motor power [kW]||2.2|
|Working speed [mm/sec]||2.47|
|Approaching speed [mm/sec]||7.54|
|Return speed [mm/sec]||9.06|
|Maximum pressure [bar]||258|
|Piston stroke [mm]||380|
|Vertical light [mm]||700|
|Working height [mm]||720|
|Total height [mm]||2034|
|Total length [mm]||1740|
|Total width [mm]||1670|
