€7,150 + VAT

RHTC 100 ton M/H-M/C-2 Motorized Workshop Press

5

Netherlands

orCall +353 838108745

Description

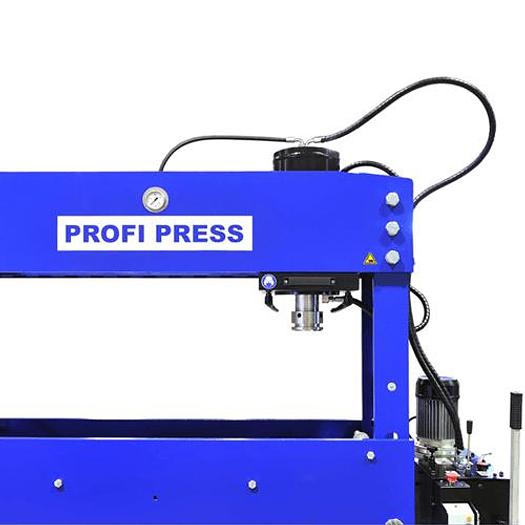

RHTC Presses 100 ton M/H-M/C-2


Our 100 ton hydraulic press is equipped with a movable cylinder (left-right) and an in-height adjustable working table. Furthermore, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.


The motorized workshop presses from RHTC are exclusively made in the Netherlands and eminently suitable for general assembly and straightening work or testing work pieces: a must-have for every workshop.

These Profi Press models are made out of quality steel and the hydraulic system is very precise, whether operated electrically or manually with its hand pump.


Available in:

30 TON M/H-2

60 TON M/H-M/C-2

100 TON M/H-M/C-2

100 TON M/H-M/C-2 D=1500

160 TON M/H-M/C-2

160 TON M/H-M/C-2 D=1500

200 TON M/H-M/C-2

300 TON M/H-M/C-2


Technical specifications:

Pressure force [kN]: 981

Maximum pressure [bar]: 258

Piston stroke [mm]: 380

Oil delivery [ltr/min]: 5.64/17.2

Oil capacity [dm³]: 46

Working speed [mm/sec]: 2.47

Approaching speed [mm/sec]: 7.54

Return speed [mm/sec]: 9.06

Motor power [kW]: 2.2

Voltage [V]: 400/3

Frequency [Hz]: 50/60

Revolutions per minute [rpm]: 3000

Insulation protection [IP]: 54

Working width [mm]: 1100

Weight [kg]: 970


Diameters:


Inside diameter of cylinder [mm]: 220

Diameter of piston rod [mm]: 90

Diameter of piston head [mm]: 120


Features:

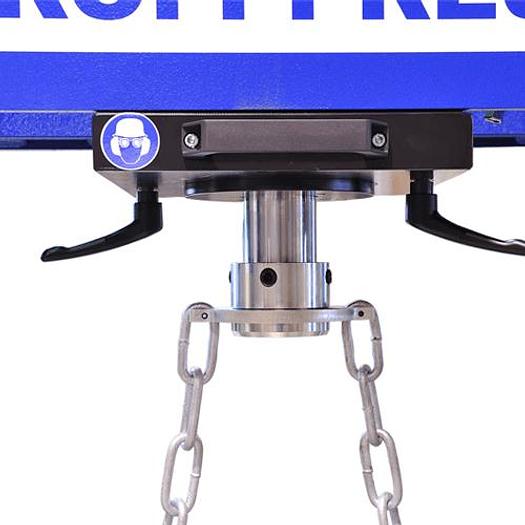

Movable cylinder (left-right)

Integrated pressure manometer

Pressure regulation

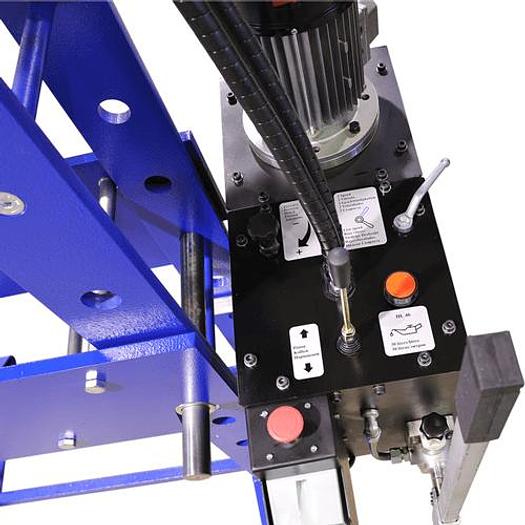

Hydraulic unit with two speeds

In height adjustable working table

Joystick for the control of the piston

Hand pump for precise press work


Optional Accessories:


Foot pedal or hand remote controller

V-block set for extra support

Mandrel set of ∅ 18, 33, 45, 58 and 72 mm (with suitable piston head for the 100 ton workshop press).

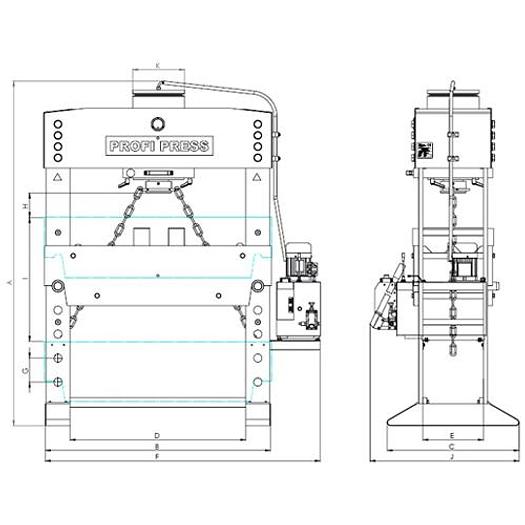

Dimensions:


A: 2140

B: 1350

C: 755

D: 1100

E: 300

F: 1665

G: 150

H: 180

I: 750

J: 865

K: 250

(See above diagram)





Specifications

ManufacturerRHTC
Model100 ton M/H-M/C-2 Motorized Workshop Press
ConditionNew
Pressure force [kN]981
Maximum pressure [bar]258
Piston stroke [mm]380
Oil delivery [ltr/min]5.64/17.2
Oil capacity [dm³]46
Working speed [mm/sec]2.47
Approaching speed [mm/sec]7.54
Return speed [mm/sec]9.06
Motor power [kW]2.2
Voltage [V]400/3
Frequency [Hz]50/60
Revolutions per minute [rpm]3000
Insulation protection [IP]54
Working width [mm]1100
Weight [kg]970
