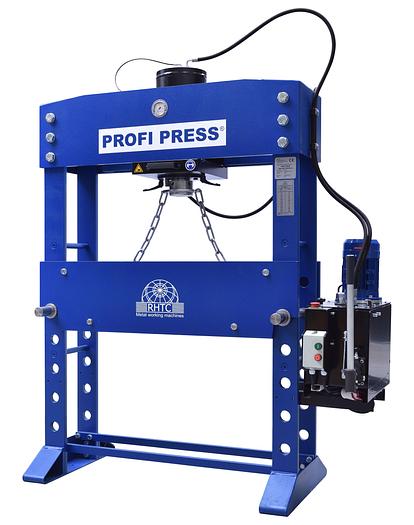

RHTC 60 ton M/H-M/C-2 Motorized Workshop Press

RHTC Workshop Press 60 Ton

Machine Type: Motorised Work Shop Press.

Our 60 ton workshop press has a fixed cylinder and an in-height adjustable working table (motorised). Equipped with pressure regulation, manometer, 2 speeds and a joystick to move the piston up and down. With this joystick you are able to move the piston precisely, which makes this hydraulic press perfectly suitable for precision tasks.

Available in:

• 30 TON
• 60 TON
• 100 TON M/H-M/C-2
• 100 TON M/H-M/C-2 D=1500
• 160 TON M/H-M/C-2
• 160 TON M/H-M/C-2 D=1500
• 200 TON M/H-M/C-2
• 300 TON M/H-M/C-2

Technical specifications

Pressure force [kN]: 600

Maximum pressure [bar]: 259

Piston stroke [mm]: 380

Oil capacity [dm³]: 38

Working speed [mm/sec]: 2.87

Approaching speed [mm/sec]: 9.5

Return speed [mm/sec]: 12

Motor power [kW]: 2.2

Voltage [V]: 400/3

Frequency [Hz]: 50/60

Working width [mm]: 750

Weight [kg]: 540

Diameters:

Inside diameter of cylinder [mm]: 170

Diameter of piston rod [mm]: 75

Diameter of piston head [mm]: 100

Features:

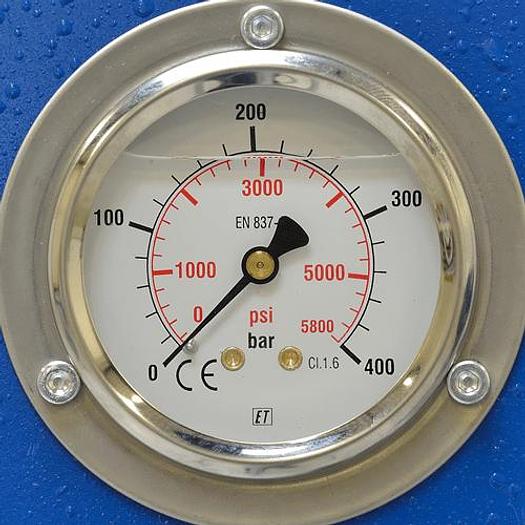

Integrated pressure manometer

Pressure regulation

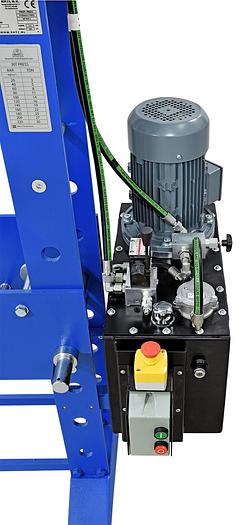

Hydraulic unit with a 2-speeds handle

In height adjustable working table

Joystick for the control of the piston

Optional Accessories:

Foot pedal, two-hands operation or hand remote controller

V-block set for extra support

Mandrel set / Pressure pins

Digital stroke read-out

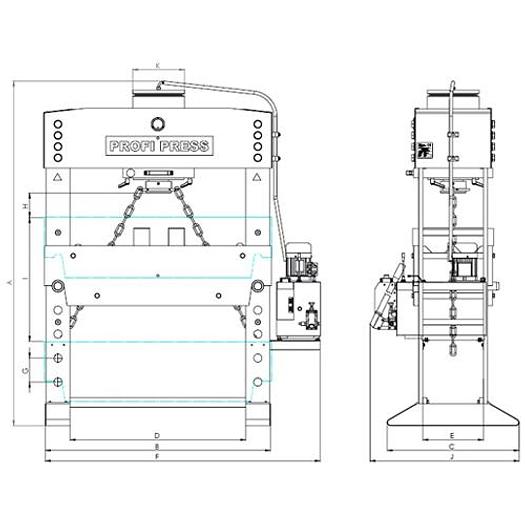

Dimensions in mm:

A: 2120

B: 1000

C: 695

D: 750

E: 260

F: 1315

G: 150

H: 197

I: 750

J: 805

K: 200

(See above diagram)
