€5,600 + VAT

RHTC 15 ton Broaching Press

5

Netherlands

orCall +353 838108745

Description

RHTC Presses 15 ton Broaching Press

This 15 ton broaching press from Profi Press is exclusively made in the Netherlands.

The piston stroke is 600 mm and the hydraulic press includes a joystick for the vertical movement of the piston. This broaching press also incorporates a pressure control valve and a speed control valve.


Technical specifications:


Pressure force [kN]: 147

Pressure max. [bar]: 232

Piston stroke [mm]: 600

Oil capacity [dm³]: 35

Oil delivery [ltr/min]: 11.8

Working speed [mm/sec]: 0-30

Approaching speed [mm/sec]: 0-30

Return speed [mm/sec]: 0-40

Motor power [kW]: 5.5

Voltage [V]: 400/3

Frequency [Hz]: 50/60

Revolutions per minute [rpm]: 1500

Insulation protection [IP]: 54

Weight [kg]: 305


Diameters:


Inside diameter of cylinder [mm]: 90

Diameter of piston rod [mm]: 50

Diameter of piston head [mm]: 80


Features:

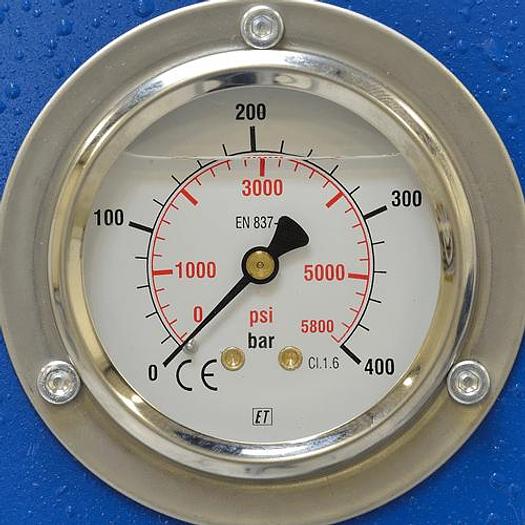

Integrated pressure manometer

Pressure regulation

In height adjustable working table

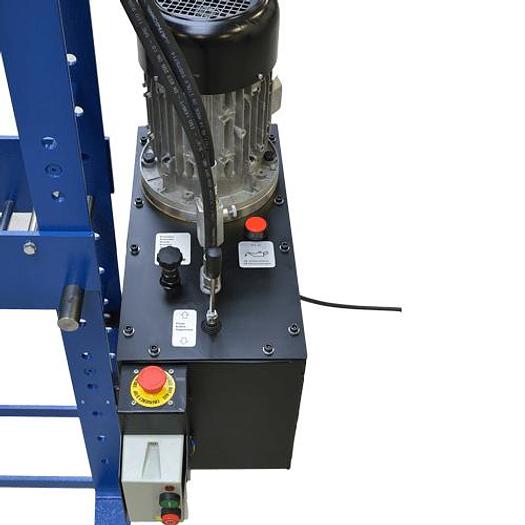

Joystick for the control of the piston

Speed control valve


Optional accessories

V-block set for extra support

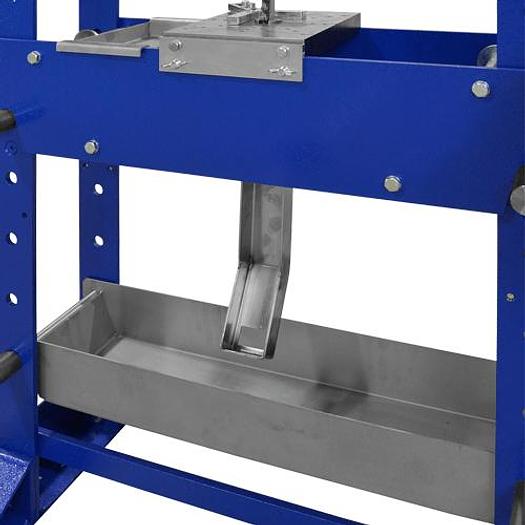

Collection tray between the feet of the press

Collection tray for the broach-tool

Material tray for the working table

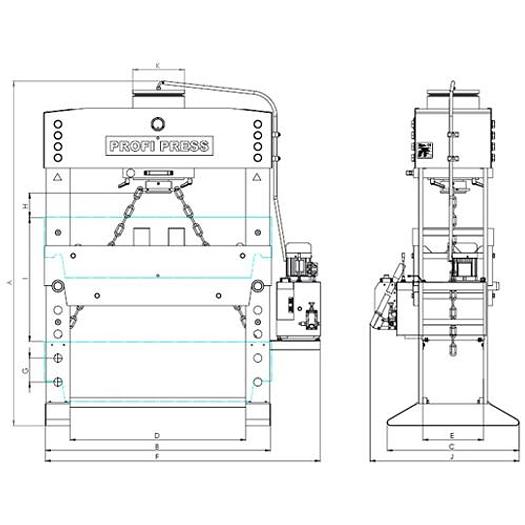

Dimensions in mm:

A: 2300

B: 820

C: 494

D: 650

E: 200

F: 1140

G: 100

H: 112

I: 900

J: 700

K: 110

(See diagram above)





Specifications

ManufacturerRHTC
Model15 ton Broaching Press
ConditionNew
Stock Number00220
Pressure force [kN]147
Pressure max. [bar]232
Piston stroke [mm]600
Oil capacity [dm³]35
Oil delivery [ltr/min]11.8
Working speed [mm/sec]0-30
Approaching speed [mm/sec]0-30
Return speed [mm/sec]0-40
Motor power [kW]5.5
Voltage [V]400/3
Frequency [Hz]50/60
Revolutions per minute [rpm]1500
Insulation protection [IP]54
Weight [kg]305
