€2,295 + VAT

RHTC 50 ton HF2 with movable cylinder

5

Netherlands

orCall +353 838108745

Description

RHTC Presses 50 ton HF2 with movable cylinder

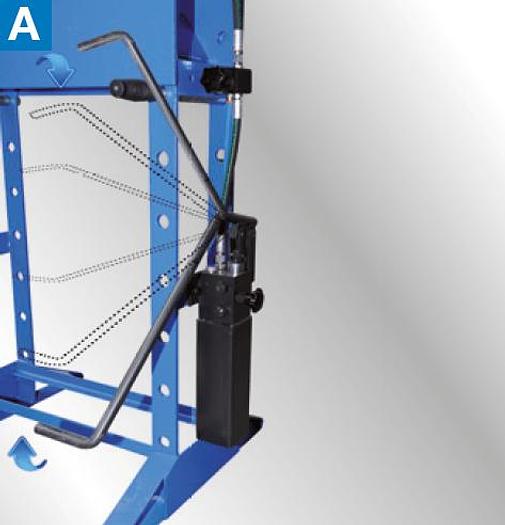

Our 50 ton hydraulic workshop press can be operated by hand as well as by foot: the handpump is interchangeable to a foot pump.

This garage press has a movable cylinder and the height of the work table is easy to adjust with a winch.

The hand- and foot operated Profi Presses have an integrated manometer and a chrome piston (that returns automatically).

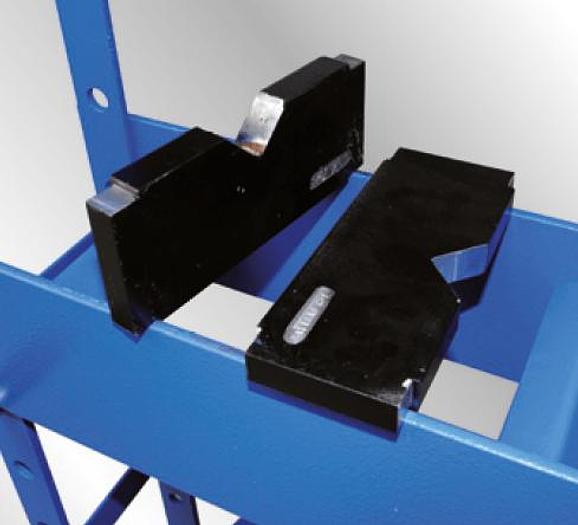

Standard supplied with a set of V-blocks.

These manual workshop presses are made in Europe and delivered according to the CE standards.


Technical specifications:


Pressure force [kN]: 490.5

Pressure max. [bar]: 399.5

Cylinder stroke [mm]: 160

System capacity [dm³]: 2.5

Movable cylinder: yes

Working width [mm]: 750

Weight [kg]: 340



Diameters


Inside diameter of cylinder [mm]: 140

Diameter of piston rod [mm]: 50

Diameter of piston head [mm]: 60


Features:


Hand- and foot operated

Movable cylinder

The height of the worktable is easy to adjust by means of a winch

Integrated pressure manometer

Chrome piston

Automatic piston return

V-block set


Optional:


Mandrel set of Ø 5, 10, 14, 18, 24 and 29 mm (with a suitable piston head for the 50 ton HF-2)

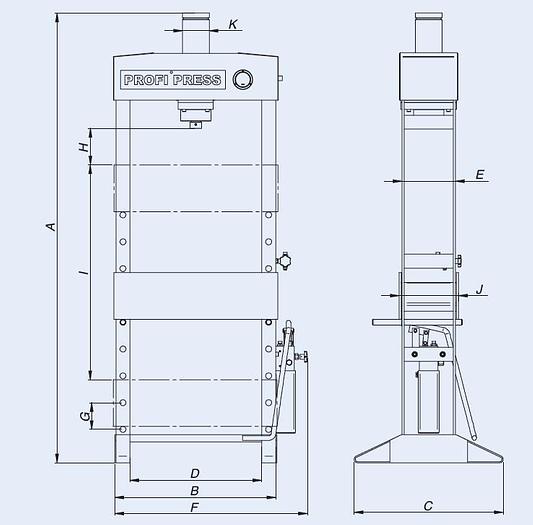

Dimensions of the 50 ton hydraulic workshop press in mm


A: 2025

B: 910

C: 764

D: 750

E: 300

F: 1085

G: 115

H: 140

I: 920

J: 336

K: 140




Specifications

ManufacturerRHTC
Model50 ton HF2 with movable cylinder
ConditionNew
Pressure force [kN]490.5
Pressure max. [bar]399.5
Cylinder stroke [mm]160
System capacity [dm³]2.5
Movable cylinderyes
Working width [mm]750
Weight [kg]340
