RHTC 15 ton HF2 with fixed cylinder

RHTC 15 ton HF2 with fixed cylinder

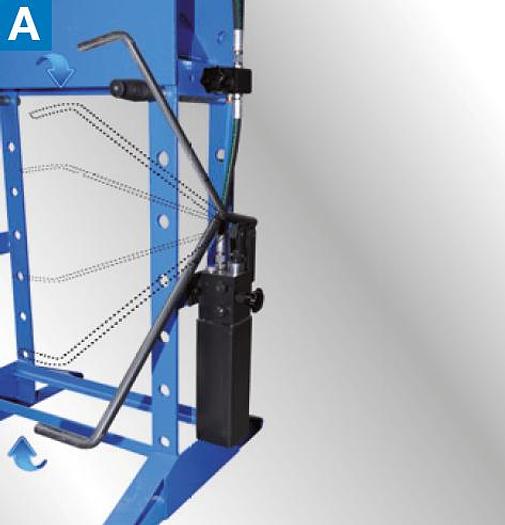

Our 15 ton workshop press can be operated by hand as well as by foot: the hand-pump is interchangeable to a foot pump.

This small hydraulic shop press has a fixed cylinder and the height of the work table is easy to adjust.

The hand- and foot operated Profi Presses have an integrated manometer and a chrome piston (that returns automatically).

Standard supplied with a set of V-blocks.

These manual workshop presses are made in Europe and delivered according to the CE standards.

Technical specifications:

Pressure force [kN]: 147,15

Pressure max. [bar]: 382,2

Cylinder stroke [mm]: 160

System capacity [dm³]: 1,65

Fixed cylinder: yes

Working width [mm]: 560

Weight [kg]: 117

Diameters

Inside diameter of cylinder [mm]: 82

Diameter of piston rod [mm]: 40

Diameter of piston head [mm]: 50

Features

Hand- and foot operated

Fixed cylinder

The height of the worktable is easy to adjust

Integrated pressure manometer

Chromed piston

Automatic piston return

V-block set

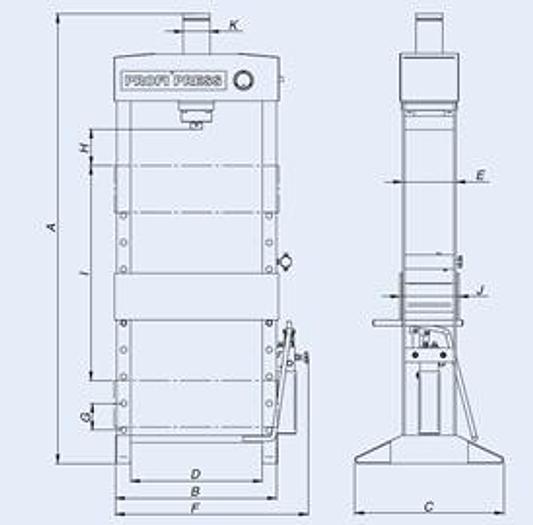

Dimensions of the 15 ton workshop press in mm:

A: 1880

B: 680

C: 600

D: 560

E: 190

F: 828

G: 100

H: 118

I: 900

J: 214

K: 82
