€91,500 + VAT

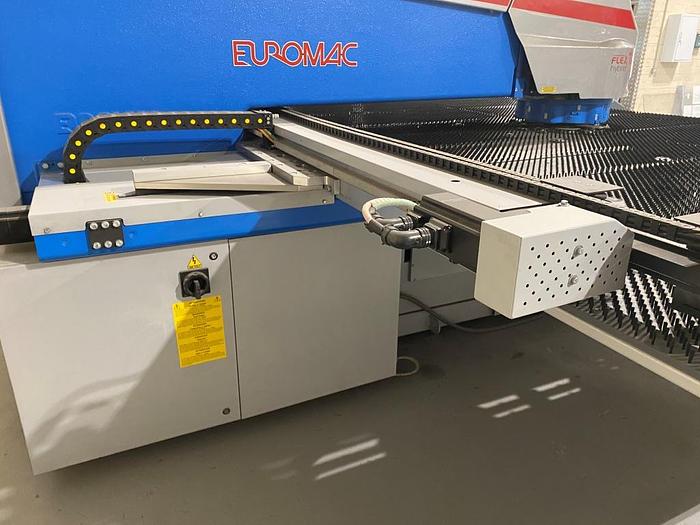

2016 Euromac 1500 STX Flex 12 Hybrid 12 CNC Punching Machine

1

Ireland

orCall +353 838108745

Description

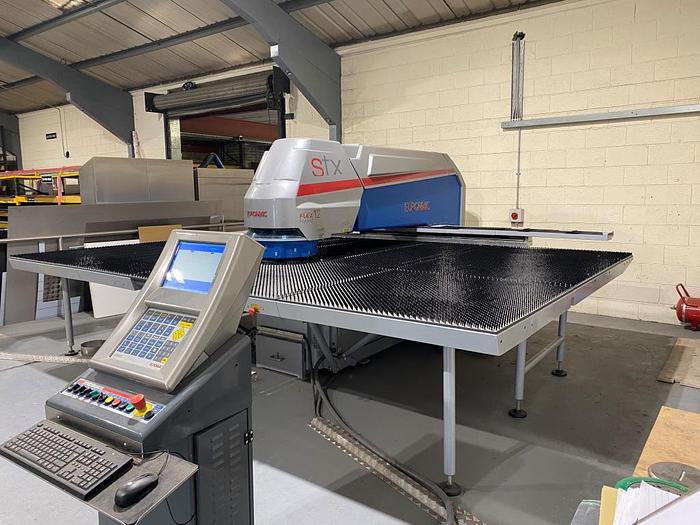

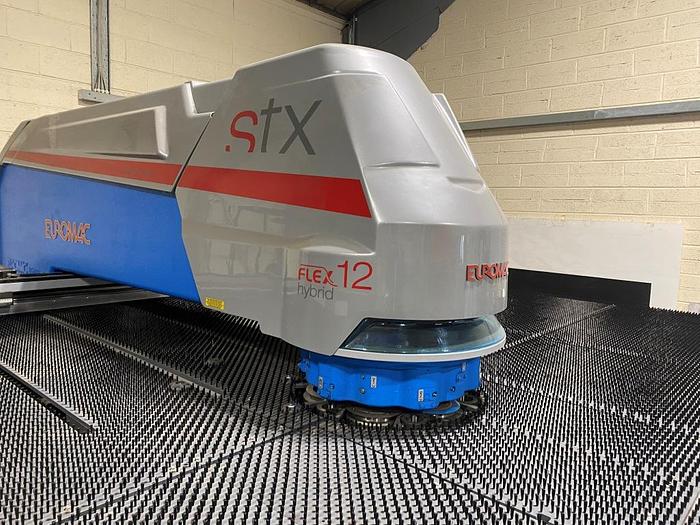

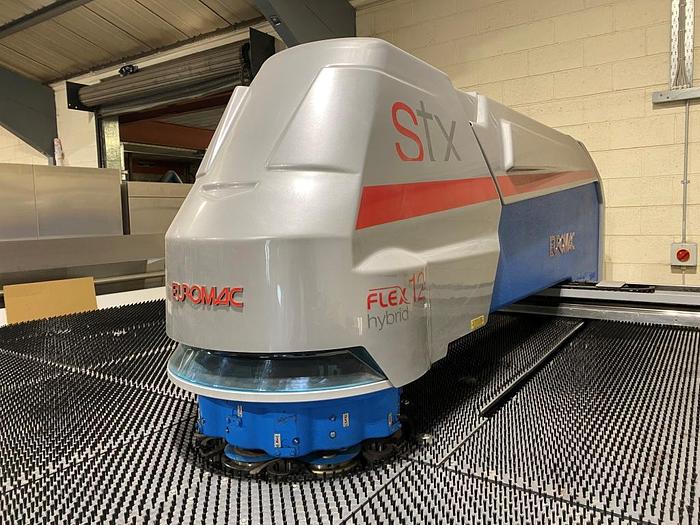

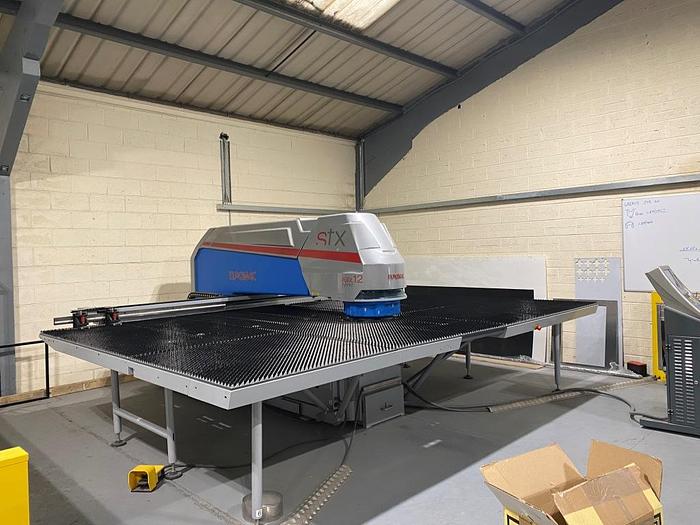

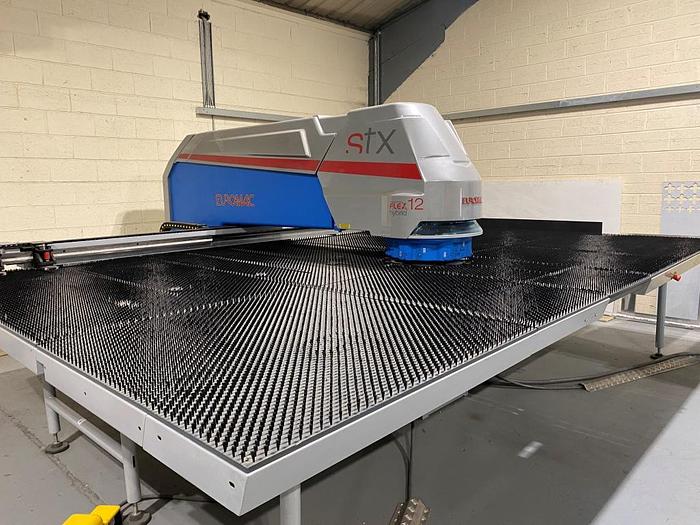

2016 Euromac 1500 STX Flex 12 Hybrid CNC Punching Machine


Euromac CNC Punching Machine in excellent condition with very low hours. Machine is being sold due to being surplus to our customer's requirements.


Model: STX Flex 12 1500/22-2500

Year: 2016

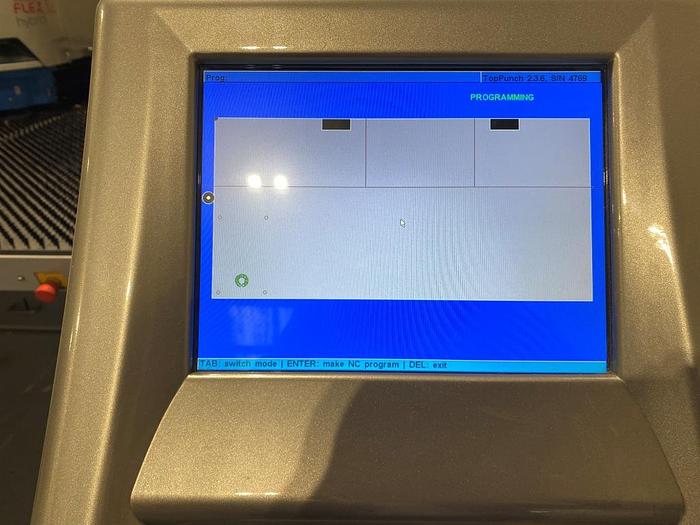

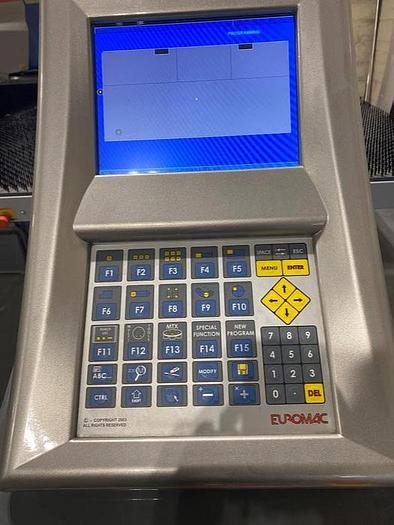

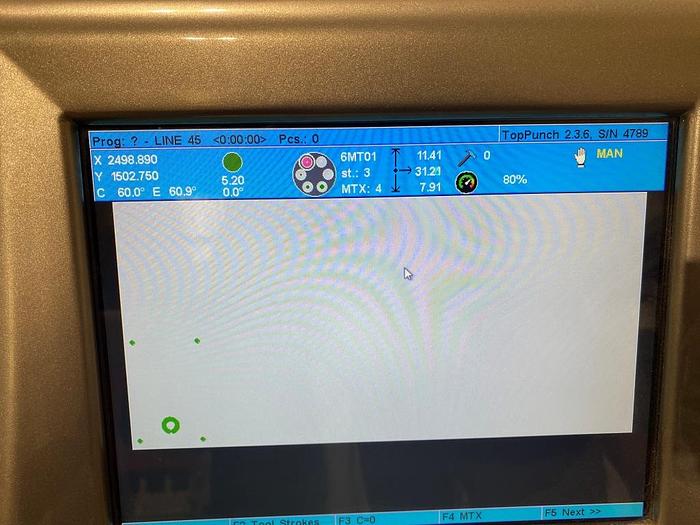

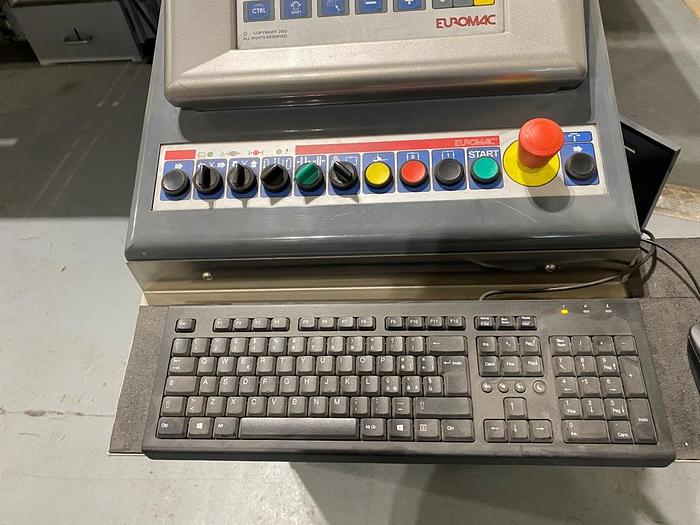

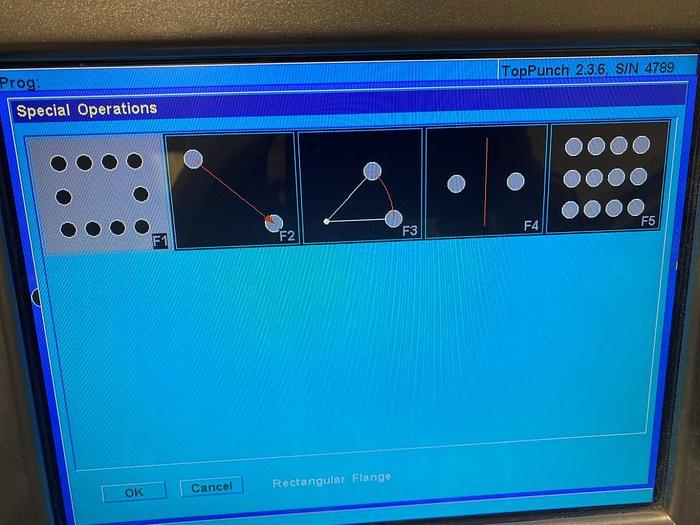

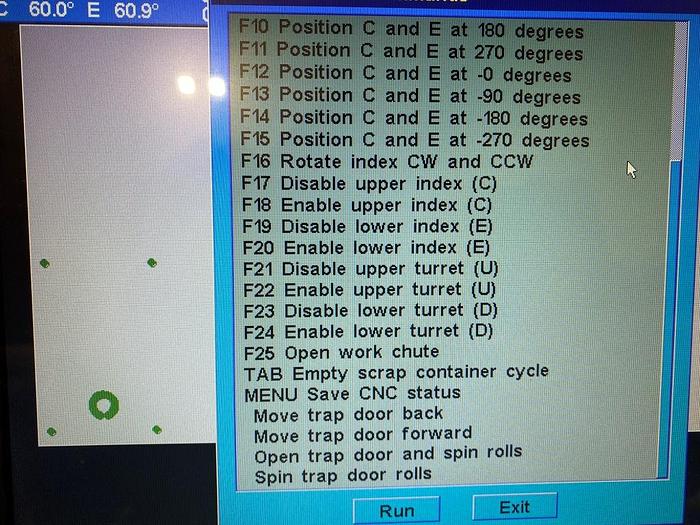

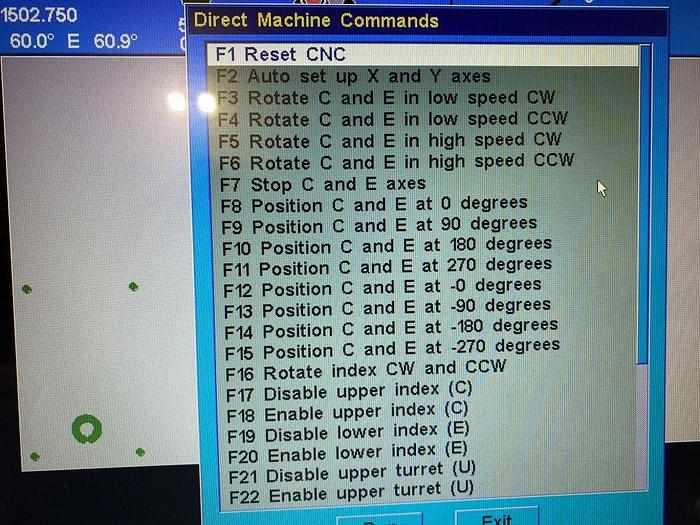

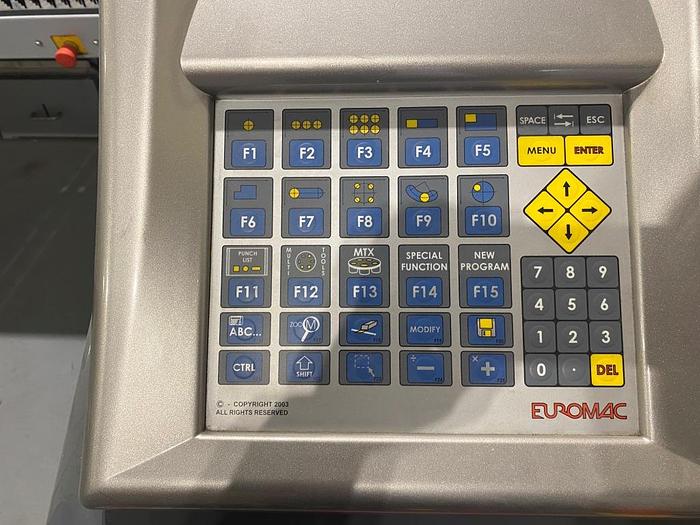

Control: Euromac

Operating System: Windows 7 - 64Bit

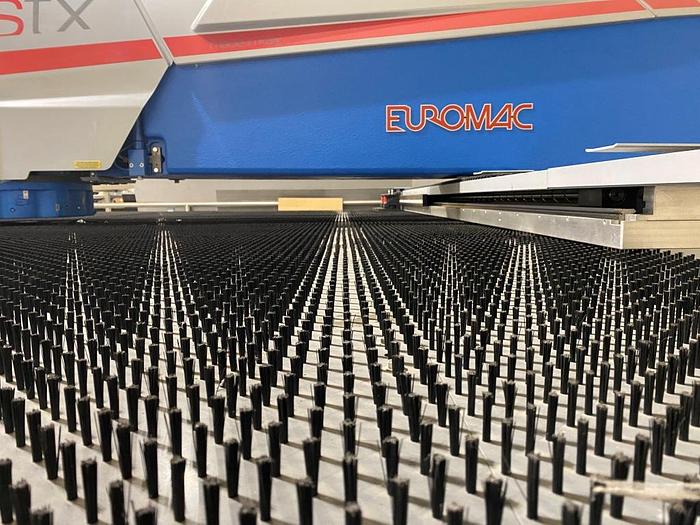

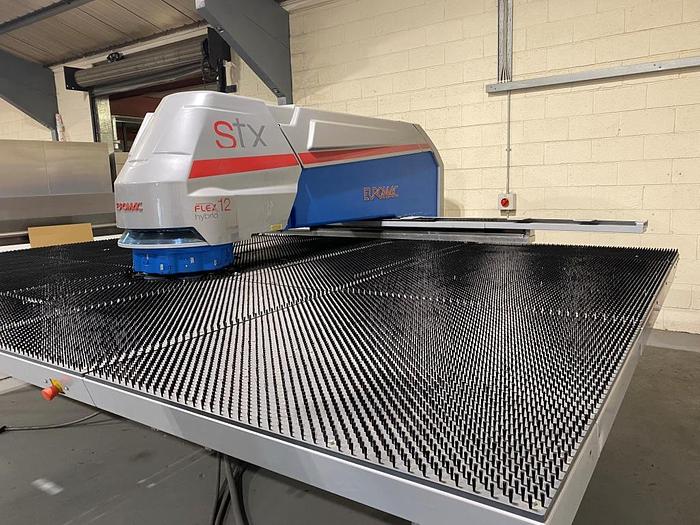

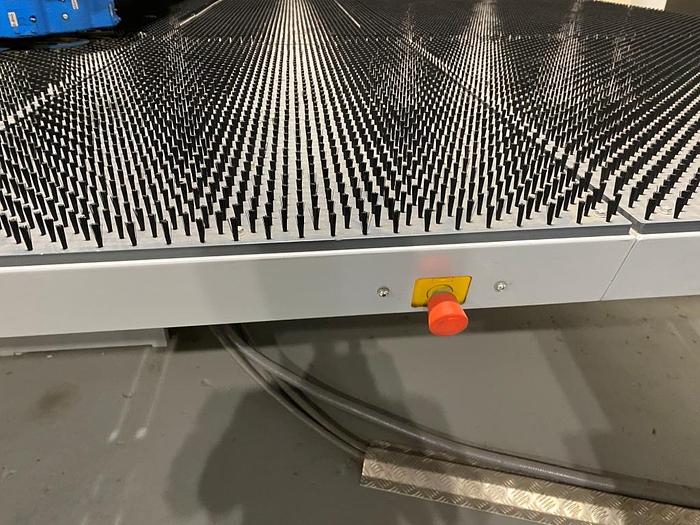

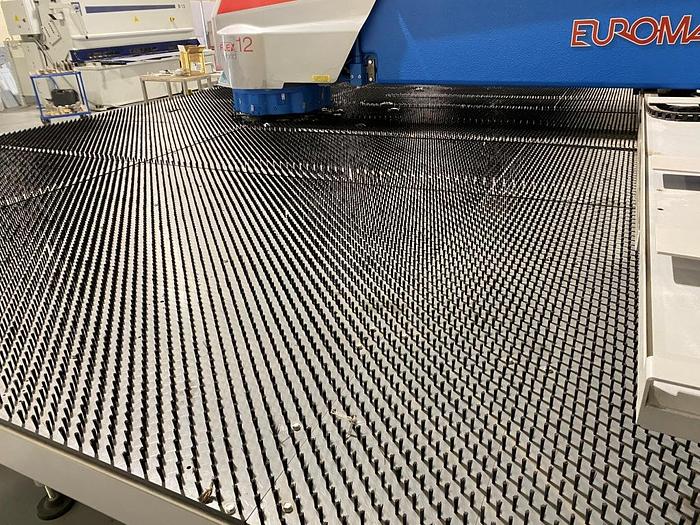

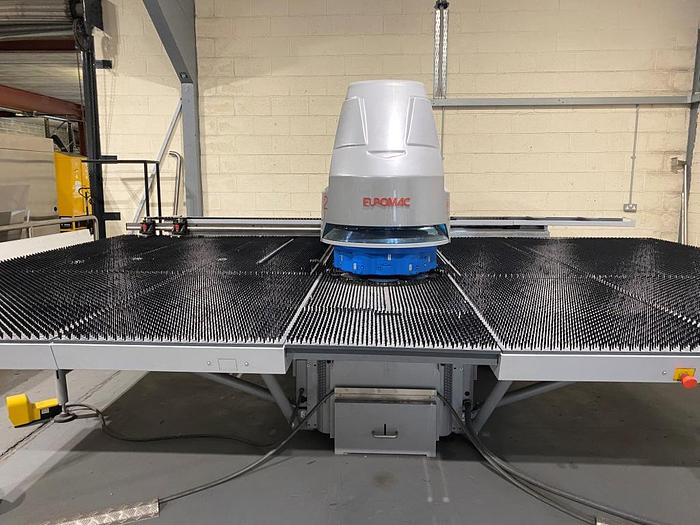

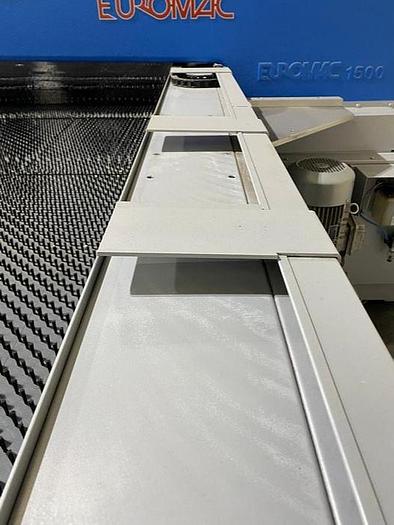

Table Type: Brush Table

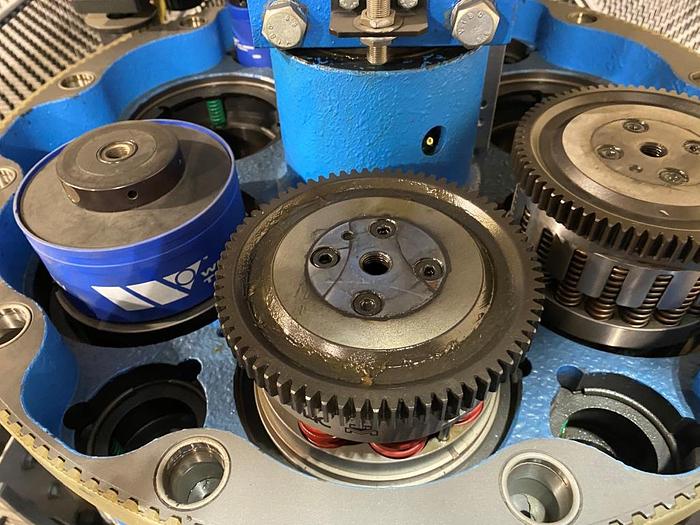

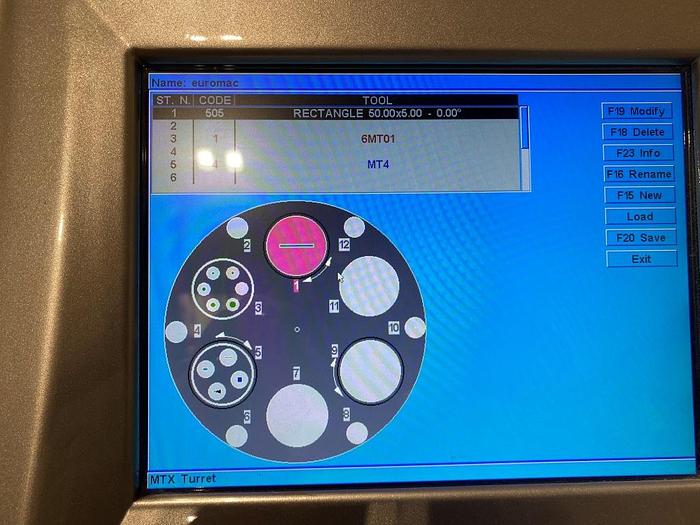

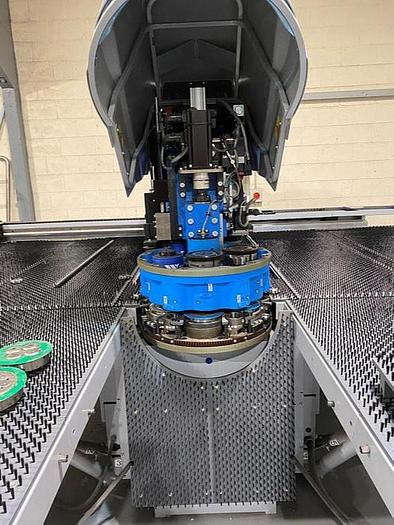

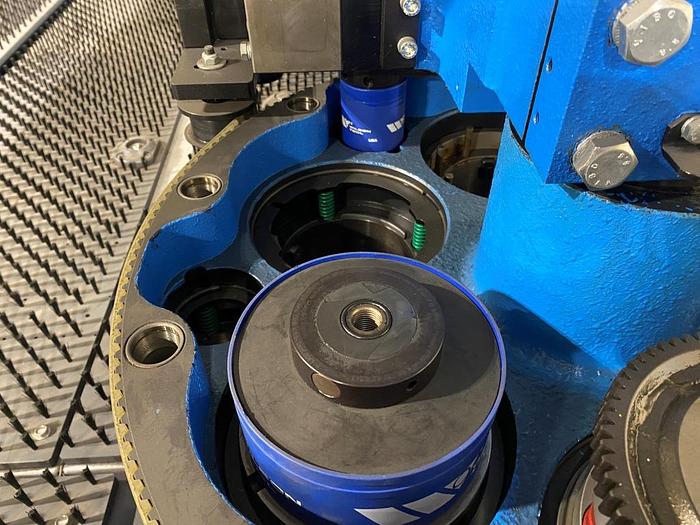

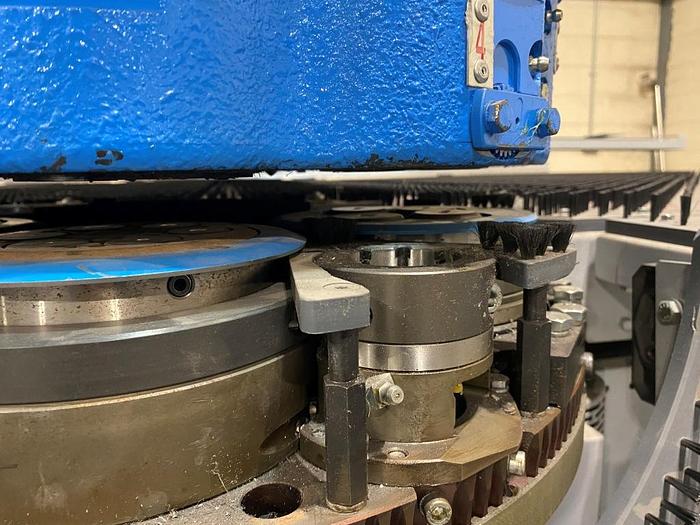

Tooling Type: Thick Turret Tooling

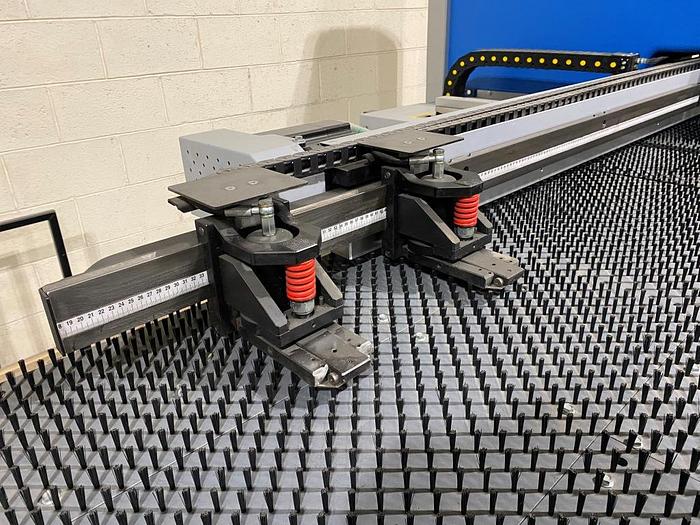

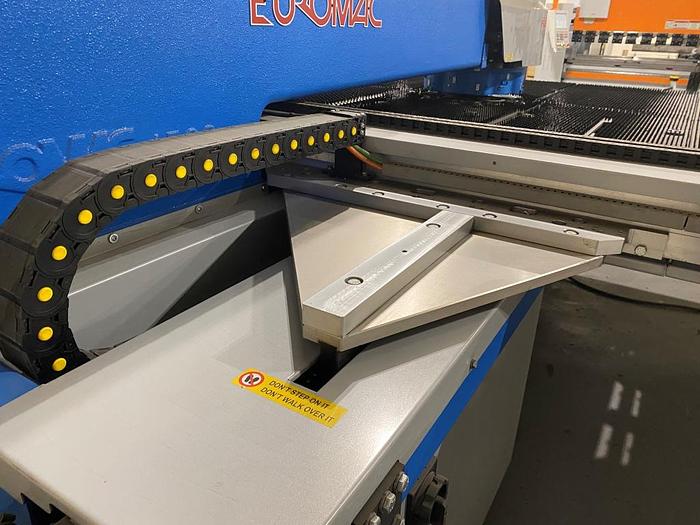

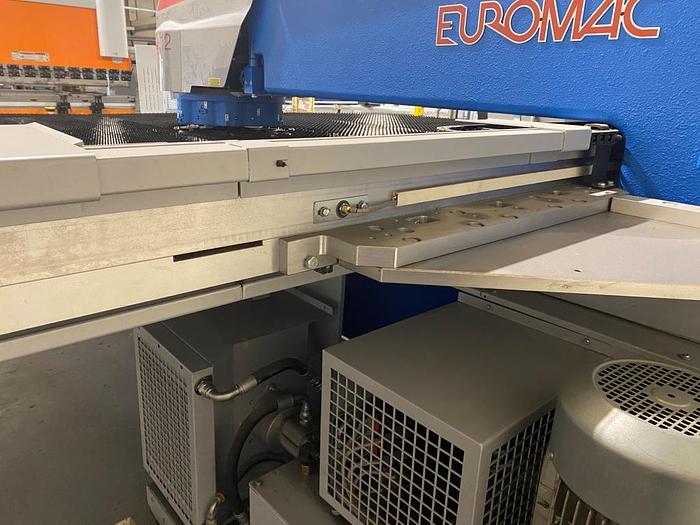

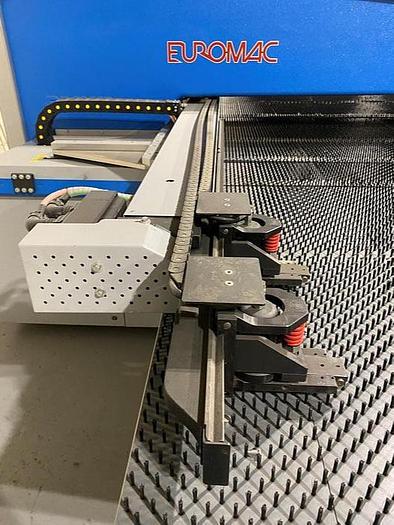

Clamps Type: Automatic Long

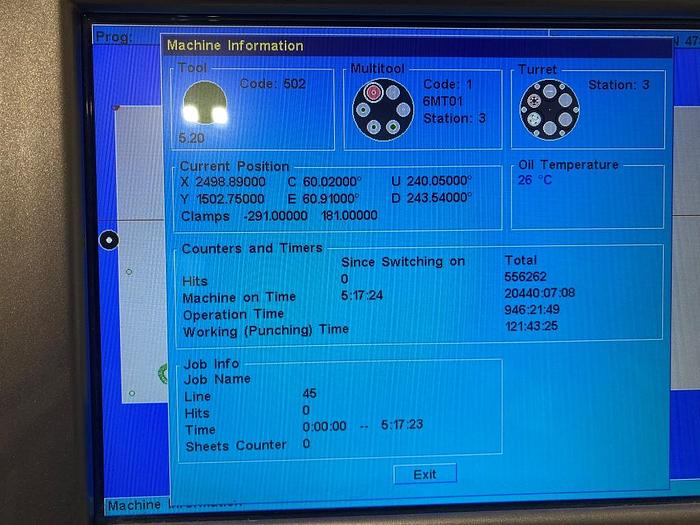

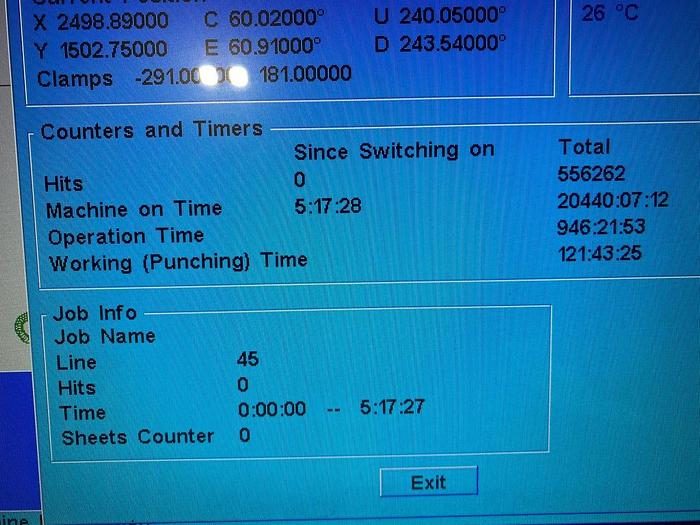

Hours

Punching Time: 121hrs

Operation Time: 946hrs

Machine on Time: 20,440hrs

Hits: 556262


Includes

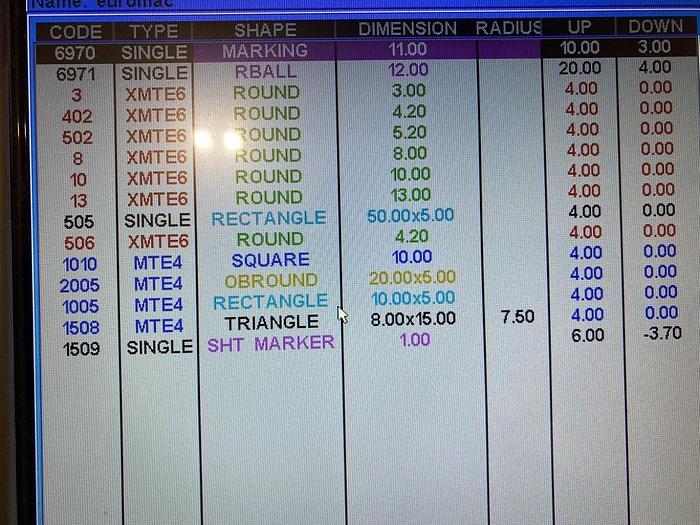

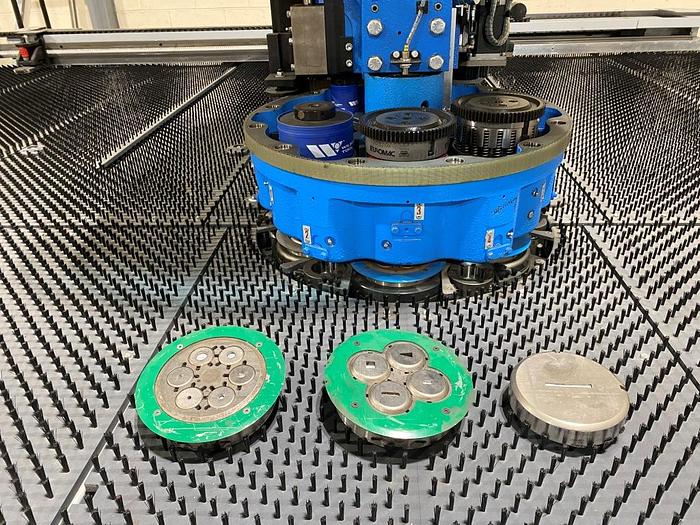

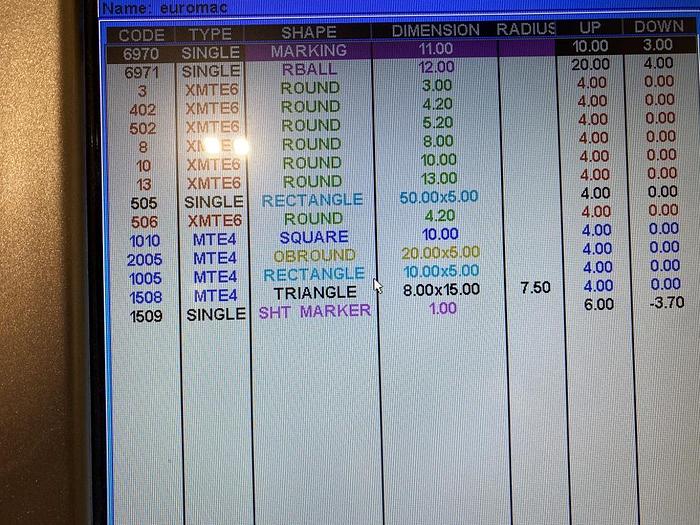

Suite of Tooling

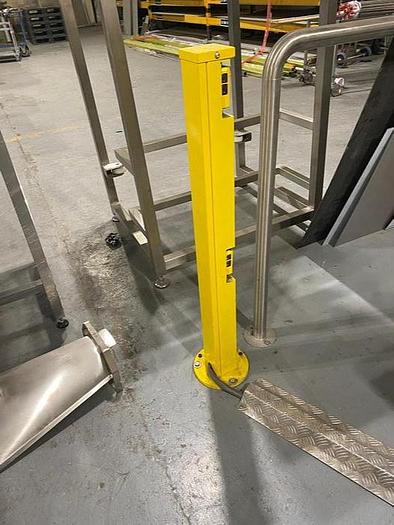

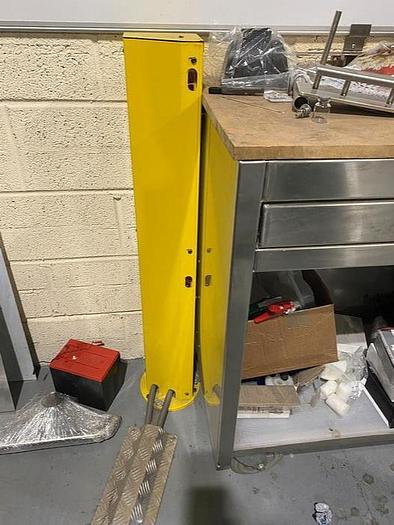

Photocell Light Barriers

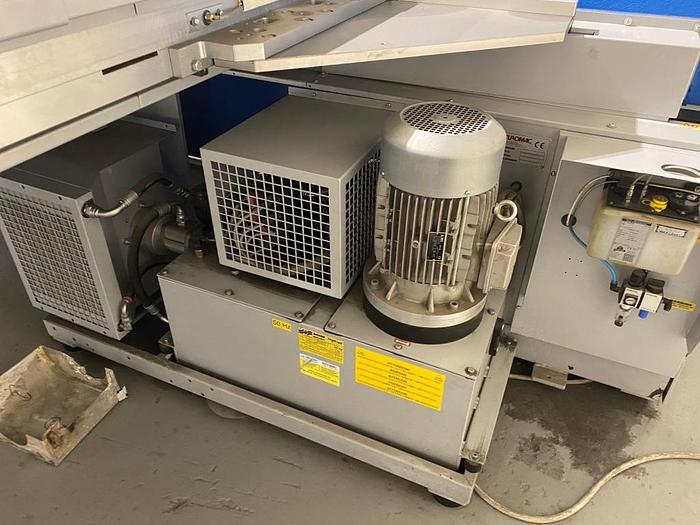

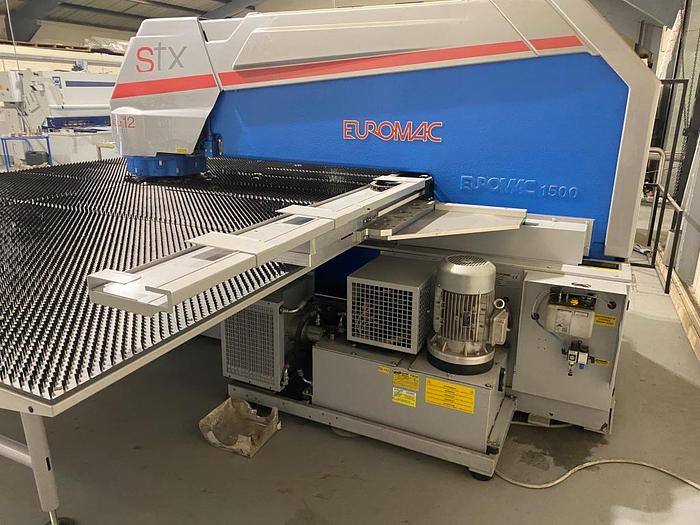

External Cooling System


Technical Specification

Max Punching Force: 220kN (22 Ton)

Stroke of Y Axis with Multi-Tool: 1550mm

Stroke of Y Axis with Single Tool: 1500mm

Stroke of X Axis: 2500mm

Automatic Repositioning: up to 10,000mm

Punch Stroke Adjustment Range: 0.1 to 31mm

Punching Accuracy: +/- 0.05mm

Accuracy for Shape Repeatability: +/- 0.1mm

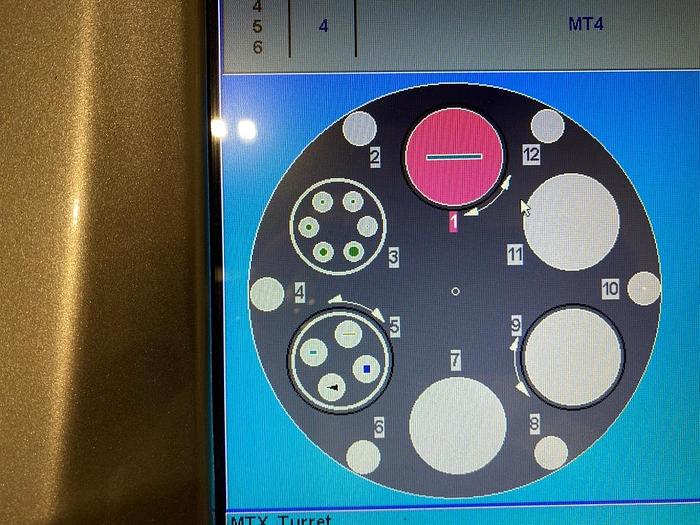

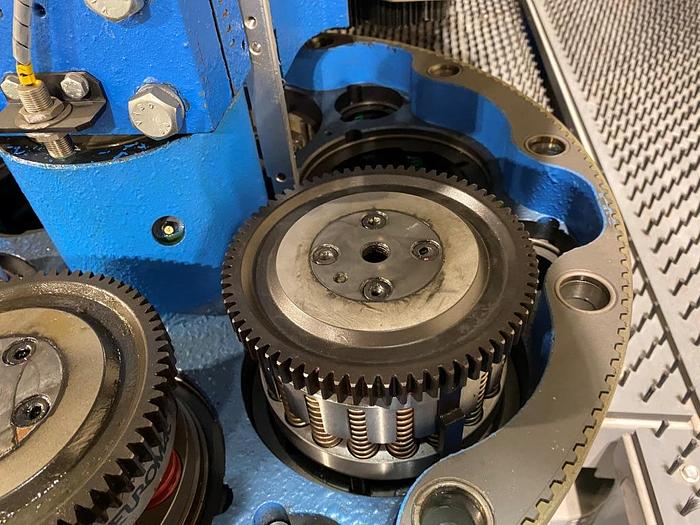

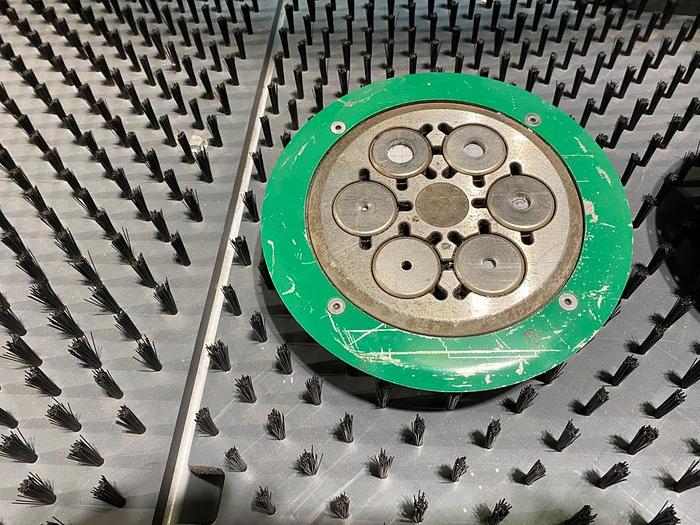

Auto-Index Two Way Stations - 360 Degrees: 3

Auto-Index Rotation Speed: 174rpm (programmable)

Speed of Y+X Axis Simultaneously: 80m/min

Clamp Aperture: 11mm

Max Strokes Punching @ 25mm Pitch: 425/min

Max Strokes Punching @ 20mm Pitch: 460/min

Max Strokes Nibbling @ 1mm Pitch: 1100/min

Max Strokes Marking: 2000/min

Shims: 0.5 - 6.5mm

Max Weight of Sheet @ Reduced Speed: 200kg

Max Punching Diameter - Auto-Index Stations: 85mm


Power Requirements

Installed Power: 8.5kW

Average Power Draw: 4.5kW/h

Supply: 400V/50Hz

Motor Type: 7.5kW (10HP)



Machine Dimensions: 4840 x 3880 x 2000mm

Machine Weight: 8700kg



Specifications

ManufacturerEuromac
Model1500 STX Flex 12 Hybrid 12 CNC Punching Machine
Year2016
ConditionUsed

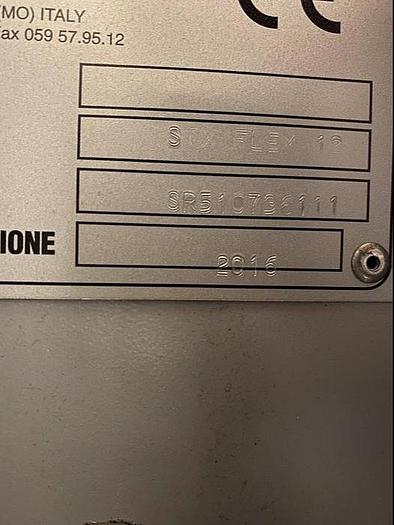

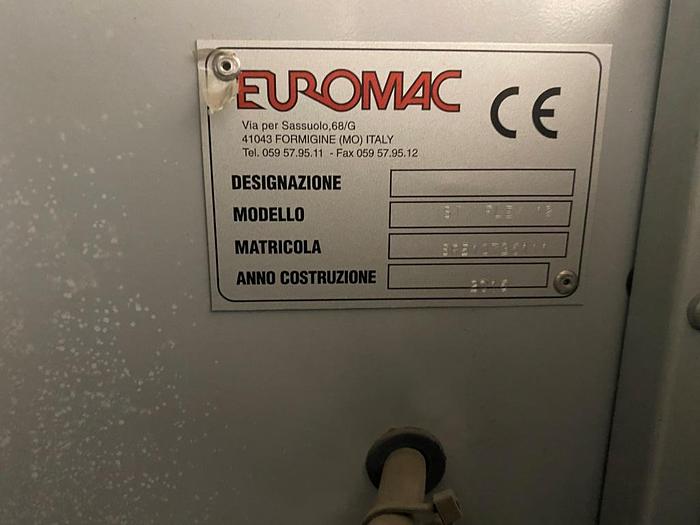

Serial NumberSR510736111
ModelSTX Flex 12 1500/22-2500
Year2016
ControlEuromac
Operating SystemWindows 7 - 64Bit
Table TypeBrush Table
Tooling TypeThick Turret Tooling
Clamps TypeAutomatic Long
Punching Time121hrs
Operation Time946hrs
Machine on Time20,440hrs
Hits556262
Max Punching Force220kN (22 Ton)
Stroke of Y Axis with Multi-Tool:1550mm
Stroke of Y Axis with Single Tool:1500mm
Stroke of X Axis:2500mm
Automatic Repositioning:Up to 10,000mm
Punch Stroke Adjustment Range0.1 to 31mm
Punching Accuracy+/- 0.05mm
Accuracy for Shape Repeatability+/- 0.1mm
Auto-Index Two Way Stations - 360 Degrees:3
Auto-Index Rotation Speed174rpm (programmable)
Speed of Y+X Axis Simultaneously:80m/min
Clamp Aperture11mm
Max Strokes Punching @ 25mm Pitch:425/min
Max Strokes Punching @ 20mm Pitch:460/min
Max Strokes Nibbling @ 1mm Pitch:1100/min
Max Strokes Marking2000/min
Shims0.5 - 6.5mm
Max Weight of Sheet @ Reduced Speed:200kg
Max Punching Diameter - Auto-Index Stations:85mm
Installed Power8.5kW
Average Power Draw4.5kW/h
Supply400V/50Hz
Motor Type7.5kW (10HP)
Machine Dimensions:4840 x 3880 x 2000mm
Machine Weight8700kg
