1996 Cosen AH-300C Automatic Bandsaw

1

Cork, Ireland

Sold

Description

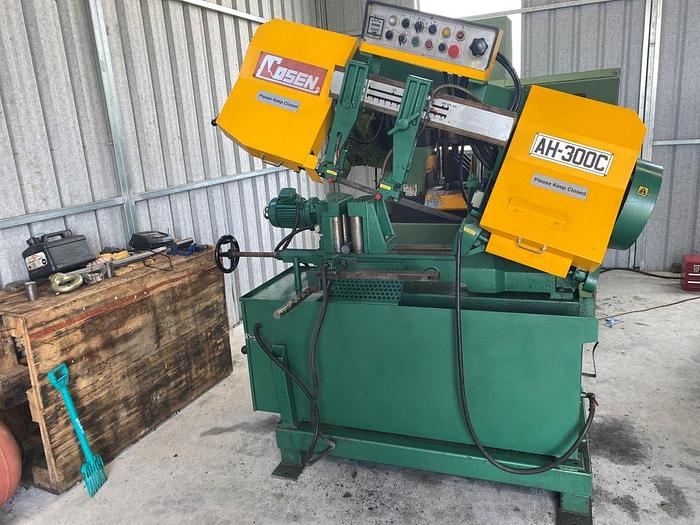

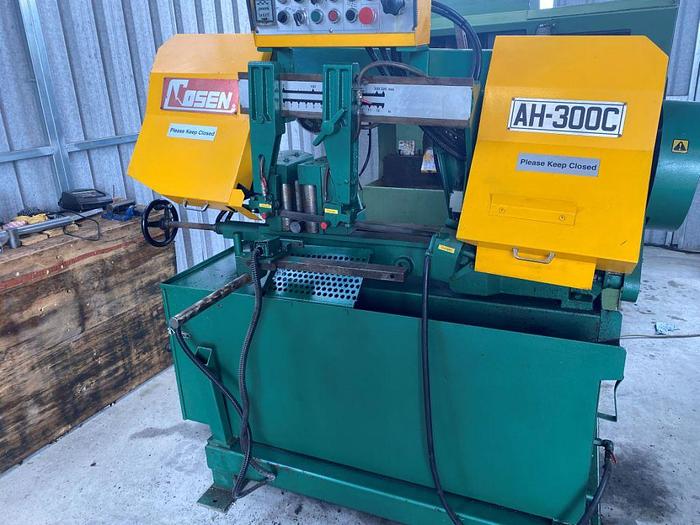

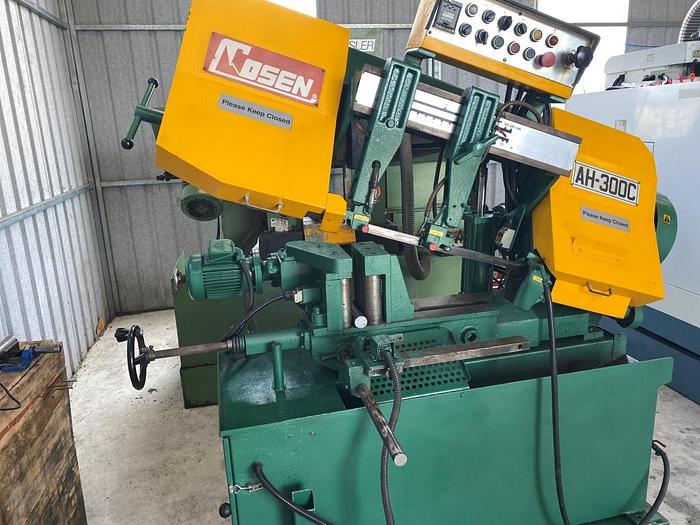

1996 Cosen AH-300C Automatic Straight Cutting Bandsaw


Year: 1996

Type: Automatic Bandsaw

Cutting: Straight Cutting Automatic Bandsaw

Vice: Manual/Hydraulic

Automatic Feed: Yes


Technical Specifications

Cutting Capacity Round: 300mm

Cutting Capacity Square: 300 x 300mm

Cutting Capacity Rectangular: 300 x 340mm

Blade Size: 3820 x 34 x 1.1mm

Blade Speed: 15-100m/min

Workbed Height: approx 660mm

Max Single Feed Stroke: 403mm

Max Total Feed Stroke: 3627mm


Power Requirements

Supply: 400V, 3 Phase

Motor Power: 3.75kW


Machine Dimensions: 1890 x 1905 x 1700mm

Machine Weight: 1500kgs


Note: All machine specifications are approximate.


Show All

Specifications

ManufacturerCosen
ModelAH-300C Automatic Bandsaw
Year1996
ConditionUsed

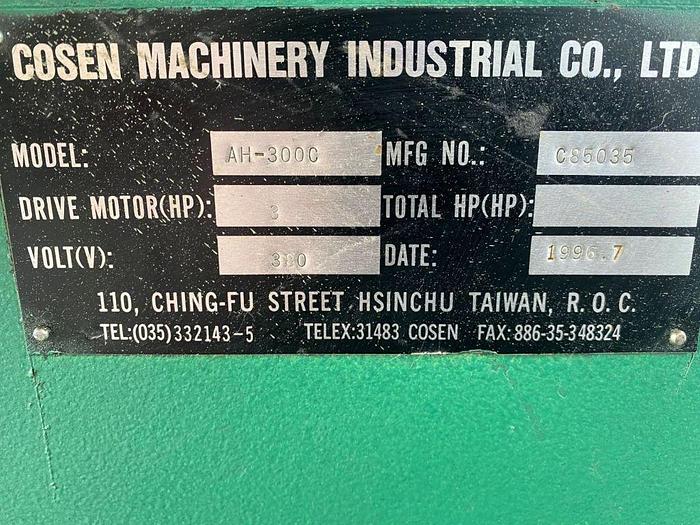

Serial NumberC85035
Year1996
TypeAutomatic Bandsaw
CuttingStraight Cutting Automatic Bandsaw
ViceManual/Hydraulic
Automatic FeedYes
Cutting Capacity Round300mm
Cutting Capacity Square300 x 300mm
Cutting Capacity Rectangular300 x 340mm
Blade Size3820 x 34 x 1.1mm
Blade Speed15-100m/min
Workbed Heightapprox 660mm
Max Single Feed Stroke403mm
Max Total Feed Stroke3627mm
Supply400V, 3 Phase
Motor Power3.75kW
Machine Dimensions (L x W x H)1890 x 1905 x 1700mm
Machine Weight1500kgs
