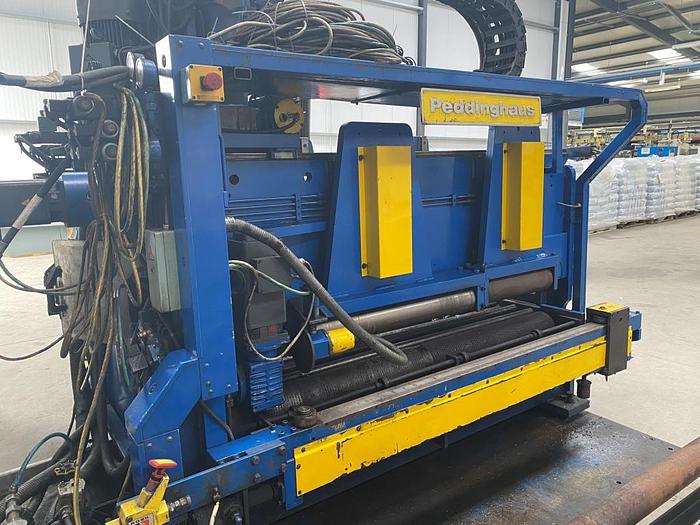

1996 Peddinghaus Peddimat FDB 1500/3 Plate Drilling and Flame Cutting Machine
Description
1996 Peddinghaus Peddimat FDB 1500/3 Plate Drilling and Flame Cutting Machine
This machine is being sold due to new machinery purchase. It can be seen running.
Year: 1996

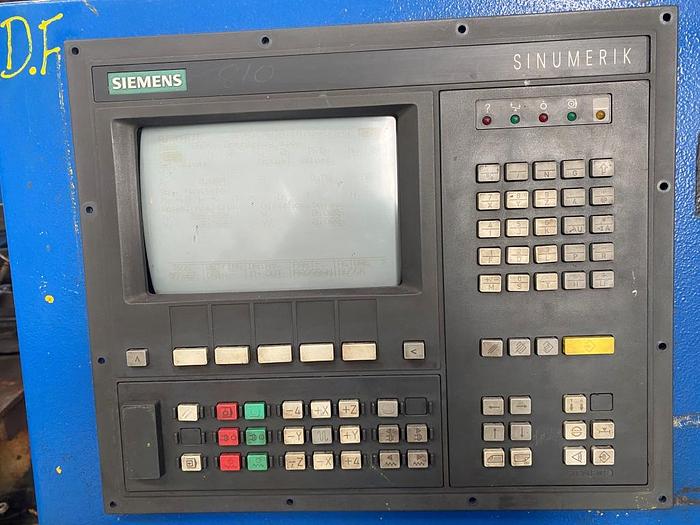

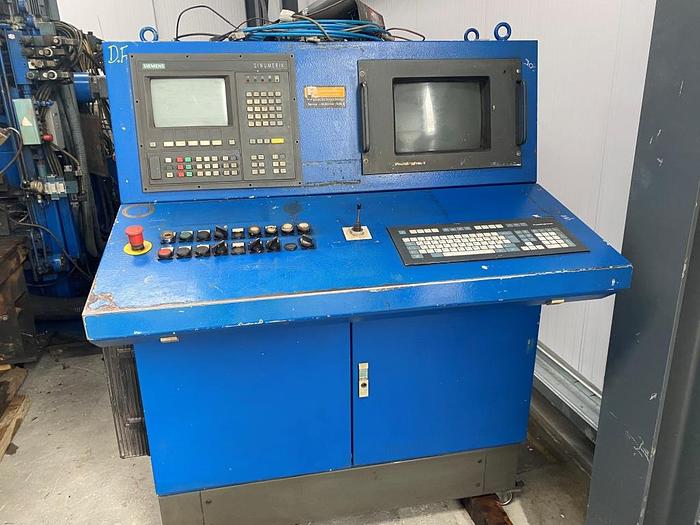

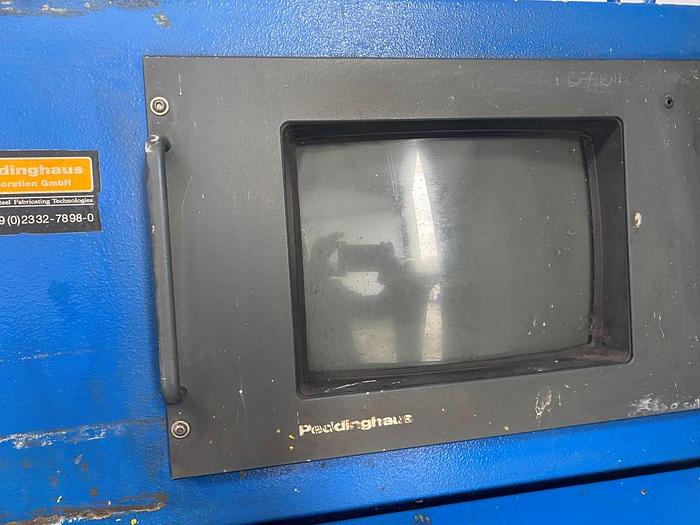

Control: Siemens 810M CNC Control
Software: Farm Design

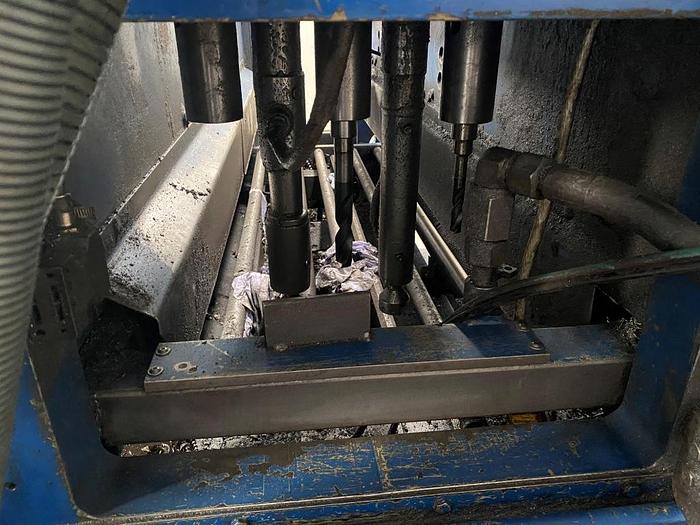

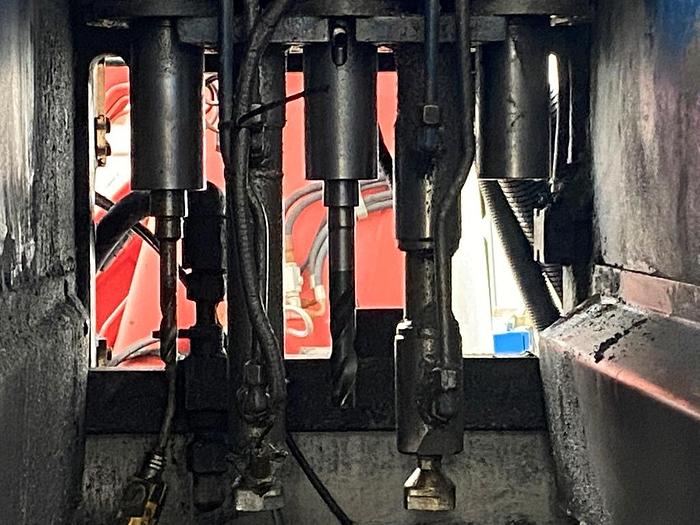

Drill: 3 Spindle Drill

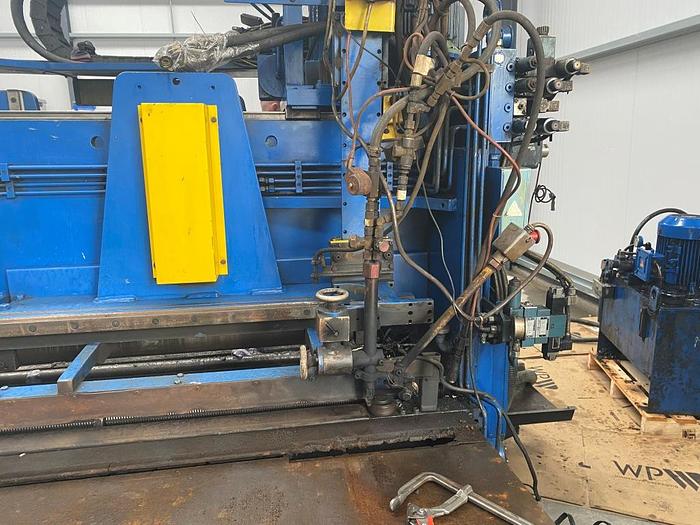

Cutting: Single Head Oxyacetylene Cutting System
Measuring System: Disc Measuring System
Includes:
Farm Design Software
Keller Extraction Unit

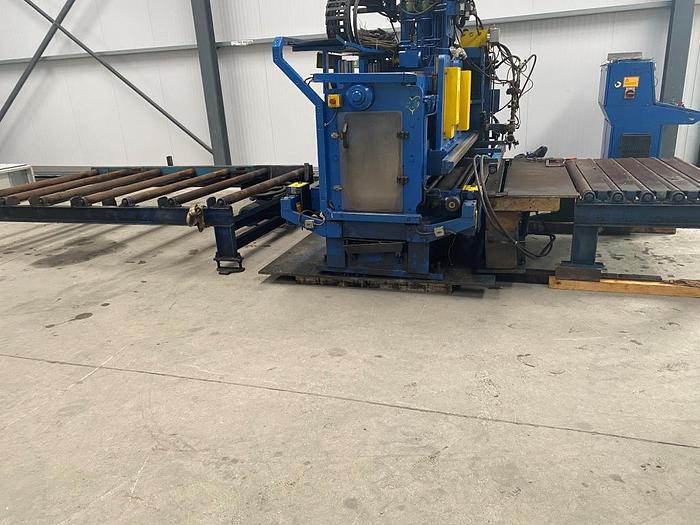

20m Infeed Conveyor
3m Outfeed Conveyor
Technical Specifications
Max Size of Flats: 1500 x 50mm
Min Size of Flats: 80 x 8mm
Max Travel Speed: 18m/min
Positioning Speed: 20m/min
Cutting Speed of Cutting Head: 200-750mm/min
Number of Drill Spindles: 3
Drill Diameters: 8 to 40mm
Drill Speeds: 225 to 660rpm
CNC Controlled Axes: 2
Drill Feed Rate: 25-250mm/min
Machine Dimensions: 2700 x 3220 x 2650mm
Machine Weight: Approx 6000kg
Power Consumption: 25kW
Power Connection: 400V/3Ph/50Hz
Specifications
| Manufacturer | Peddinghaus |
| Model | Peddimat FDB 1500/3 Plate Drilling and Flame Cutting Machine |
| Year | 1996 |
| Condition | Used |

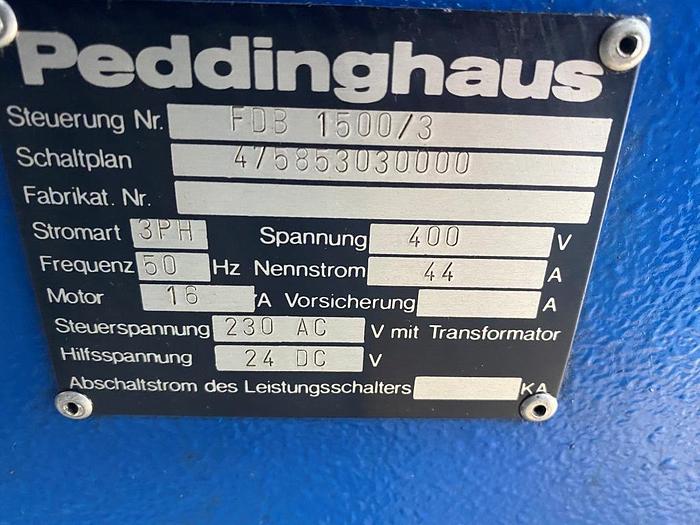

| Serial Number | 475853030000 |
| Year | 1996 |
| Control | Siemens 810M CNC Control |
| Software | Farm Design |
| Drill | 3 Spindle Drill |
| Measuring System | Disc Measuring System |
| Max Size of Flats | 1500 x 50mm |
| Min Size of Flats | 80 x 8mm |
| Max Travel Speed | 18m/min |
| Positioning Speed | 20m/min |
| Number of Drill Spindles | 3 |
| Drill Diameters | 8 to 40mm |
| Drill Speeds | 225 to 660rpm |
| CNC Controlled Axes | 2 |
| Drill Feed Rate | 25-250mm/min |
| Power Consumption | 25kW |
| Power Connection | 400V/3Ph/50Hz |
| Machine Dimensions (L x W x H) | 2700 x 3220 x 2650mm |
| Machine Weight | Approx 6000kg |
