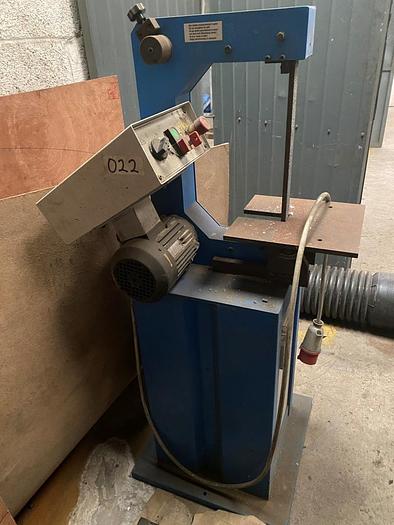

RJH Finishing Systems Squirrel SLA35 Slack Band Belt Grinder

RJH Finishing Systems Squirrel SLA35 Slack Band Belt Grinder

Compact Belt Grinding Machine for finishing small and complex components.

Key features

Twin Speed Motor

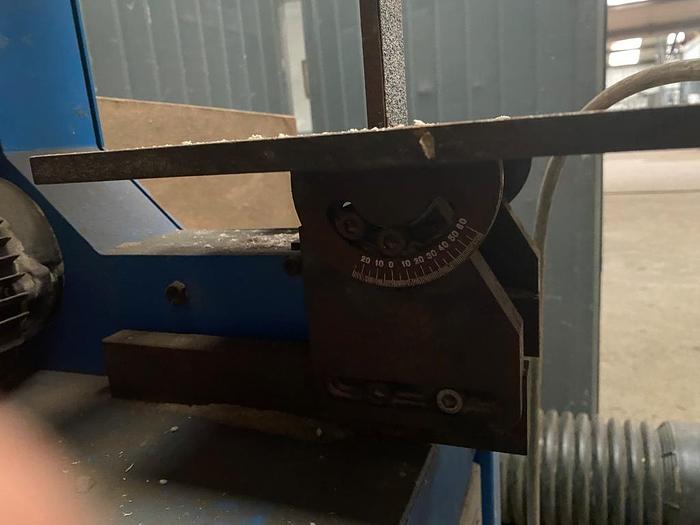

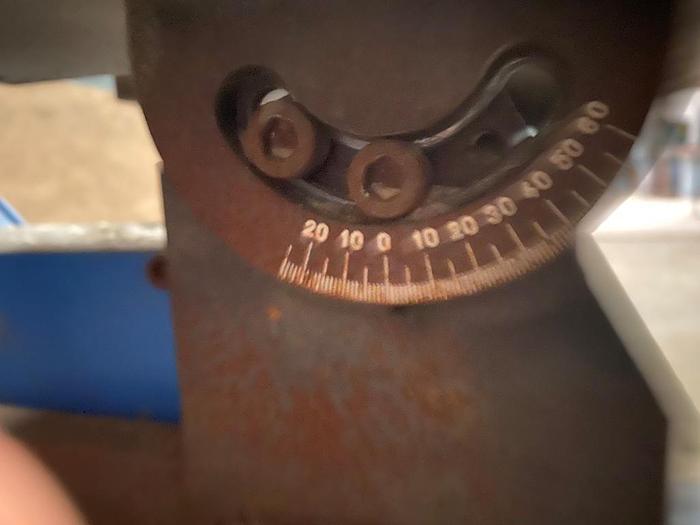

Large Tilting Table: 280 x 300mm adjustable from 20 to 60 Degrees

Spring Loaded pulley for quick belt changing and tensioning

Fabricated Base

Tool Cupboard in Pedestal

Safety Features

Motor Braking System

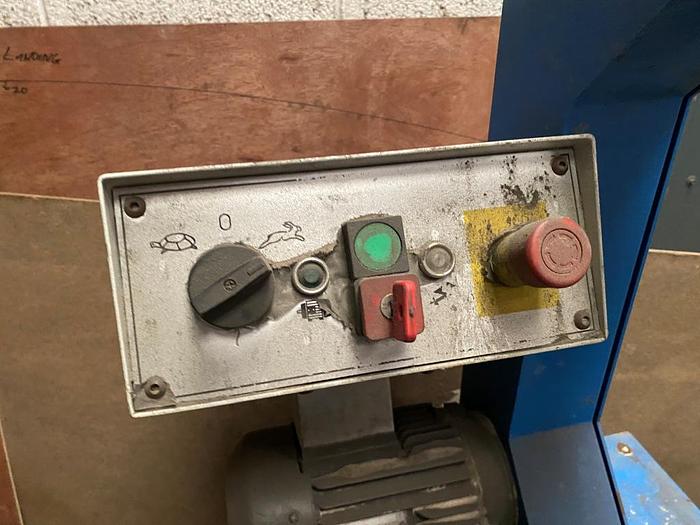

No-volt overload push button controls

Emergency Stop

Adjustable Guarding

80mm Dust Extraction Spigot

Specification

Motor: 0.8kW

Motor Speed: 1400/2800rpm

Power: 400V/3ph/50Hz

Belt Size: 25-40mm x 1700mm

Belt Speed: 9/18m/sec

Noise Level: 70dB

Table Height: 940mm

Machine Dimensions: (L x W x H): 700 x 600 x 1400mm

Weight: 100kg
