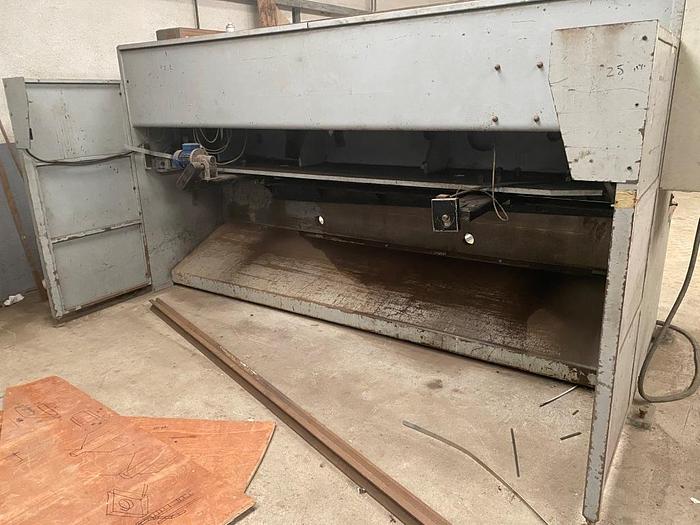

2001 OMAG ES38 3m x 8mm Guillotine Shears

2001 OMAG ES38 3m x 8mm Guillotine Shears

OMAG VARIABLE RAKE ANGLE HYDRAULIC SHEAR "ES" SERIES

Year: 2001

Cutting Length: 3000mm

Max Cutting Thickness: 8mm

Blade Length: 3150mm

Distance Between Frame: 3200mm

Min Cutting Angle: 30'

Max Cutting Angle: 2°30'

Max Strokes Per Min: 25

Main Motor Capacity: 7.5kW

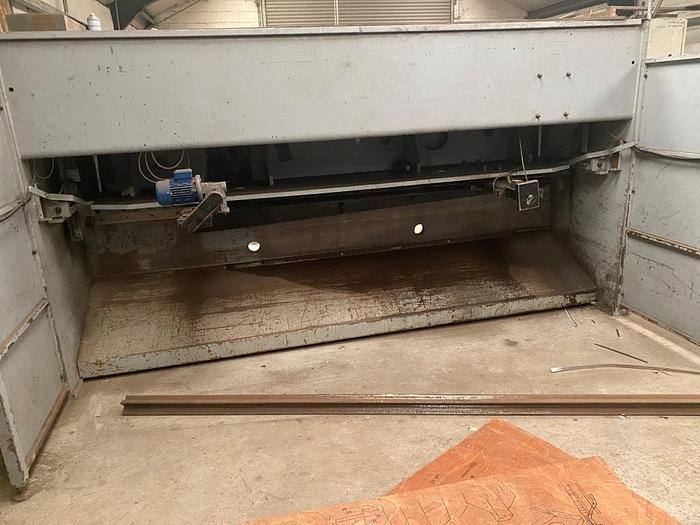

Back Gauge Stroke: 600mm

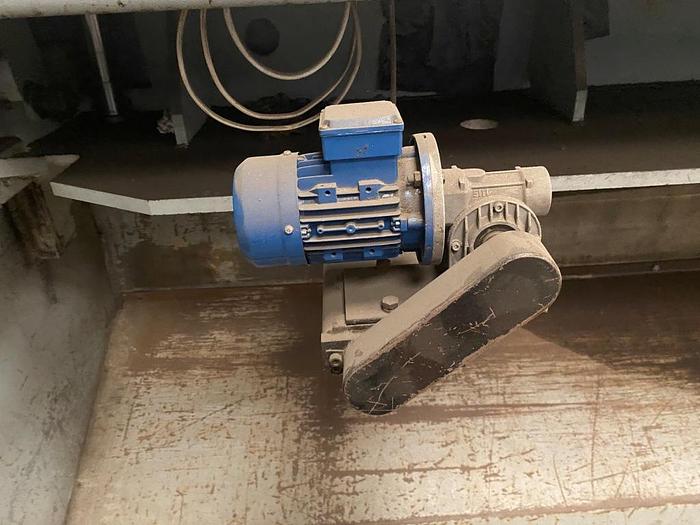

Back Gauge Motor: 0.2kW

Machine Dimensions (L x W x H): 3700 x 1650 x 1800mm

Weight: 5150kg

Machine Description

Hydraulic machines OMAG "ES" series have variable cutting angle and powered back gauge at one speed with 600 mm of stroke. Availability of several accessories improve the features of this machine.

Frame: Is made of high strength steel plate, laser cut, welded and strengthened in order to determine the maximum stiffness, welded, stress relieved, sand blasted, machined on CNC machining centers, cleaned , primed & painted

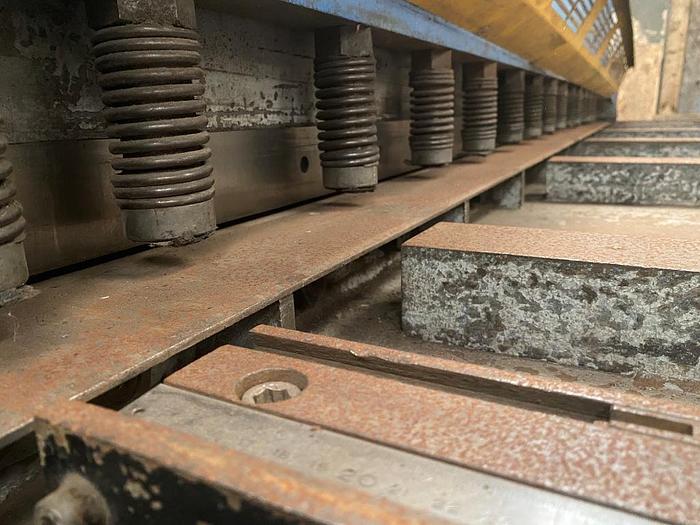

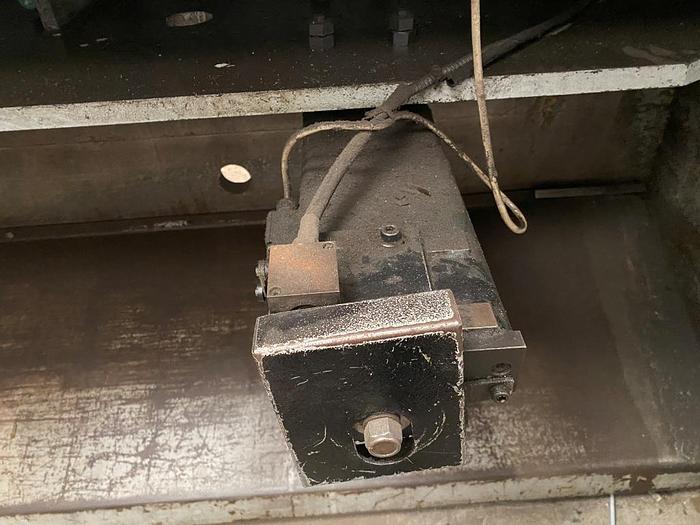

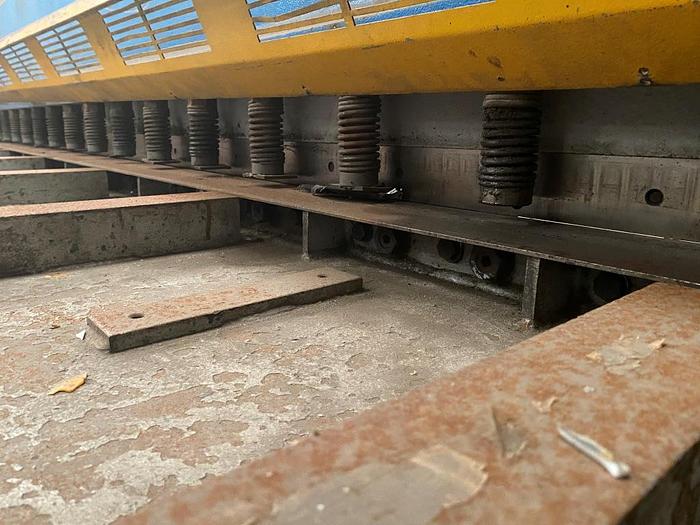

Cylinders: Double acting, they are made of steel and lapped; shafts are also in steel and hardened. Blade holder : it runs in vertical guides and it is controlled directly by two standard cylinders and it is driven by a roll-bearings system. Hold down cylinders: Being independent, the tightening power is automatically adjusted following the thickness of the metal to be cut.

Blades: Both the top and bottom blades have 4 cutting edges.

Working Cycles: Single.

Cutting Angle Adjustment: By 3 positions selector.

Blade Gap Adjustment: Adjusted by levers on the side of the machine which are equipped with a thickness indicator.
