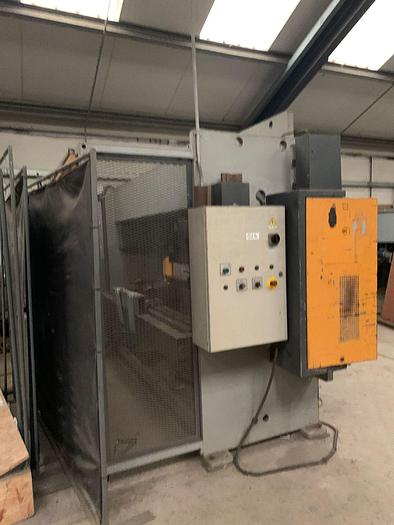

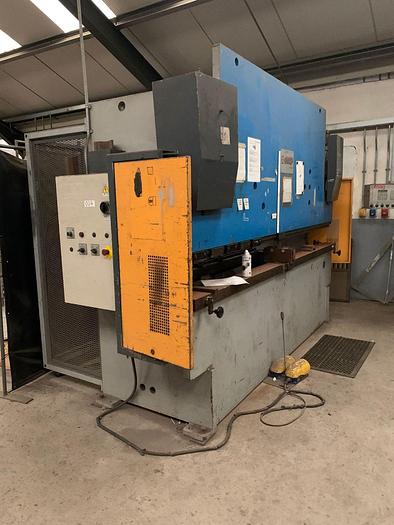

2001 Omag EPB 12026 Hydraulic Downstroking Pressbrake

2001 OMAG EPB 12026 Hydraulic Downstroking Pressbrake

Includes:

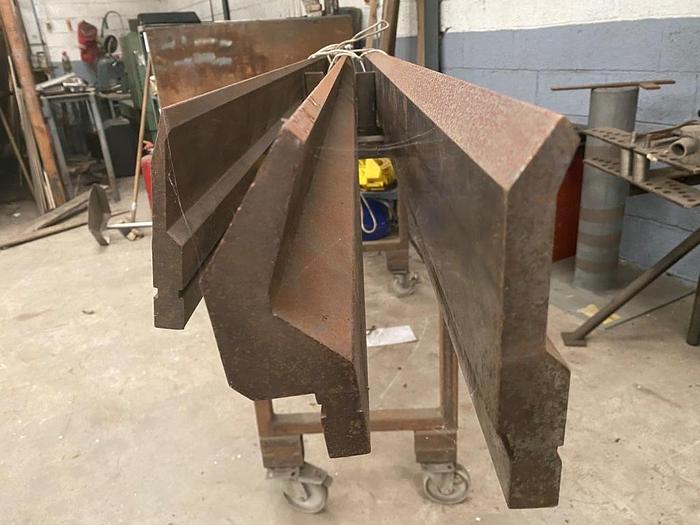

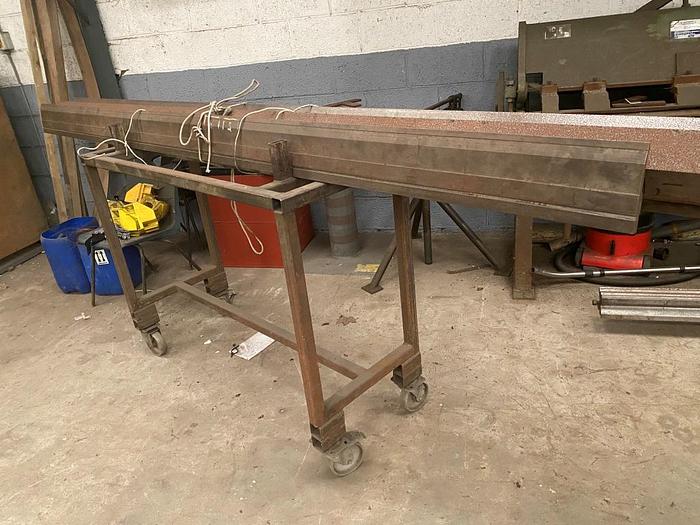

3 x Full Lengths of Top Tooling

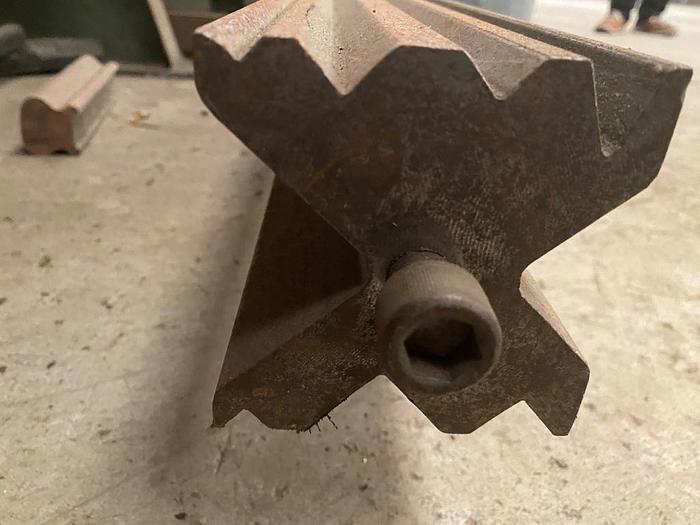

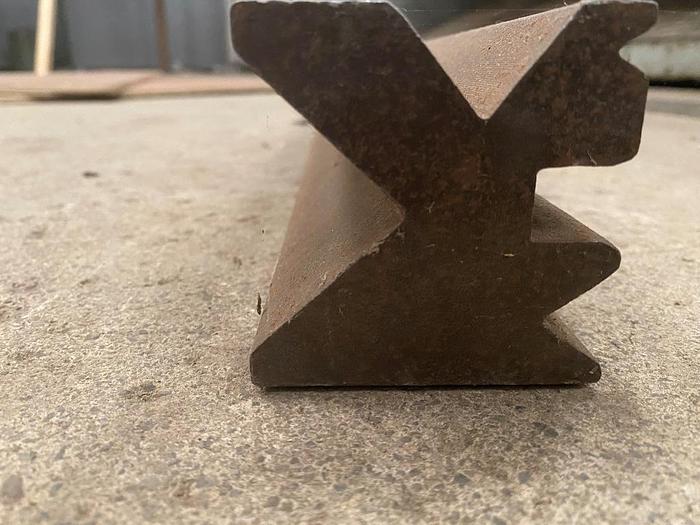

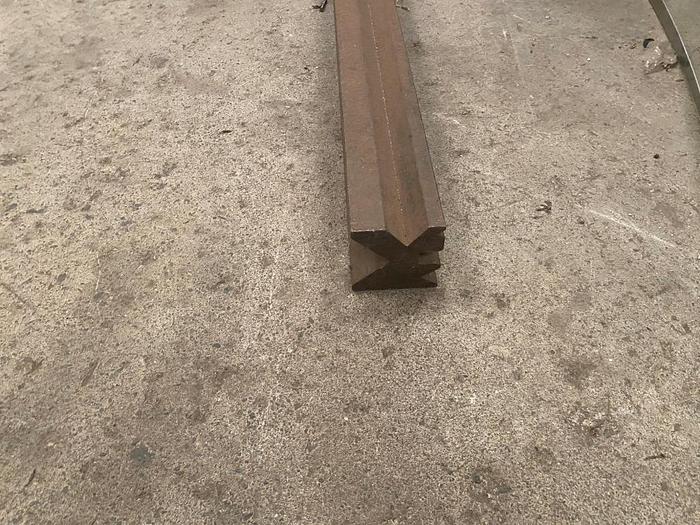

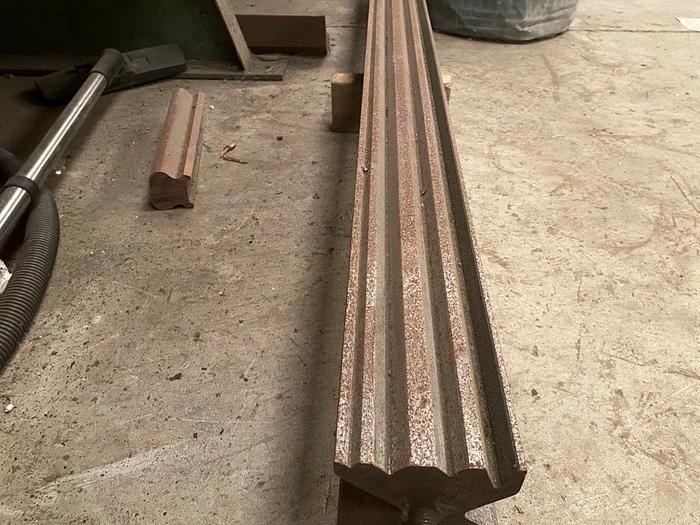

2 x Full Length Multi-Vee

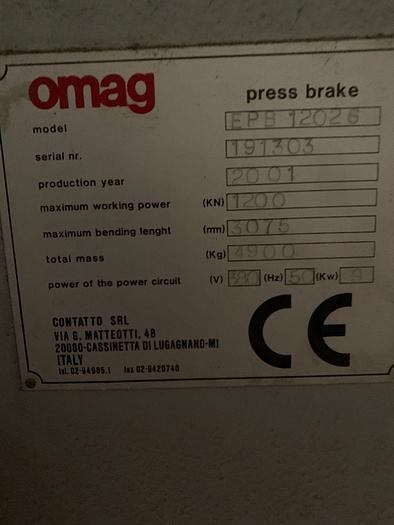

Technical Data

Year: 2001

Control: Omag CPC123 Control

Bending Length: 3075mm

Capacity: 120 Ton

Distance Between Columns: 2600mm

Throat Depth: 200mm

Beam Stroke: 200mm

Daylight: 345mm

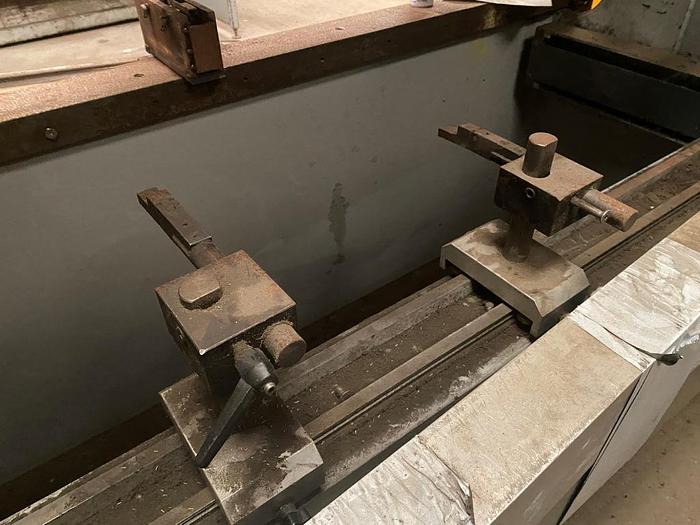

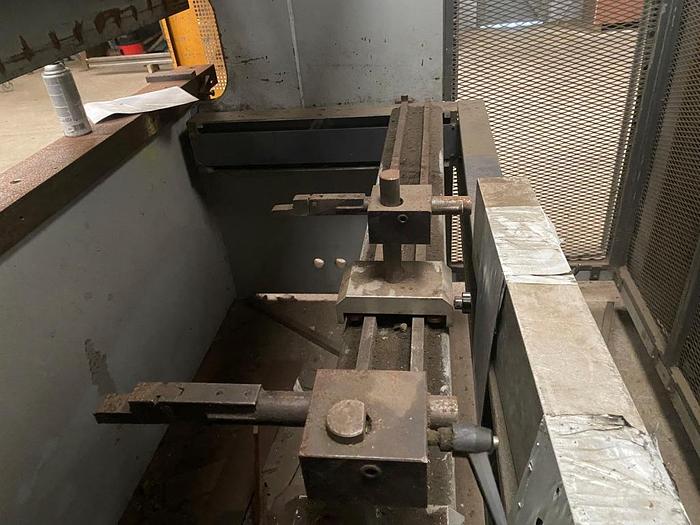

Backgauge: 650mm X Axis Backgauge

Motor Power: 7.5kW

Machine Dimensions(L x W x H): 3450 x 1400 x 2500mm

Weight: 5300kg

Machine Features

Parallelism: Control of bending parallelism by equilibration valves and hydraulic stop in the cylinder (omag patent).

Frame: Is made under rolled, welded and strengthened steel for ensuring the maximum rigidity.

Cylinders: Double acting, are made under steel, lapped and ground; shafts, further to be lapped and ground, are hardened with induction.

Working cycles: Single and Automatic.

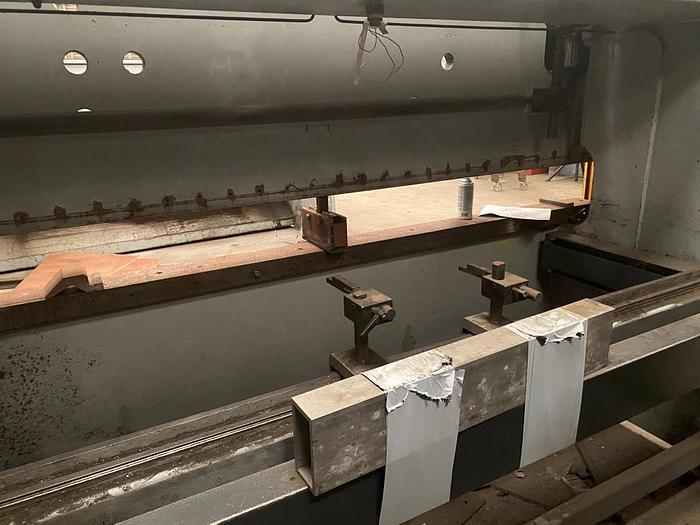

Bending Beam: Is driven directly by two cylinders placed on the housings. Beam stroke is adjustable at both bottom and top dead centre.

Machine Control Features

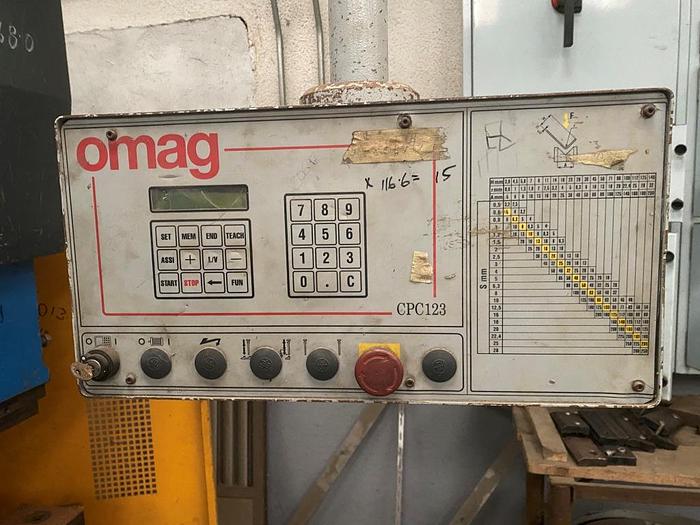

Numerical Control CPC123

CPC123 is a numerical control for conventional press brakes and shears. This device is able to control from 1 to 3 axes, Y, X and R. Easy use and direct dialogue between operator and NC allow complicated pieces bending. At the starting the completed auto diagnostic grants an excellent reliability during the working operation. CPC123 is composed by mother-card on which is set the CPU and all the necessary components for the controls of Y, X and R axes. It is possible to store 300 different bends divided into 99 programs with a maximum length of 99 bends. During the creation of a program the Numerical Control itself leads the operator and points out the possible mistakes.The position of the axes are checked in real time to avoid collisions
