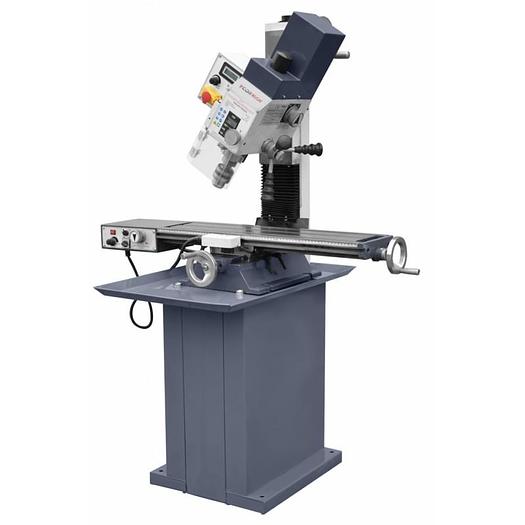

Cormak HK25A Vario 230V Milling & Drilling Machine
Description
Cormak HK25A Vario Milling and Drilling Machine
230V, Single Phase Compact milling and drilling machine for universal applications. Swivel head, MT 3 spindle taper. Digital display shows spindle speed. Includes an Automatic Feed table.
Machine Features

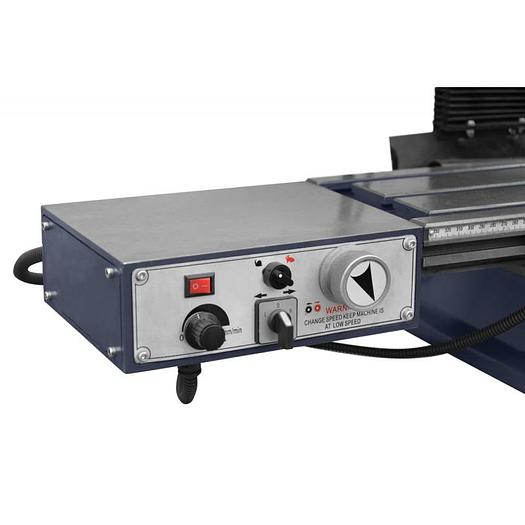

Automatic table feed for milling

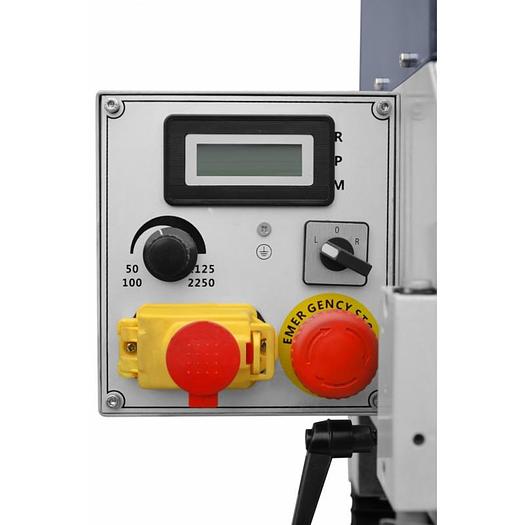

Digital speed display

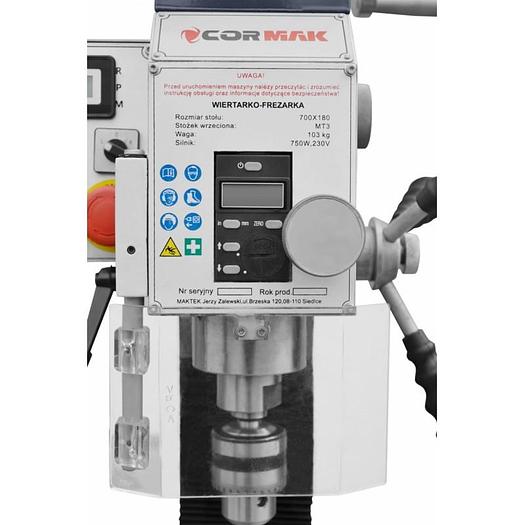

Drilling depth digital display
Smooth speed control
Good quality precision spindle bearings
Includes:
X Axis Auto-Feed
Optional Equipment
100 x 80mm Machine Vice
Cooling System
Machine Base
Technical Information
Max Drilling Capacity: 25 mm
Max Slot/End Milling Capacity:16 mm
Max Face Milling: 63 mm
Spindle Taper: MT 3
Spindle Feed:50 mm
Head Tilt: +/-90°
Number of Spindle Speeds: Variable Speed Control
Spindle Speed Range:50–2250 rpm
Table Surface: 700×180 mm
Maximum Longitudinal Table Travel: 490 mm
Maximum Transverse Table Travel: 180 mm
Maximum Vertical Travel: 380 mm
T-slots Number: 3
T-slots Dimensions: 10 mm
Motor Power: 750 W, 230V
Weight: 115 kg
Specifications
| Manufacturer | Cormak |
| Model | HK25A Vario |
| Condition | New |
| Max Drilling Capacity | 25 mm |
| Max Slot/End Milling Capacity | 16 mm |
| Max Face Milling | 63 mm |
| Spindle Taper | MT 3 |
| Spindle Feed | 50 mm |
| Head Tilt | +/-90° |
| Number of Spindle Speeds | Variable Speed Control |
| Spindle Speed Range | 50–2250 rpm |
| Table Surface | 700×180 mm |
| Maximum Longitudinal Table Travel | 490 mm |
| Maximum Transverse Table Travel | 180 mm |
| Maximum Vertical Travel | 380 mm |
| T-slots Number | 3 |
| T-slots Dimensions | 10 mm |
| Motor Power | 750 W, 230V |
| Weight | 115 kg |
