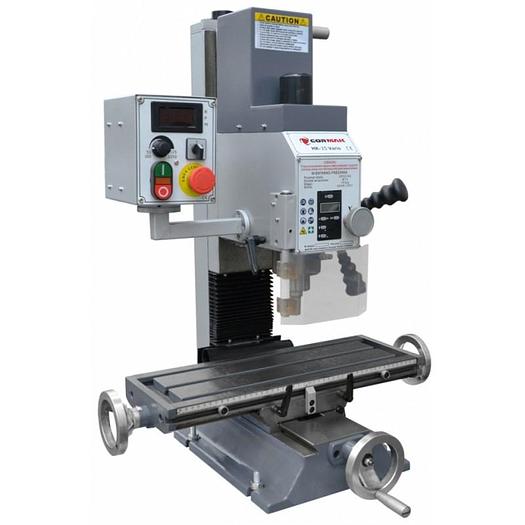

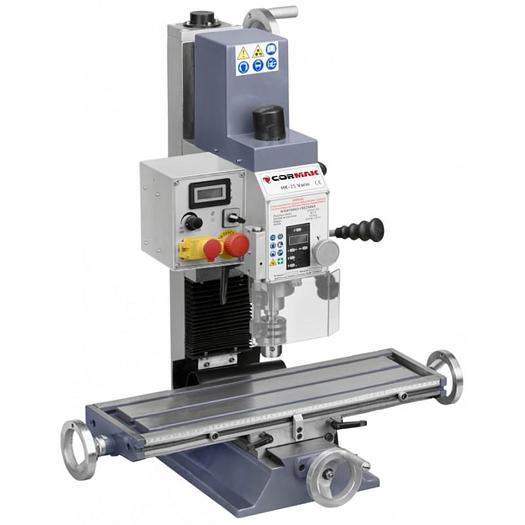

Cormak HK25L Vario 230V Milling & Drilling Machine
Description
Cormak HK25L Vario Milling and Drilling Machine
230V, Single Phase Compact milling and drilling machine for universal applications. Swivel head, MK3 spindle taper. Digital display shows spindle speed.
Machine Features

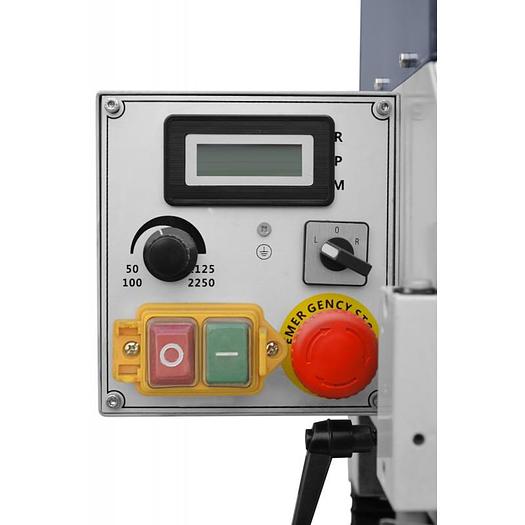

Digital speed display
Drilling depth digital display
Smooth speed control
Good quality precision spindle bearings
Technical Information
Max Drilling Capacity: 25 mm
Max Slot/End Milling Capacity:16 mm
Max Face Milling: 63 mm
Spindle Taper: MT 3
Spindle Feed:50 mm
Head Tilt: +/-90°
Number of Spindle Speeds: Variable Speed Control
Spindle Speed Range:50–2250 rpm
Table Surface: 700×180 mm
Maximum Longitudinal Table Travel: 480 mm
Maximum Transverse Table Travel: 175 mm
Maximum Vertical Travel: 380 mm
T-slots Number: 3
T-slots Dimensions: 10 mm
Motor Power: S1 750 W 230V / S2 1100W
Weight: 110 kg
Specifications
| Manufacturer | Cormak |
| Model | HK25L Vario |
| Condition | New |
| Max Drilling Capacity | 25 mm |
| Max Slot/End Milling Capacity | 16 mm |
| Max Face Milling | 63 mm |
| Spindle Taper | MT 3 |
| Spindle Feed | 50 mm |
| Head Tilt | +/-90° |
| Number of Spindle Speeds | Variable Speed Control |
| Spindle Speed Range | 50–2250 rpm |
| Table Surface | 700×180 mm |
| Maximum Longitudinal Table Travel | 480 mm |
| Maximum Transverse Table Travel | 175 mm |
| Maximum Vertical Travel | 380 mm |
| T-slots Number | 3 |
| T-slots Dimensions | 10 mm |
| Motor Power | S1 750 W 230V / S2 1100W |
| Weight | 110 kg |
