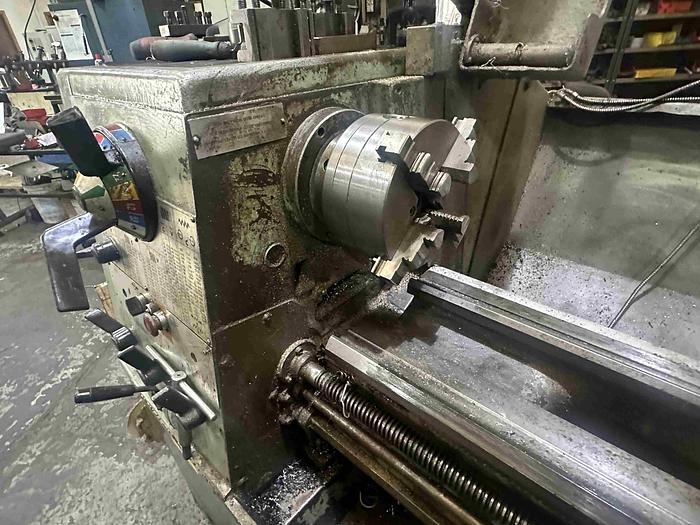

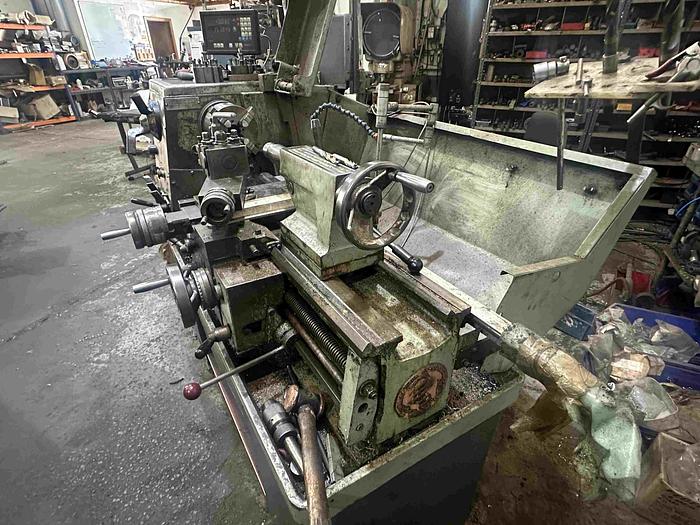

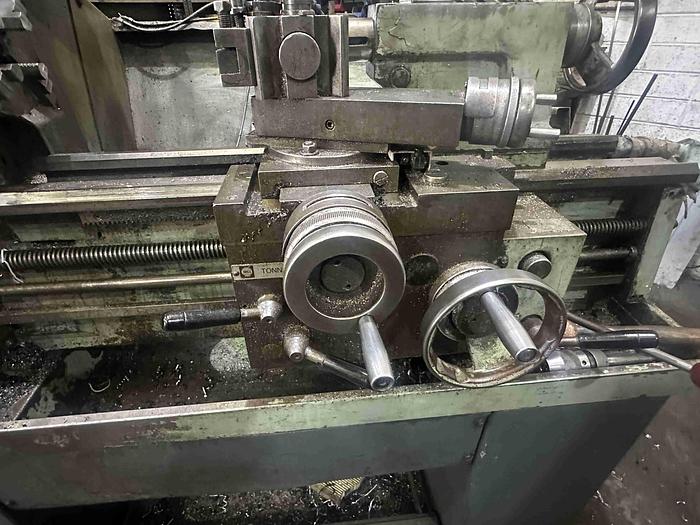

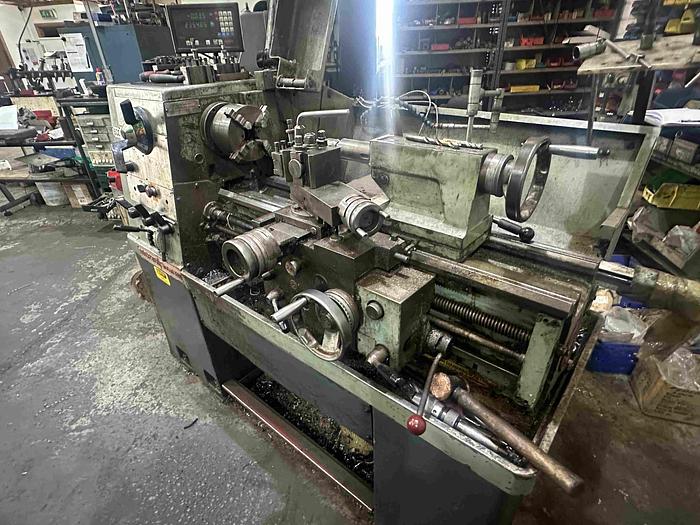

Colchester Student 1800 Manual Lathe
Description

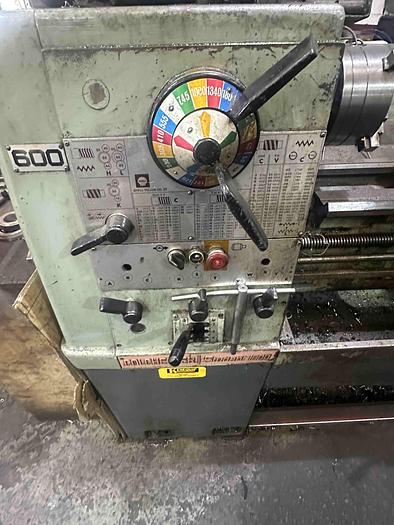

Colchester Student 1800 Manual Lathe
Machine Type: Manual Lathe
Condition: Good
Includes

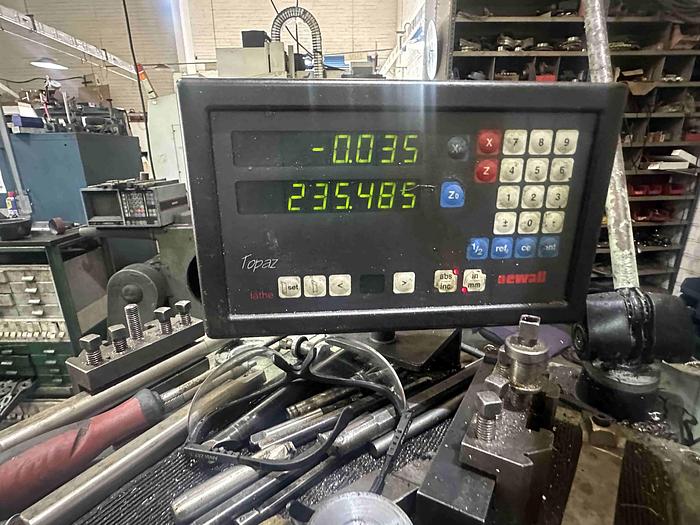

Newall 2 Axis DRO
Jaw Chuck
4 Jaw Chuck
Fixed Steady

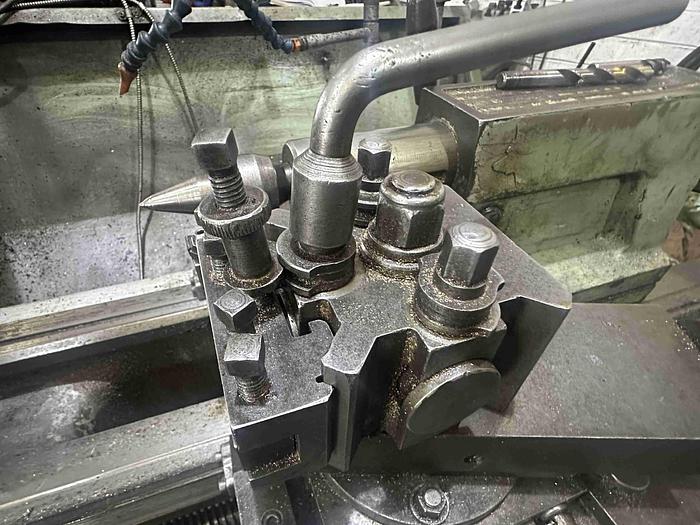

Quick Change Toolpost
Tool Holders
Drill Chuck
Centers
Selection of Tooling
Technical Specifications
Height of Centres: 152mm
Turning Diameter over Bed: 305mm
Turning Diameter over Carriage: 229mm
Turning Diameter over Cross Slide: 203mm

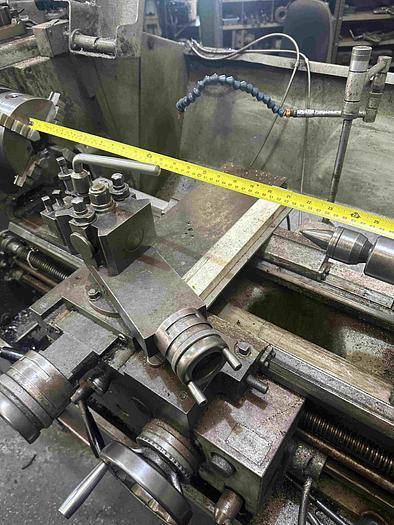

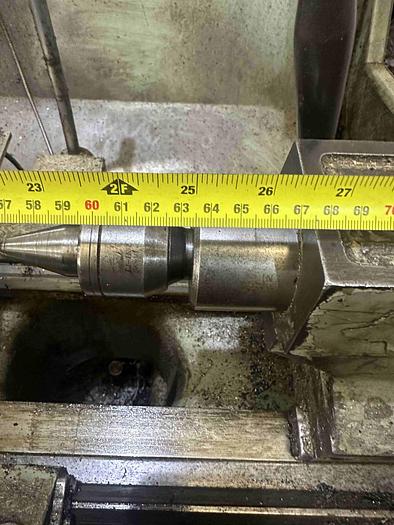

Distance Between Centres: 610mm
Width of Bed: 213mm
Spindle Bore: 42mm
Taper in Spindle Bore: MT3

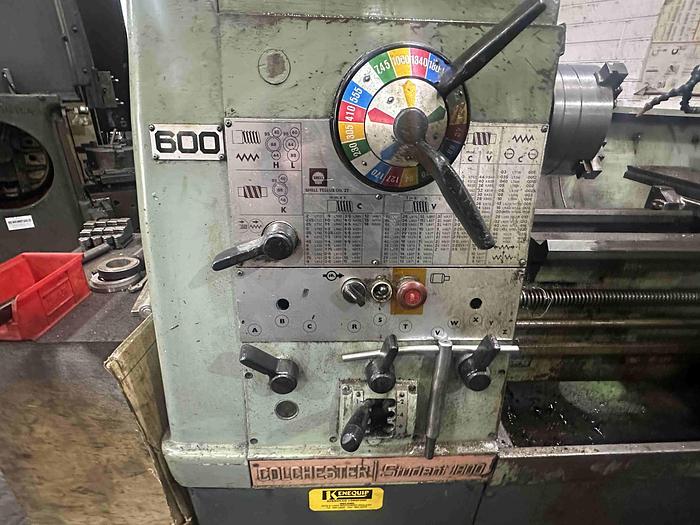

Number of Spindle Speeds: 16
Speed Range: 34 - 1500rpm
No of Cross Slide Feeds: 45
Feed Range: 0.06 - 1.7mm/rev
No of Carriage Feeds: 45
Feed Range: 0.015 - 0.43mm/rev
Cross Slide Travel: 171mm
Top Slide Travel: 92mm
Tailstock Quill Travel: 130mm
Tailstock Quill Taper: MT3
Machine Length: 1550mm
Machine Width: 770mm
Machine Weight: 625kg
Specifications
| Manufacturer | Colchester |
| Model | Student 1800 Manual Lathe |
| Condition | Used |
| Stock Number | 968812 |
| Machine Type | Manual Lathe |
| Condition | Good |
| Height of Centres | 152mm |
| Turning Diameter over Bed | 305mm |
| Turning Diameter over Carriage | 229mm |
| Distance Between Centres | 610mm |
| Width of Bed | 213mm |
| Spindle Bore | 42mm |
| Taper in Spindle Bore | MT3 |
| Number of Spindle Speeds | 16 |
| Speed Range | 34 - 1500rpm |
| No of Carriage Feeds | 45 |
| Carriage Feed Range | 0.06 - 1.7mm/rev |
| Cross Slide Travel | 171mm |
| Feed Range | 0.015 - 0.43mm/rev |
| Top Slide Travel | 92mm |
| Tailstock Quill Travel | 130mm |
| Tailstock Quill Taper | MT3 |
| Machine Length | 1550mm |
| Machine Width | 770mm |
| Machine Weight | 625kg |
