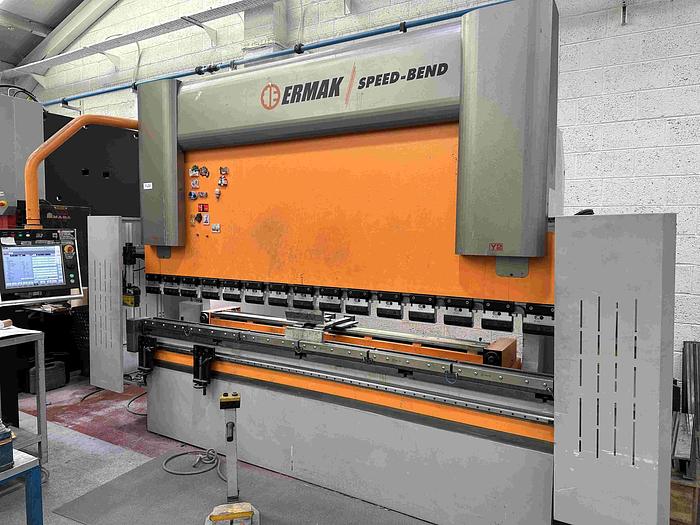

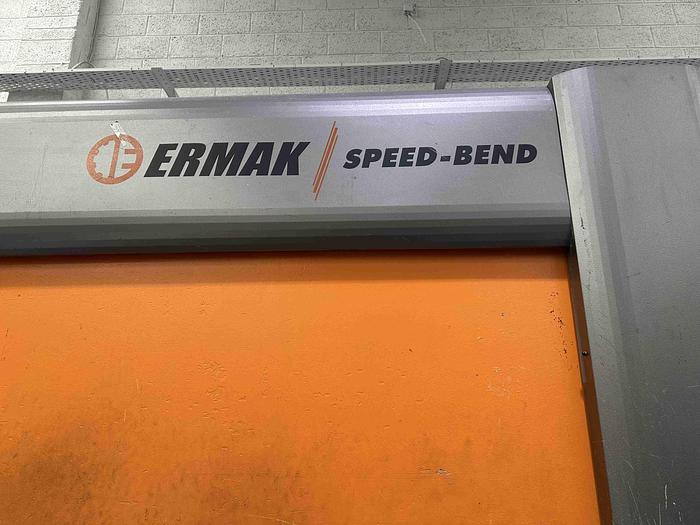

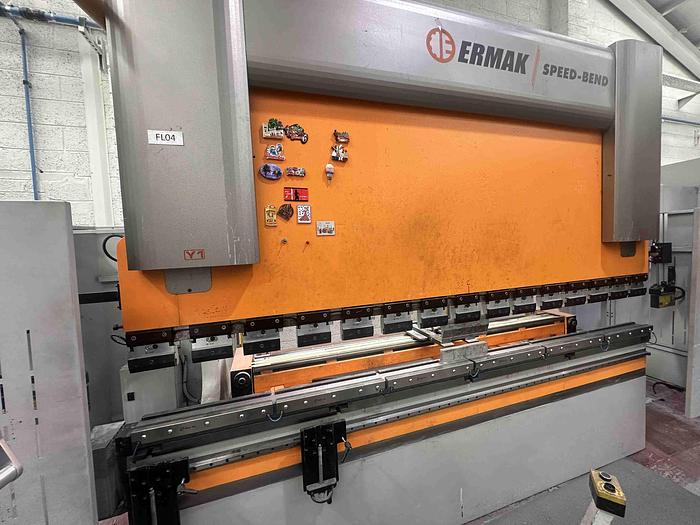

2011 Ermaksan Speed Bend EVO 3100x135 CNC Pressbrake
Description

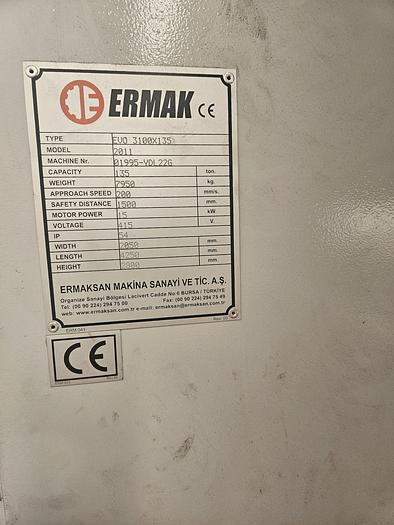

Ermaksan Speed Bend EVO 3100x135 CNC Pressbrake
Machine Type: 6 Axis CNC Pressbrake
Year: 2011

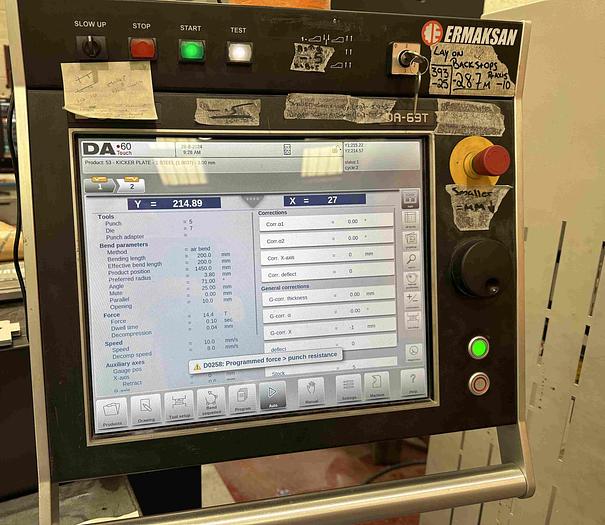

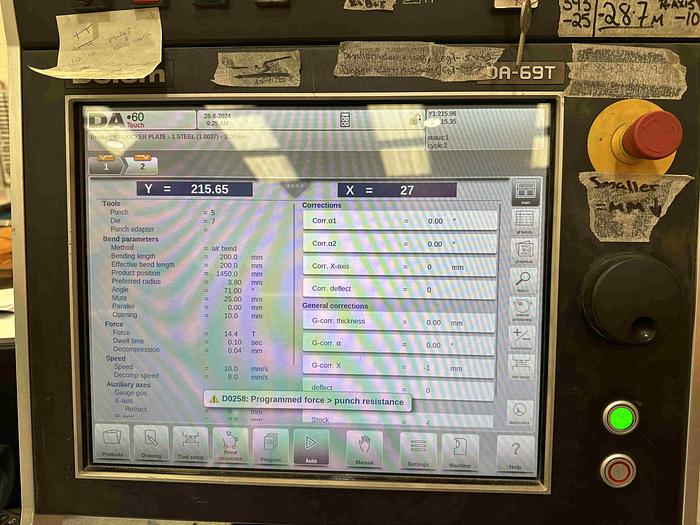

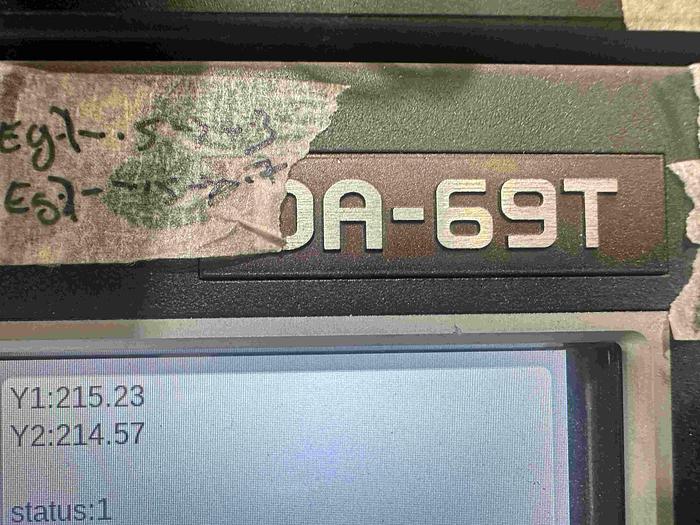

Control: Delem DA-69T Graphic Control
Capacity: 3.1m x 135T
Condition: Excellent
Includes

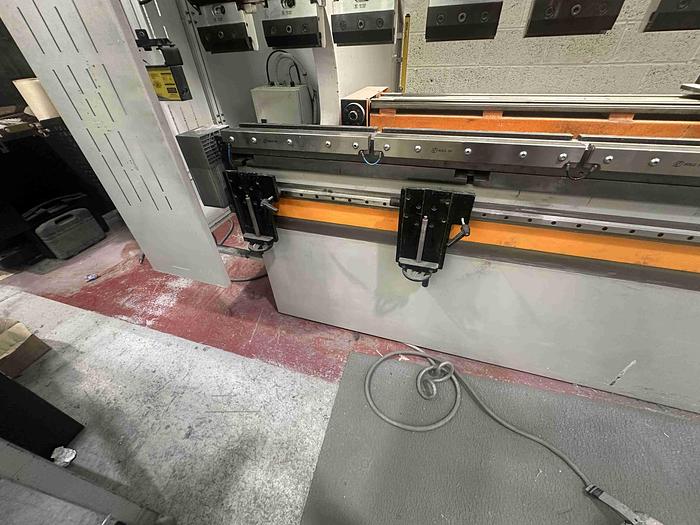

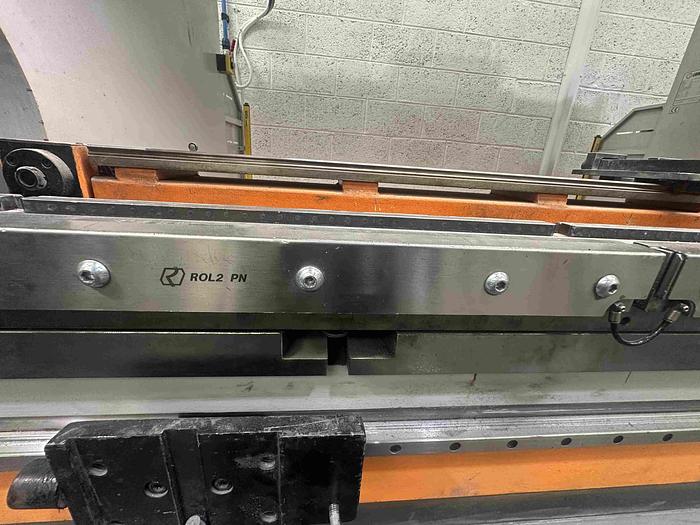

Hydraulic Bottom Tool Clamping
CNC Crowning

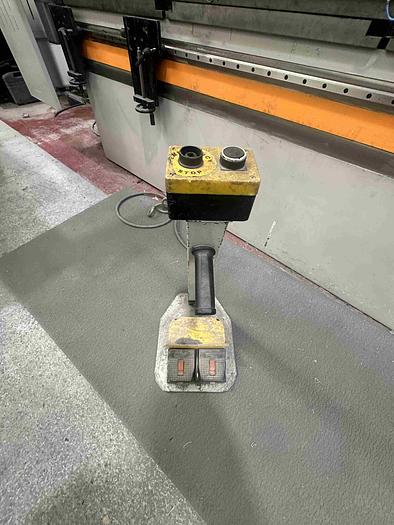

Wanderer Type Foot Pedal

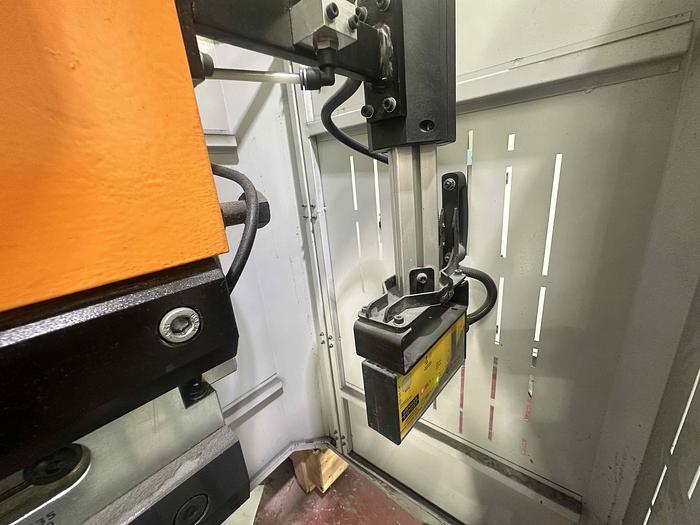

Laser Safe Guard

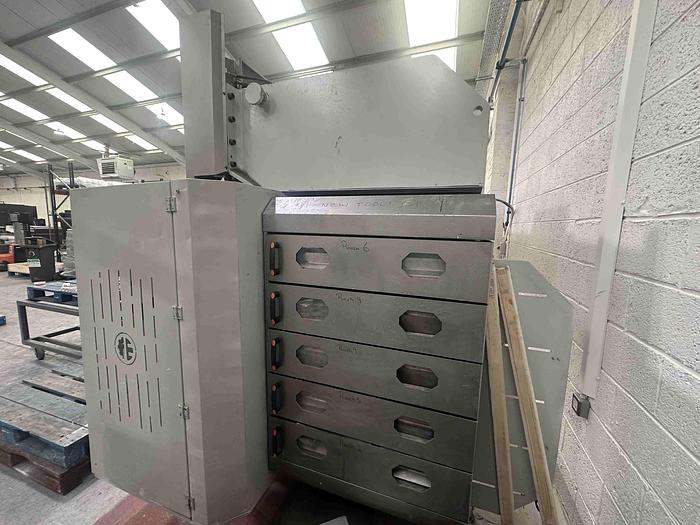

Tool Storage Cabinet on Machine
Technical Specifications
Axes: Y1,Y2,X,R, Z1,Z2
Bending Length: 3100mm
Bending Power: 135T
Distance Between Side Frames: 2600mm
Y Axis Approach Speed: 200mm/s
Y Axis Working Speed: 10mm/s
Y Axis Return Speed: 190mm/s

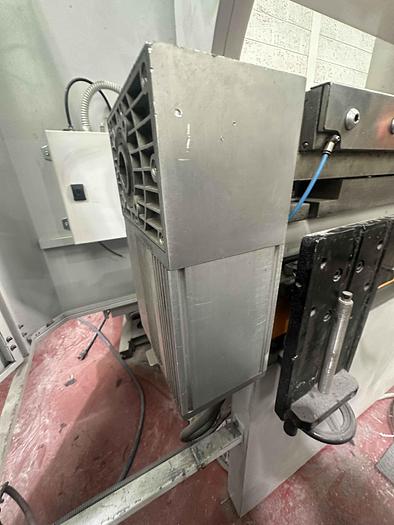

Crowning: Motorised

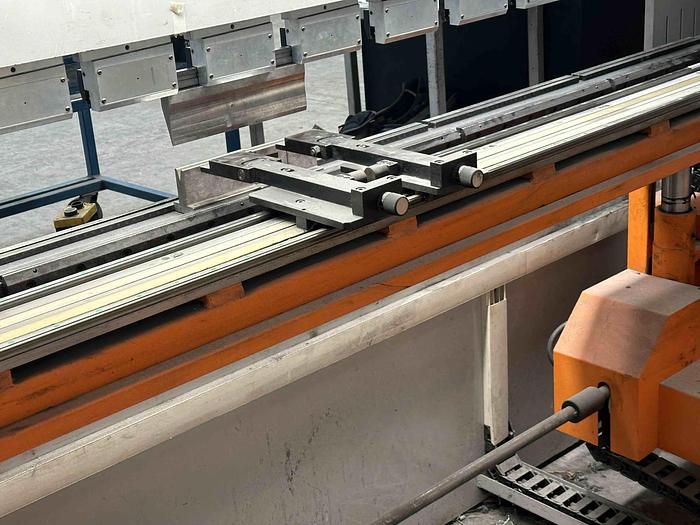

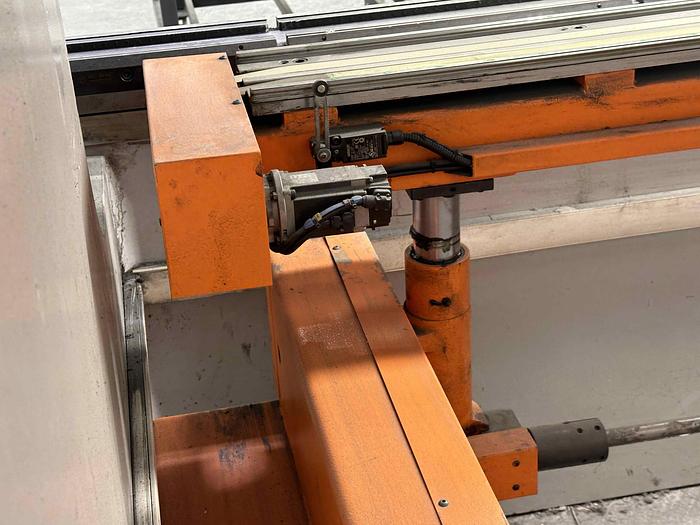

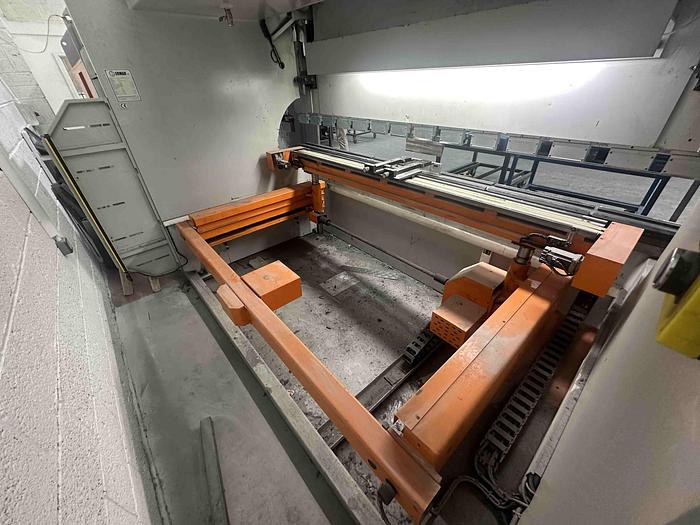

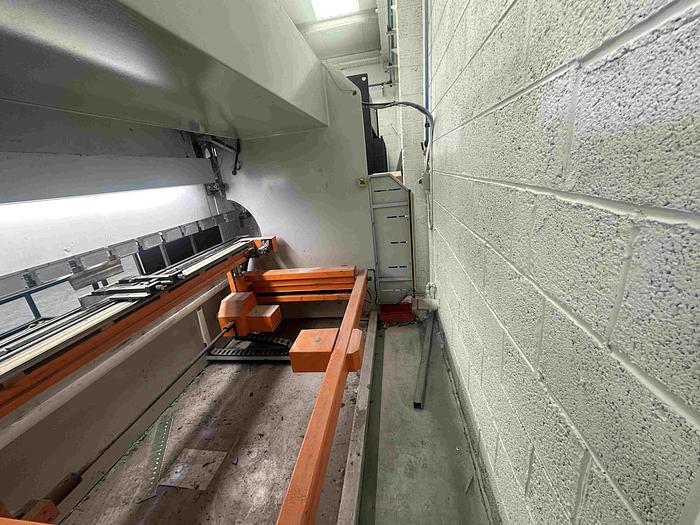

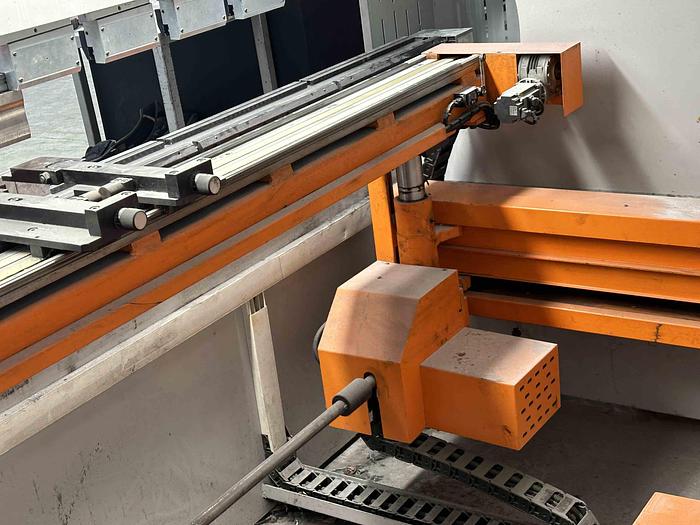

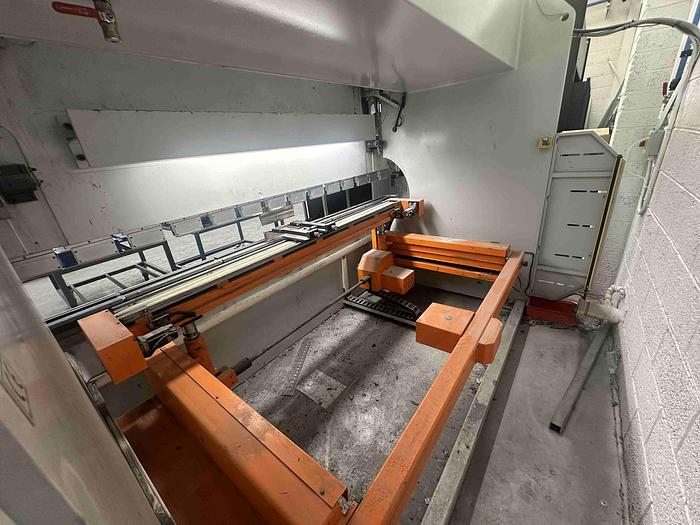

X Axis(Back Gauge) Travel: 800mm
Travel Speed of X Axis: 500mm/sec
R Axis Travel: 250mm
Travel Speed of R Axis: 350mm/s
Travel Speed of Z Axis: 1000mm/s
Back Gauge Fingers: 2
Oil Capacity: 300L
Motor Power: 15kW
Stroke: 275mm
Daylight: 550mm
Throat Depth: 410mm
Table Height: 900mm
Table Width: 90mm
Machine Dimensions: 4250x2050x2680mm
Machine Weight: 7950kg
Specifications
| Manufacturer | Ermaksan |
| Model | Speed Bend EVO 3100x135 CNC Pressbrake |
| Year | 2011 |
| Condition | Used |
| Machine Type | 6 Axis CNC Pressbrake |
| Year | 2011 |
| Control | Delem DA-69T Graphic Control |
| Capacity | 3.1m x 135T |
| Condition | Excellent |
| Axes | Y1,Y2,X,R, Z1,Z2 |
| Bending Length | 3100mm |
| Bending Power | 135T |
| Distance Between Side Frames | 2600mm |
| Y Axis Approach Speed | 200mm/s |
| Y Axis Working Speed | 10mm/s |
| Y Axis Return Speed | 190mm/s |
| Crowning | Motorised |
| X Axis(Back Gauge) Travel | 800mm |
| R Axis Travel | 250mm |
| Back Gauge Fingers | 2 |
| Oil Capacity | 300L |
| Motor Power | 15kW |
| Stroke | 275mm |
| Daylight | 550mm |
| Throat Depth | 410mm |
| Table Height | 900mm |
| Table Width | 90mm |
| Machine Dimensions | 4250x2050x2680mm |
| Machine Weight | 7950kg |
