2001 Amada Europe 255 Punching Machine
Sold
Description

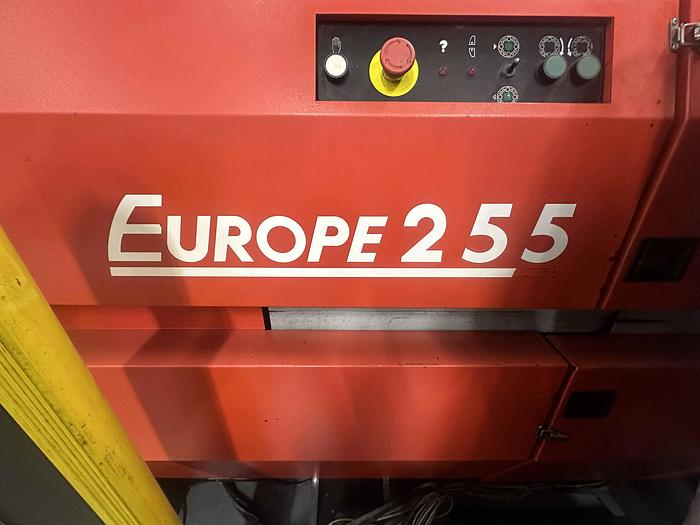

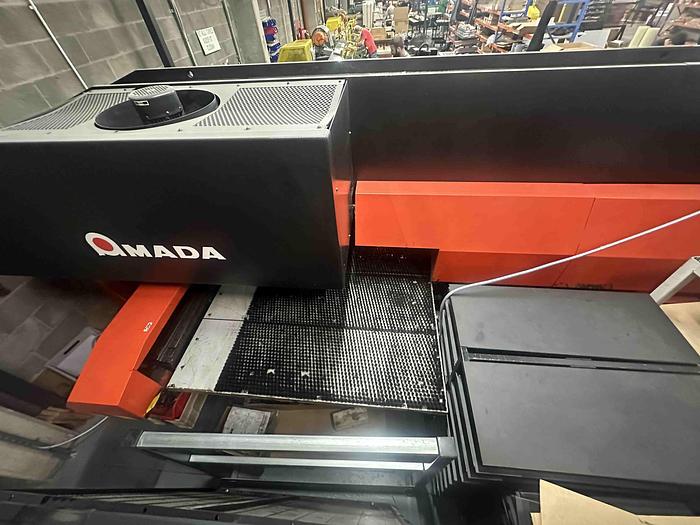

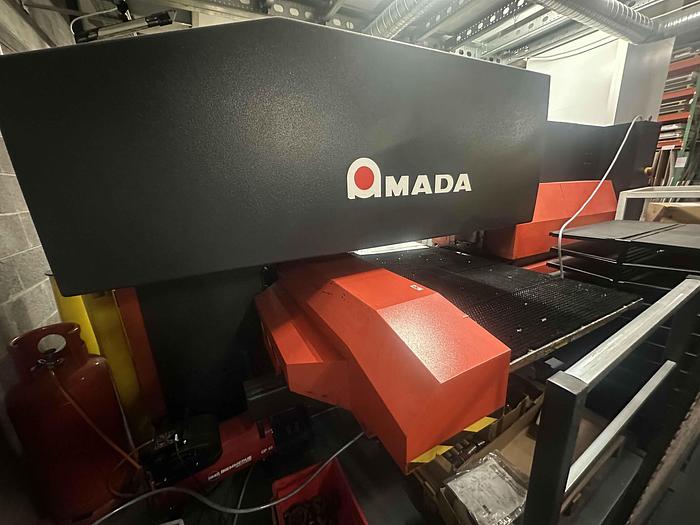

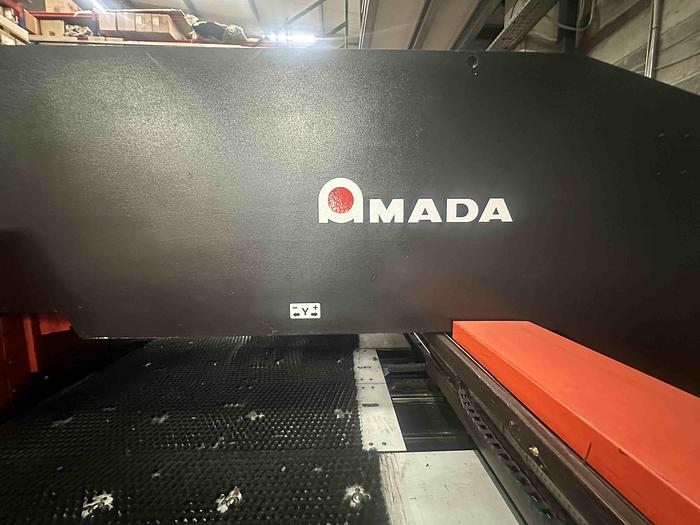

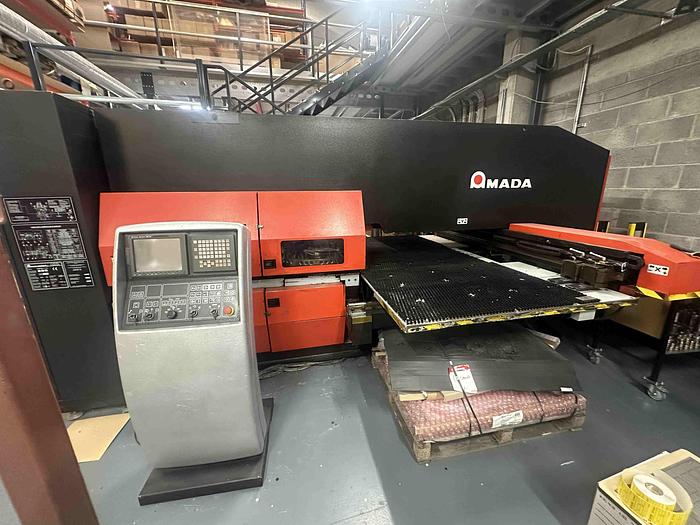

Amada Europe 255 CNC Punching Machine
Machine Type: Turret Punching Machine
Year: 2001

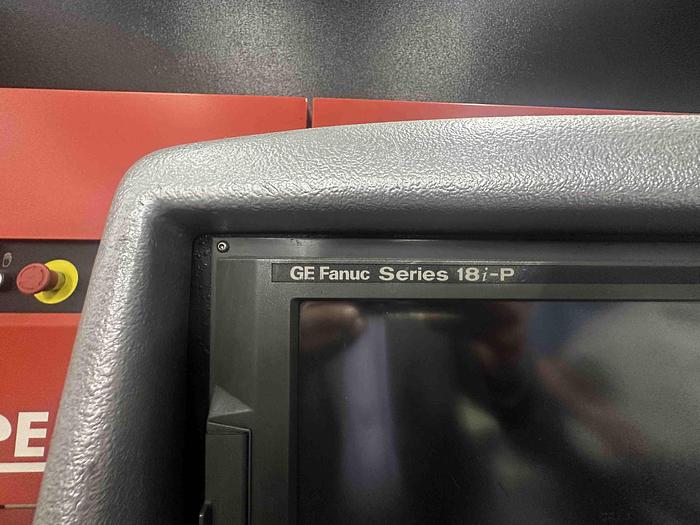

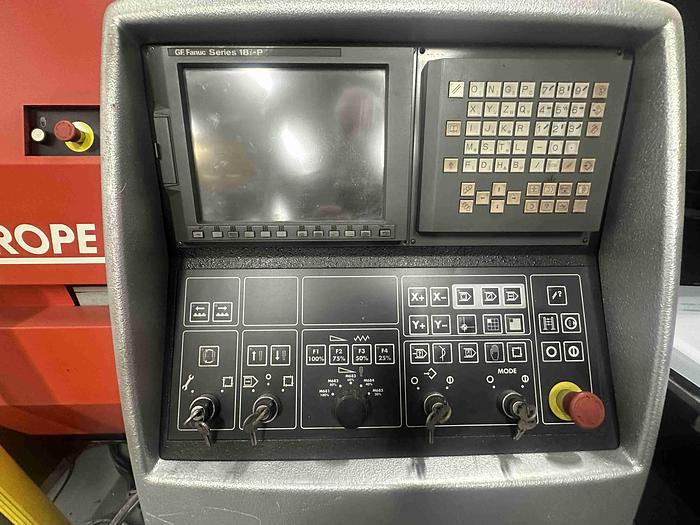

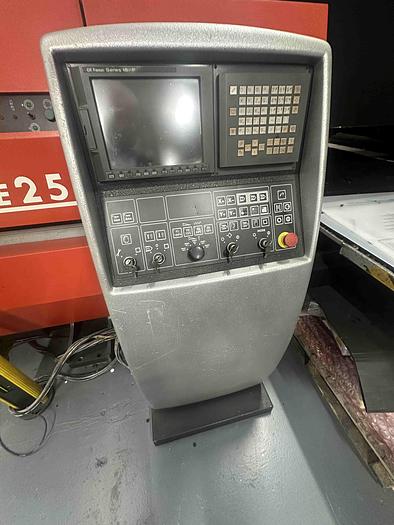

Control: Fanuc Series 18i-P
Condition: Very Good
Includes

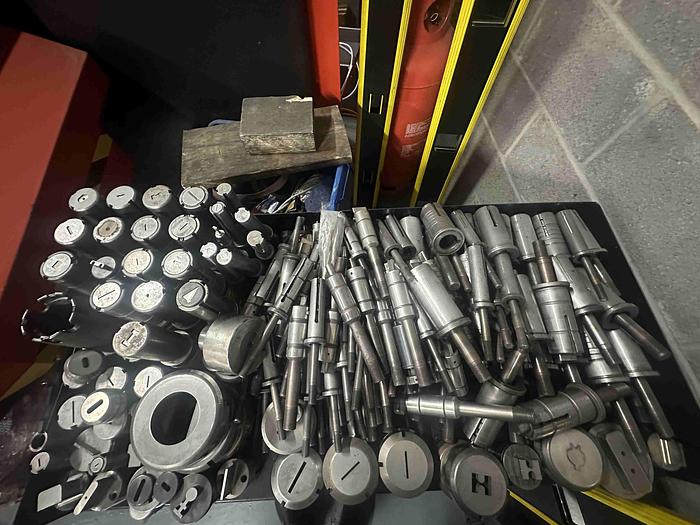

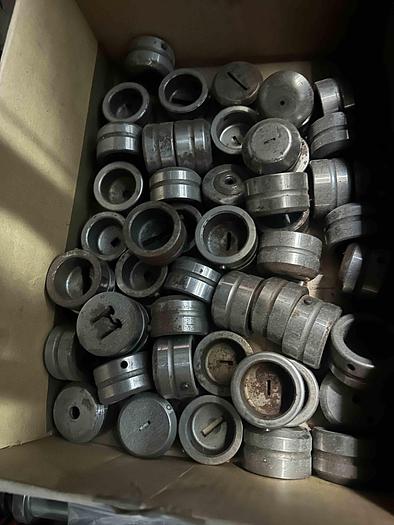

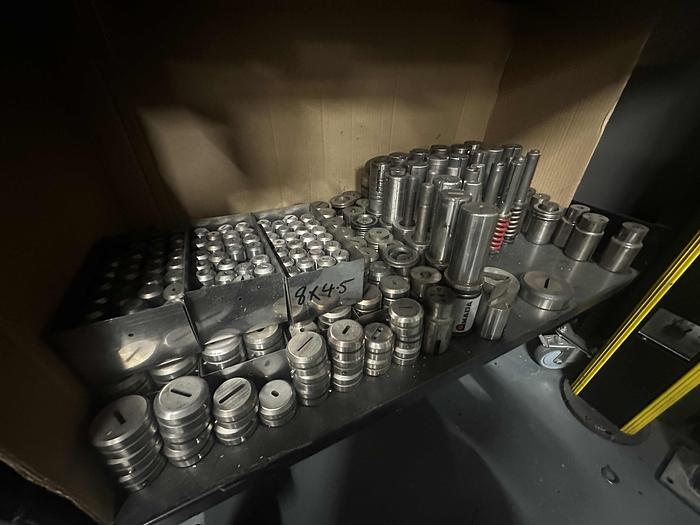

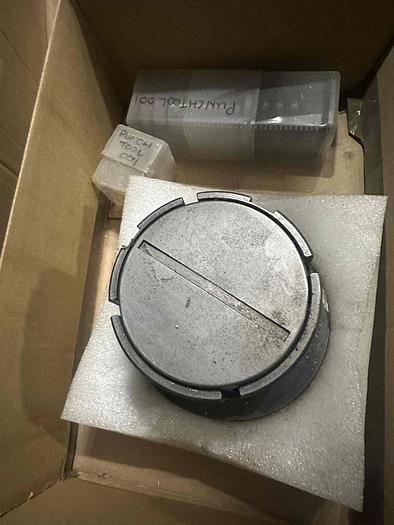

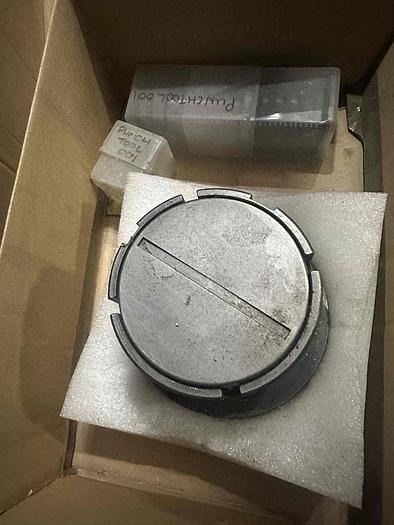

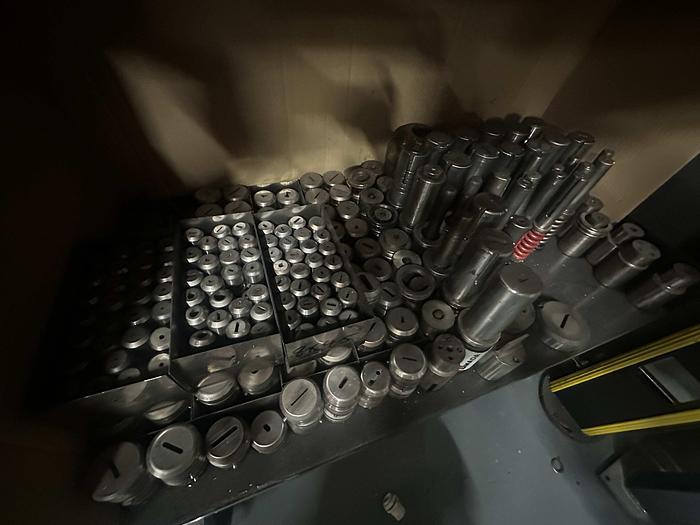

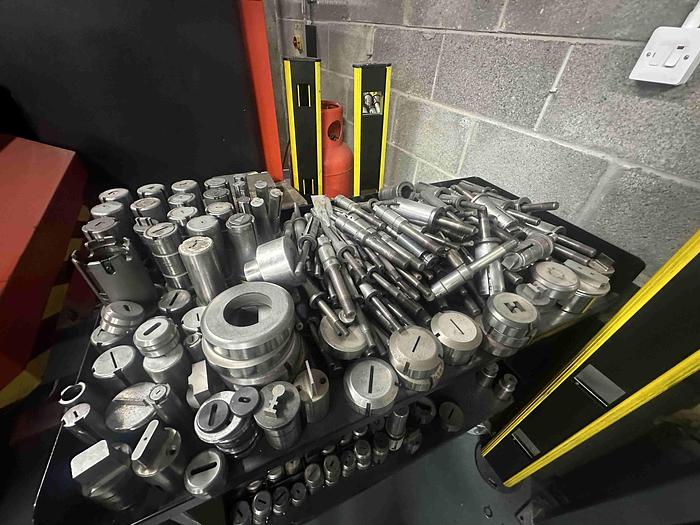

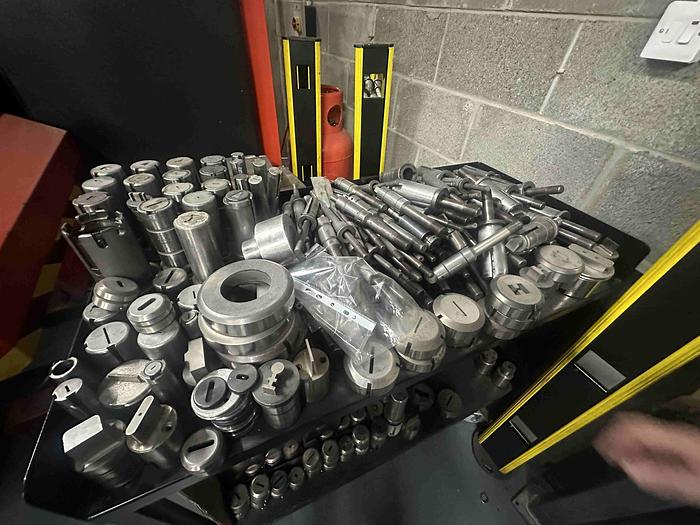

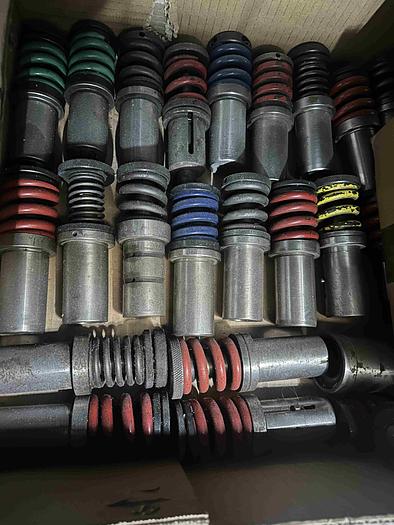

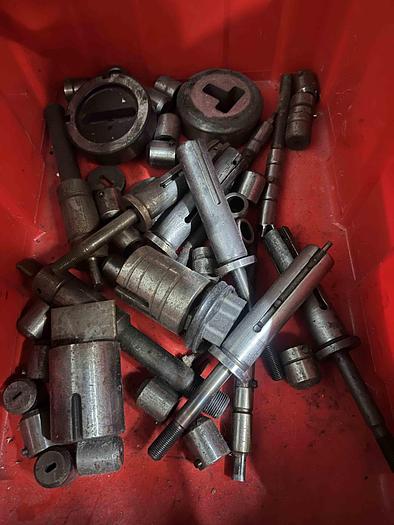

Very Large Quantity of Punching Tools as seen in photos

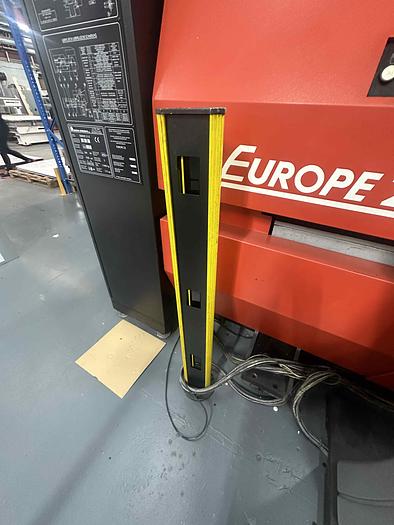

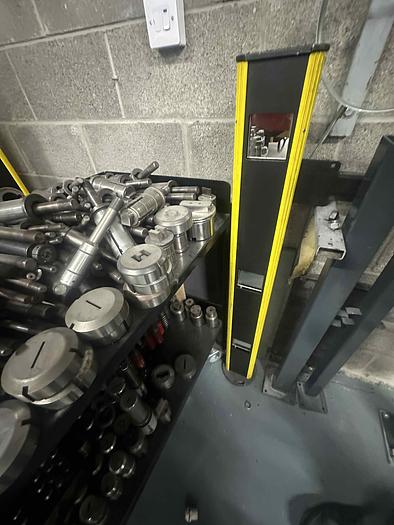

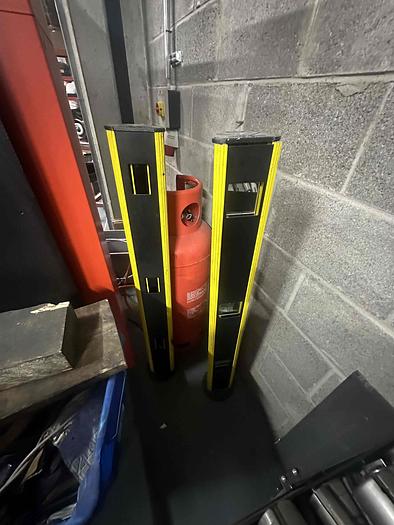

Perimeter Light Guards
Technical Specifications

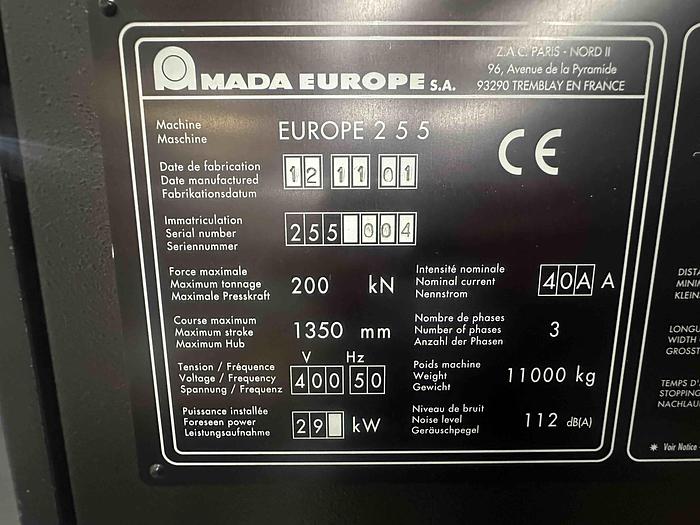

Press Capacity: 200kN
Punching Drive: Hydraulic Eccentric Drive

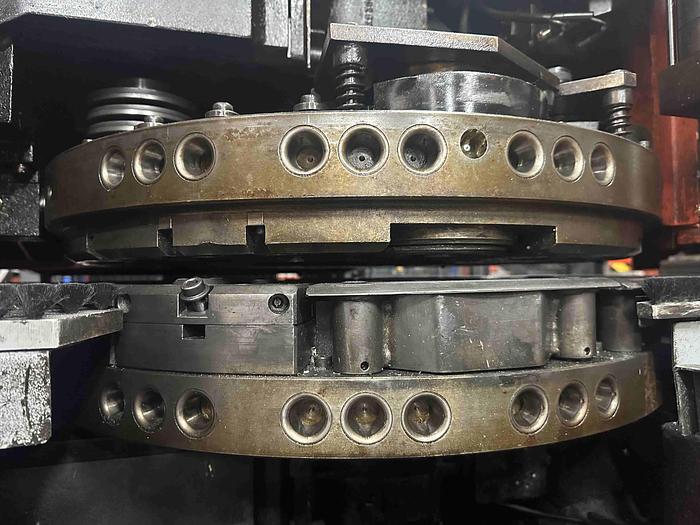

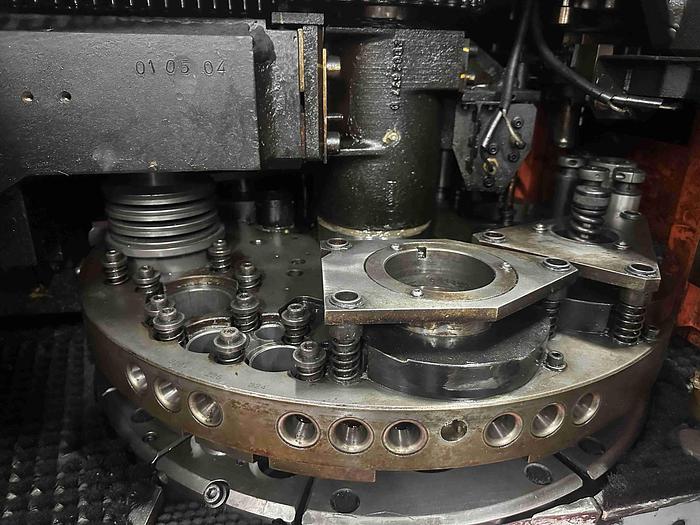

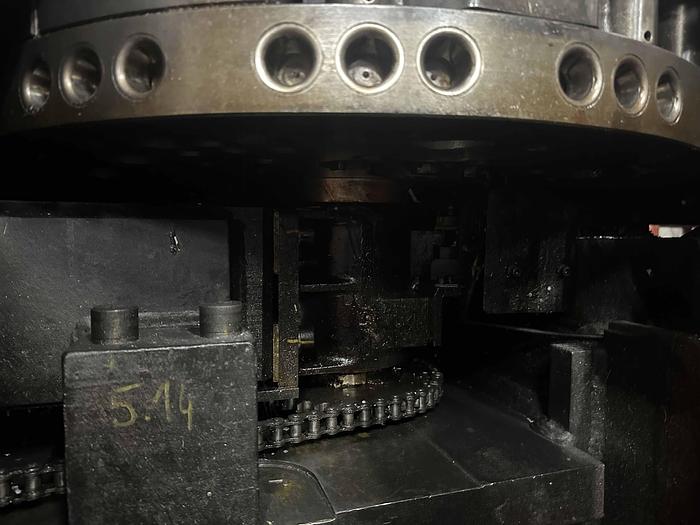

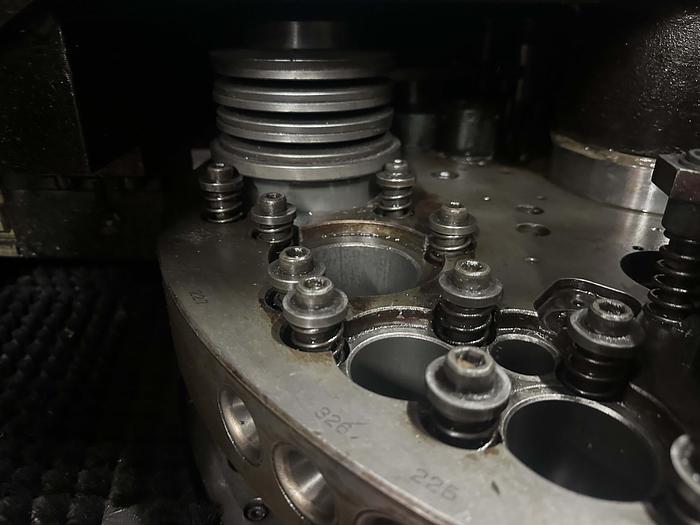

Number of Tool Stations: 27
Machine Type: Bridge Frame
Table Size: 1270 x 2500mm
X Axis Travel: 1350mm
Y Axis Travel: 2540mm

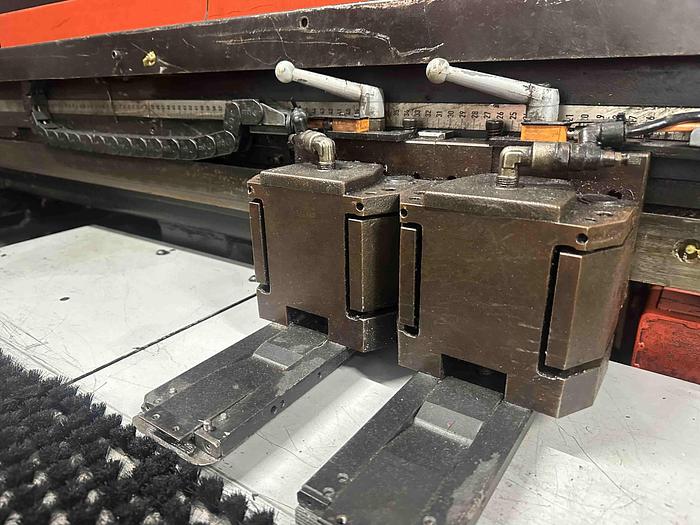

Sheet Clamps: 2

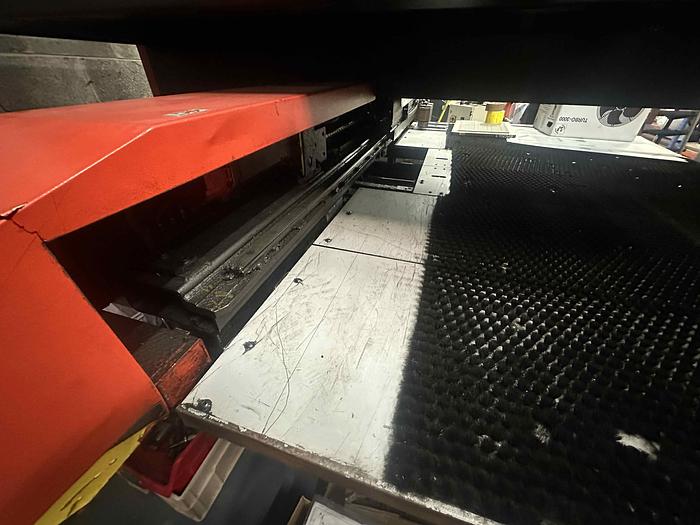

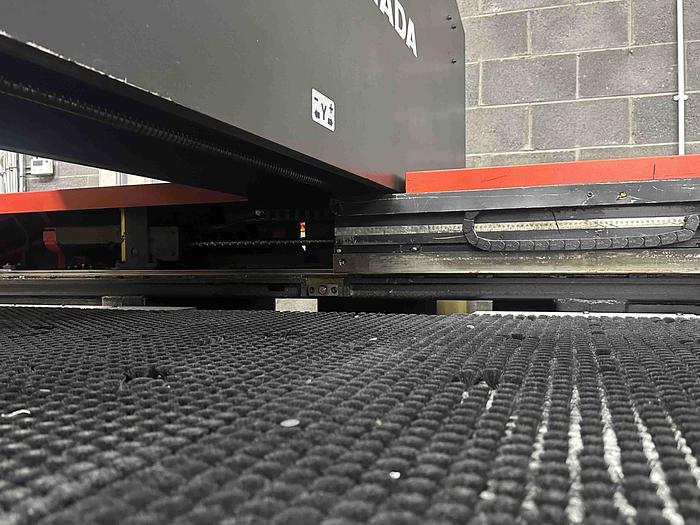

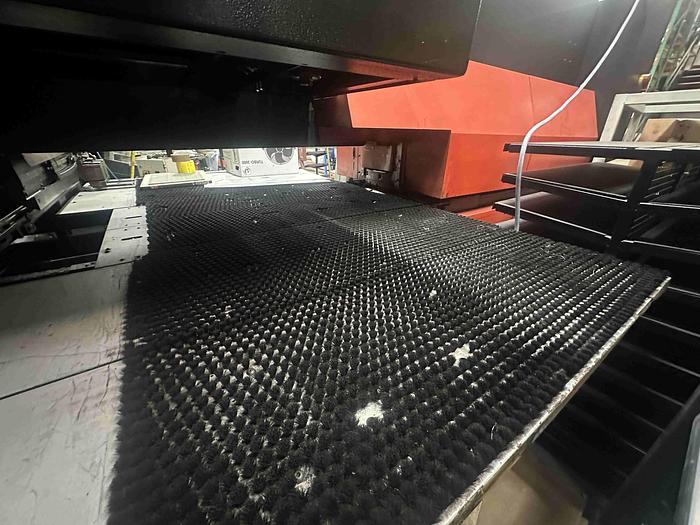

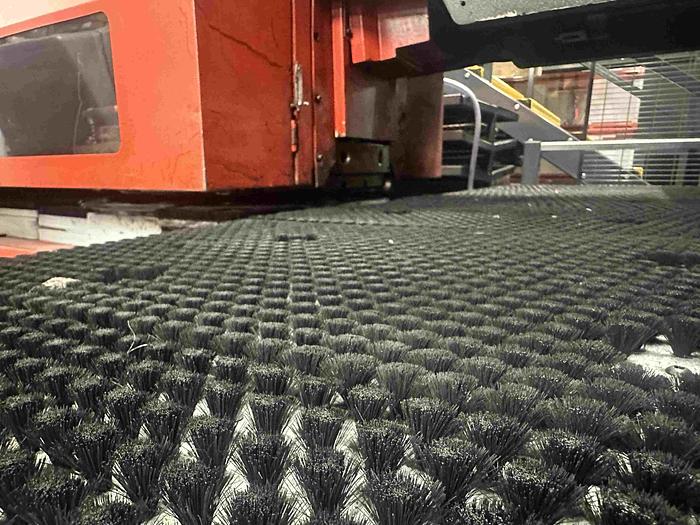

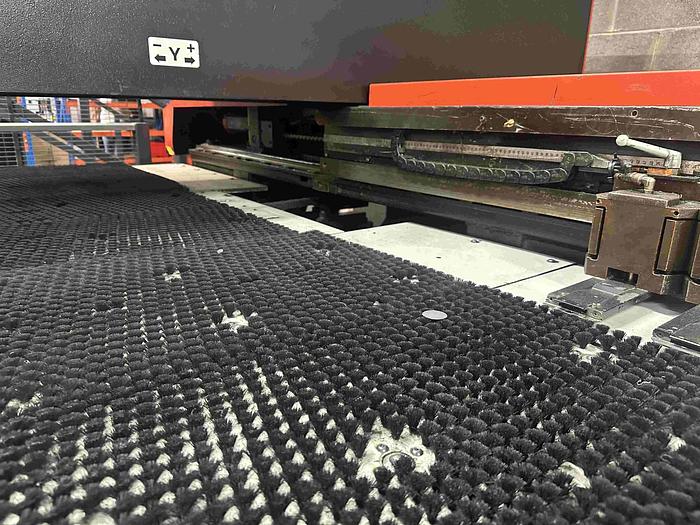

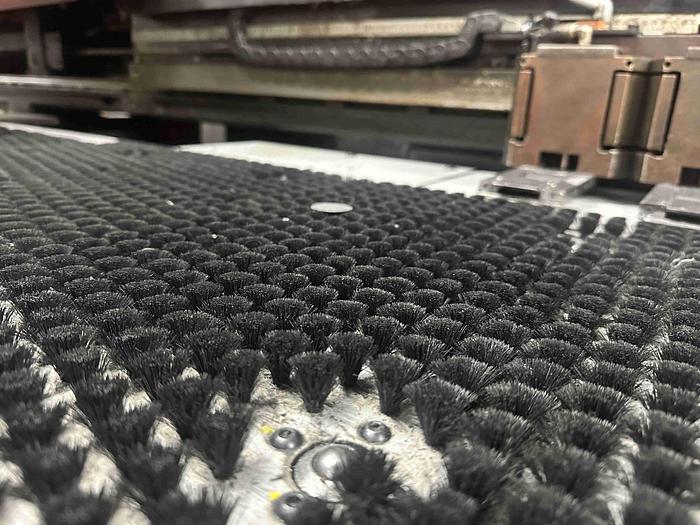

Machine Table Type: Brush Table
Max Sheet Thickness(M/S): 6mm
Table Loading Weight: 75kg
Positioning Speed(X Axis): 65m/min
Positioning Speed(Y Axis): 50m/min
Simultaneous Axis Speed: 82m/min
Power Consumption: 29kW
Machine Dimensions: 4900x2900x2150mm
Machine Weight: 11,000kg
Specifications
| Manufacturer | Amada |
| Model | Europe 255 Punching Machine |
| Year | 2001 |
| Condition | Used |
| Stock Number | 969346 |
| Machine Type | Turret Punching Machine |
| Year | 2001 |
| Control | Fanuc Series 18i-P |
| Condition | Very Good |
| Press Capacity | 200kN |
| Punching Drive | Hydraulic Eccentric Drive |
| Number of Tool Stations | 27 |
| Table Size | 1270 x 2500mm |
| X Axis Travel | 1350mm |
| Y Axis Travel | 2540mm |
| Sheet Clamps | 2 |
| Machine Table Type | Brush Table |
| Max Sheet Thickness(M/S) | 6mm |
| Table Loading Weight | 75kg |
| Positioning Speed(X Axis) | 65m/min |
| Positioning Speed(Y Axis) | 50m/min |
| Simultaneous Axis Speed | 82m/min |
| Power Consumption | 29kW |
| Machine Dimensions | 4900x2900x2150mm |
| Machine Weight | 11,000kg |
