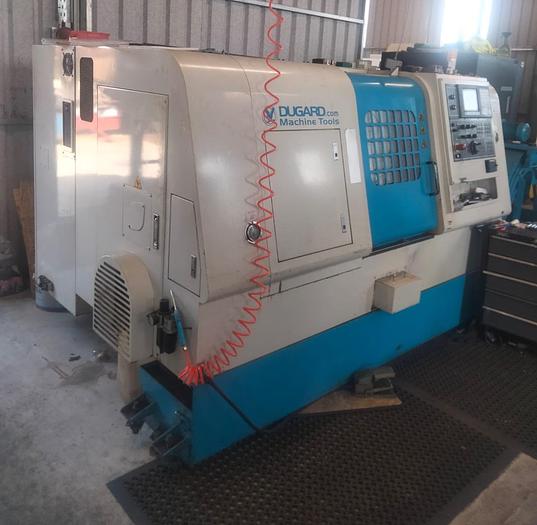

Dugard Eagle 200 CNC Lathe
Description
Dugard Eagle 200 CNC Lathe
Machine Type: 2 Axis CNC Lathe
Year: 2006

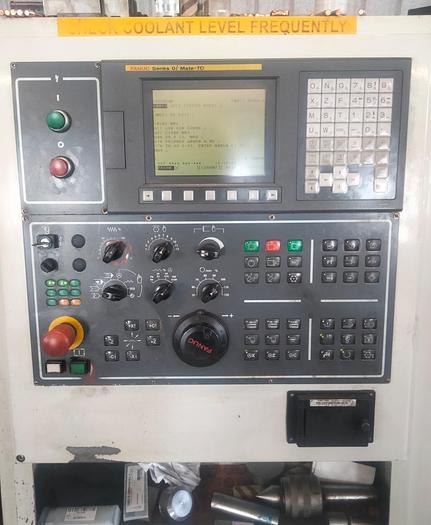

Control: Fanuc Series Oi Mate-TC
Condition: Good
Includes

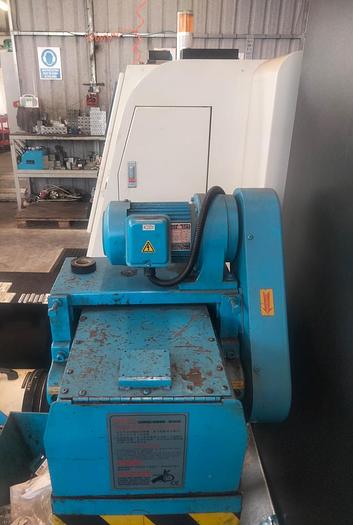

Swarf Conveyor
6 x Tool Holders

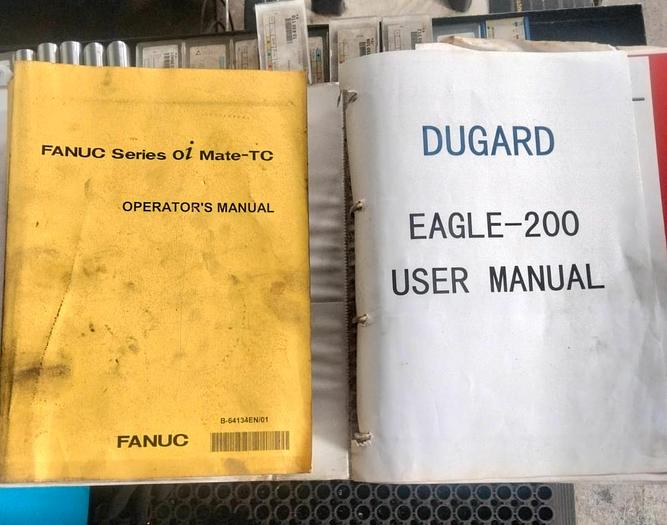

Manuals

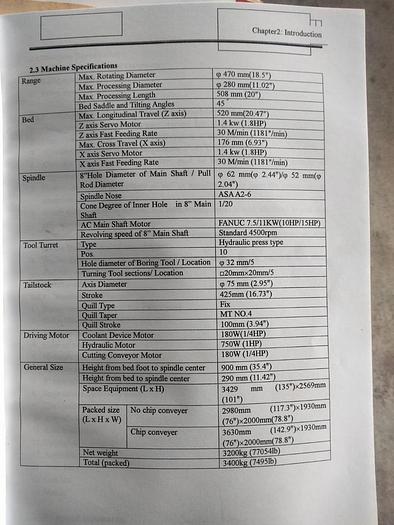

Technical Specification
Max Part Diameter: 480mm
Max Turning Diameter: 280mm
Max Turning Length: 508mm
Bed Saddle & Tilting Angles: 45Deg
Z Axis Travel: 520mm
Z Axis Servo Motor: 1.4kW
X Axis Travel: 176mm
X Axis Servo Motor: 1.4kW
Rapid Feeds(X &Z): 30m/min
Spindle Pull Rod Diameter: 52mm
Hole Through Spindle: 62mm
Spindle Nose: ASA A2-6
Main Spindle Motor: Fanuc 11kW(15hp)
Max Spindle Speed: 4500rpm

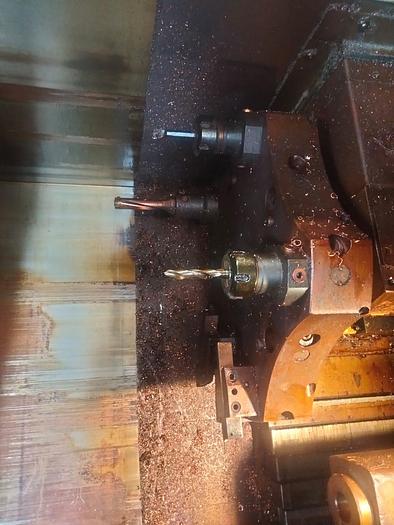

Tool Turret: Hydraulic Press Type VDI40
Turret Positions: 10
Hole Diameter of Boring Tool: 32mm
Turning Tool Size: 20x20mm
Tailstock Stroke: 425mm
Quill Stroke: 100mm
Quill Taper: 4MT
Machine Dimensions: 2430x1930x2570mm
Machine Weight: 3850kg
Specifications
| Manufacturer | Dugard |
| Model | Eagle 200 CNC Lathe |
| Year | 2006 |
| Condition | Used |

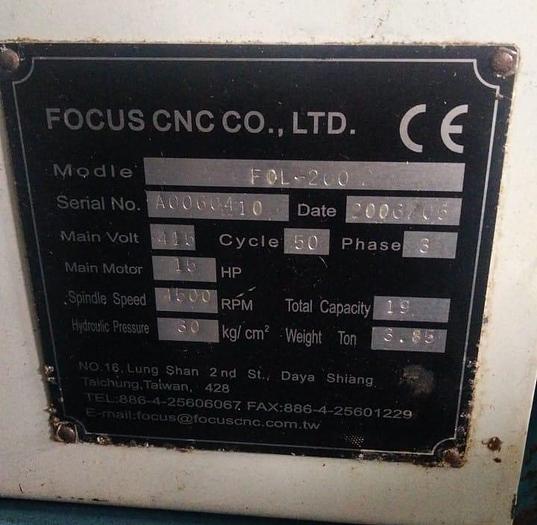

| Serial Number | A0060410 |
| Stock Number | 968814 |
| Machine Type | 2 Axis CNC Lathe |
| Year | 2006 |
| Control | Fanuc Series Oi Mate-TC |
| Condition | Good |
| Max Part Diameter | 480mm |
| Max Turning Diameter | 280mm |
| Max Turning Length | 508mm |
| Z Axis Travel | 520mm |
| Z Axis Servo Motor | 1.4kW |
| X Axis Travel | 176mm |
| X Axis Servo Motor | 1.4kW |
| Rapid Feeds(X &Z) | 30m/min |
| Spindle Pull Rod Diameter | 52mm |
| Hole Through Spindle | 62mm |
| Spindle Nose | ASA A2-6 |
| Main Spindle Motor | Fanuc 11kW(15hp) |
| Max Spindle Speed | 4500rpm |
| Tool Turret | Hydraulic Press Type VDI40 |
| Turret Positions | 10 |
| Turning Tool Size | 20x20mm |
| Tailstock Stroke | 425mm |
| Quill Stroke | 100mm |
| Quill Taper | 4MT |
| Machine Dimensions | 2430x1930x2570mm |
| Machine Weight | 3850kg |
