Drummond Maxicut 2A Gear Shaping Machine
Sold
Description
Drummond Maxicut 2A Gear Shaping Machine
Machine Type: Gear Shaping Machine
Condition: Very Good
Technical Specifications

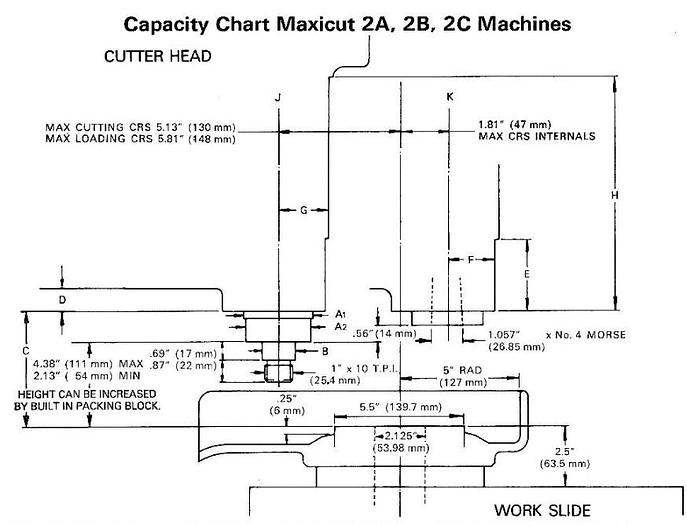

Spindle Cutter Diameter: 69.85mm (2.75")
Spindle Nose Diameter: 31.75mm (1.25")
Height of Cutter Head Above Work Spindle: 140mm (5.5")
Cutter Head Clearances: 3 to 229mm (0.13 to 9")
Cutter Stroke At: 57mm (2.25")
Max Cutting CRS: 130mm (5.13")
Max Loading CRS: 148mm (5.81")
Max CRS Internals: 47mm (1.81")
Specifications
| Manufacturer | Drummond |
| Model | Maxicut 2A Gear Shaping Machine |
| Condition | Used |
| Stock Number | 968729 |
| Machine Type | Gear Shaping Machine |
| Condition | Very Good |
| Spindle Cutter Diameter | 69.85mm (2.75") |
| Spindle Nose Diameter | 31.75mm (1.25") |
| Cutter Stroke At | 57mm (2.25") |
| Max Cutting CRS | 130mm (5.13") |
| Max Loading CRS | 148mm (5.81") |
| Max CRS Internals | 47mm (1.81") |
