1995 Rausch RS3/1000 Broaching Machine
Sold
Description

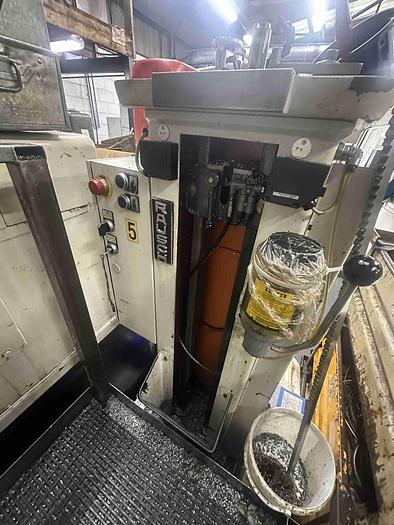

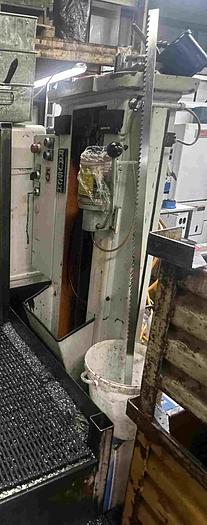

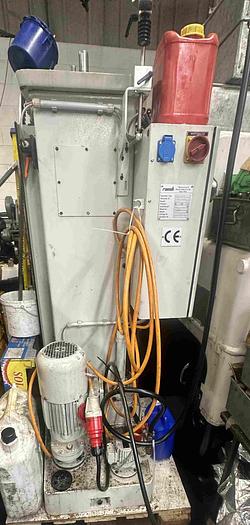

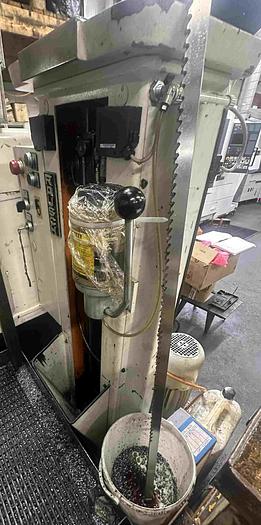

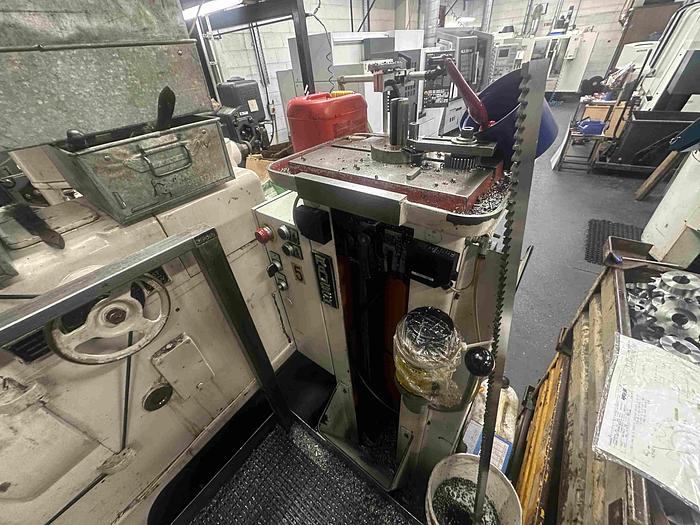

Rausch RS3/1000 Broaching Machine
Machine Type: Semi Automatic Broaching Machine
Year: 1995 (Fully Refurbished in 2022)
Condition: Very Good.
Technical Specification
Pulling Force: 3000kg(30kN)
Stroke: 1000mm
Broaching Speed: 3m/min
Return Speed: 6m/min
Maximum Tool Length: 1200mm
Table Size: 430 x 320mm
Work Surface: 340x220mm
Max Workpiece Diameter: 600mm
Drive: Mechanical
Motor Power: 3.5kW
Power: 380V/3ph
Machine Dimensions: 900x600x1700mm
Machine Weight: 350kg
Specifications
| Manufacturer | Rausch |
| Model | RS3/1000 Broaching Machine |
| Year | 1995 |
| Condition | Used |
| Machine Type | Semi Automatic Broaching Machine |
| Condition | Very Good - Refurbished in 2022 |
| Pulling Force | 3000kg(30kN) |
| Stroke | 1000mm |
| Broaching Speed | 3m/min |
| Return Speed | 6m/min |
| Maximum Tool Length | 1200mm |
| Table Size | 430 x 320mm |
| Work Surface | 340x220mm |
| Max Workpiece Diameter | 600mm |
| Drive | Mechanical |
| Motor Power | 3.5kW |
| Power | 380V/3ph |
| Machine Dimensions | 900x600x1700mm |
| Machine Weight | 350kg |
