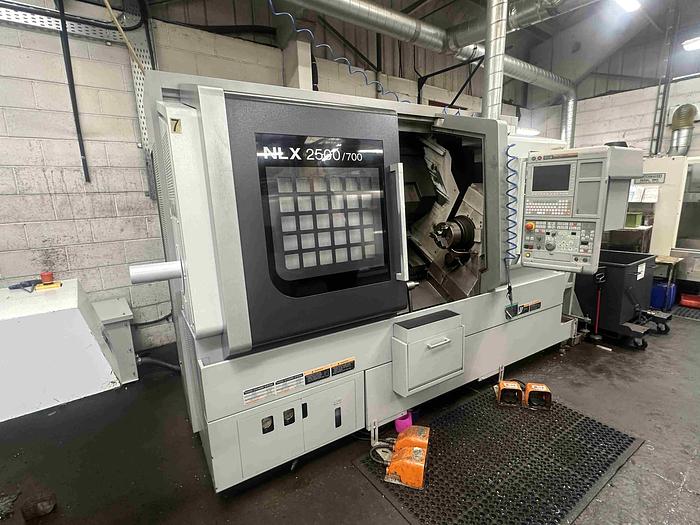

2013 DMG MORI NLX2500SY/700 CNC Lathe – Precision Turning with Sub-Spindle & Y-Axis for Sale in Ireland

🌀 2013 DMG MORI NLX2500SY/700 CNC Lathe – Precision Turning with Sub-Spindle & Y-Axis

Looking for a powerful, reliable, and feature-rich CNC lathe built for complex, high-precision turning? This DMG MORI NLX2500SY/700 from 2013 is a top-tier multi-axis turning center, ideal for demanding applications in aerospace, medical, automotive, and general engineering.

Now available in excellent condition, this lathe delivers exceptional performance and value, backed by the industry-leading precision and engineering of DMG MORI.

✅ Key Specifications – DMG MORI NLX2500SY/700 (2013)

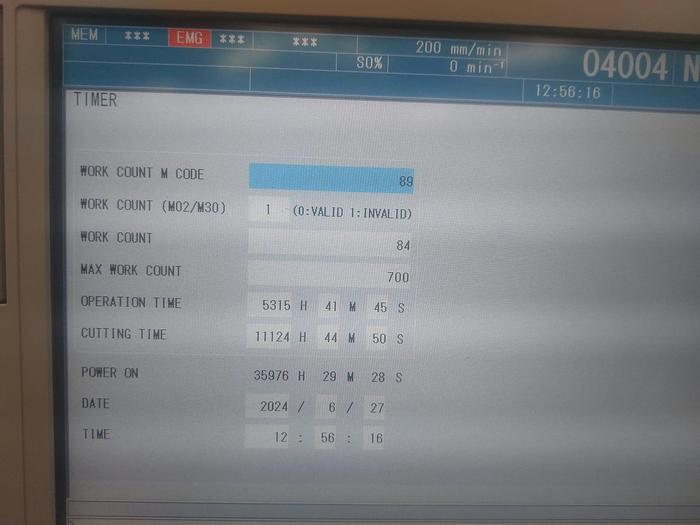

• Hours: 11,124 hrs
• Swing Over Bed: 670 mm
• Max Turning Diameter: 366 mm
• Max Turning Length: 705 mm
• Spindle Bore: 91 mm (bar capacity approx. 80 mm)
• Y-Axis Travel: ±50 mm for live milling and off-center operations

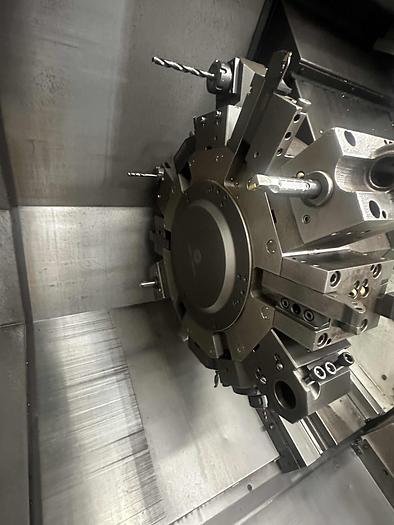

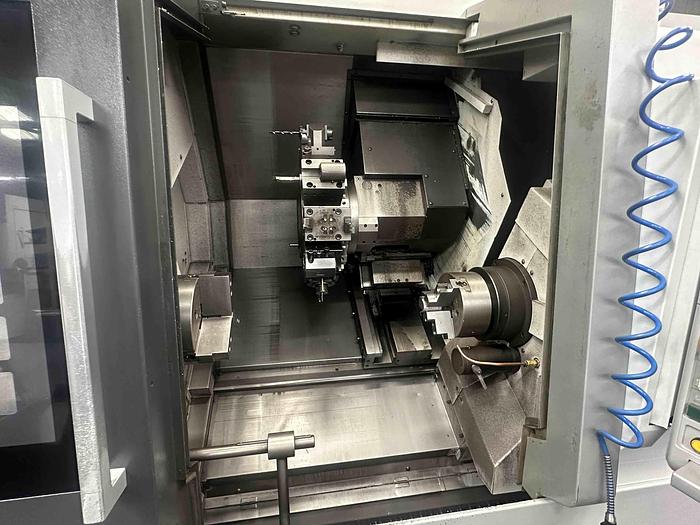

• Turret: 12-station BMT-60 live tooling turret

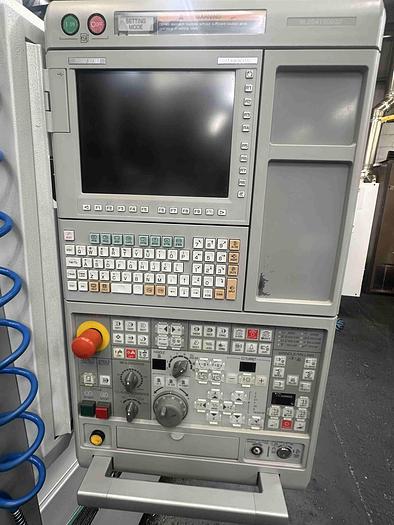

• Control: Mori Seiki/Mitsubishi M730BM
• CNC System: Fully conversational and programmable for multi-axis turning and milling
• Distance Between Centres: 700mm

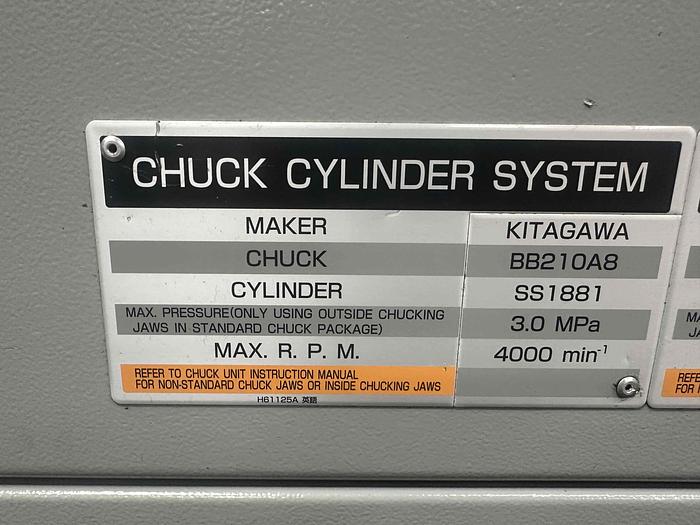

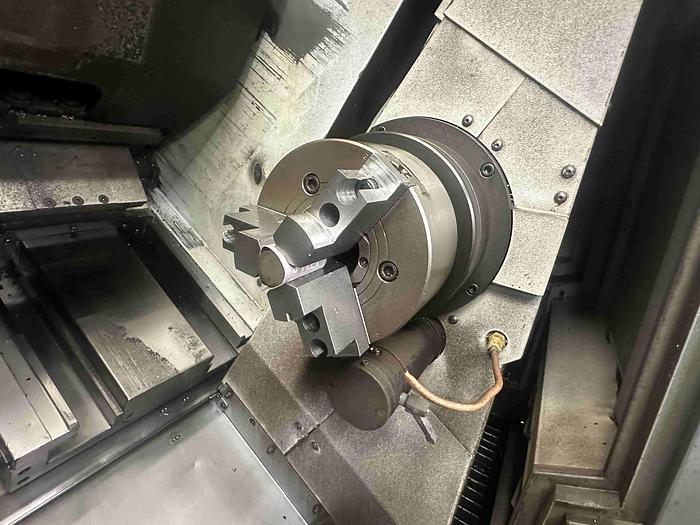

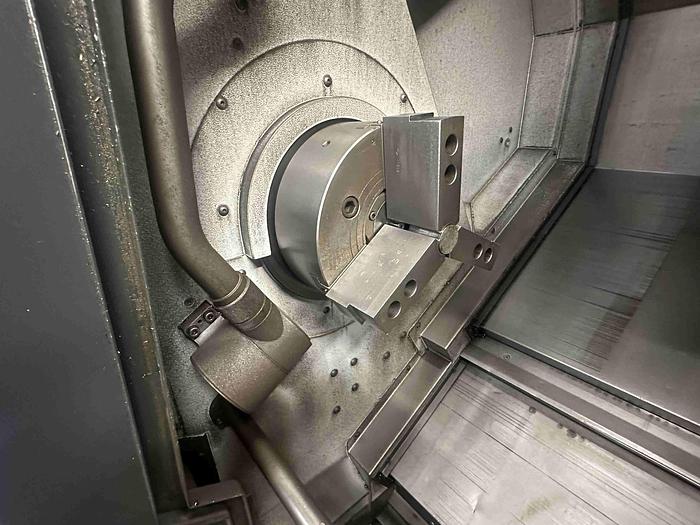

• Standard Chuck Size - Spindle 1: 10"
• Standard Chuck Size - Spindle 2: 8"
• Bar Work Capacity: 80mm
• No of Tool Stations: 12
• X Axis Travel: 260mm
• Z Axis Travel: 795mm
• Y Axis Travel: +/-50mm(100mm)
• C Axis Travel: 360Deg
• Max Main Spindle Speed: 4000rpm
• Max Sub Spindle Speed: 5000rpm
• Swing Over Bed: 920mm
• Swing Over Cross-Slide: 742mm
• Standard Turning Diameter: 271mm
• B Axis Travel: 734mm
• Min Spindle Indexing: 0.001゜
• Shank Height for Square Tool: 25mm
• Boring Bar Shank Diameter: 50mm
• Rotary Tool Shank Diameter: 26mm
• Turret Indexing Time: 0.27sec
• Max Rotary Tool Speed: 6000rpm
• Rapids(X,Z,B): 30,000mm/min
• Rapids (Y): 10,000mm/min
• Main Spindle Motor Power: 18.5kW
• Sub Spindle Motor Power: 11kW
• Rotary Tool Motor Power: 5.5kW

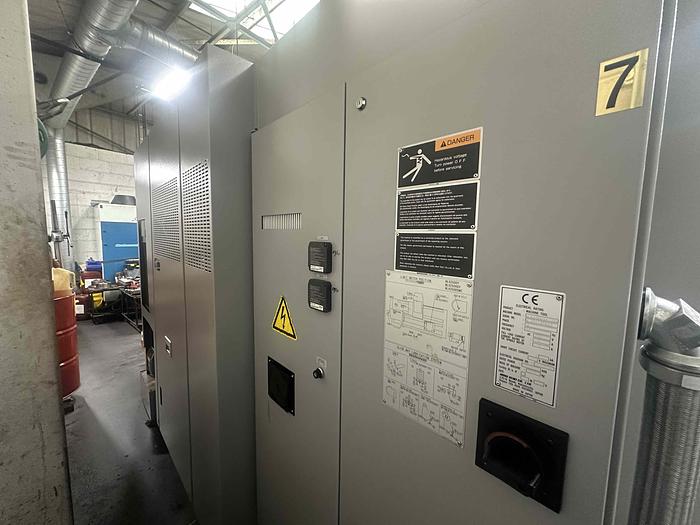

• Electrical Power Supply: 37.6kVA
• Coolant Tank Capacity: 366L
• Machine Dimensions: 3995x2180x2190mm
• Machine Weight: 6360kg

🔧 Machine Features

• Y-axis capability for advanced milling and drilling

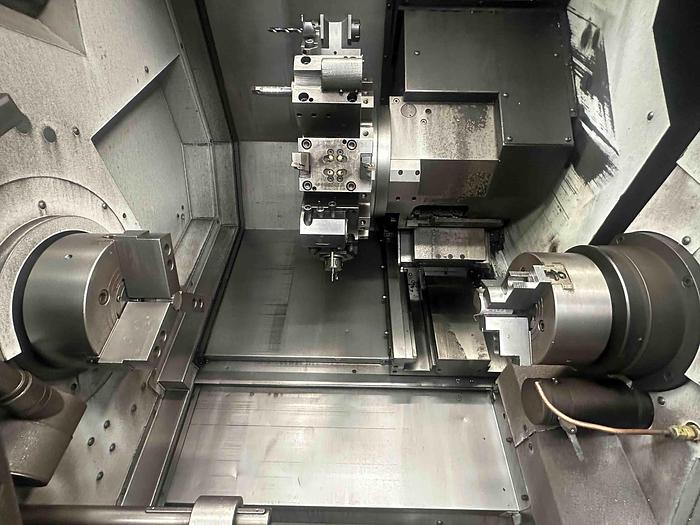

• Sub-spindle for back-end machining operations
• Rigid BMT turret with live tooling
• High-performance integral motor spindles
• Compact footprint with ergonomic access

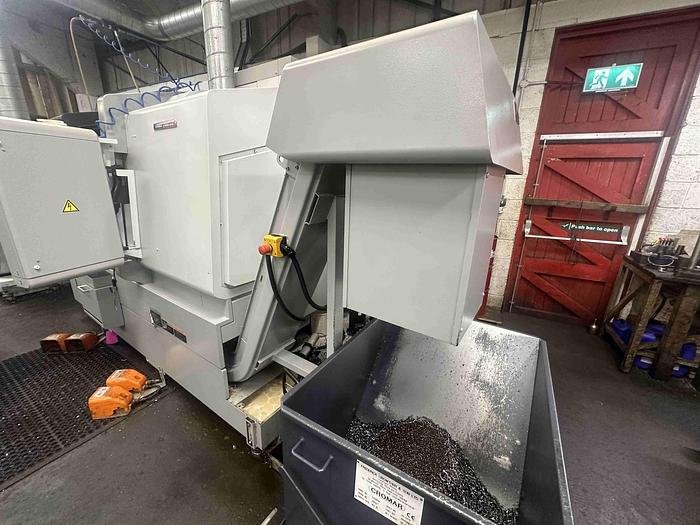

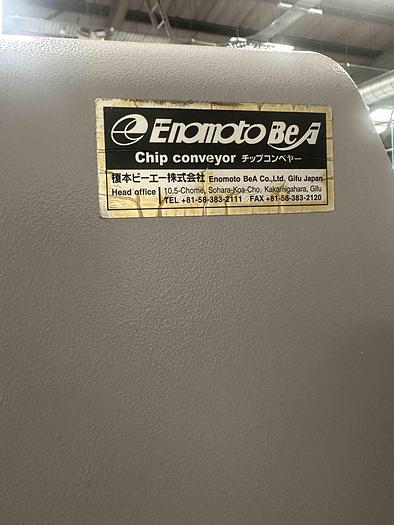

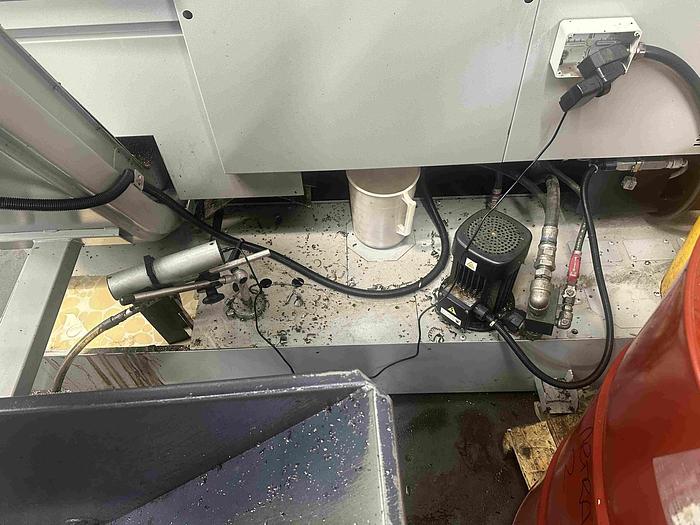

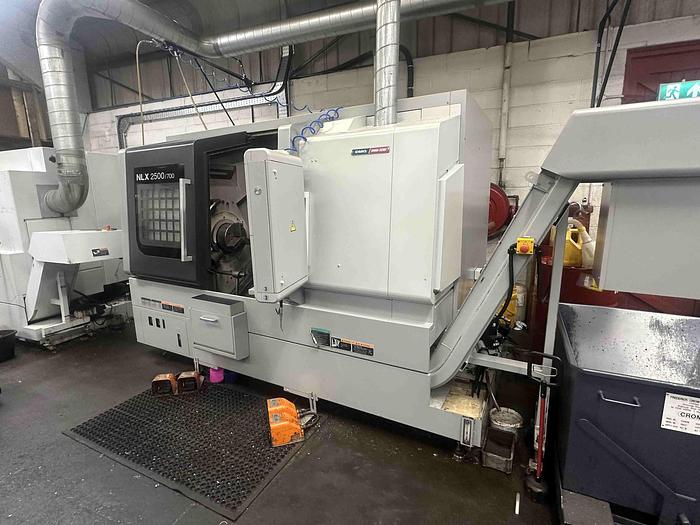

• Chip conveyor and coolant system included
• Static Tool Holders
• 3 Driven Tool Holders

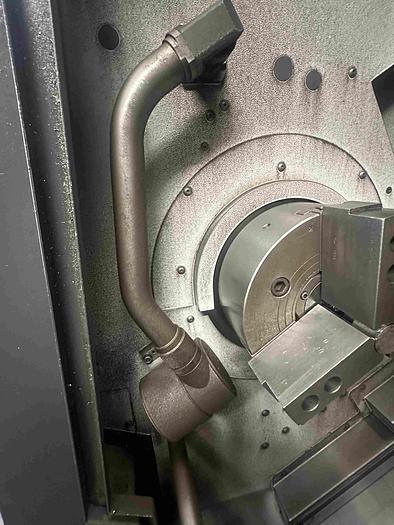

• Tailstock Function on Sub Spindle
• Tool Presetter

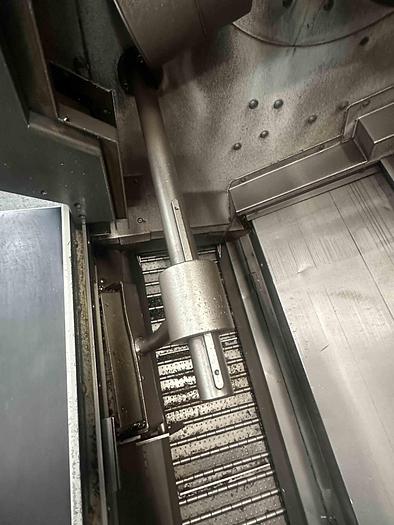

• Parts Catcher

📦 Why Buy This DMG MORI Lathe?

• 🧰 High-Performance: Built for complex part production
• ⚙️ Excellent Condition: Professionally maintained, minimal wear
• 💸 Significant Savings vs. new machine cost
• 🚀 In Stock: Available immediately for inspection and delivery
• 🌍 Shipped Across Ireland, UK & Europe

💼 Ideal Applications

• Aerospace and defence component machining
• Medical and surgical part production
• Automotive and motorsport parts
• General precision engineering and subcontract machining

📞 Interested in This Machine? Let’s Talk

This is a rare opportunity to own a premium DMG MORI lathe at a competitive price.
