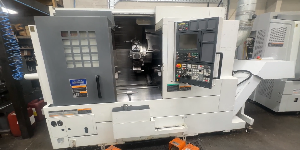

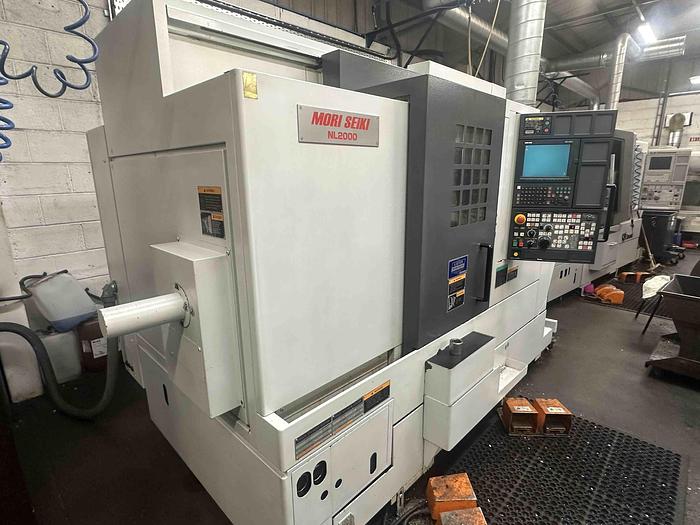

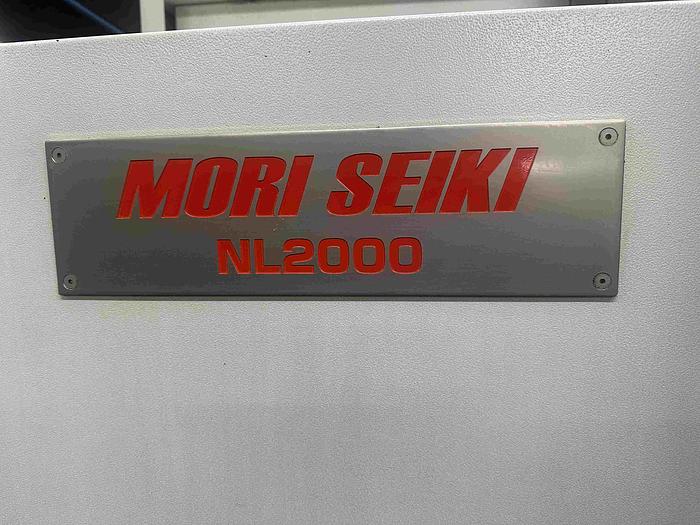

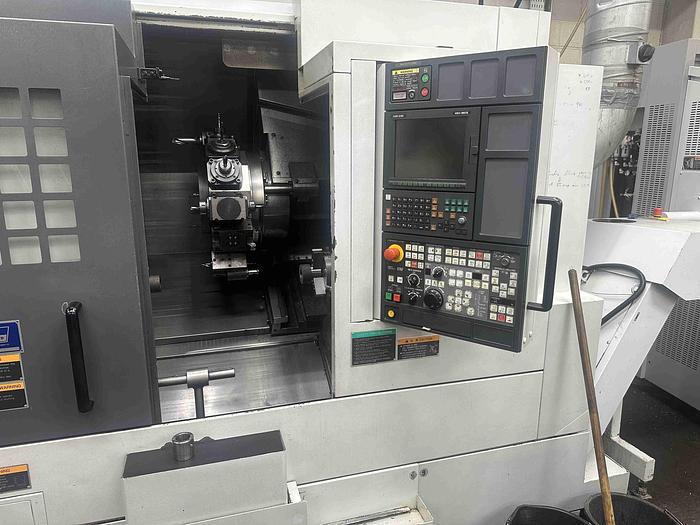

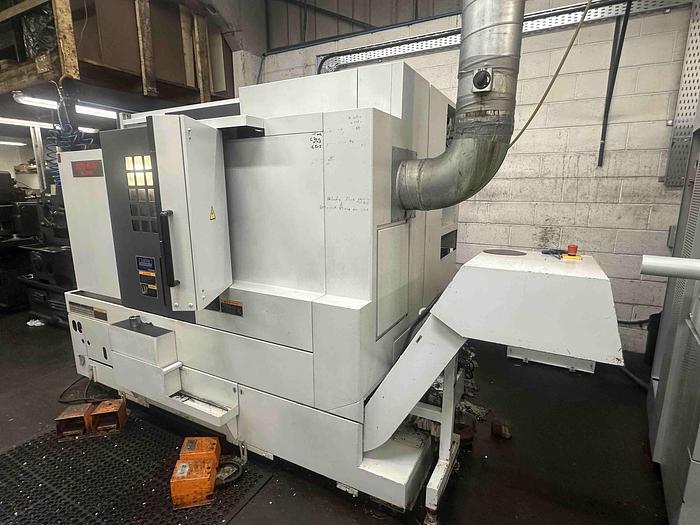

2006 Mori Seiki NL2000/500 CNC Lathe
Description

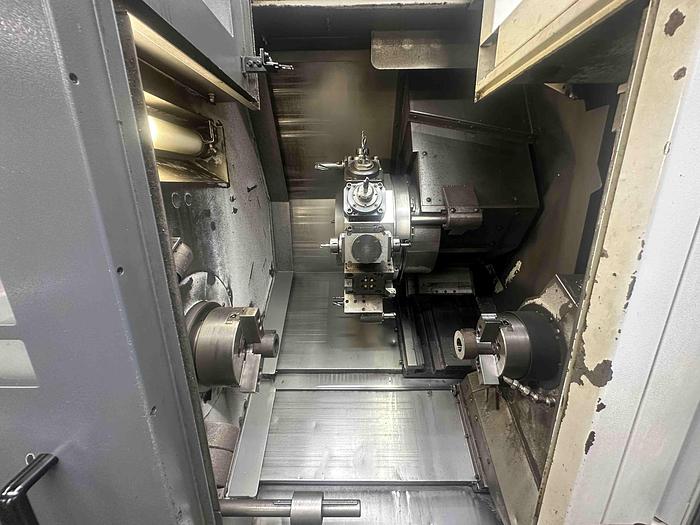

Mori Seiki NL2000SY/500 CNC Lathe
Machine Type: CNC Lathe with Sub Spindle, Driven Tools & Y Axis
Year: 2006

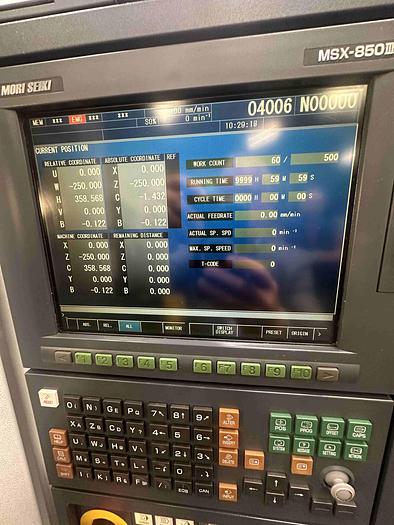

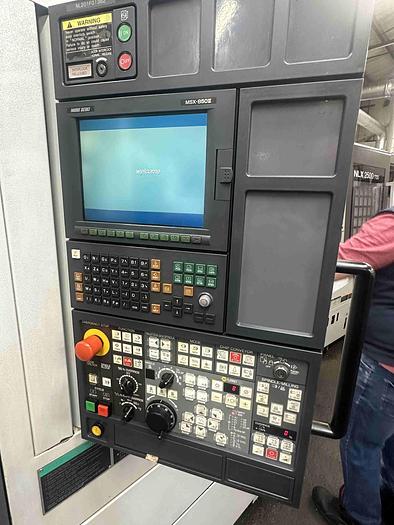

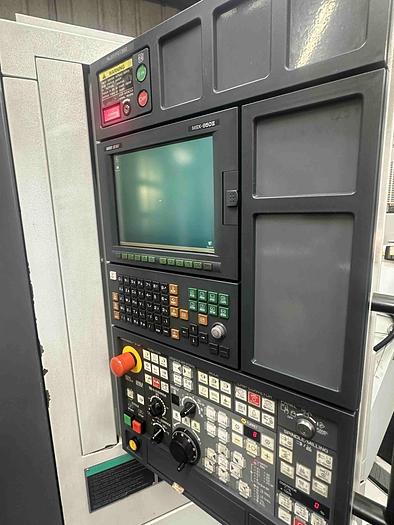

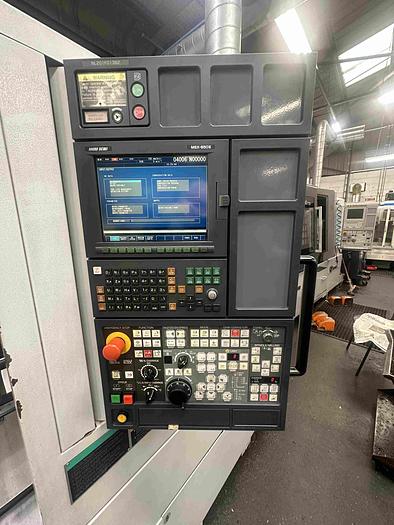

Control: Mori Seiki/Mitsubishi MSX-850III
Condition: Very Good
Includes
Static Tool Holders
2 x Axial Driven Tool Holders
1 x Radial Driven Tool Holder
Barfeed Interface
Swarf Conveyor
Tool Presetter
Parts Catcher

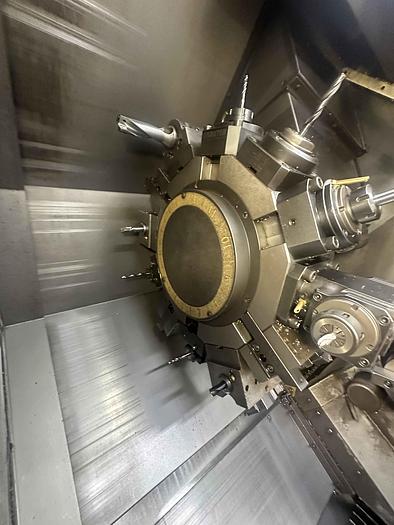

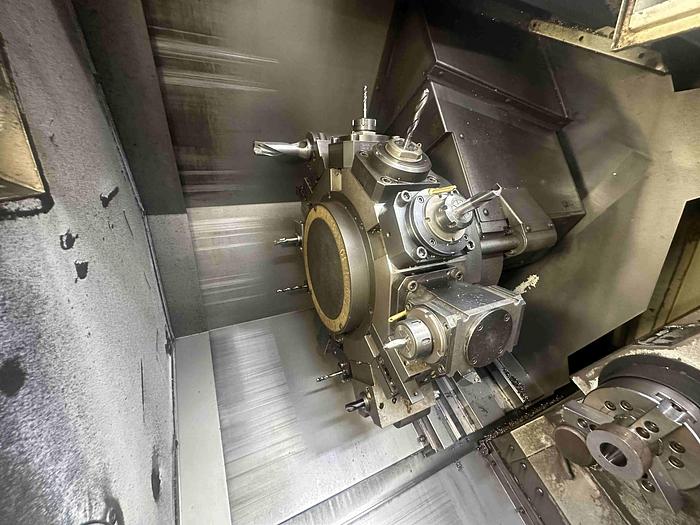

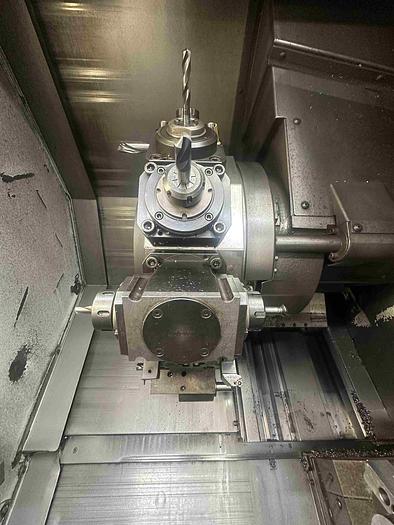

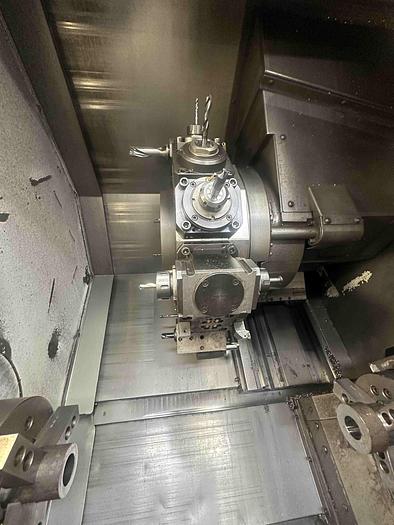

BMT Tool Turret
Technical Specifications
Distance Between Centres: 500mm

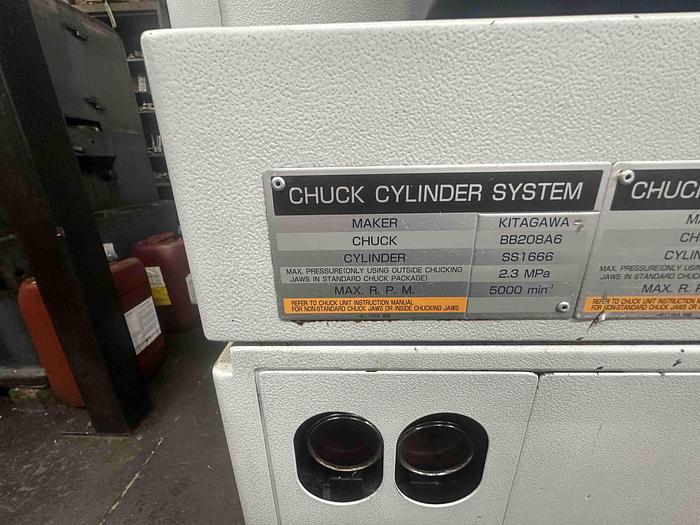

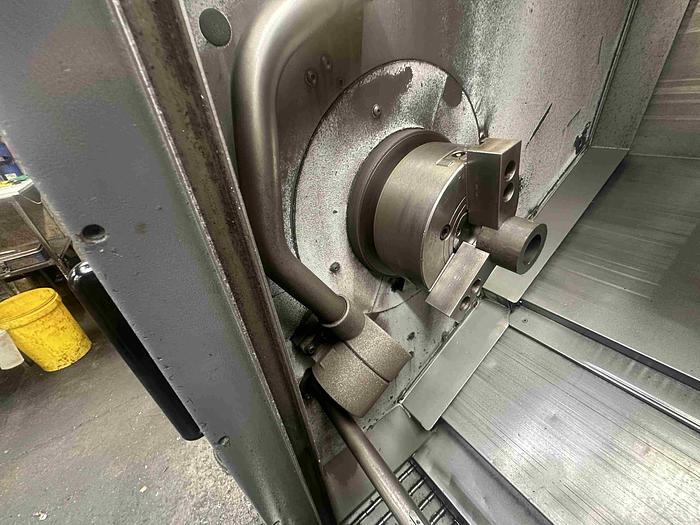

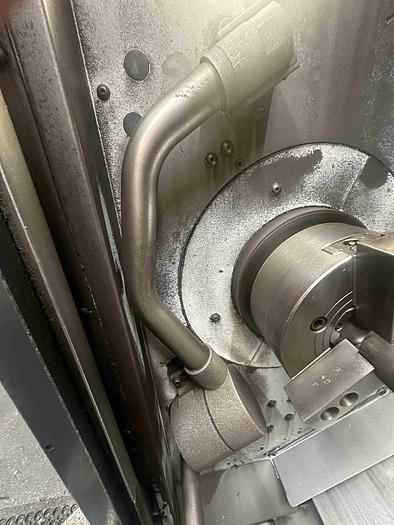

Standard Chuck Size - Spindle 1: 8"

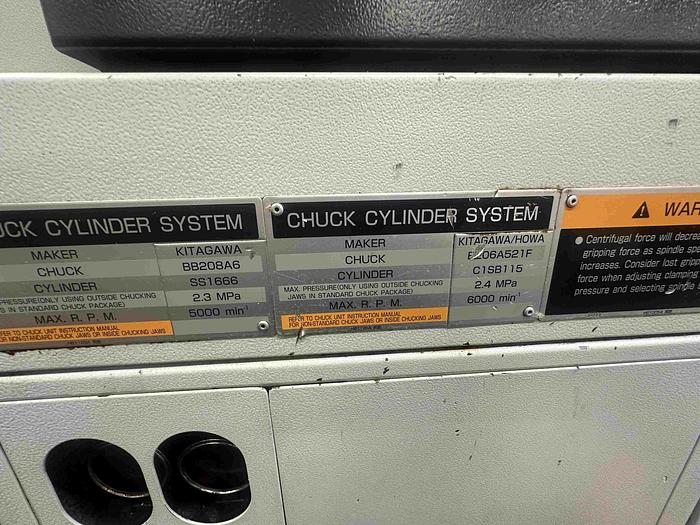

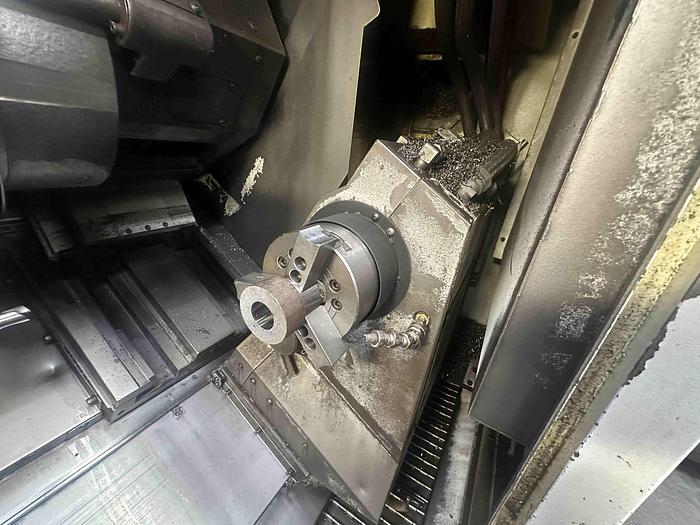

Standard Chuck Size - Spindle 2: 6"
Bar Work Capacity: 65mm
No of Tool Stations: 12
X Axis Travel: 260mm
Z Axis Travel: 590mm
Y Axis Travel: +/-50mm(100mm)
Max Main Spindle Speed: 5000rpm

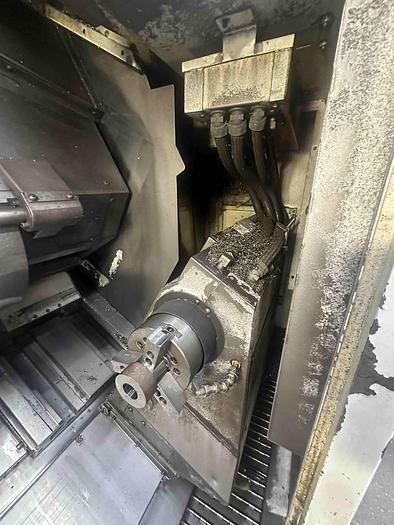

Max Sub Spindle Speed: 6000rpm
Swing Over Bed: 923mm
Swing Over Cross-Slide: 755mm
Max Turning Diameter: 366mm
Standard Turning Diameter: 275mm
Max Turning Length: 510mm
B Axis Travel: 624mm
Min Spindle Indexing: 0.001゜
Shank Height for Square Tool: 25mm
Boring Bar Shank Diameter: 50mm
Rotary Tool Shank Diameter: 26mm
Turret Indexing Time: 0.25sec
Max Rotary Tool Speed: 6000rpm
Rapids(X,Z,B): 30,000mm/min
Rapids (Y): 10,000mm/min
Main Spindle Motor Power: 15kW
Sub Spindle Motor Power: 11kW
Rotary Tool Motor Power: 5.5kW

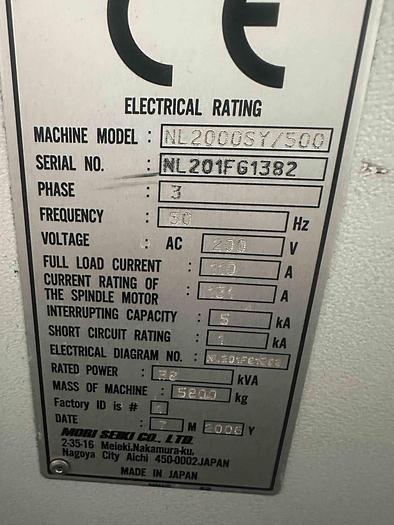

Electrical Power Supply: 35.9kVA
Coolant Tank Capacity: 235L
Machine Dimensions: 2705x2000x2120mm
Machine Weight: 5800kg
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2000/500 CNC Lathe |
| Year | 2006 |
| Condition | Used |
| Stock Number | 968726 |
| Year | 2006 |
| Control | Mori Seiki/Mitsubishi MSX-850III |
| Condition | Very Good |
| Distance Between Centres | 500mm |
| Bar Work Capacity | 65mm |
| No of Tool Stations | 12 |
| X Axis Travel | 260mm |
| Z Axis Travel | 590mm |
| Y Axis Travel | +/-50mm(100mm) |
| Max Main Spindle Speed | 5000rpm |
| Max Sub Spindle Speed | 6000rpm |
| Swing Over Bed | 923mm |
| Swing Over Cross-Slide | 755mm |
| Max Turning Diameter | 366mm |
| Standard Turning Diameter | 275mm |
| Max Turning Length | 510mm |
| B Axis Travel | 624mm |
| Min Spindle Indexing | 0.001゜ |
| Boring Bar Shank Diameter | 50mm |
| Rotary Tool Shank Diameter | 26mm |
| Turret Indexing Time | 0.25sec |
| Max Rotary Tool Speed | 6000rpm |
| Rapids(X,Z,B) | 30,000mm/min |
| Rapids (Y) | 10,000mm/min |
| Main Spindle Motor Power | 15kW |
| Sub Spindle Motor Power | 11kW |
| Rotary Tool Motor Power | 5.5kW |
| Electrical Power Supply | 35.9kVA |
| Coolant Tank Capacity | 235L |
| Machine Dimensions | 2705x2000x2120mm |
| Machine Weight | 5800kg |
