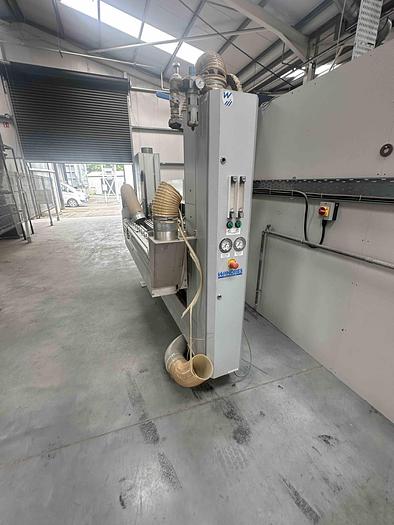

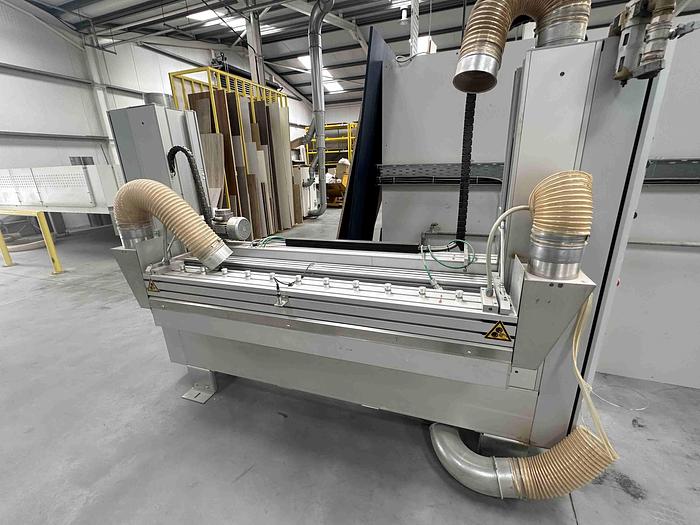

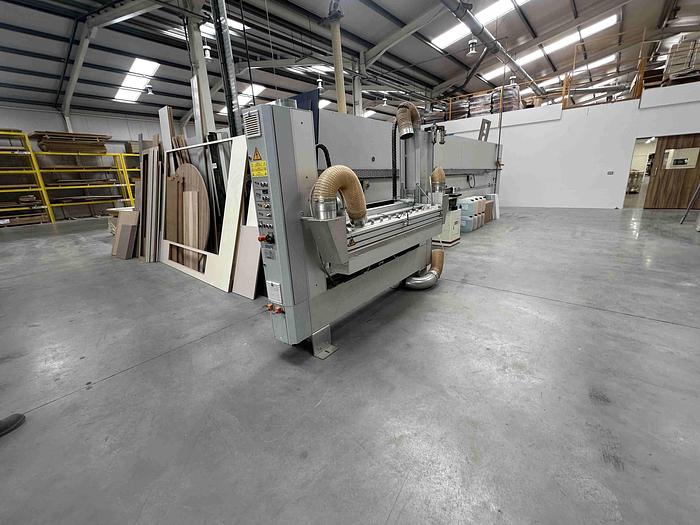

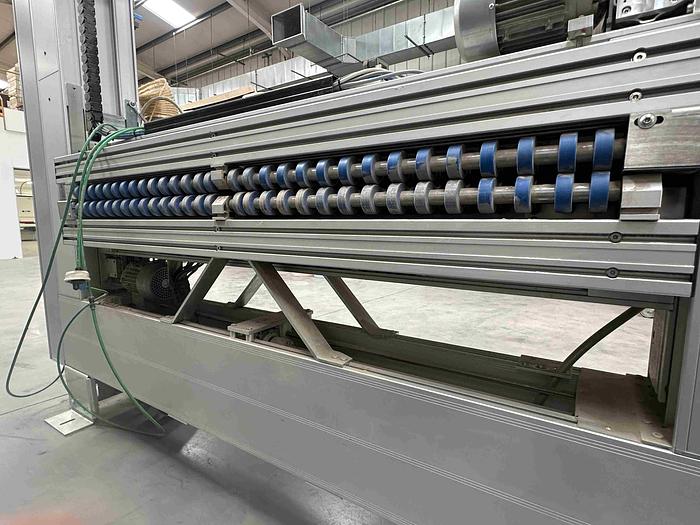

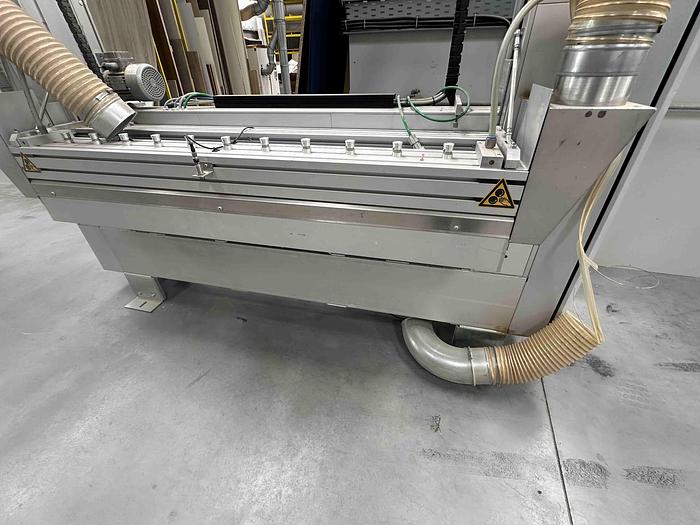

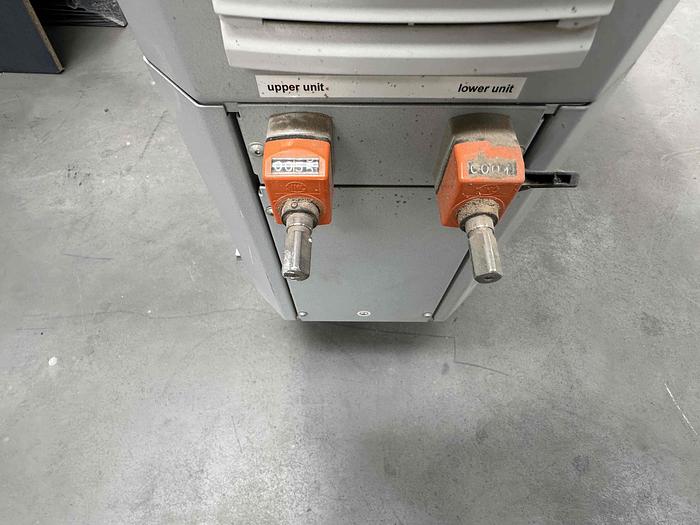

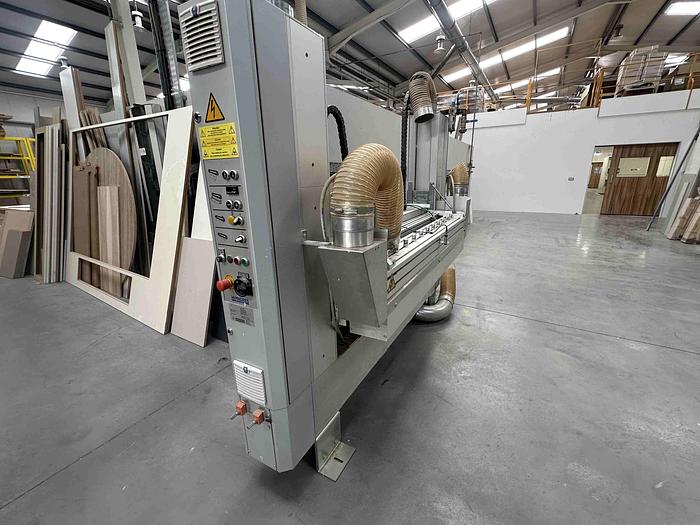

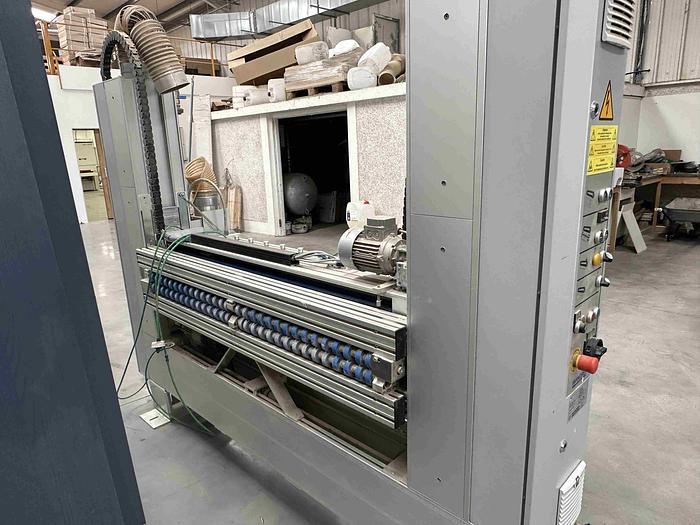

2013 Wandres CF05/1500 Cleaning Machine
Description
Wandres CF05/1500 Cleaning & Dedusting Machine
Machine Type: Cleaning and Dedusting Machine
Year: 2013
Condition: Excellent
Includes
BIP 146/3/1500 Sword Brush
TKR 05/2/1500 Tornado Channel
Machine Description
CF 05 is a cleaning and dedusting machine from the C-line of the manufacturer WANDRES for the double-sided cleaning of plate-shaped workpieces.
Depending on the type of workpieces, the CF machine base frame can be equipped with different aggregates.
Technical Specifications
Working Width: 1500mm
Working Height: 720-1200mm
Material Length(min): 200mm
Material Thickness(max): 100mm
Electrical Connection: 400V/3ph
Motor Power: 3.5kW
Extraction: 4 x 150mm Diameter, 4 x 30m3/min
Vacuum: Min 500Pa
Flowspeed: 30m/s
Pneumatic Connection: 1" Connection, 6bar Filtered.
Air Consumption: 2.58m3/min
Specifications
| Manufacturer | Wandres |
| Model | CF05/1500 Cleaning Machine |
| Year | 2013 |
| Condition | Used |
| Stock Number | 968760 |
| Machine Type | Cleaning and Dedusting Machine |
| Year | 2013 |
| Condition | Excellent |
| Working Width | 1500mm |
| Working Height | 720-1200mm |
| Material Length(min) | 200mm |
| Material Thickness(max) | 100mm |
| Electrical Connection | 400V/3ph |
| Motor Power | 3.5kW |
| Vacuum | Min 500Pa |
| Flowspeed | 30m/s |
| Pneumatic Connection | 1" Connection, 6bar Filtered. |
| Air Consumption | 2.58m3/min |
