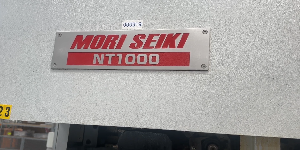

Mori Seiki NT1000SZM Mill Turn CNC – For Sale in Ireland

🔹 For Sale: 2010 Mori Seiki NT1000SZM Mill Turn Centre – Excellent Condition – Ireland 🔹

Make: Mori Seiki

Model: NT1000SZM

Year: 2010

Control: MSX-711IV

Machine Type: CNC Mill Turn Centre (Tool Spindle, Main Spindle, Sub Spindle, Lower Turret)

Condition: Excellent

Location: Ireland

Availability: Immediate

📌 Description:

Available for sale is a Mori Seiki NT1000SZM Mill Turn Centre, a premium multi-tasking CNC machine in excellent condition with only 16,520 cutting hours. Featuring a high-speed 20,000 rpm milling spindle, dual spindles, lower turret, and simultaneous 5-axis capability, this machine is ideal for advanced and precise mill-turn operations in the aerospace, medical, and high-precision engineering sectors.

This machine is comprehensively equipped and designed to handle complex, multi-sided machining with reduced setups and high throughput.

High-spec 5-axis Mori Seiki NT1000SZM Mill Turn Centre with 20,000rpm spindle, sub spindle & turret. In excellent condition.

🧰 Included Equipment:

• Kitagawa 5" Chuck (Sub Spindle)
• Kitagawa 8" Hollow Chuck (Main Spindle)

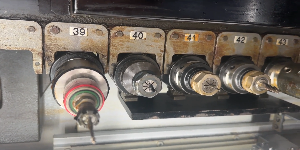

• Full Selection of Tool Holders (as seen in videos)
• Swarf Conveyor
• 70 Bar High Pressure Coolant System
• Air Blow for Main Chuck and Tool Tip
• Tool Presetter (Tool Spindle & Turret 2)
• Workpiece Conveyor (Bar Feeder Spec)
• Bar Feed Interface
• Tool and Workpiece Counters
• Signal Tower
• Double Foot Switch for Both Spindles
• Part Program Storage (1MB) with 1000 Registerable Programs
• Knoll Compact Filter Unit
• Double-Wound Transformer

🔧 Technical Specifications:

🔹 Turning Capacity:

• Max Turning Diameter: 370 mm
• Max Turning Length: 400 mm
• Bar Work Capacity: 65 mm
• Main Spindle Through-Hole: 73 mm

🔹 Spindles:

• Main Spindle Speed: Up to 6,000 rpm
• Sub Spindle Included
• Spindle Drive Motor: 11/7.5 kW

🔹 Milling Tool Spindle:

• Max Speed: 20,000 rpm
• Taper: Capto C5
• Tool Spindle Drive Motor: 9/5.5 kW
• X Axis Travel: 380 mm
• Y Axis Travel: 210 mm
• Z Axis Travel: 480 mm
• B Axis Tilt: ±120°
• C Axis: 360°

🔹 Tooling System:

• ATC Capacity: 76 Tools
• Max Tool Diameter: 130 mm
• Max Tool Weight: 5 kg

🔹 Dimensions & Weight:

• Machine Dimensions: 3810 x 2895 x 2670 mm
• Machine Weight: 8,500 kg

✅ Highlights:

• Advanced 5-Axis Mill-Turn with B-Axis Head
• Powerful and Flexible Dual-Spindle Configuration
• High-Speed Tool Spindle (20,000 rpm) with Capto C5
• Fully tooled with coolant system, filters, tool holders, and more
• In-machine tool setting and bar feed ready
• Ideal for high-precision, high-complexity parts

📈 Perfect For:

• Aerospace machining
• Medical device manufacturing
• Precision mechanical components
• High-mix, low-volume or complex geometry parts
