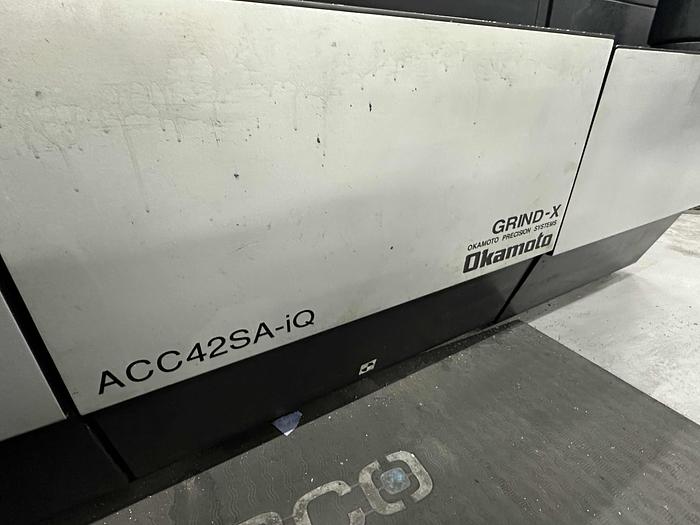

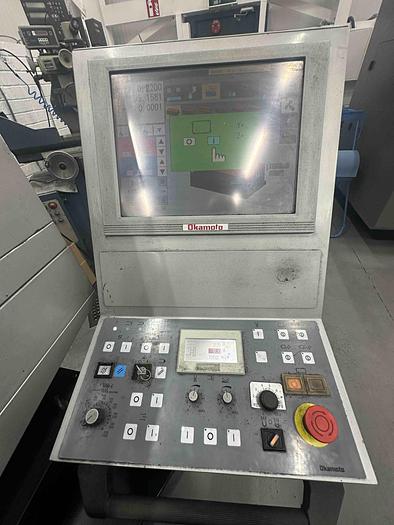

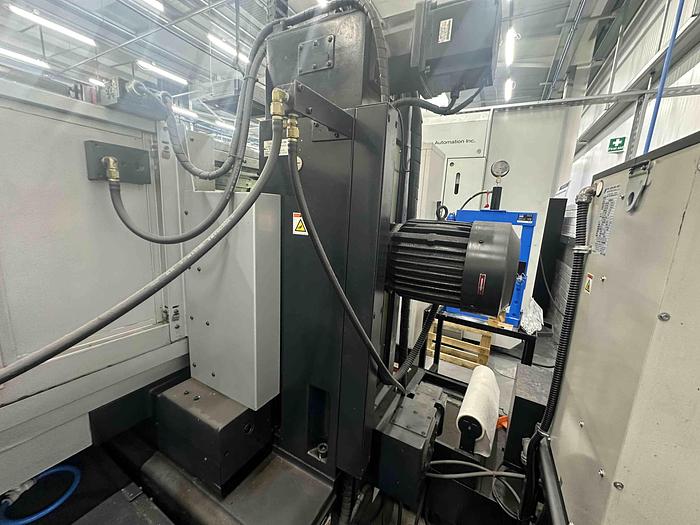

2013 Okamoto Grind-X ACC42SAiQ CNC Surface Grinder – Precision Grinding, Good Condition

2013 Okamoto Grind-X ACC42SAiQ CNC Surface Grinder – High Precision, Very Good Condition

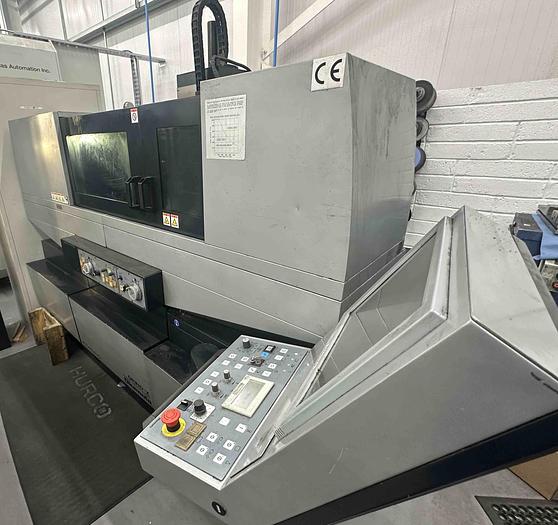

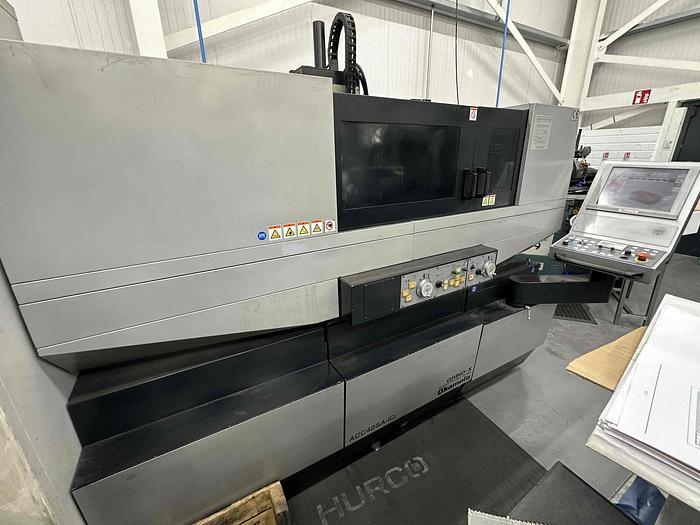

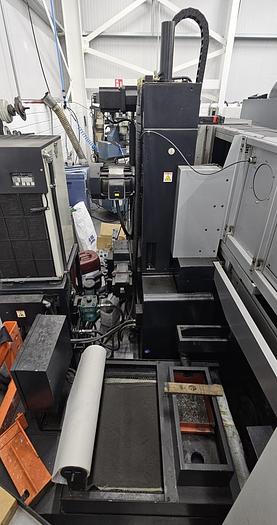

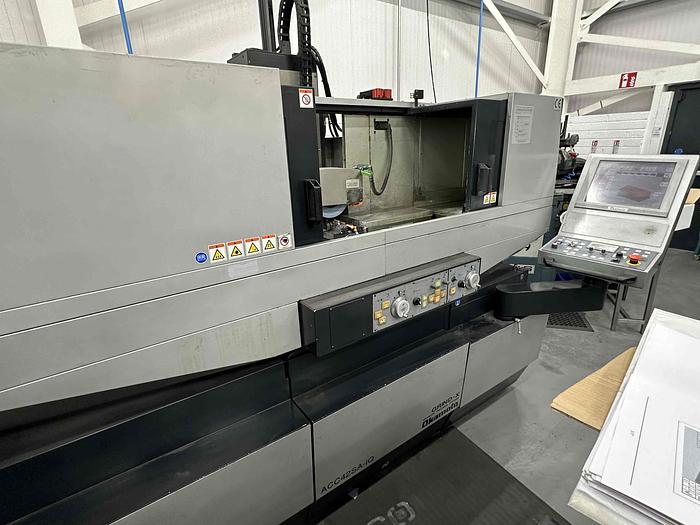

Now available for immediate sale: the 2013 Okamoto Grind-X ACC42SAiQ, a CNC-controlled surface grinder built for high-precision applications. This machine offers outstanding rigidity and control, with full automation features for maximum efficiency in toolrooms and production environments alike.

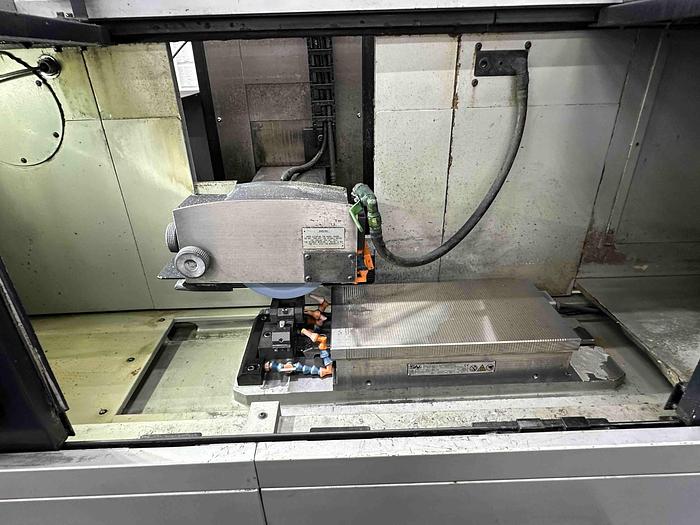

This model features a 400 x 200mm SAV magnetic chuck, automatic grinding wheel dresser, and a Daikin inverter chiller to ensure consistent cooling and precision during long cycles. Maintained in excellent condition, this grinder is an ideal solution for achieving fine surface finishes and micron-level tolerances.

🔧 Technical Specifications:

• Table Size: 500 x 200mm
• Max Table Travel: 510 x 230mm

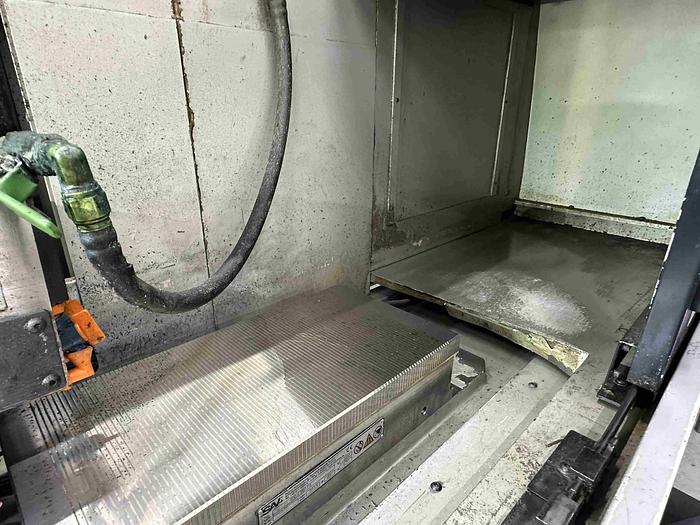

• Magnetic Chuck: 400 x 200 x 70mm
• Max Workpiece Weight: 120kg
• Table Feed Range: 100 - 20,000mm/min
• Grinding Head Infeed (Rough): 0.001 - 0.03mm
• Grinding Head Infeed (Fine): 0.0001 - 0.01mm

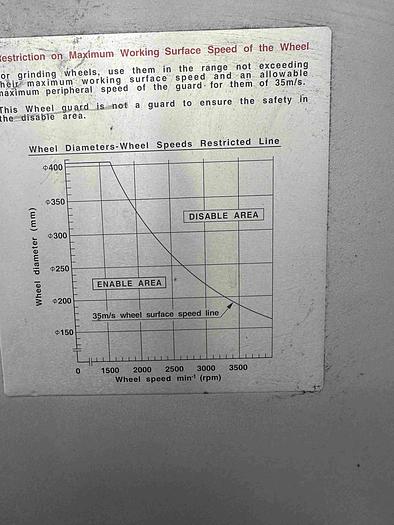

• Grinding Wheel Speed: 1000 - 3600rpm
• Grinding Wheel Dimensions: 205mm dia, 6–25mm thick, 31.75mm bore
• Vertical Rapid Feed: 0 - 1000mm/min
• Spark-Outs: Adjustable 0 – 99 times

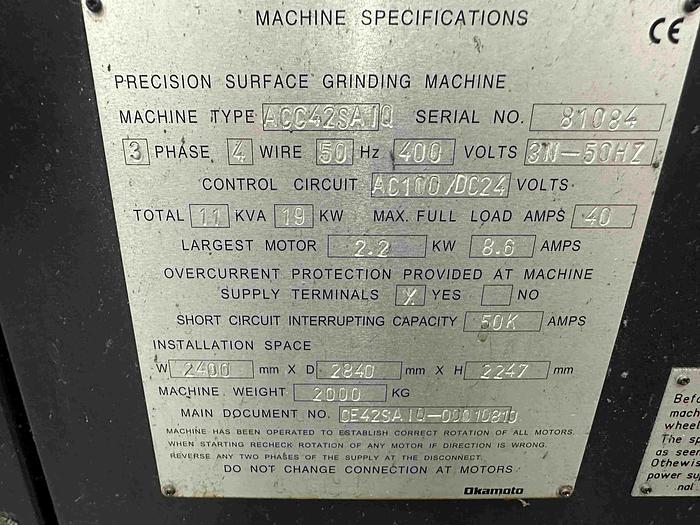

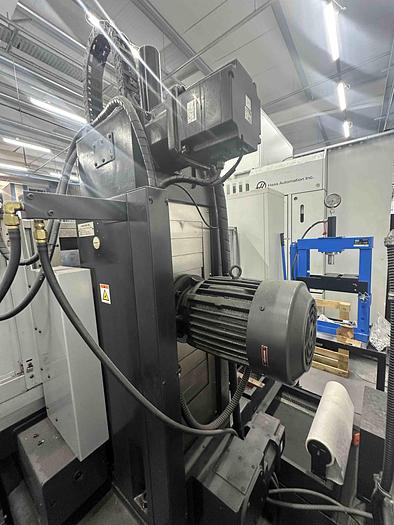

• Spindle Motor: AC 2.2kW
• Power Requirement: 11kVA

🧰 Included Equipment:

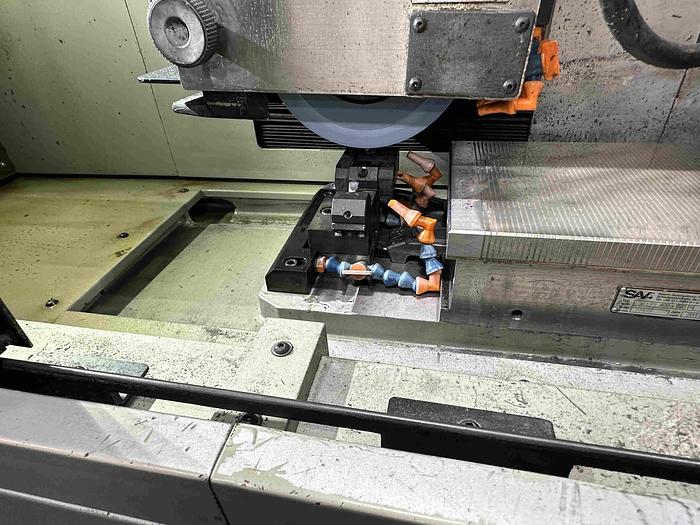

• Automatic grinding wheel dresser

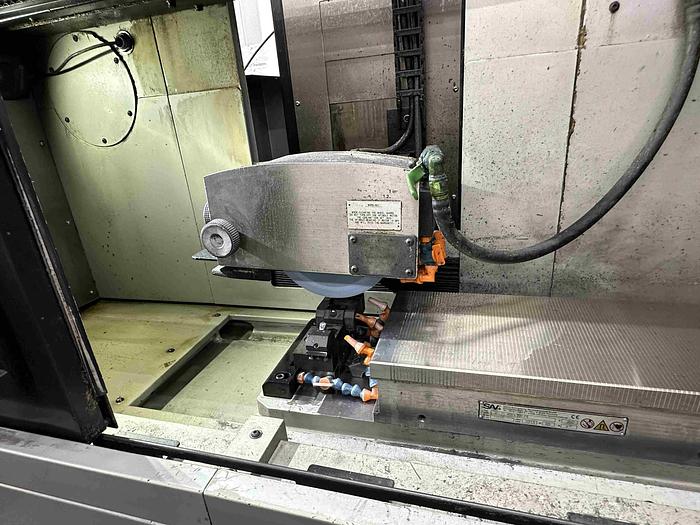

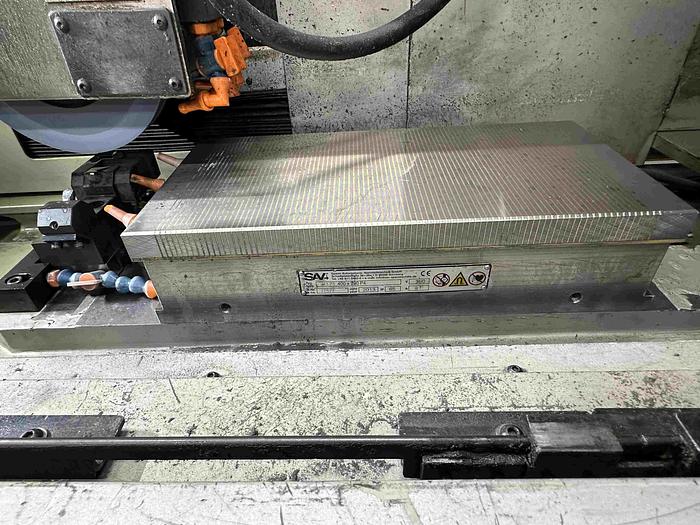

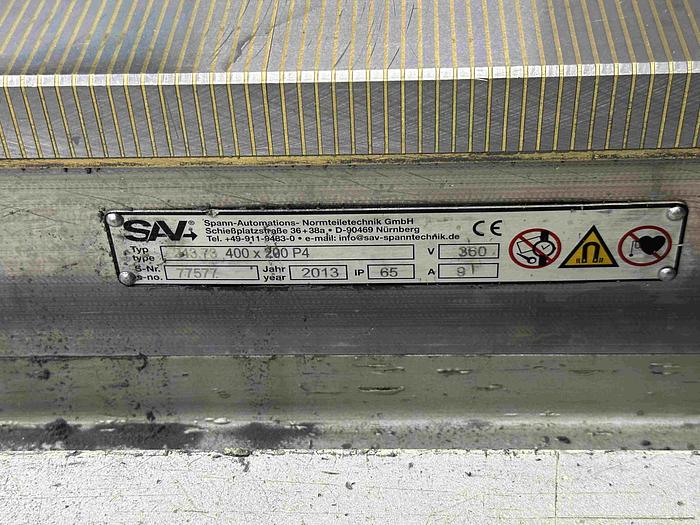

• 400 x 200mm SAV magnetic chuck
• High-quality grinding wheel

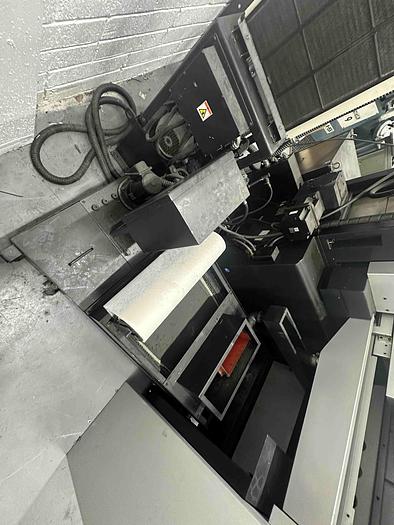

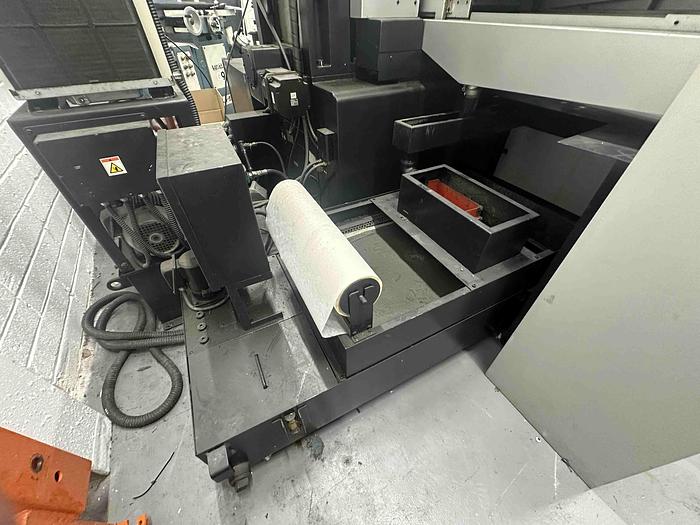

• Paper band coolant filtration system

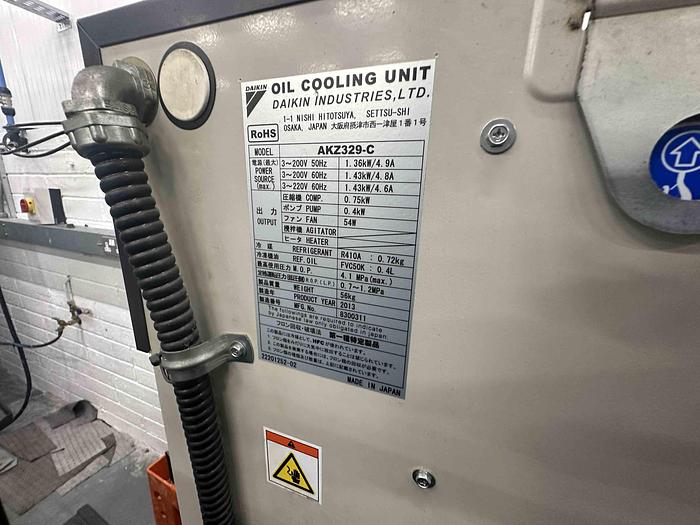

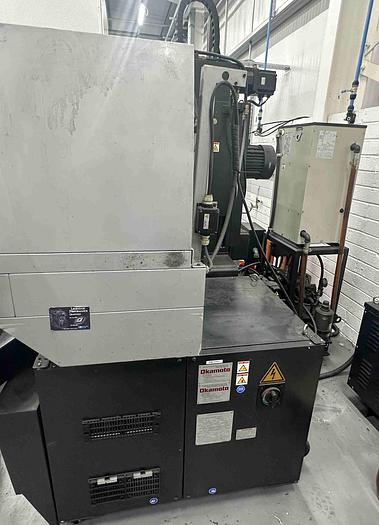

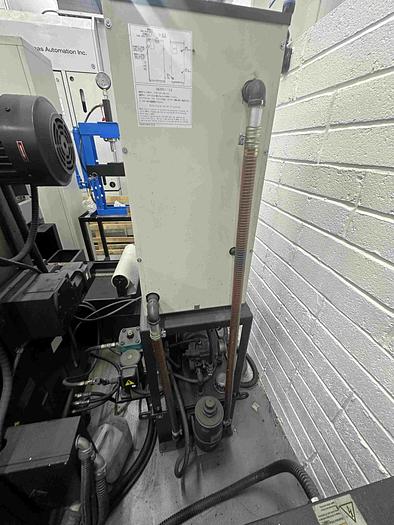

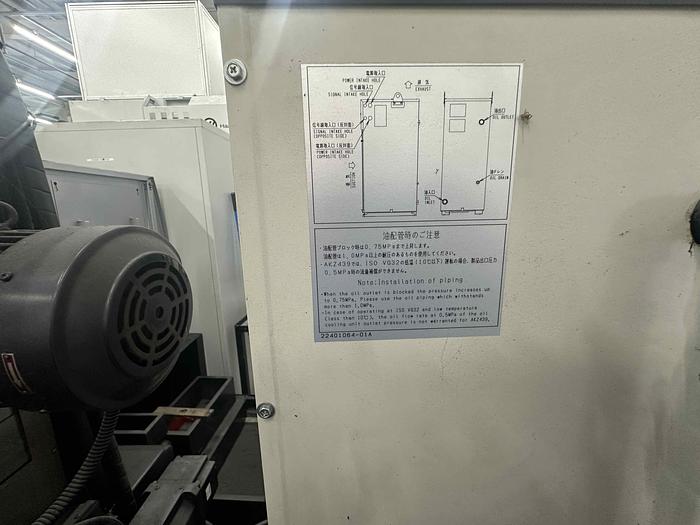

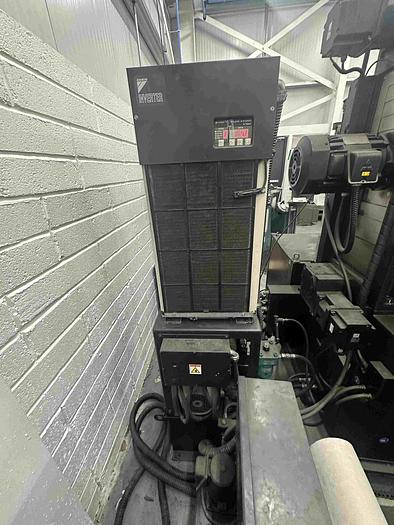

• Daikin inverter chiller unit

📐 Machine Dimensions & Weight:

• Dimensions: 2400 x 2840 x 2247mm
• Weight: 2000kg

🚀 Highlights:

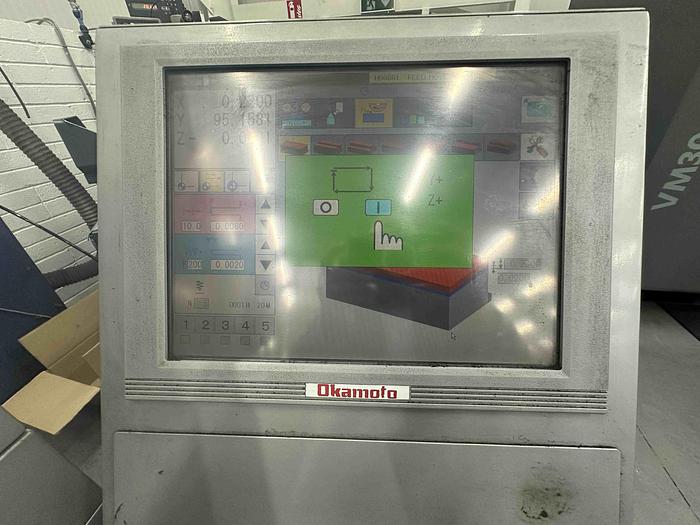

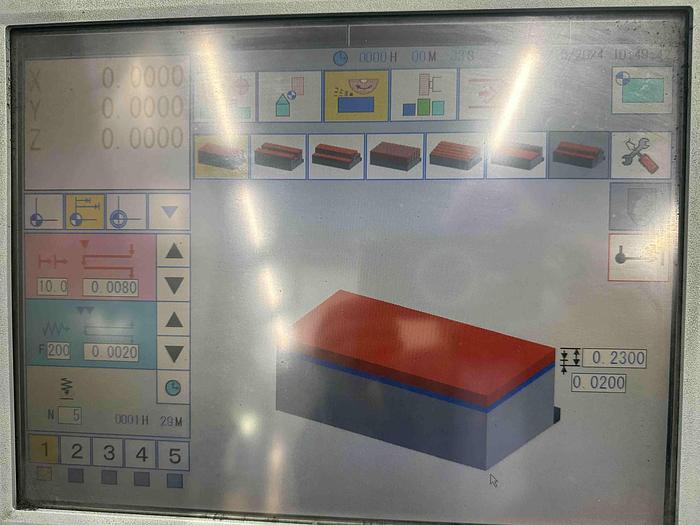

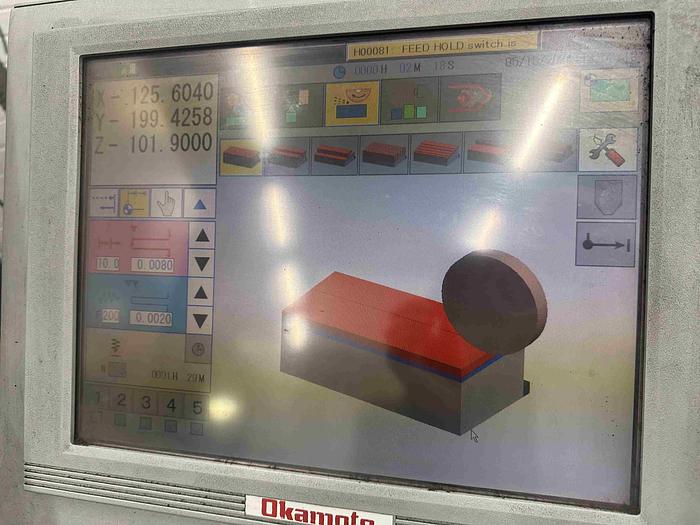

• CNC control with ultra-fine resolution
• Perfect for toolroom and batch production
• Fully equipped with filtration and cooling
• Maintained to a high standard – excellent condition
• Precision accuracy for surface grinding at scale
