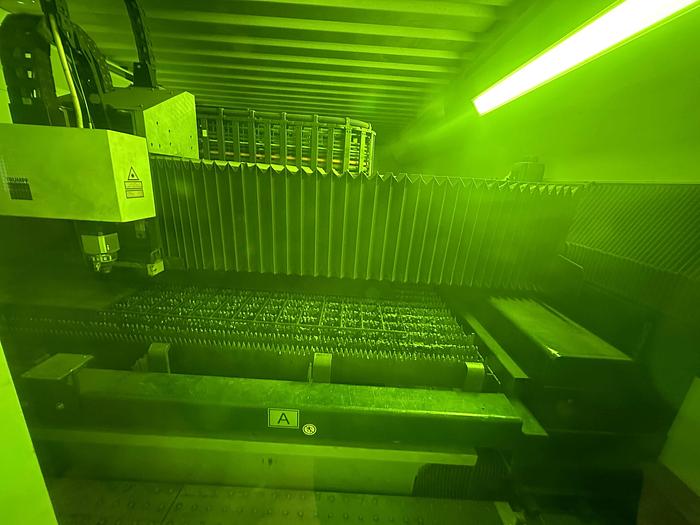

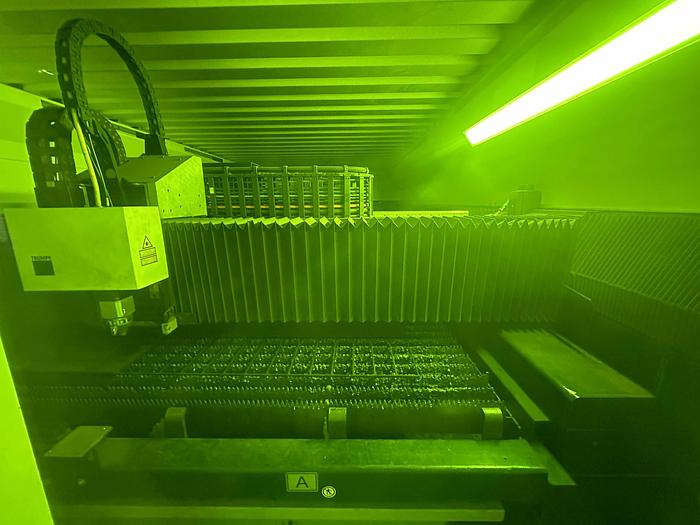

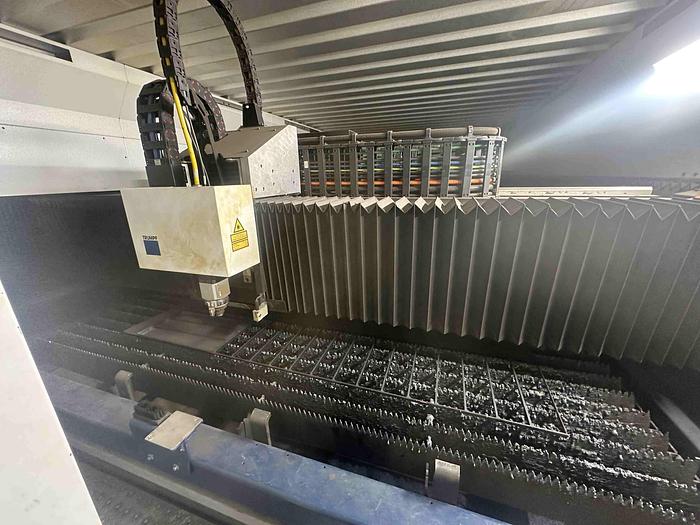

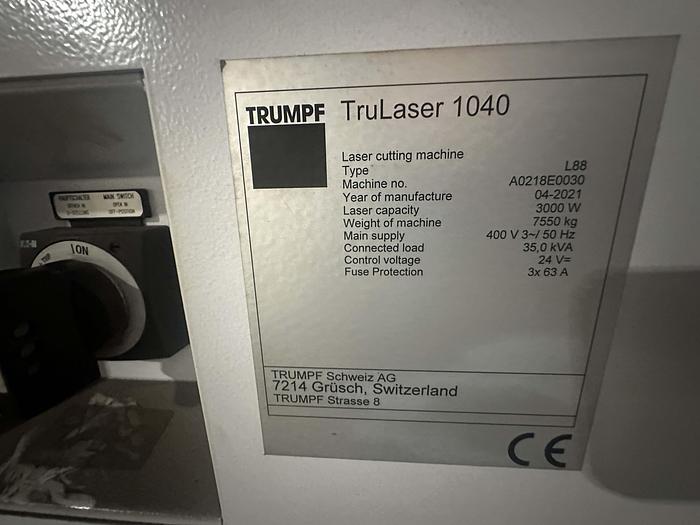

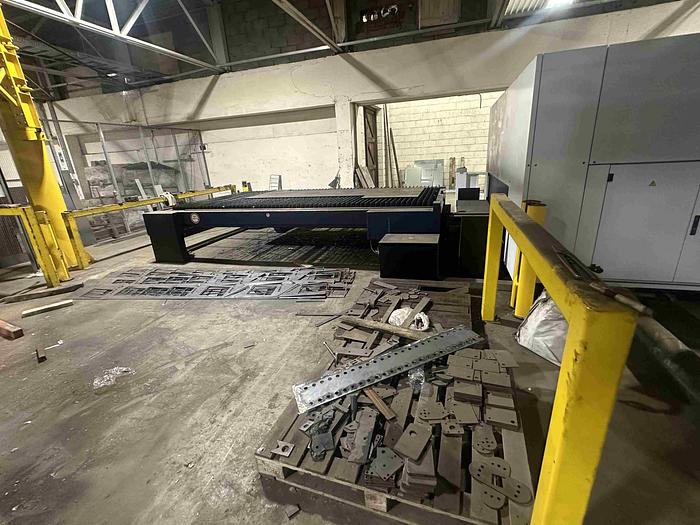

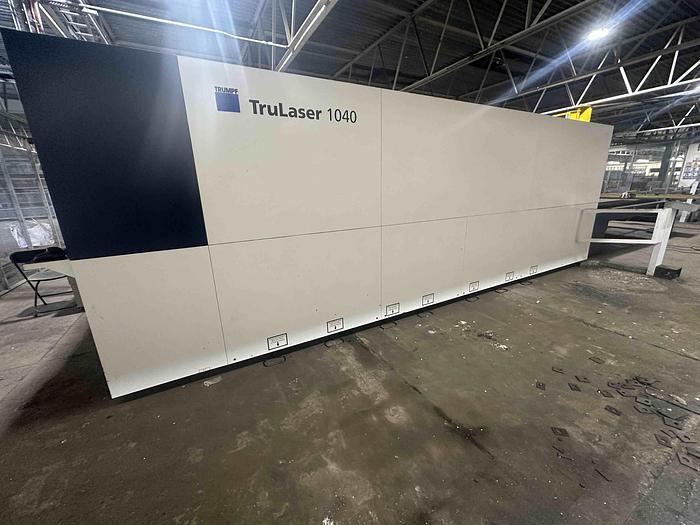

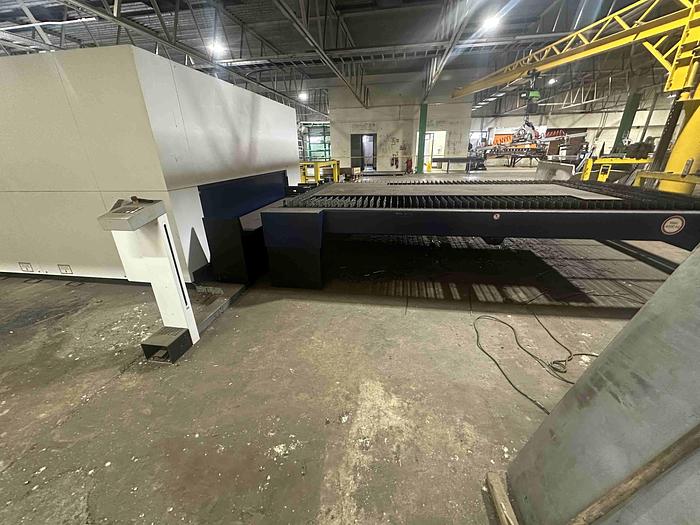

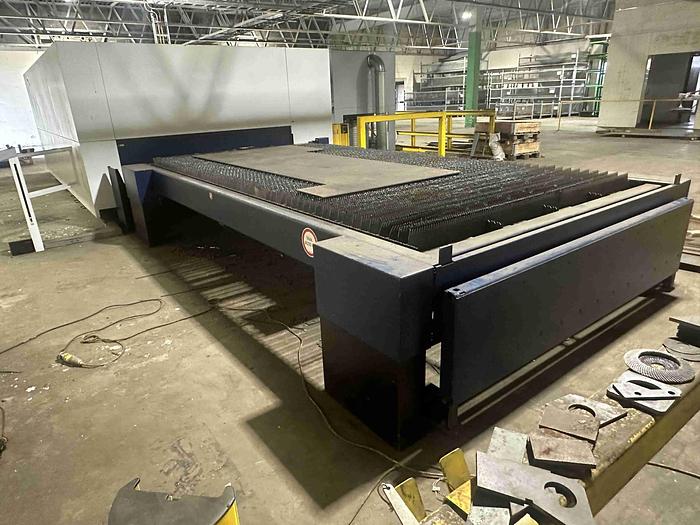

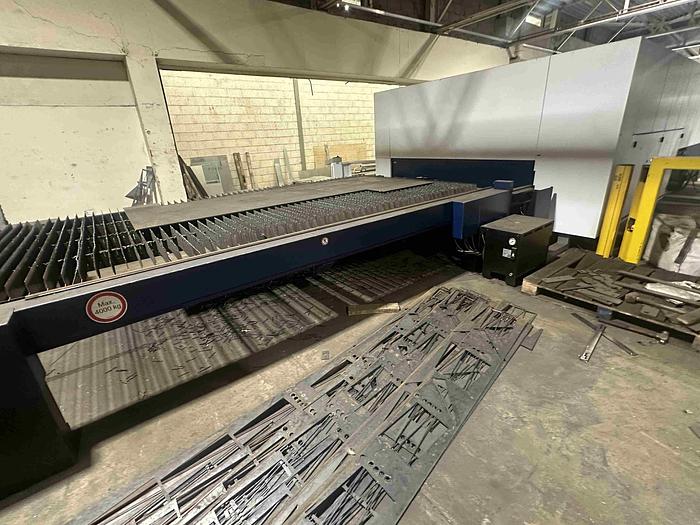

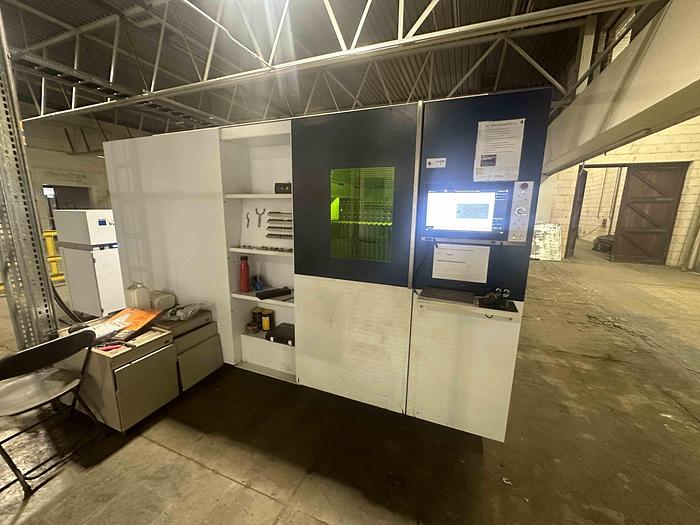

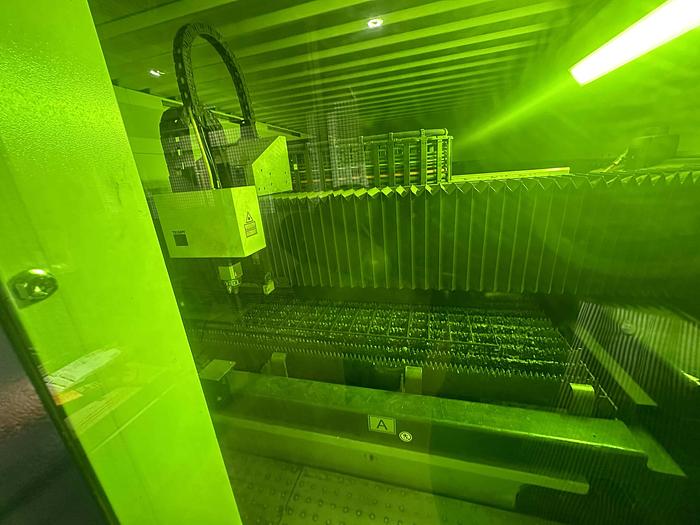

2021 Trumpf Trulaser 1040 Fiber Laser Cutting Machine
Description
Trumpf Trulaser 1040 Fiber Laser Cutting Machine
Machine Type: Fiber Laser Cutting Machine
Year: 2021
Laser Capacity: 3kW
Hours: 1900 Beam On Hours
Sheet Size: 4000 x 2000mm
Condition: Excellent
Includes

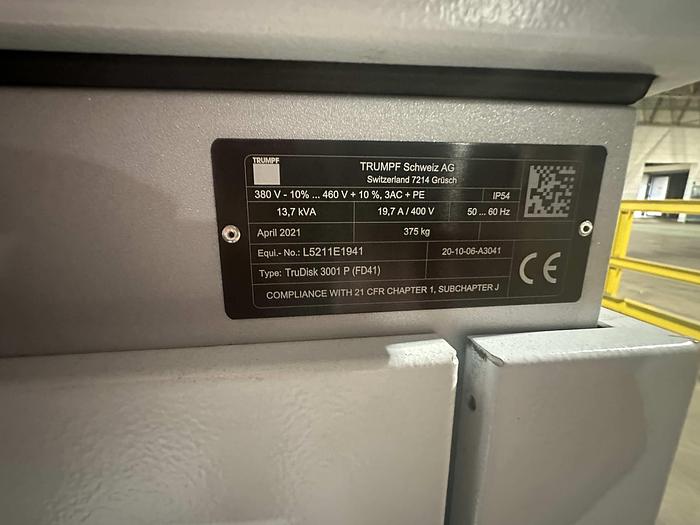

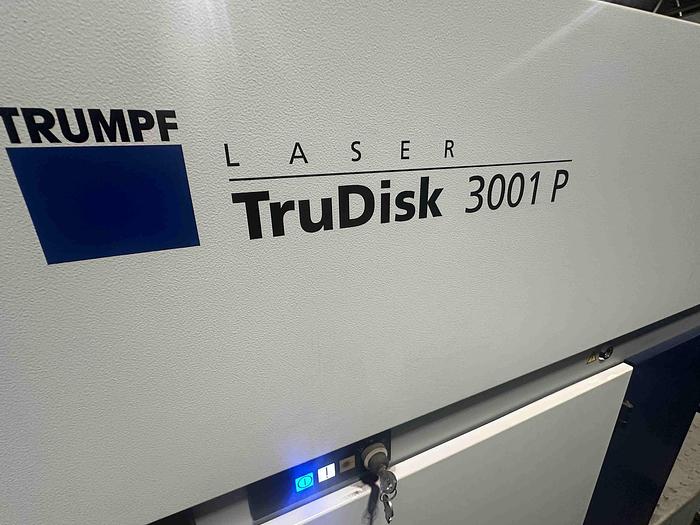

Trumpf Laser TruDisk 3001 P Resonator

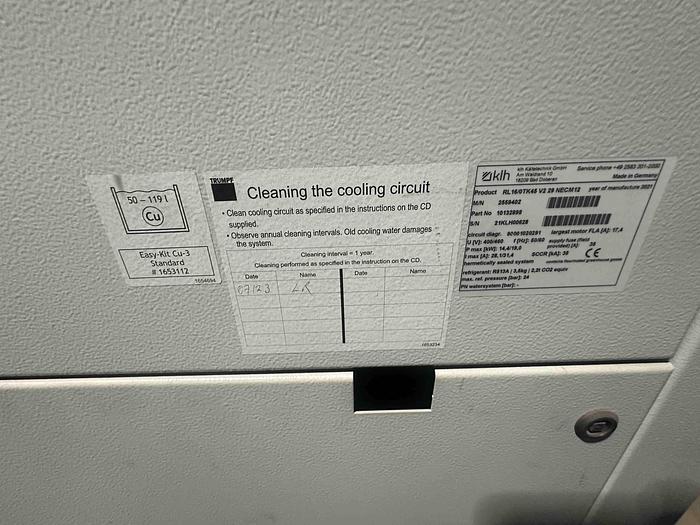

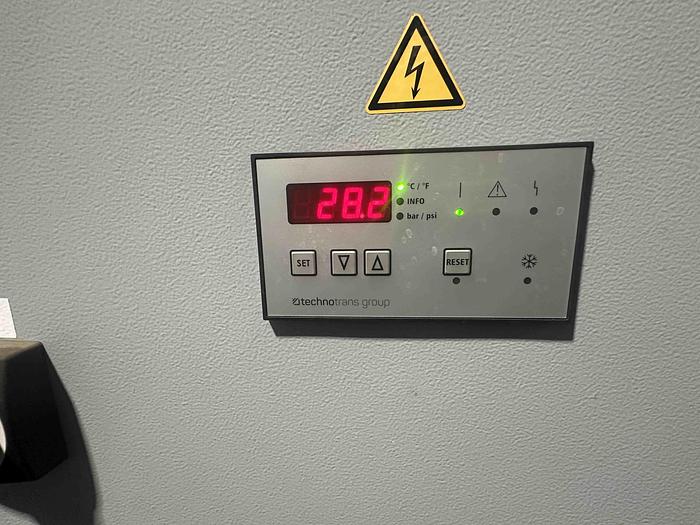

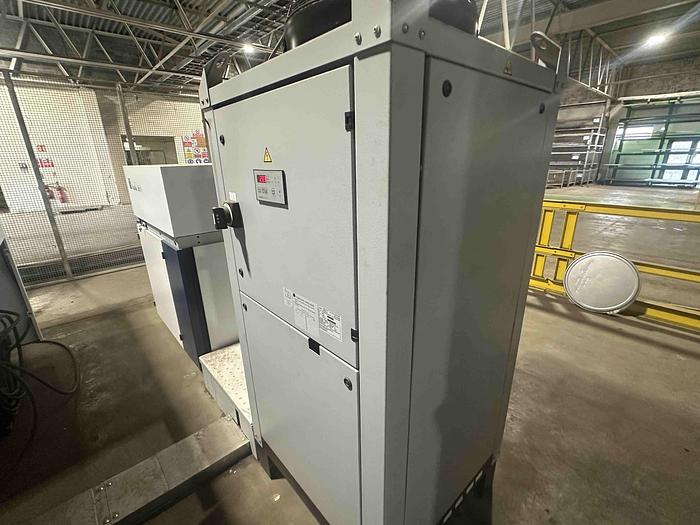

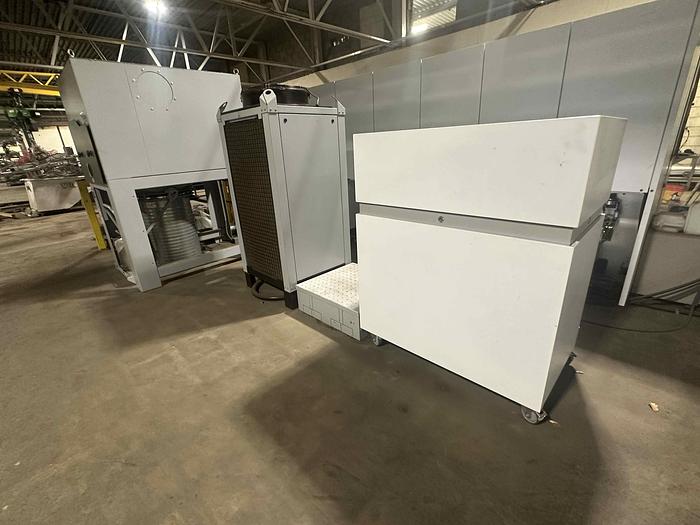

KLH RL16 Chiller Unit

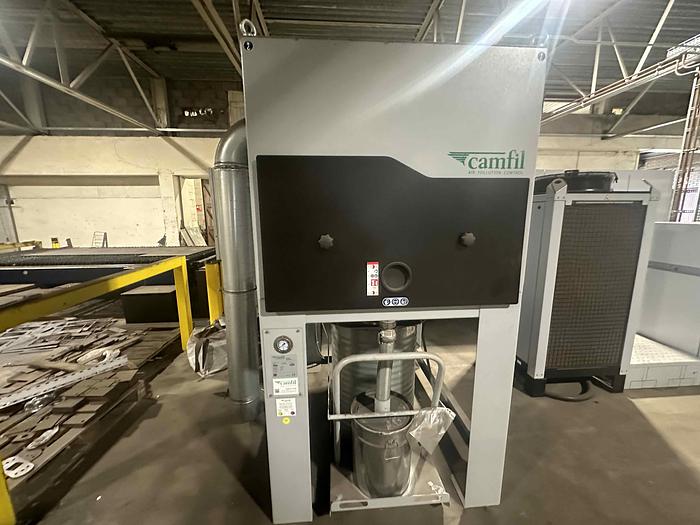

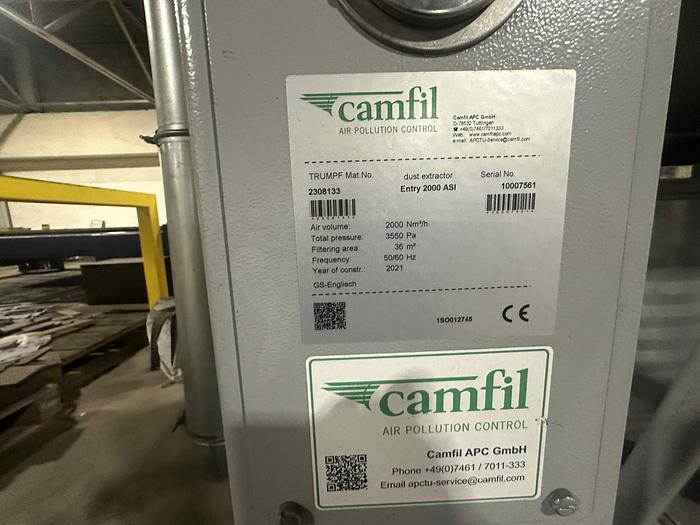

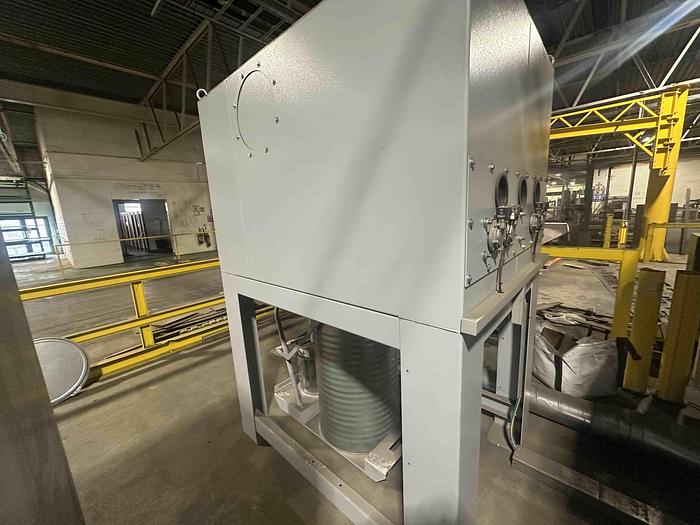

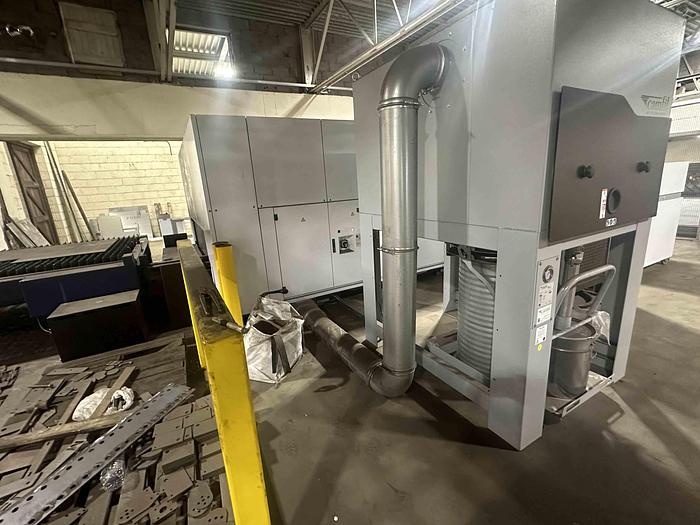

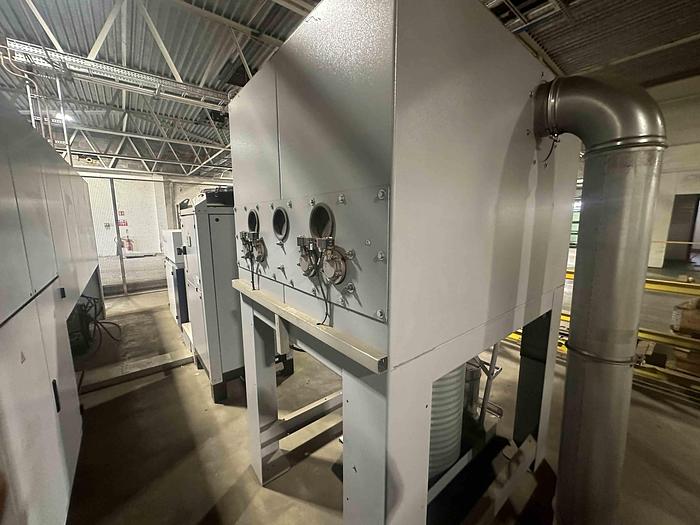

Camfil Entry 2000 ASI Dust Extractor

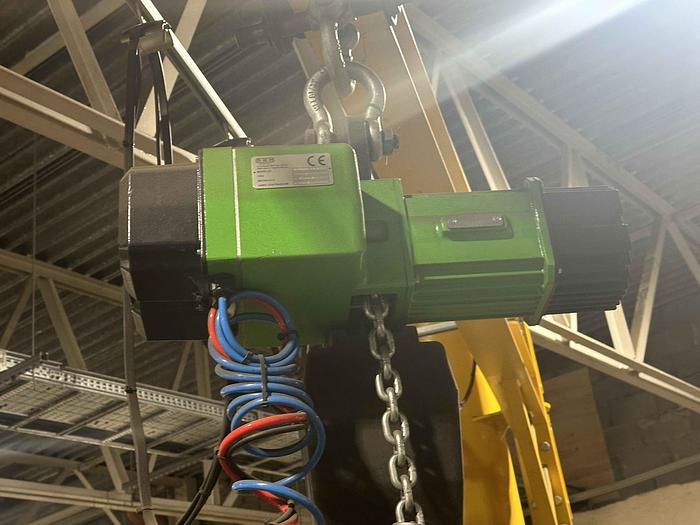

R-W-M Crane Hoist

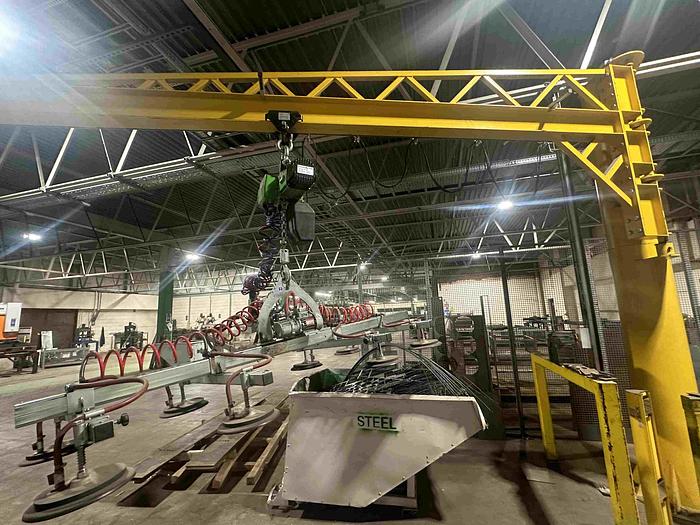

Single Pillar Crane

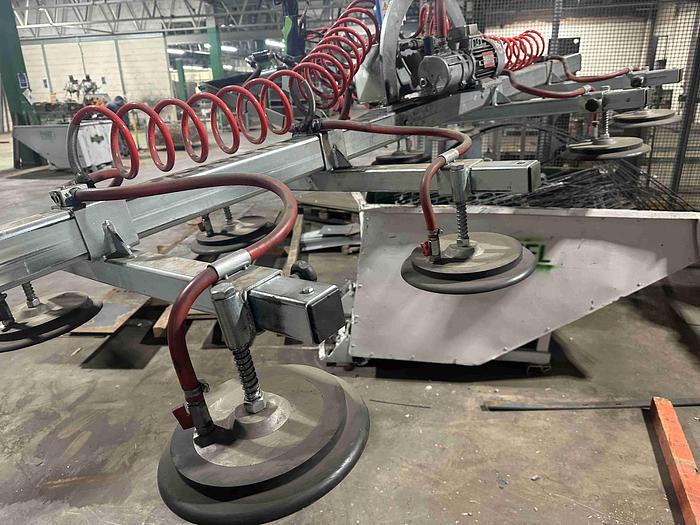

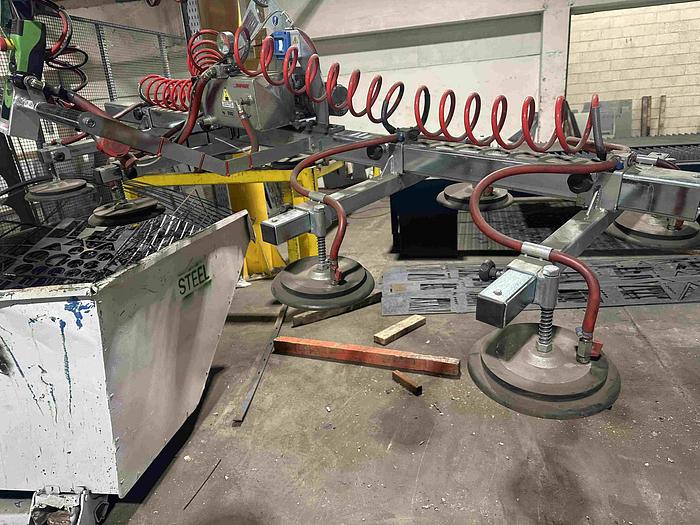

Pneumatic Sheet Handler with 8 x Suction Cups
Technical Specifications
Working Range: 4000 x 2000mm
Max Workpiece Weight: 2000kg
Max Speed (Simultaneous): 140m/min
Max Laser Power: 3000W
Max Sheet Thickness(M/S): 20mm
Max Sheet Thickness(S/S): 15mm
Max Sheet Thickness(ALU): 15mm
Max Sheet Thickness(CU): 6mm
Max Sheet Thickness(Brass): 6mm
Average Power Input in Production: 12kW
Connected Load: 35kVA
Machine Dimensions: 11150 x 6650 x 2200mm
Machine Weight: 12000kg
Specifications
| Manufacturer | Trumpf |
| Model | Trulaser 1040 Fiber Laser Cutting Machine |
| Year | 2021 |
| Condition | Used |
| Serial Number | A2018E0030 |
| Machine Type | Fiber Laser Cutting Machine |
| Year | 2021 |
| Laser Capacity | 3kW |
| Hours | 1900 Beam On Hours |
| Sheet Size | 4000 x 2000mm |
| Condition | Excellent |
| Working Range | 4000 x 2000mm |
| Max Workpiece Weight | 2000kg |
| Max Speed (Simultaneous) | 140m/min |
| Max Laser Power | 3000W |
| Max Sheet Thickness(M/S) | 20mm |
| Max Sheet Thickness(S/S) | 15mm |
| Max Sheet Thickness(ALU) | 15mm |
| Max Sheet Thickness(CU) | 6mm |
| Max Sheet Thickness(Brass) | 6mm |
| Connected Load | 35kVA |
| Machine Weight | 12000kg |
