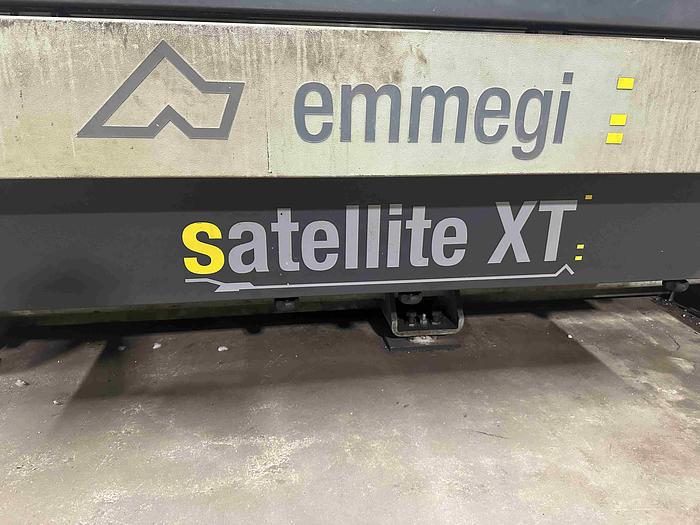

2014 Emmegi Satellite XT 10500 Machining Centre

Emmegi Satellite XT 10500 Machining Centre

Machine Type: 5-axes CNC mobile gantry machining centre, built to run milling, drilling, threading and cutting processes on large bars or workpieces in aluminium, PVC, light alloys in general and steel.

Year: 2014

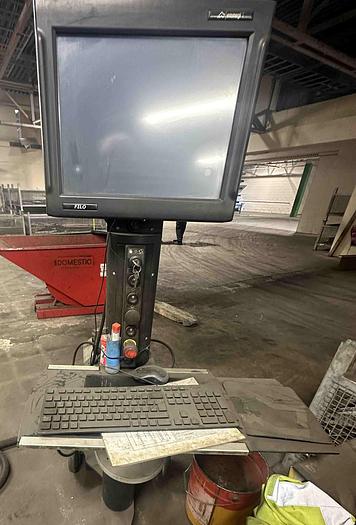

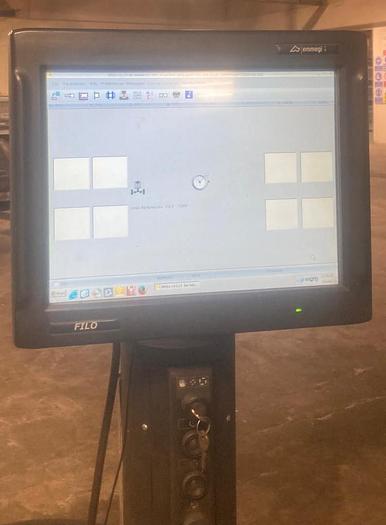

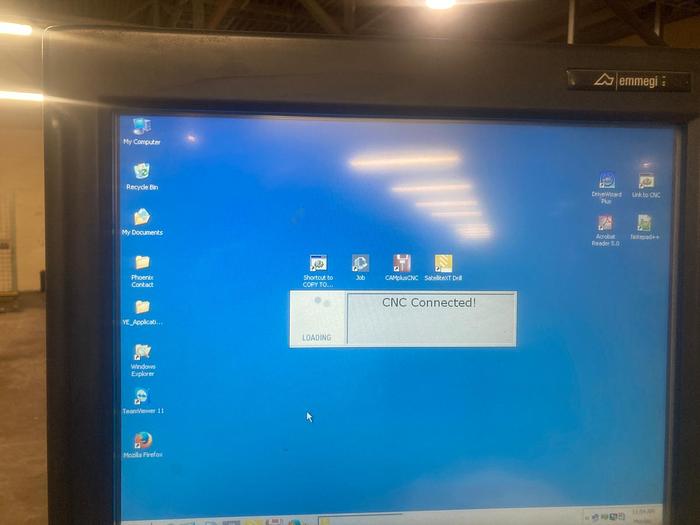

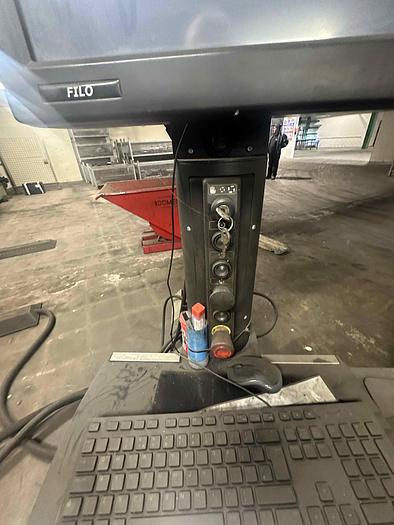

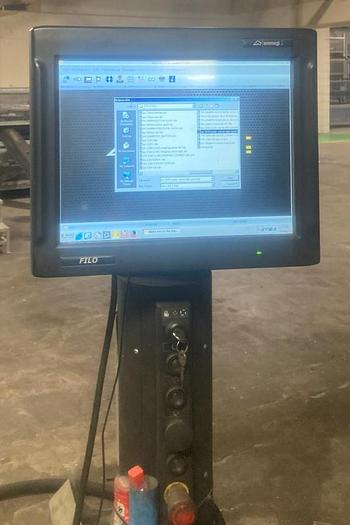

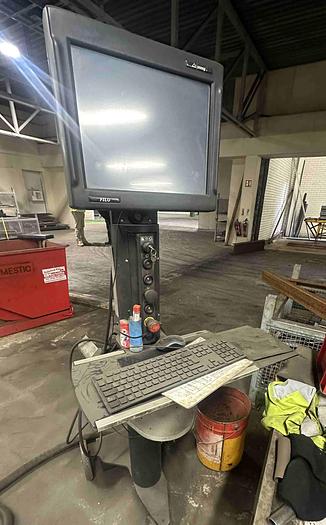

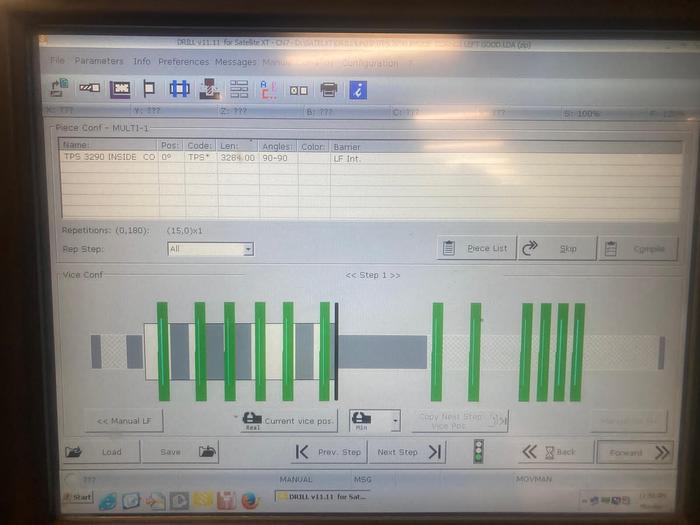

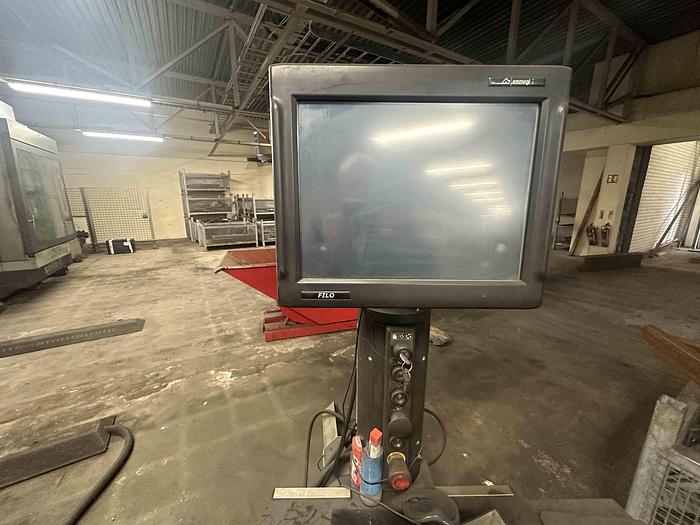

Control: Emmegi Filo Control using CAM Plus Software

Condition: Very Good. Spindle has been refurbished.

Machine Description

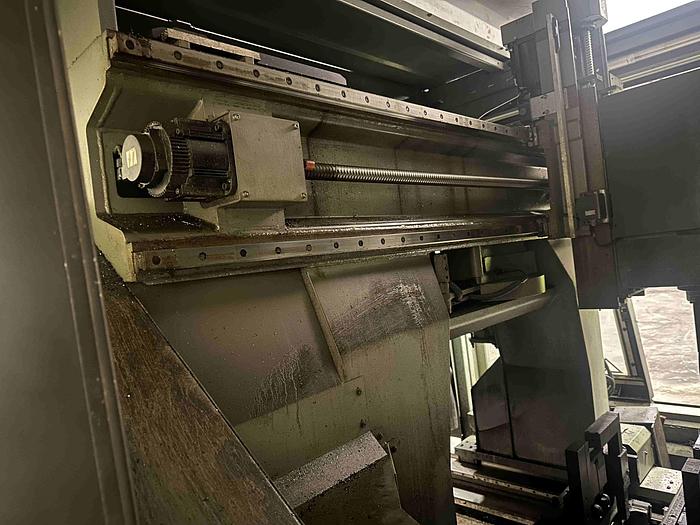

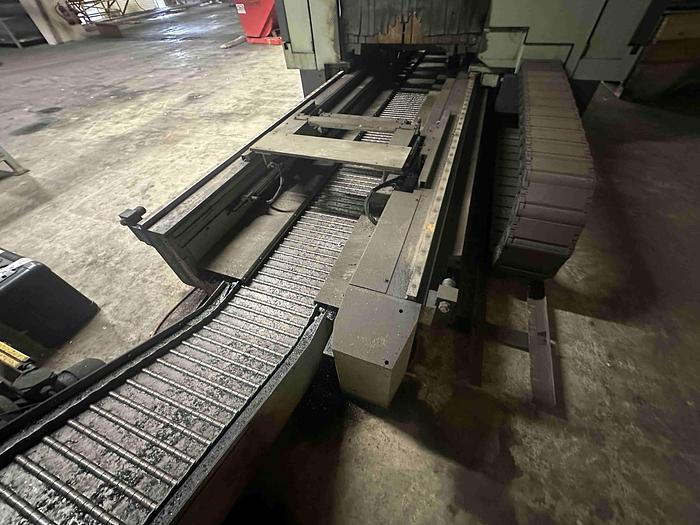

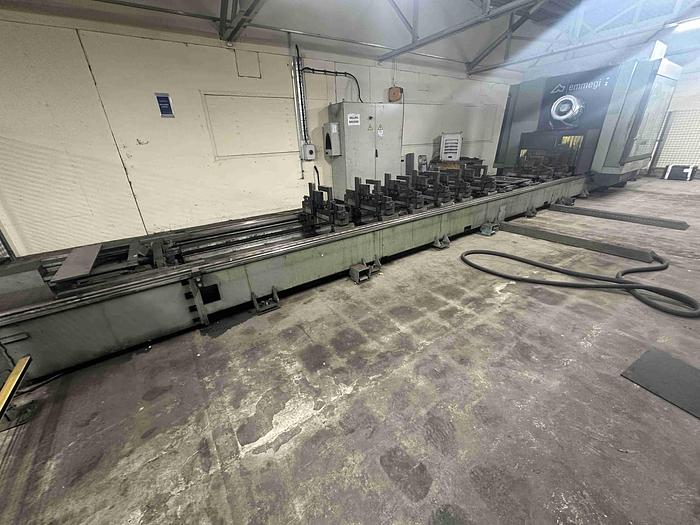

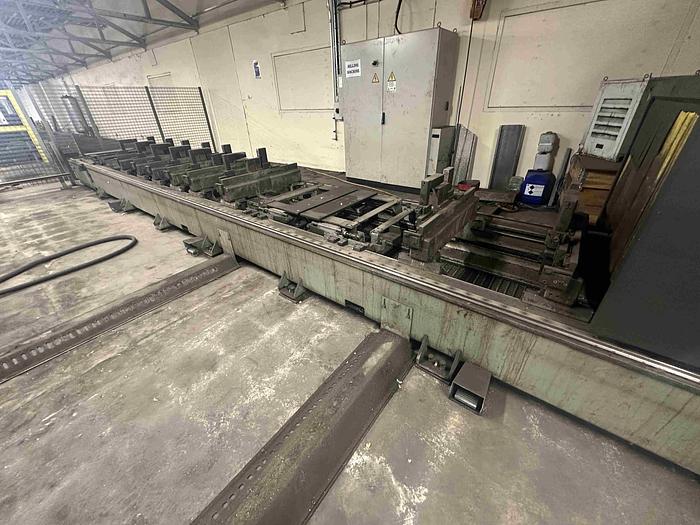

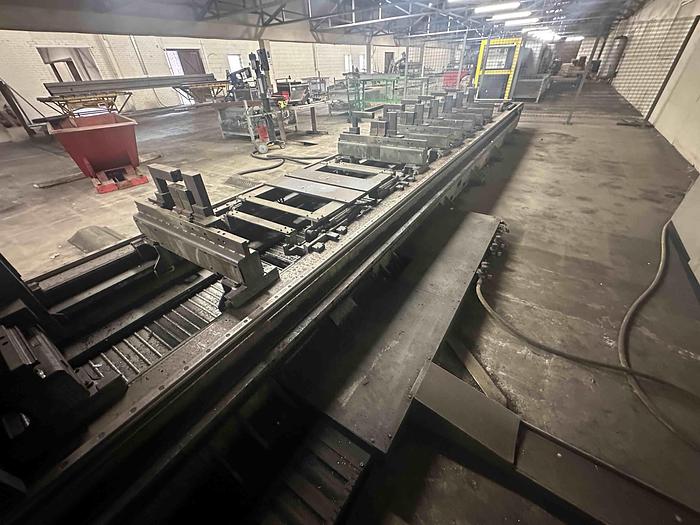

The mobile part of the machine consists of a gantry equipped with precision motorised rack.

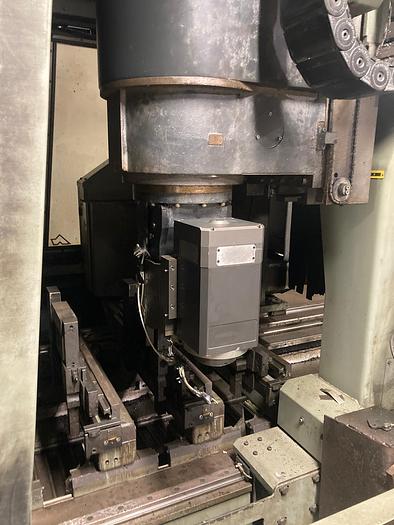

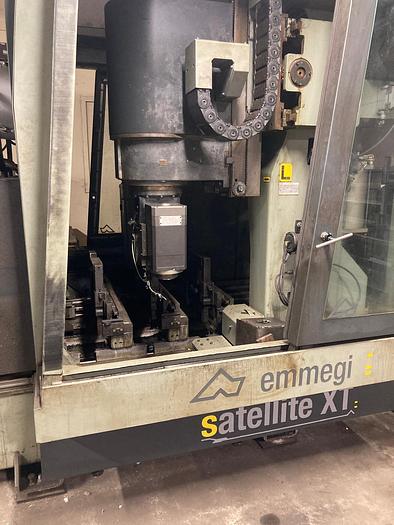

The high-power electrospindle (15 kW in S1) with HSK-63F tool connector allows even heavy duty machining to be run with excellent speed and accurate results.

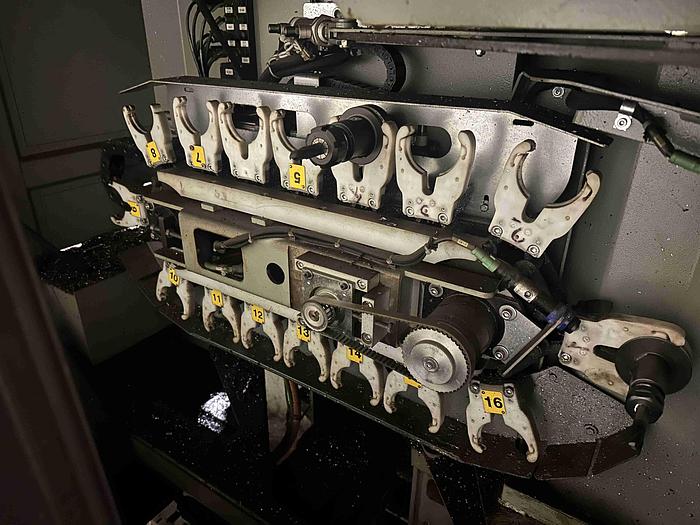

On the mobile gantry there is the tool magazine with 16 places.

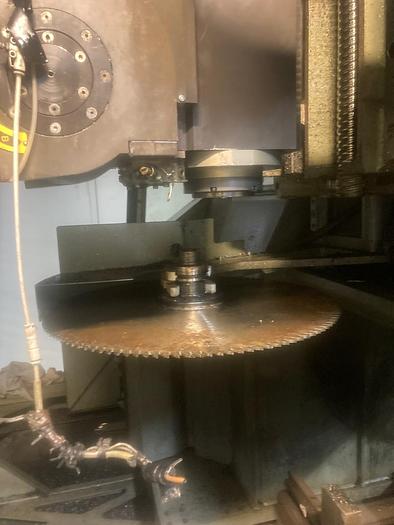

A 500 mm blade tool is housed separately in a dedicated magazine.

The machine can be used in double operation, a work method that reduces machine stoppage times to a minimum as it allows part changeover (loading/unloading) to be run in “concurrent time”.

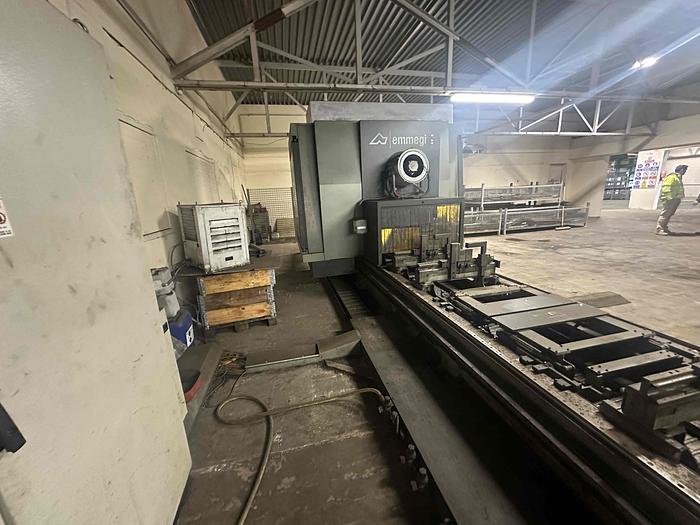

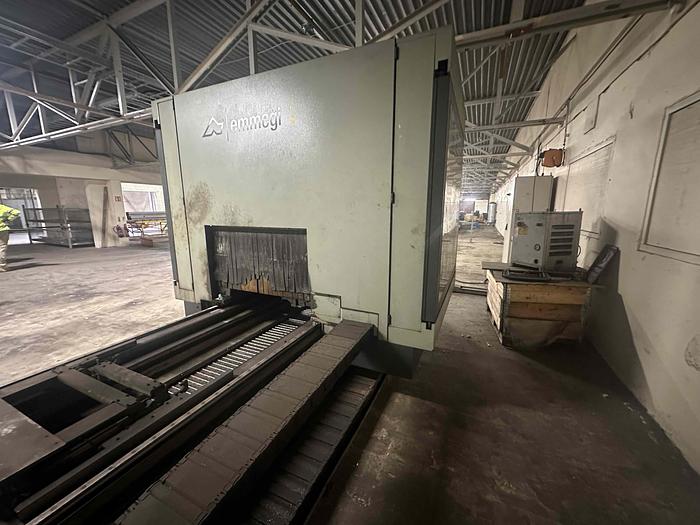

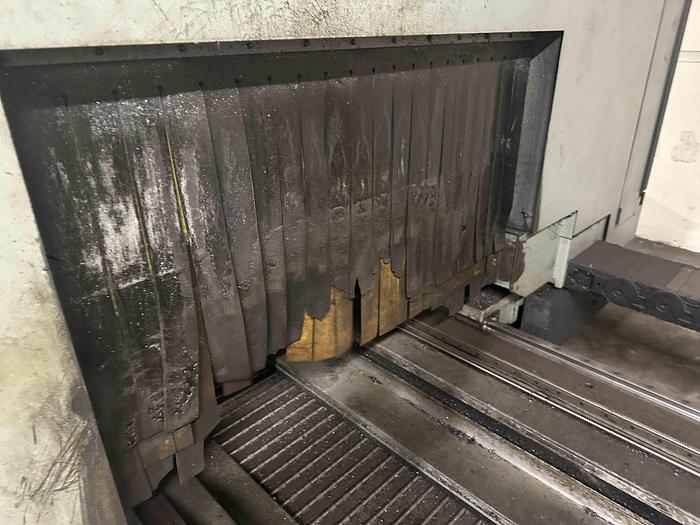

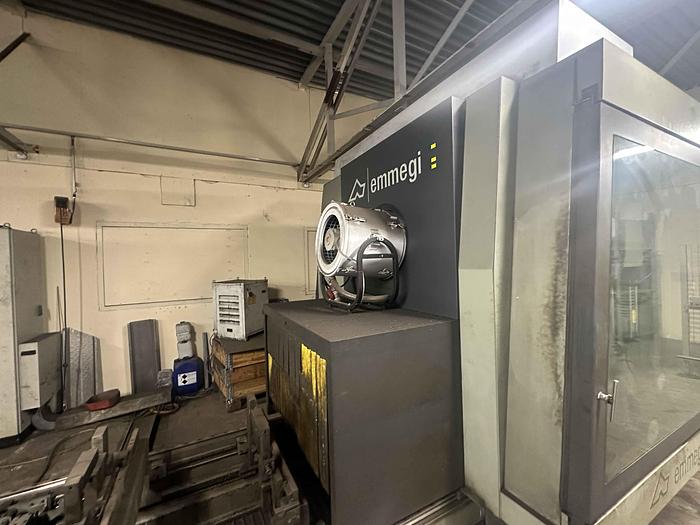

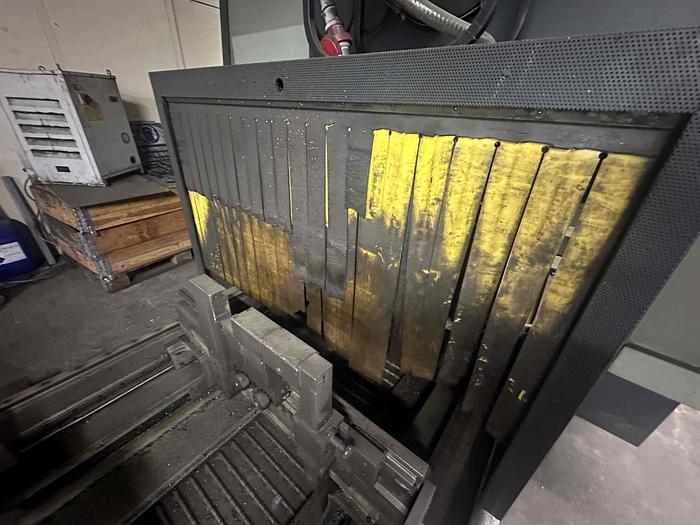

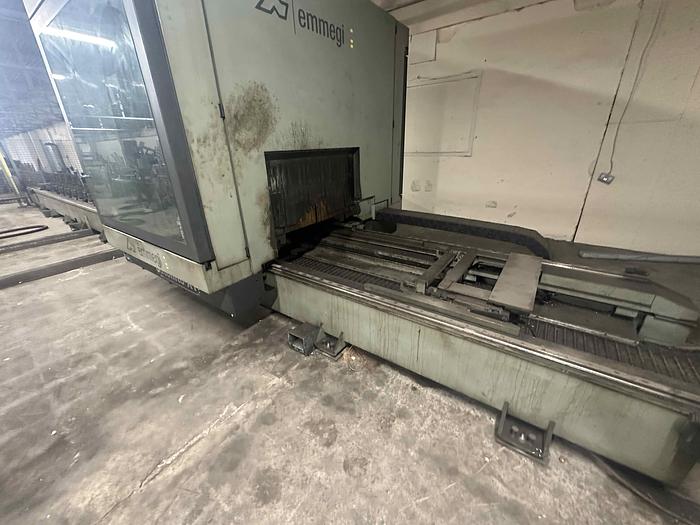

The gantry is equipped with a casing that not only protects the operator, but also reduces the environmental noise impact.

Technical Specifications

X Axis Travel: 10,500mm

Y Axis Travel: 1,100mm

Z Axis Travel: 655mm

B Axis Travel: 0°- 90°

C Axis Travel: 0°- 360°

Electro Spindle Power: 15kW

Spindle Speed: 24,000rpm

Max Spindle Torque: 12Nm

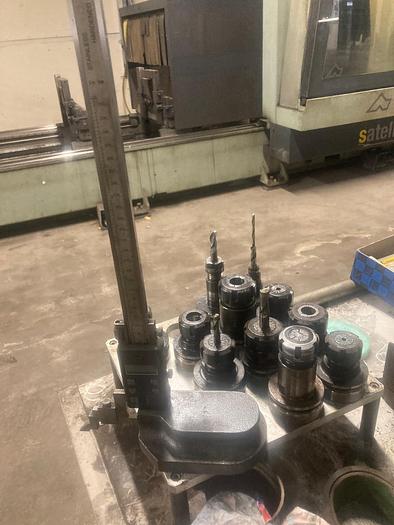

Spindle Taper: HSK-63F

ATC: 16 Stations

Max Tool Diameter: 80mm

Max Tool Length: 300mm

Workable Sides of Part: 5

Blade Diameter: 500mm

Max Workpiece Dimensions: 1,000 x 400 x 10,000mm

Tapping Capacity: M12

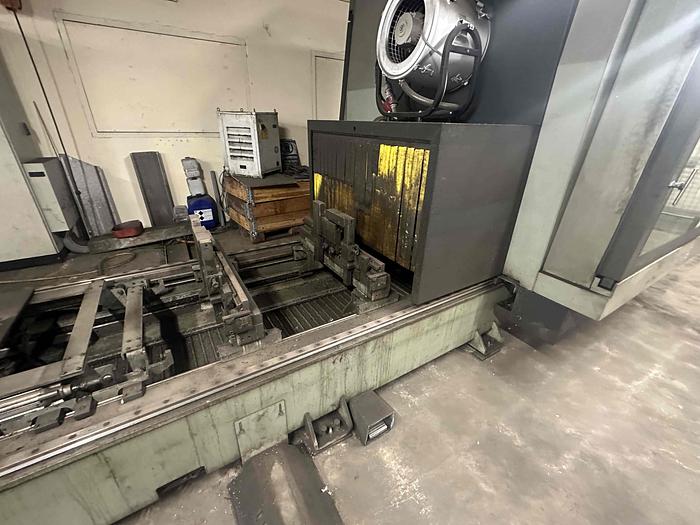

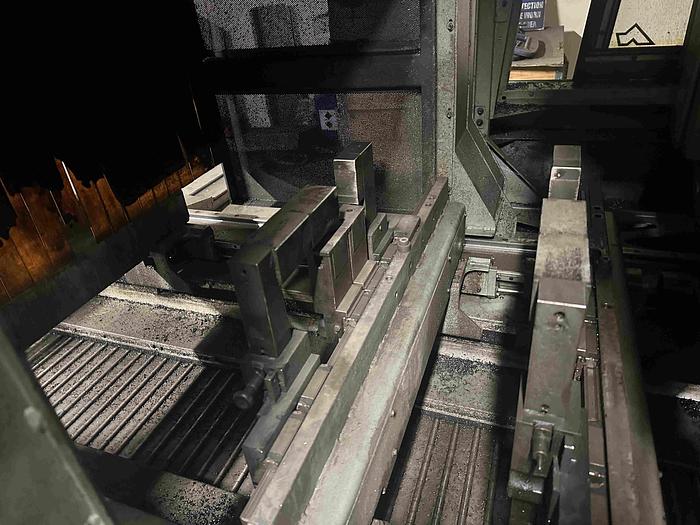

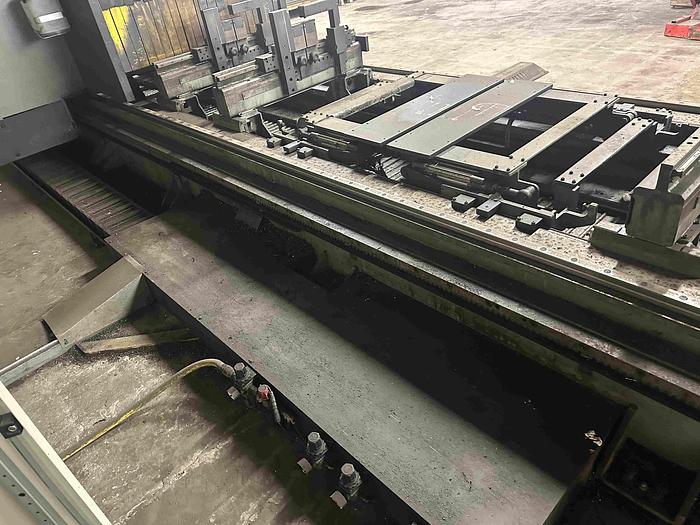

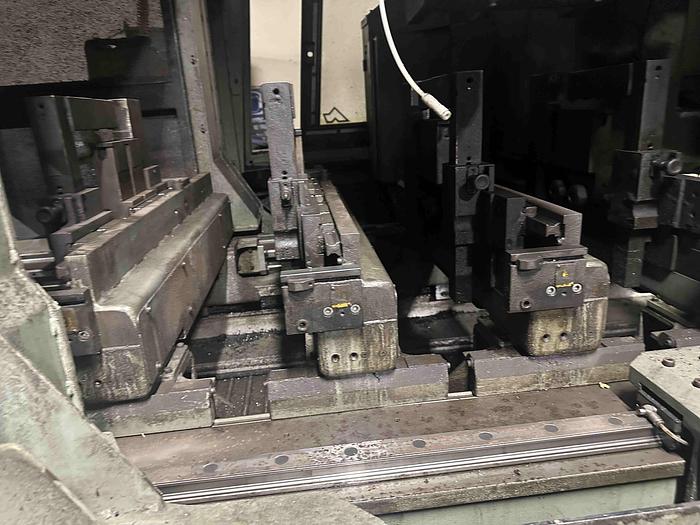

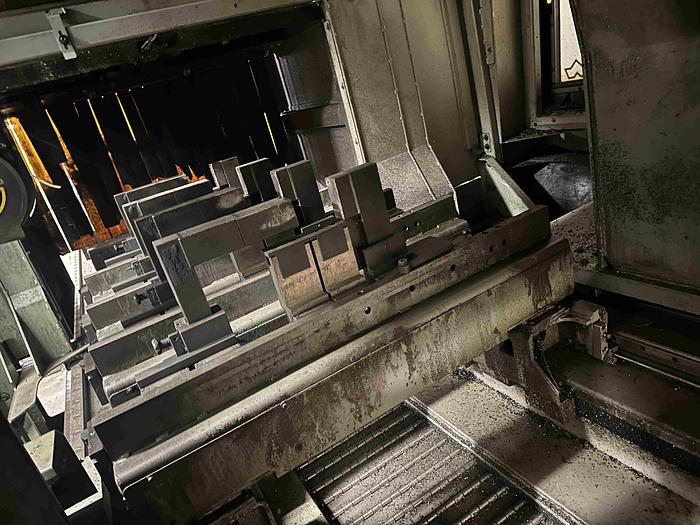

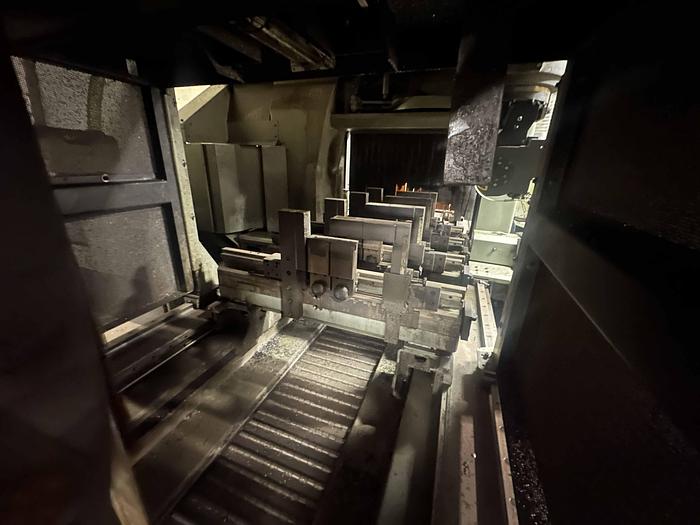

Workpiece Clamps: 8

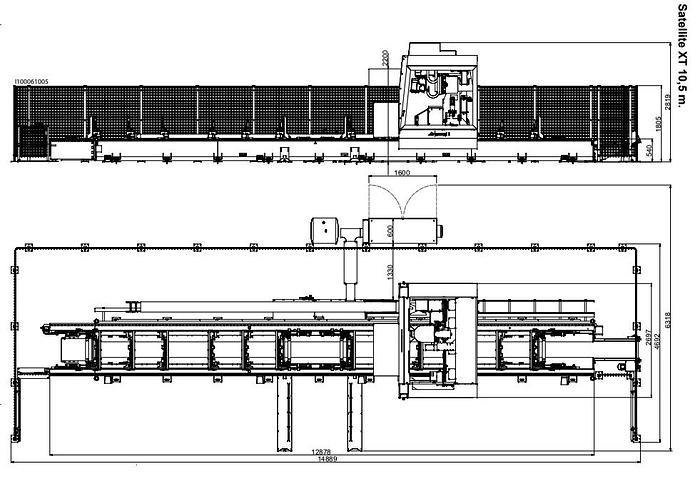

Dimensions including Fencing: 14900x4700x2820mm
