Colchester Triumph 2000 Manual Lathe
Sold
Description

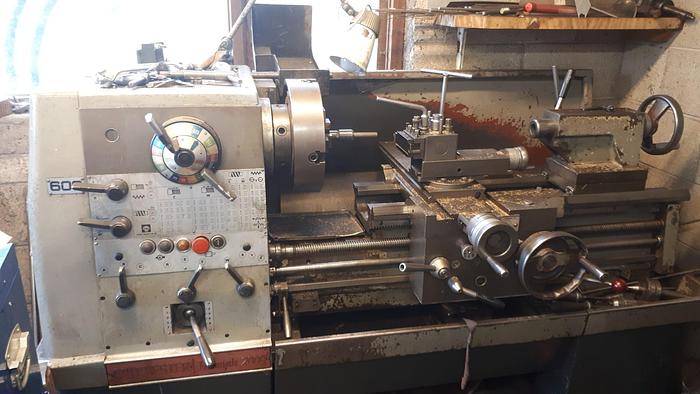

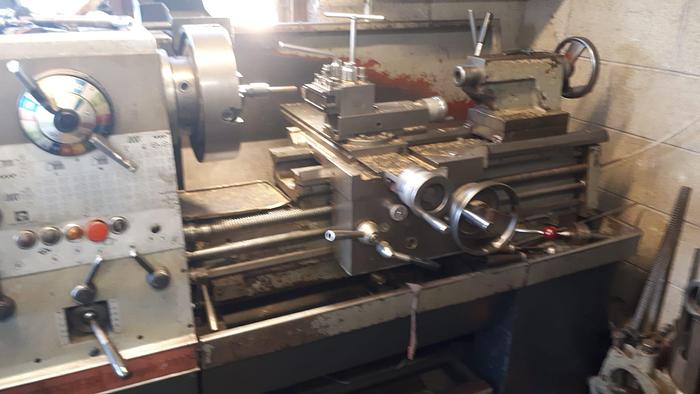

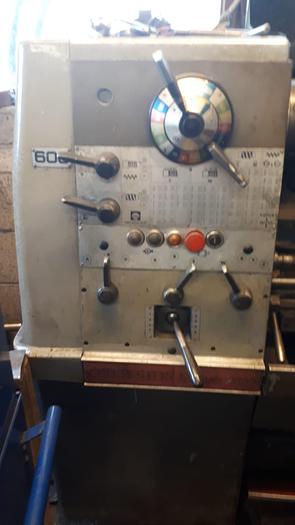

Colchester Triumph 2000 Manual Lathe
Machine Type: Short Bed Manual Lathe
DRO: No
Condition: Good.
Includes

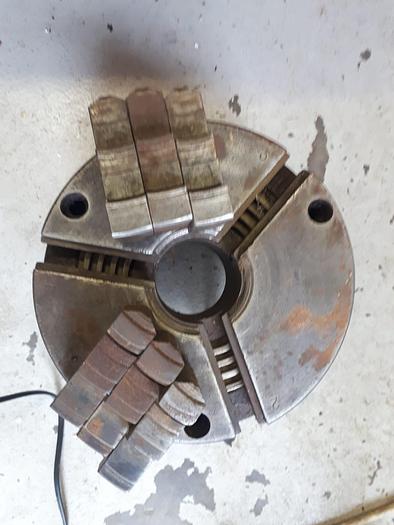

3 Jaw Chuck

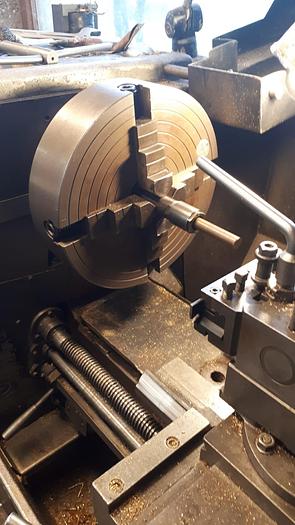

4 Jaw Chuck

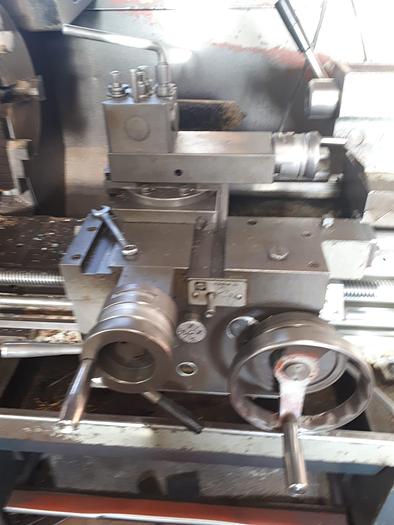

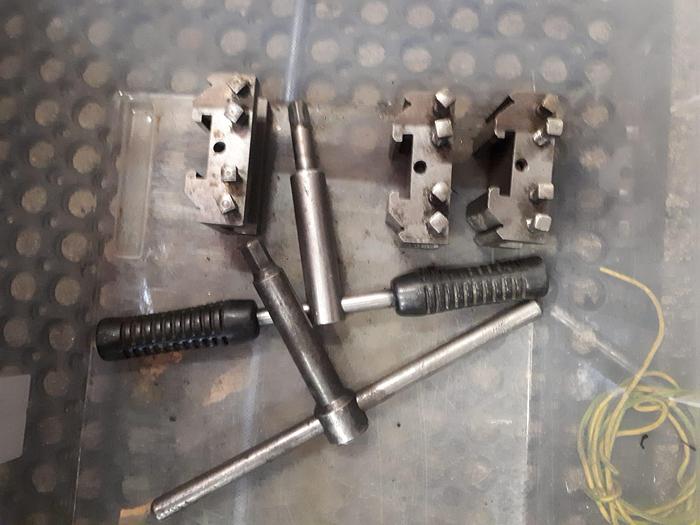

Quick Change Tool Post & Holders

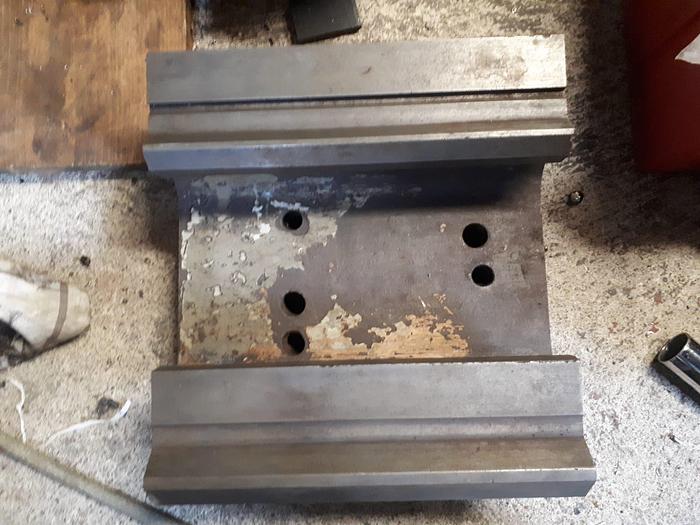

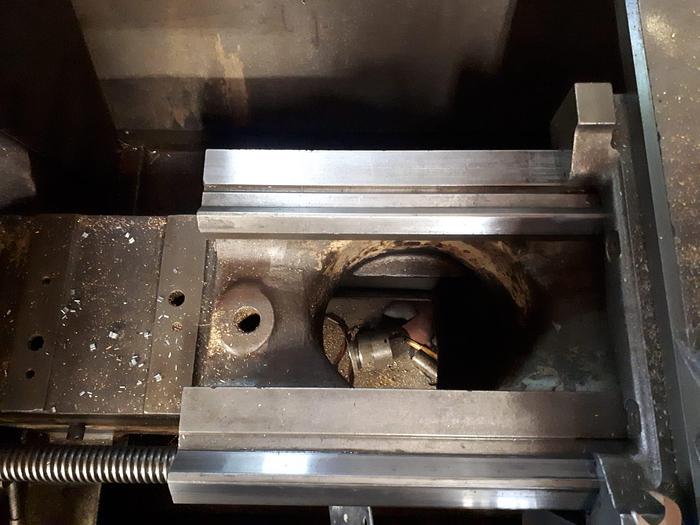

Gap for Bed

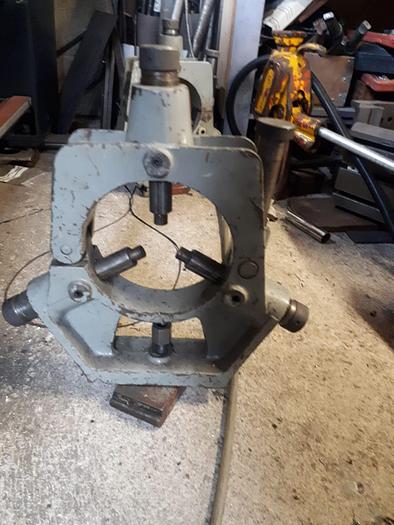

Fixed Steady
Technical Specification
Centre Height: 190mm
Distance Between Centres: 750mm
Swing Over Bed: 390mm
Swing Over Cross Slide: 240mm
Swing in Gap: 580mm
Gap Length: 155mm
Spindle Bore: 54mm
Spindle Nose: D1 6
Spindle Taper: MT 4

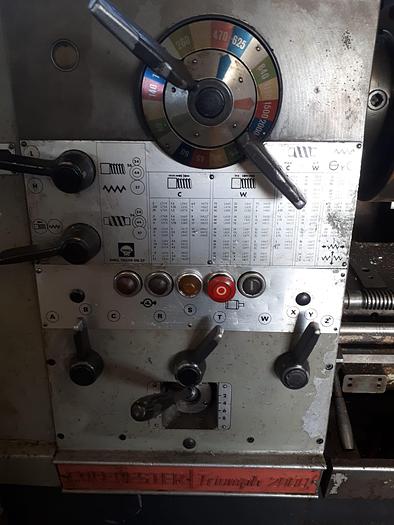

Spindle Speed Selection: 16
Spindle Speed Range: 25 - 2000rpm
Motor Power: 7.5hp
Cross-Slide Travel: 235mm
Top Slide Travel: 120mm
Tool Post: QCTP
Tailstock: Yes
Tailstock Quill Travel: 155mm
Tailstock Taper: MT4
Machine Length: 1930mm
Machine Weight: 1170kg
Specifications
| Manufacturer | Colchester |
| Model | Triumph 2000 Manual Lathe |
| Condition | Used |
| Machine Type | Manual Lathe |
| DRO | No |
| Centre Height | 190mm |
| Distance Between Centres | 750mm |
| Swing Over Bed | 390mm |
| Swing Over Cross Slide | 240mm |
| Swing in Gap | 580mm |
| Gap Length | 155mm |
| Spindle Bore | 54mm |
| Spindle Nose | D1 6 |
| Spindle Taper | MT 4 |
| Spindle Speed Selection | 16 |
| Spindle Speed Range | 25 - 2000rpm |
| Motor Power | 7.5hp |
| Cross-Slide Travel | 235mm |
| Top Slide Travel | 120mm |
| Tailstock | Yes |
| Tailstock Quill Travel | 155mm |
| Tailstock Taper | MT4 |
| Machine Length | 1930mm |
| Machine Weight | 1170kg |
