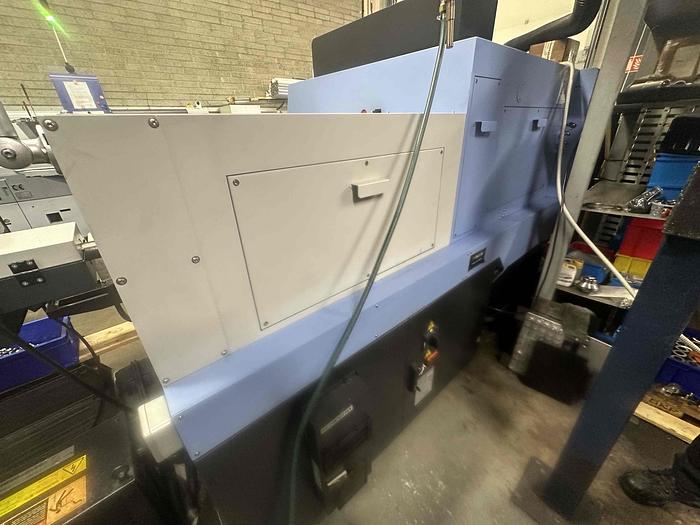

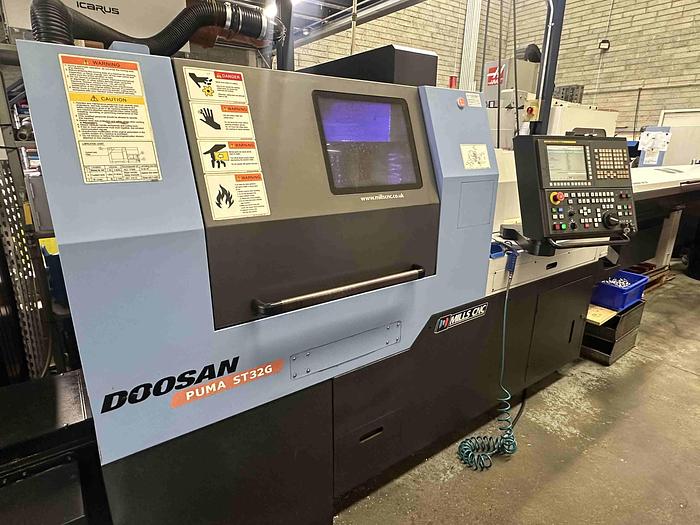

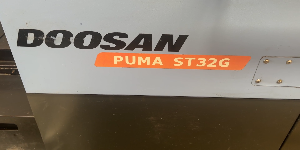

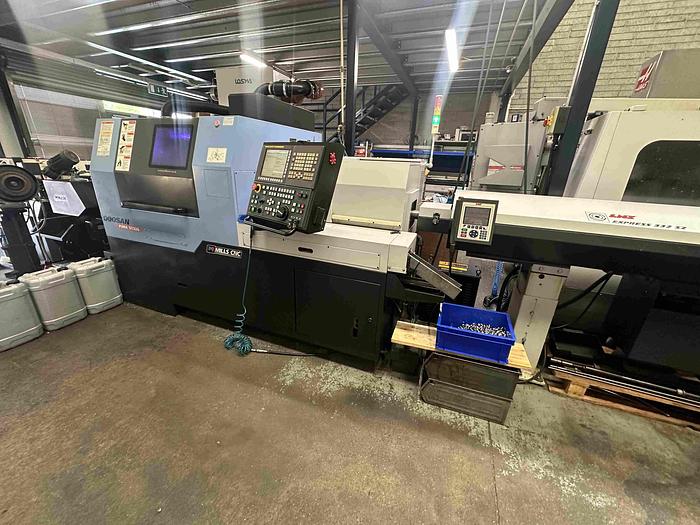

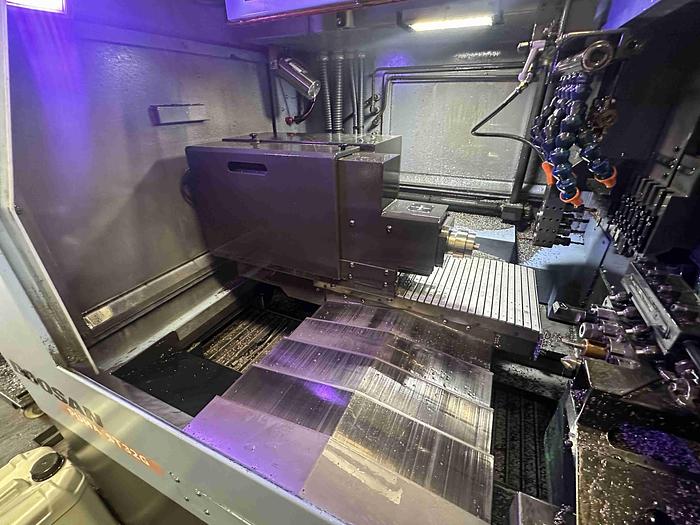

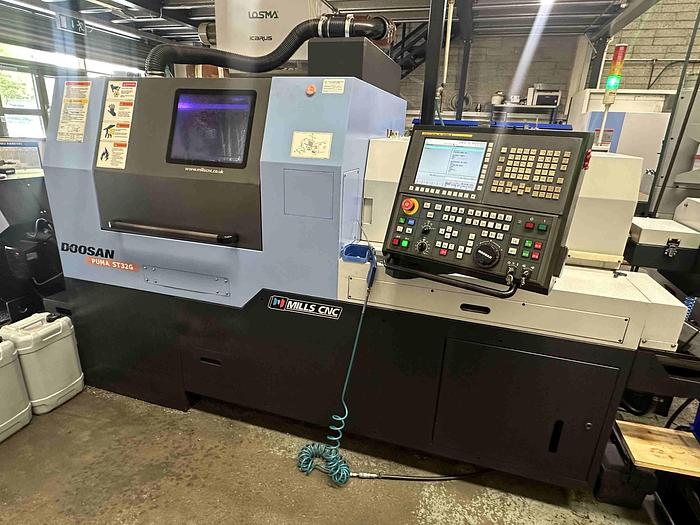

Doosan Puma ST32G Sliding Head CNC Lathe
Description
Doosan Puma ST32G Sliding Head CNC Lathe
Machine Type: Sliding Head CNC Lathe
Year: 2013 - Installed in late 2014

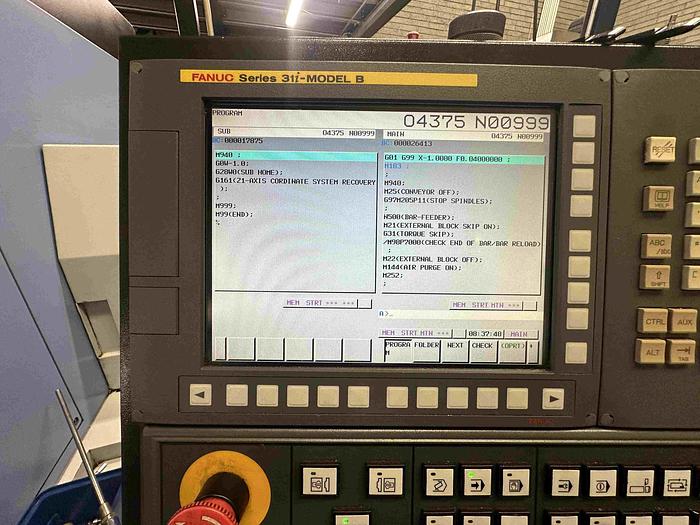

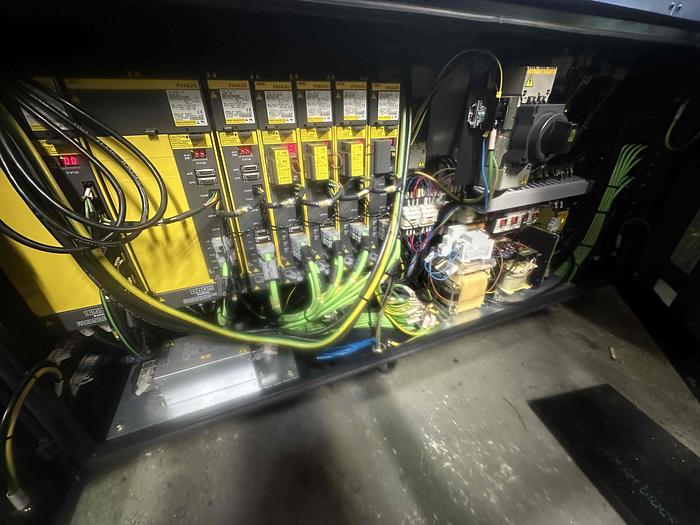

Control: Fanuc Series 31i - Model B
Condition: Excellent
Includes

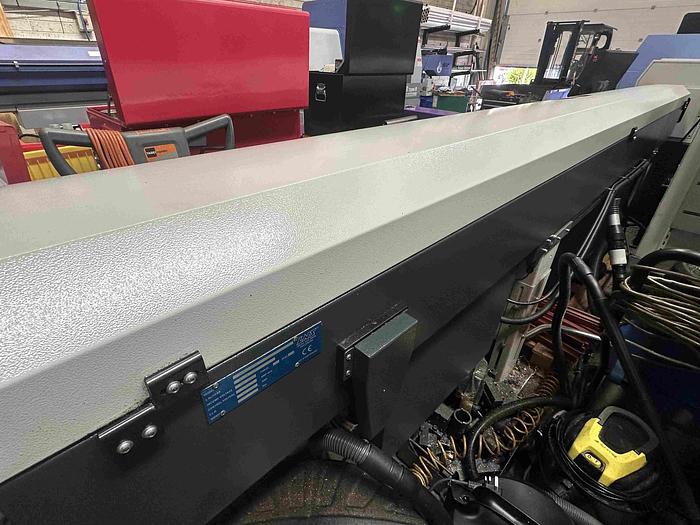

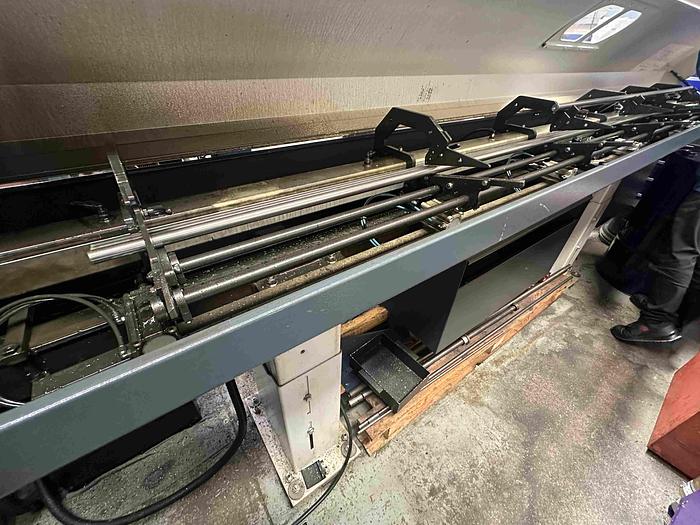

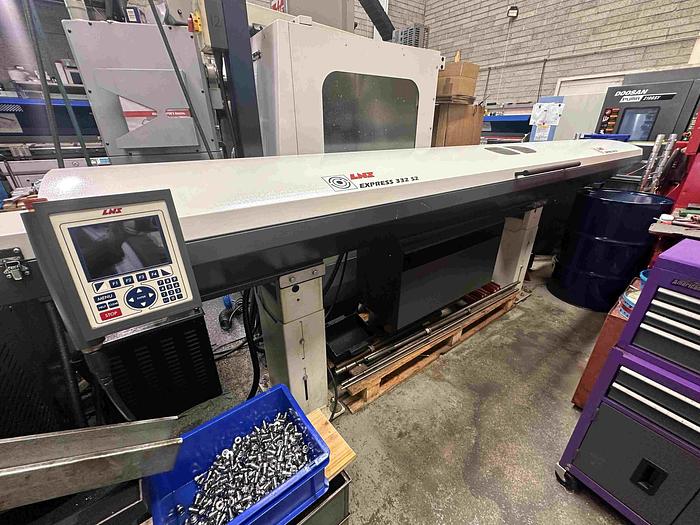

LNS Express 332 S2 Bar Feed
LNS Swarf Conveyor
Losma Mist Extractor
LNS Mist Extractor(Spare)

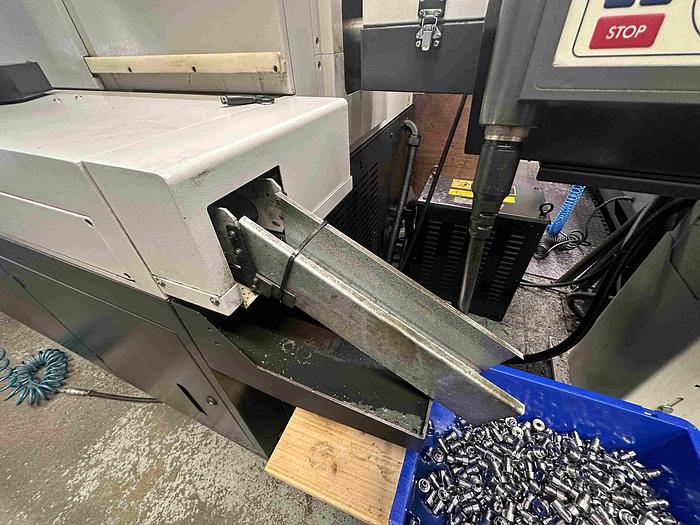

Parts Conveyor
Manuals
Technical Specifications
Max Machining Diameter: 32mm
Max Main Spindle Stroke: 320mm
Max Drilling Capacity: 13mm
Max Tapping Capacity: M12 x 1.75mm
Max Milling Capacity: 8mm
Main & Sub Spindle Speeds: 8000rpm
Main Spindle Power: 7.5kW
Sub Spindle Power: 3.7kW
X1 Axis Travel: 114mm
Z1 Axis Travel: 320mm
Y Axis Travel: 404mm
C1 Axis Travel: 360 deg
X2 Axis Travel: 393mm
Z2 Axis Travel: 343mm
C2 Axis Travel: 360 deg
Rapid Traverse all Axes: 32m/min

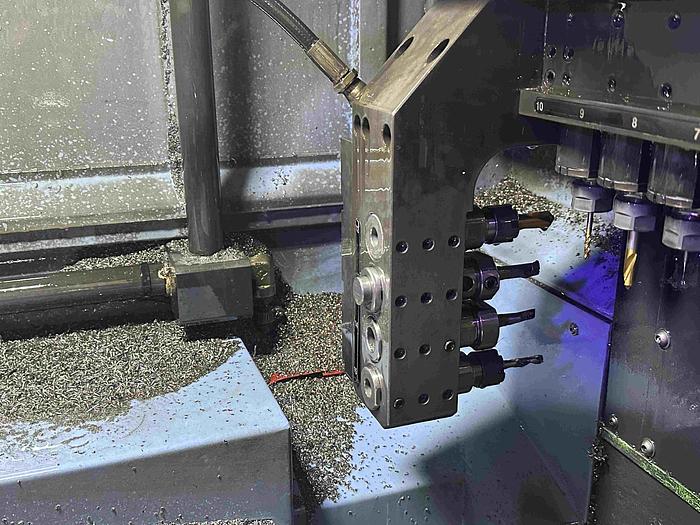

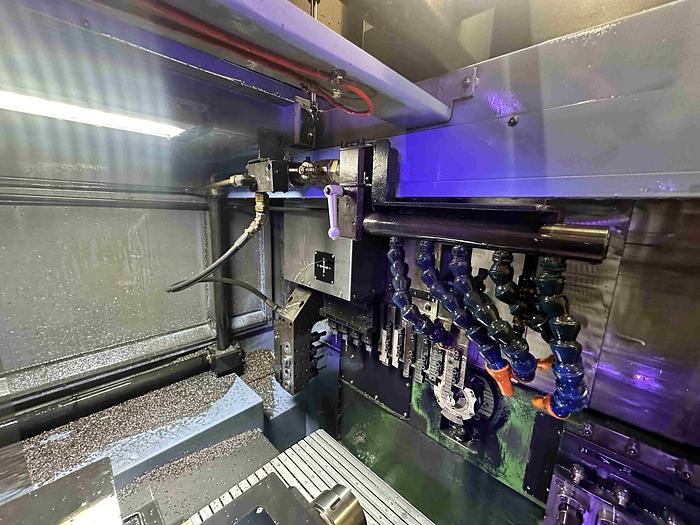

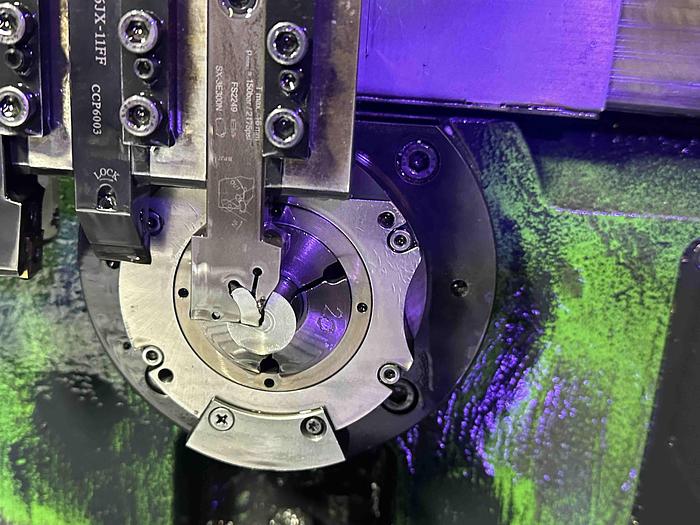

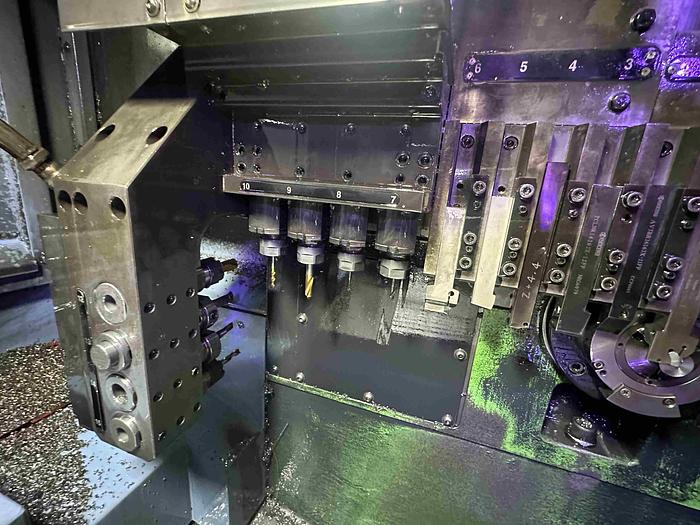

Front Tool Stations: 20
Back Tool Stations: 4
Driven Tool Speeds: 8000rpm
Coolant Tank Capacity: 160L
HP Coolant: No
Coolant Flow Rate: 200L/min

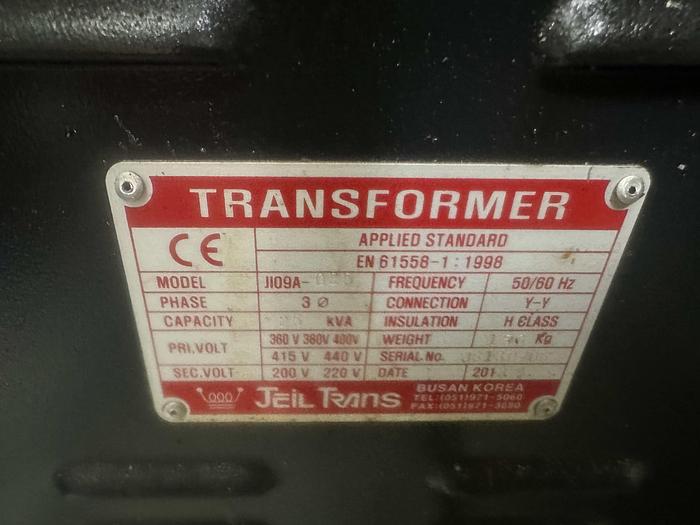

Power Supply: 22Kva
Machine Dimensions: 2640 x 1400 x 1840mm
Machine Weight: 3500kg
Specifications
| Manufacturer | Doosan |
| Model | Puma ST32G Sliding Head CNC Lathe |
| Year | 2013 |
| Condition | Used |

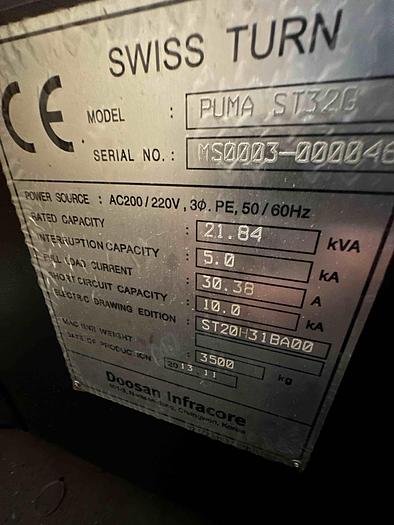

| Serial Number | MS0003-000046 |
| Stock Number | 968899 |
| Machine Type | Sliding Head CNC Lathe |
| Condition | Excellent |
| Max Machining Diameter | 32mm |
| Max Main Spindle Stroke | 320mm |
| Max Drilling Capacity | 13mm |
| Max Tapping Capacity | M12 x 1.75mm |
| Max Milling Capacity | 8mm |
| Main Spindle Power | 7.5kW |
| Sub Spindle Power | 3.7kW |
| X1 Axis Travel | 114mm |
| Z1 Axis Travel | 320mm |
| Y Axis Travel | 404mm |
| C1 Axis Travel | 360 deg |
| X2 Axis Travel | 393mm |
| Z2 Axis Travel | 343mm |
| C2 Axis Travel | 360 deg |
| Rapid Traverse all Axes | 32m/min |
| Front Tool Stations | 20 |
| Back Tool Stations | 4 |
| Driven Tool Speeds | 8000rpm |
| Coolant Tank Capacity | 160L |
| Coolant Flow Rate | 200L/min |
| HP Coolant | No |
| Power Supply | 22Kva |
| Machine Weight | 3500kg |
