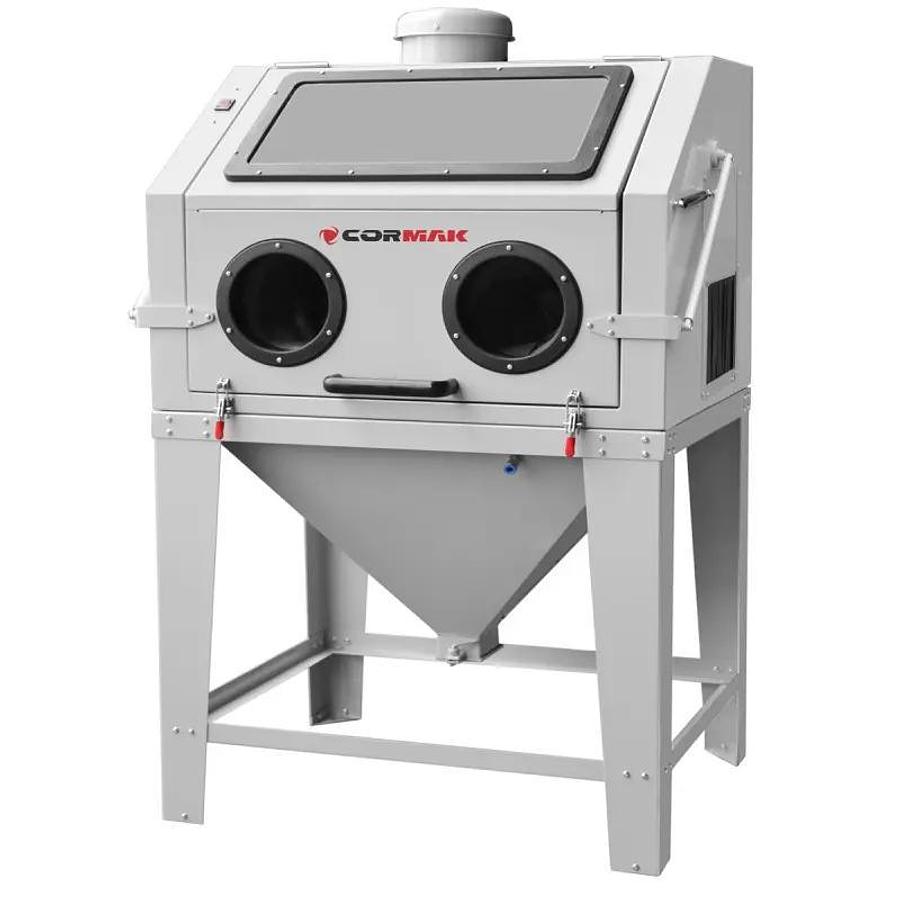

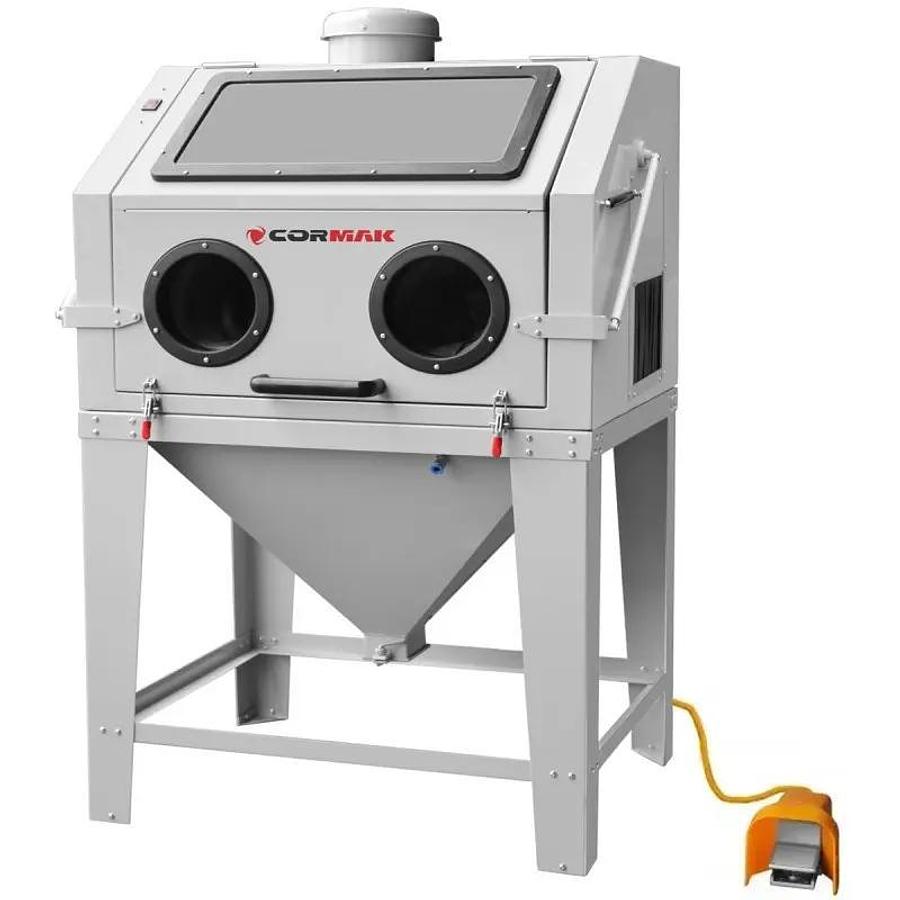

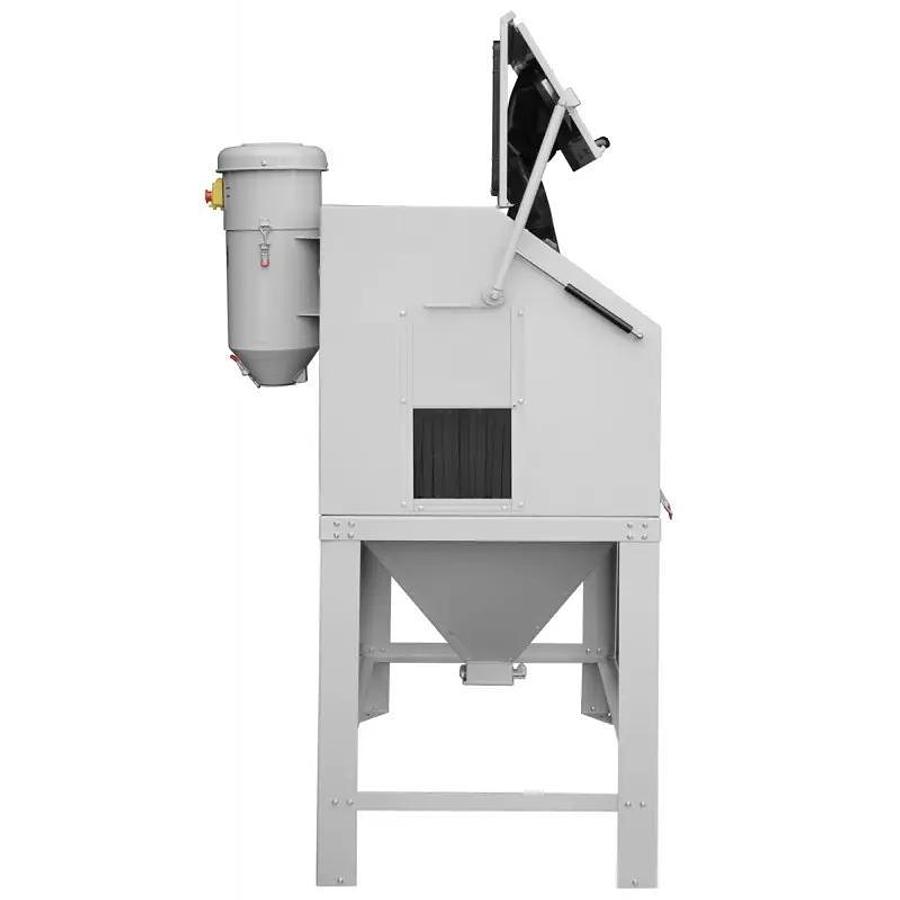

Cormak KDP350 TOPPLUS - 350L Sandblaster with Dust Extraction

Cormak KDP350 TOPPLUS - 350L Sandblaster with DC15 Dust Extraction

Machine Type: Sand Blasting Cabinet

Year: New

Machine Description

The sandblasting cabin is a device used in industry, car workshops and renovation works. It is used to remove surface layers from various materials, such as metal, wood or glass. The cabin has side openings and telescopic cylinders, which allows the processing of long workpieces. The standard equipment includes a dust extraction system, a set of nozzles, a gun and protective stickers for the visor. Thanks to it, you can effectively and precisely remove surface layers from various materials.

Sandblaster Cabinet KDP350TOP PLUS – professional cabinet for blasting metal, rims and profiles

The KDP350TOP PLUS sandblaster cabinet is a technologically advanced machine designed for precise abrasive blasting applications. Its construction has been developed for demanding users in industrial manufacturing, automotive workshops, metalworking facilities and refurbishment services. Thanks to the top-opening working chamber and side openings for long workpieces, this model enables efficient cleaning and matting of profiles, frames and components with non-standard dimensions. It is an ideal sandblaster cabinet for rims, metal and machine parts.

Main advantages of the machine

Large working chamber with a capacity of 330 litres – suitable for medium and large components.

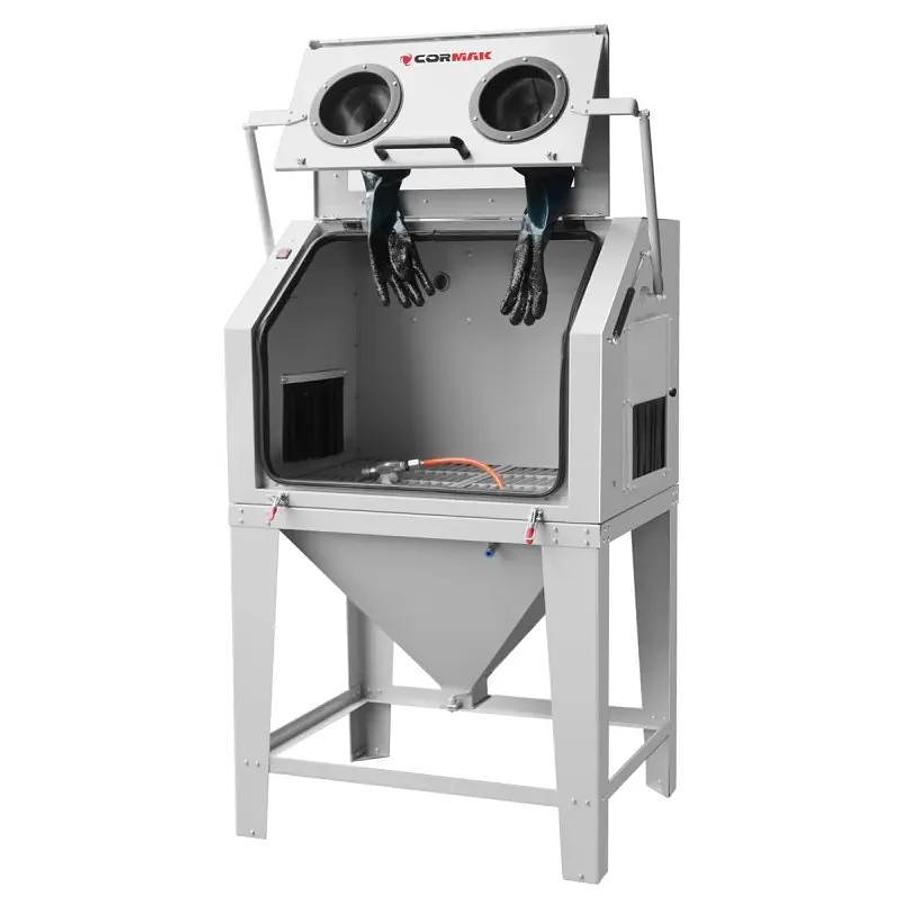

Top-opening design – facilitates loading of long or unusually shaped workpieces.

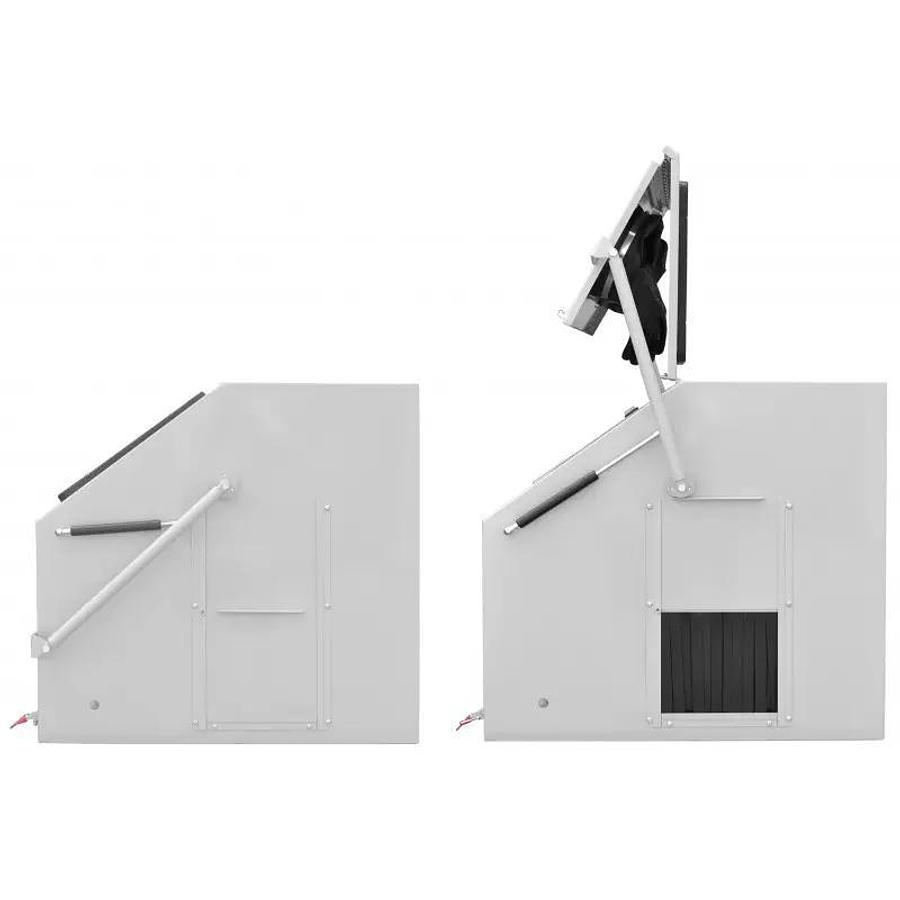

Side openings – allow convenient processing of long profiles and components.

Dust-free working system with dual extraction connections and sealed construction.

DC15 cyclone dust extractor included as standard – effective removal of contaminants from the working chamber.

Working pressure of 4–8 bar and air consumption of 400–700 L/min – ensure effective blasting performance.

Blasting gun with ceramic nozzles – wear-resistant and compatible with various abrasive media.

Design and technology

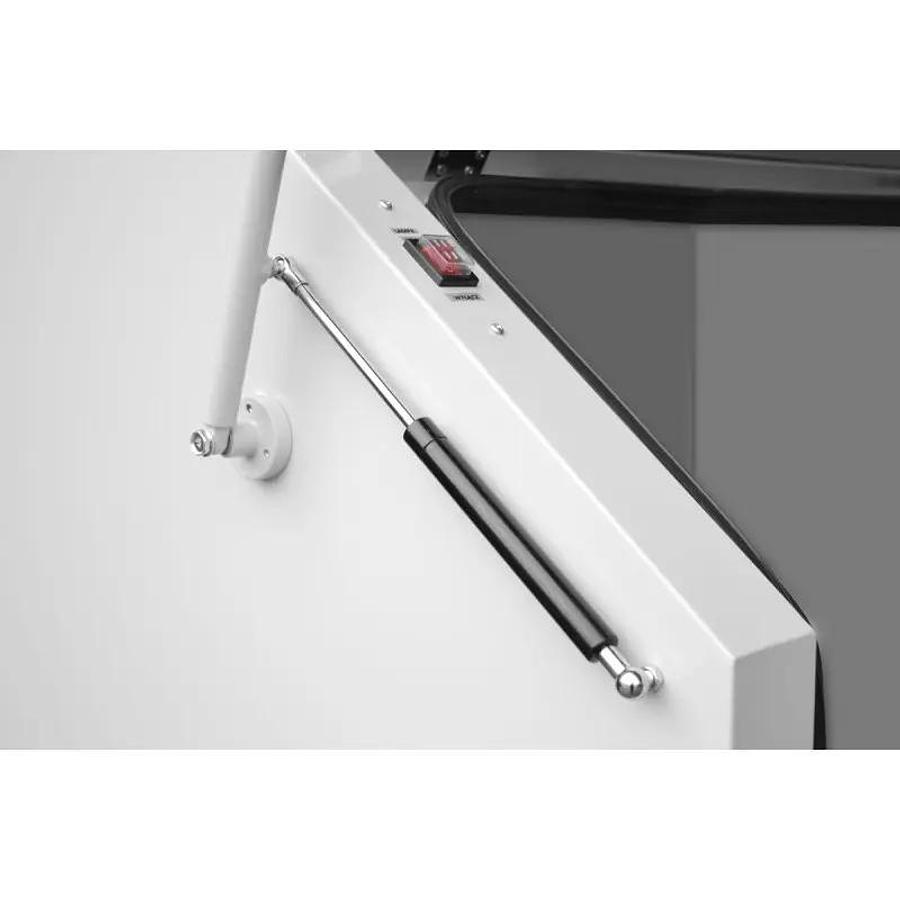

The KDP350TOP PLUS sandblaster cabinet features a robust structure manufactured from thick, powder-coated steel for enhanced durability and corrosion resistance. The top door is fitted with telescopic gas struts, allowing smooth and safe opening even with heavier workpieces. Perimeter rubber seals ensure cabinet tightness, preventing dust and abrasive from escaping. The bottom abrasive discharge system enables quick and convenient replacement of blasting media.

Precision and work efficiency

With its wide working pressure range and compatibility with multiple abrasive types, the CORMAK KDP350TOP PLUS sandblaster cabinet provides uniform and precise cleaning of metal surfaces. A large viewing window measuring 580x270 mm and integrated working area lighting allow accurate control of the blasting process, even when handling complex geometries. This makes it an excellent solution for workshops requiring repeatable, professional results.

Applications

The KDP350TOP PLUS sandblaster cabinet is suitable for a wide range of industries, including:

• refurbishment of aluminium and steel rims – ideal as a sandblaster for rims,
• surface preparation prior to powder coating,
• cleaning of engine components, gearboxes, housings and connectors,
• removal of rust, old paint coatings and technological contaminants,
• maintenance and restoration work in industrial workshops,
• small-batch production and industrial cleaning services.
• The machine supports various abrasive media, including glass beads, aluminium oxide, fused alumina, synthetic sand and plastic granulate, ensuring high versatility.

Standard equipment

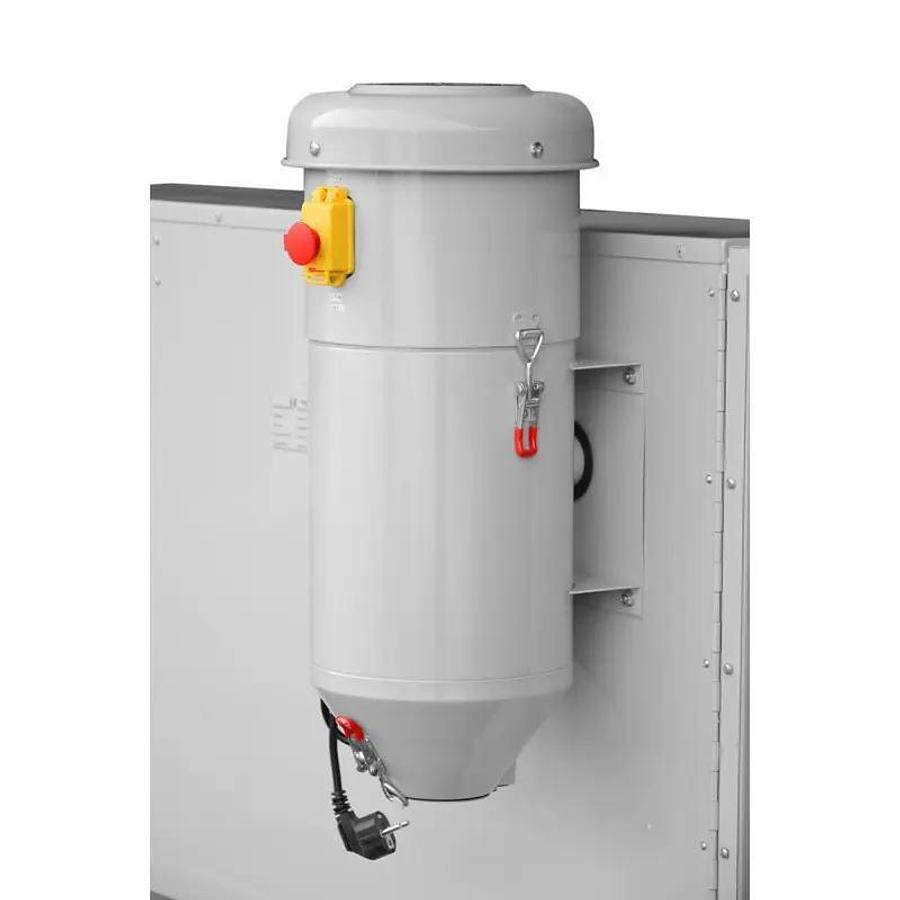

DC15 cyclone dust extractor

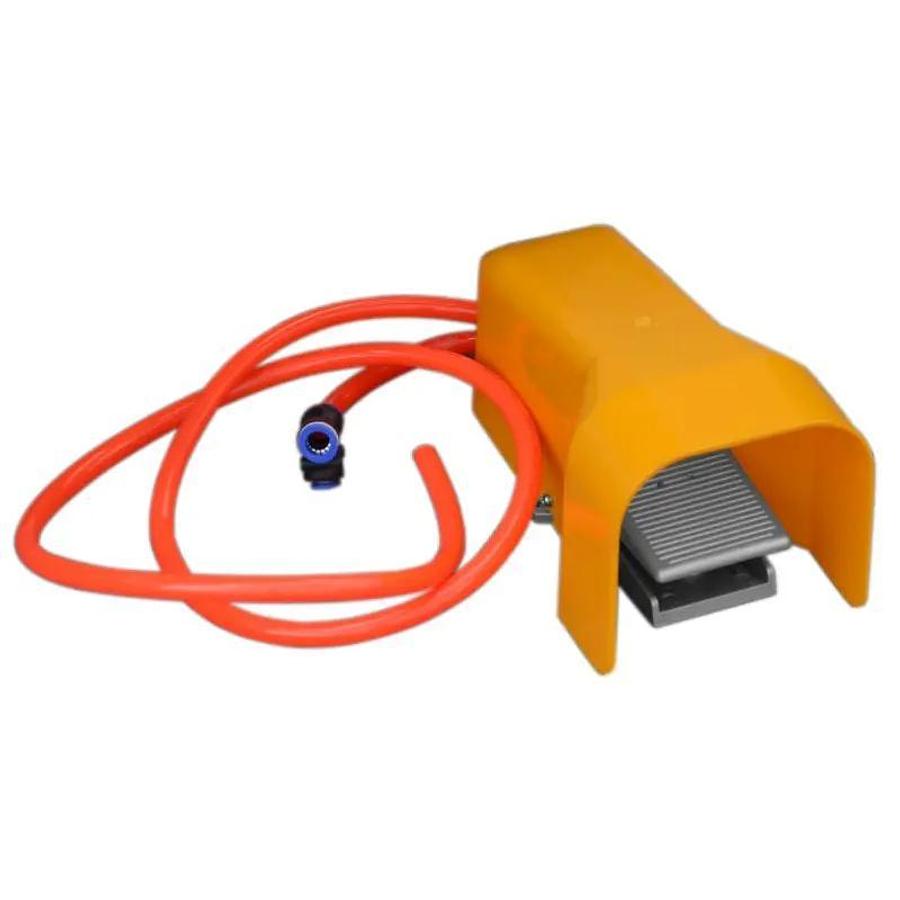

Foot pedal for controlling air flow

Working area lighting – 12 V fluorescent lamp with 230 V power supply

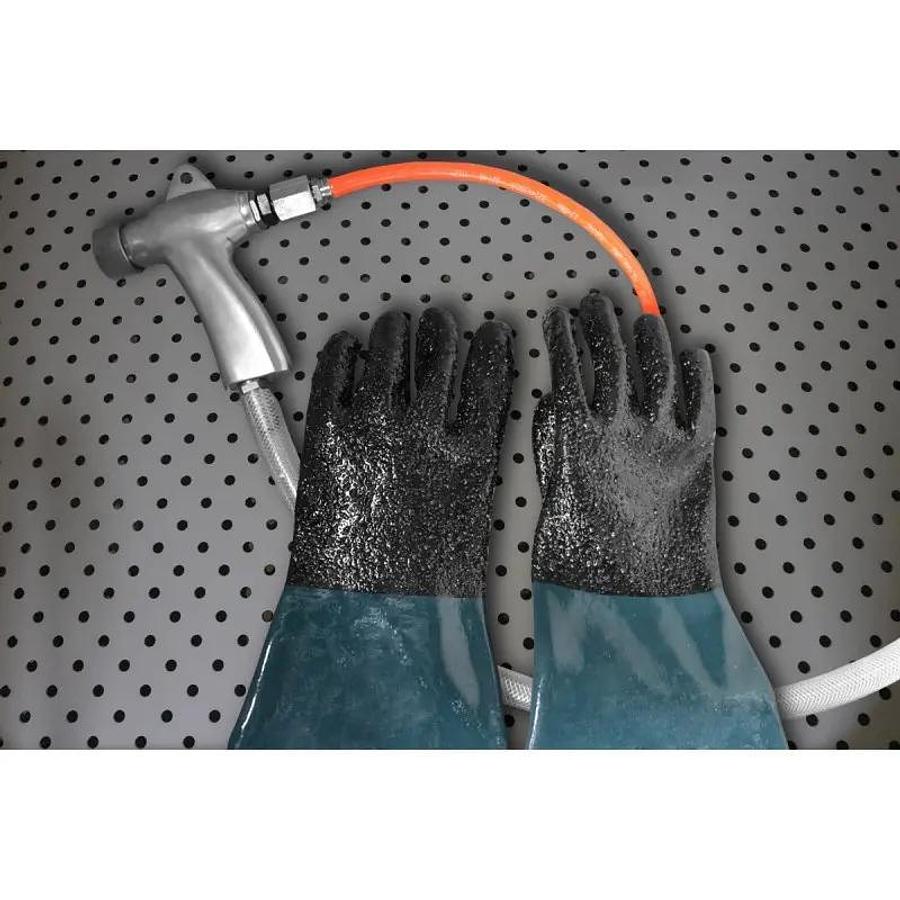

2 integrated, abrasion-resistant rubber protective gloves

2 extraction connections: Ø63 mm and Ø90 mm

Sandblasting gun with 8 interchangeable ceramic nozzles

4 protective films for the viewing window

Front door with perimeter rubber seals

Technical Specifications

Working Capacity: 330 L (0.33 m3)

Operating Pressure: 4-8 Bar

Air Consumption: 400-700l/min

Air Connection: 1/4" Quick Release

Viewing Window: 580 x 270mm

Side Opening Dimensions: 200 x 180mm

Internal Dimensions Top of Cabinet: 890 x 655 x 350mm

Internal Dimensions Base of Cabinet: 890 x 655 x 610mm

Machine Dimensions: 950 x 720 x 1500mm

Machine Weight: 88kg
