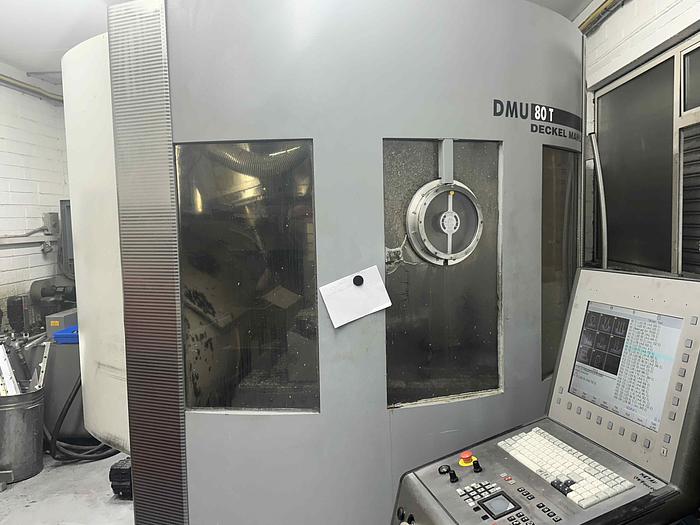

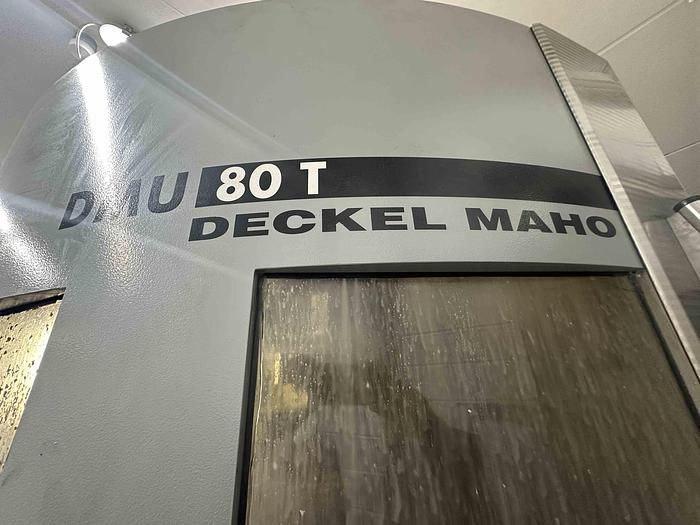

2002 Deckel Maho DMU80T 5 Axis Machining Centre
Description
Deckel Maho DMU80T 5 Axis Machining Centre
Machine Type: 5 Axis Machining Centre
Year: 2002

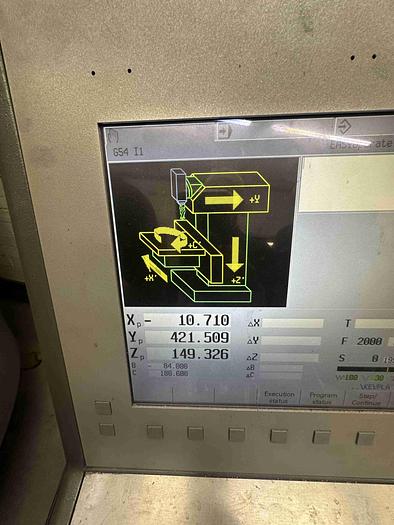

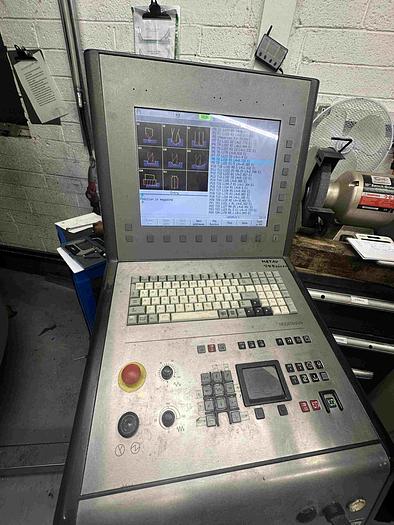

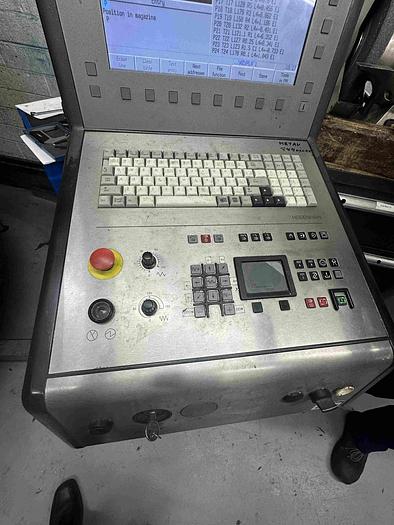

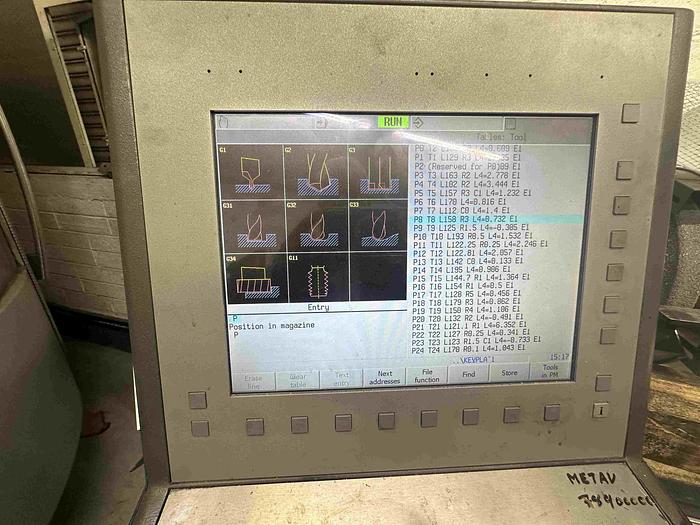

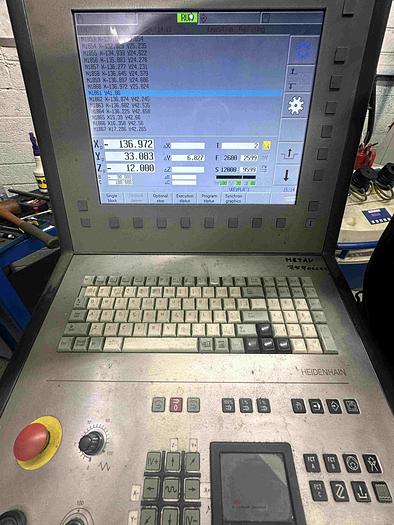

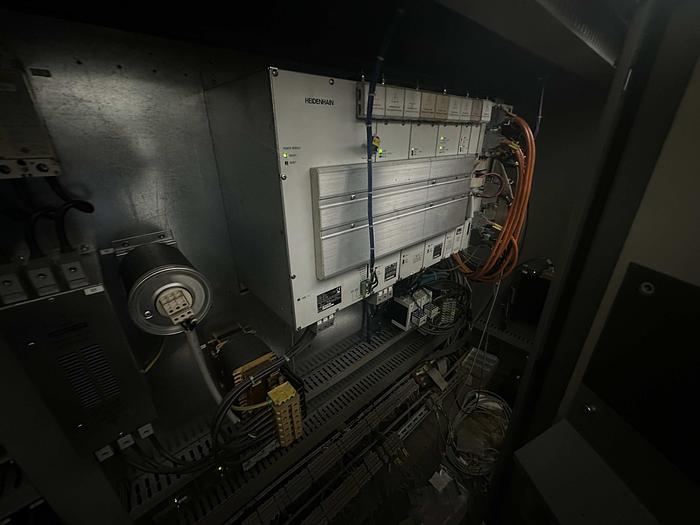

Control: Heidenhain Millplus Control

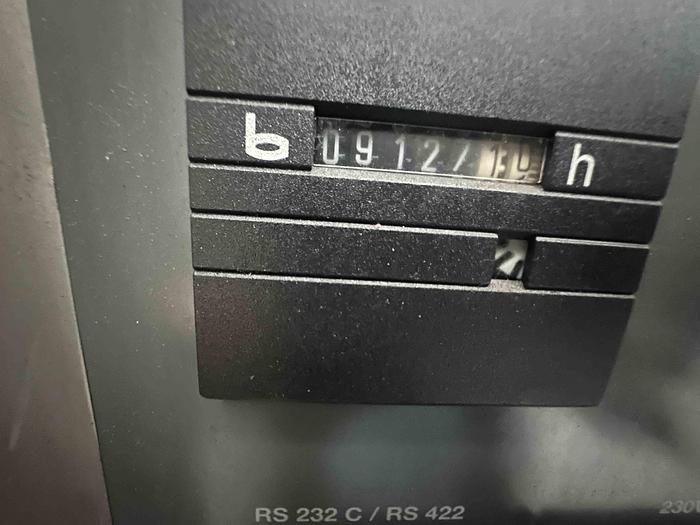

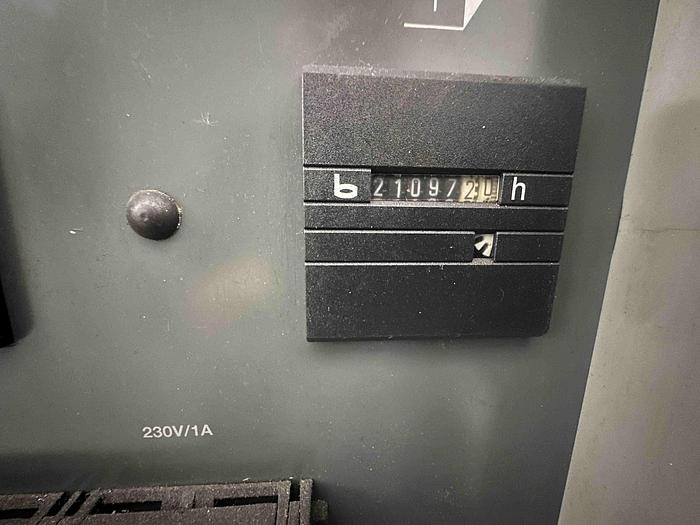

Hours: M/C: 21097hrs Spindle: 9127hrs

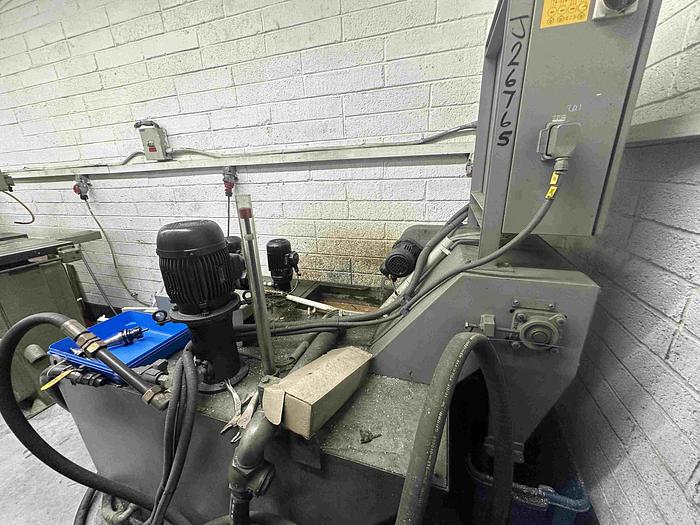

Condition: Very Good. (Swarf Auger has a fault)
Notes: Machine can be used as Full 5 Axis Machine or 4 Axis when Rotary Table Removed.
Technical Specifications

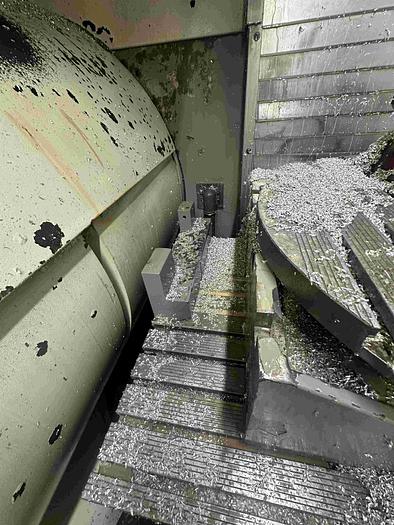

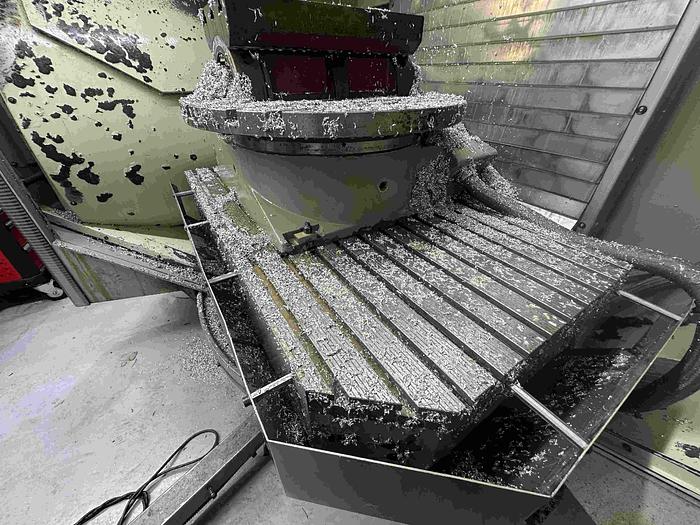

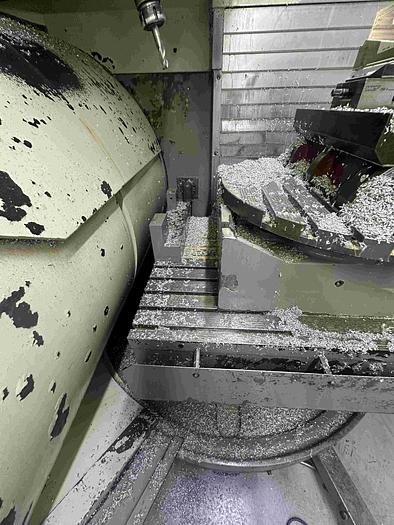

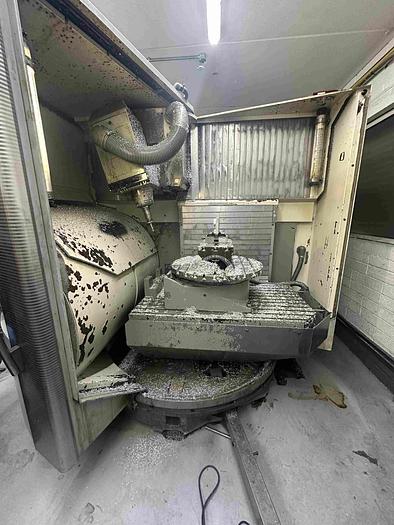

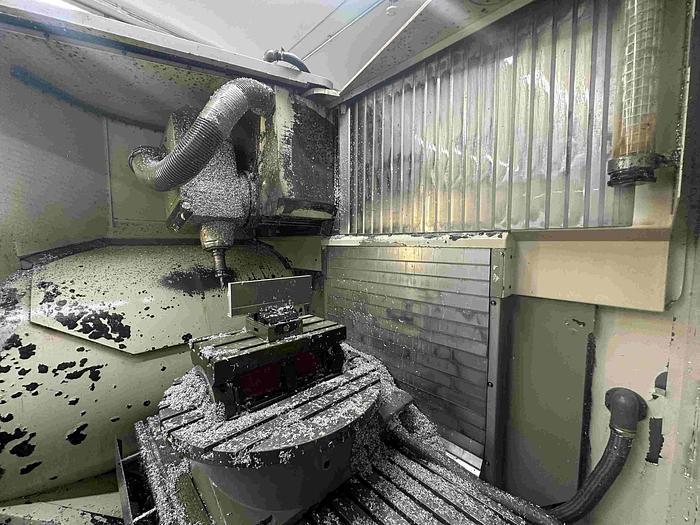

Rotary Table Dimensions: Ø650mm

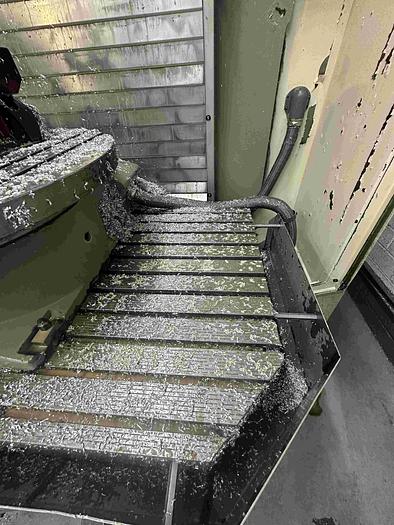

Table Dimensions: 1250 x 700mm
Max Table Load: 800kg
Max Part Size (5 Axis): Ø650 x 600mm
Max Part Size (4 Axis): 850x680x600mm
X Axis Travel: 880mm
Y Axis Travel: 630mm
Z Axis Travel: 630mm
B Axis Travel: 103 Deg
C Axis Travel: 360deg

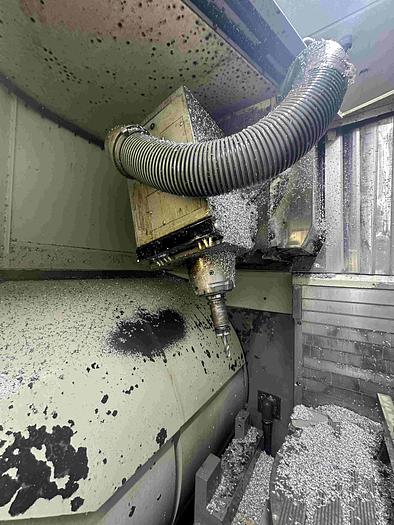

Spindle Speed: 18,000rpm
Spindle Taper: BT40

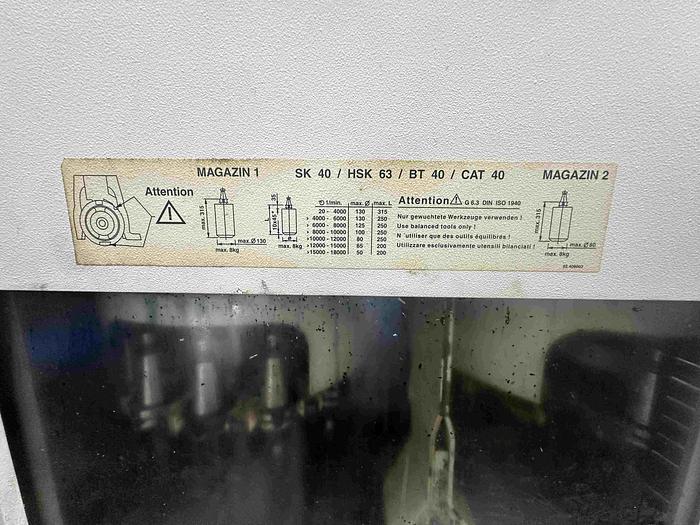

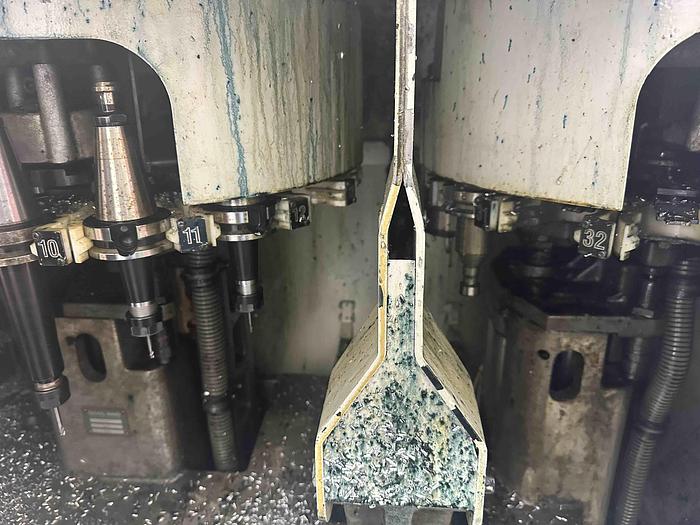

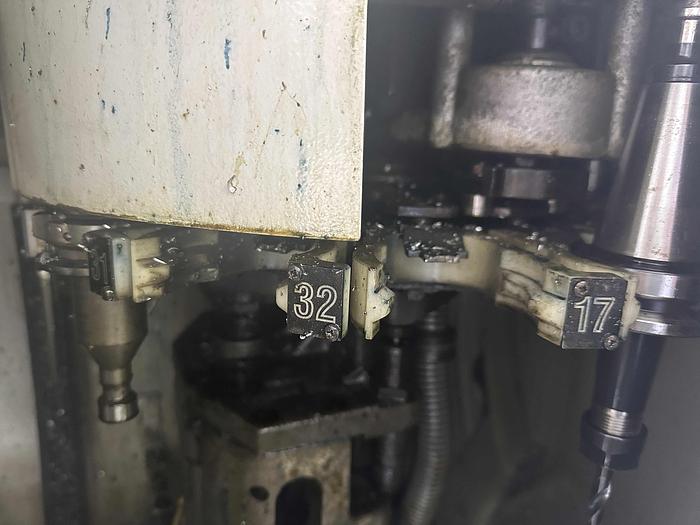

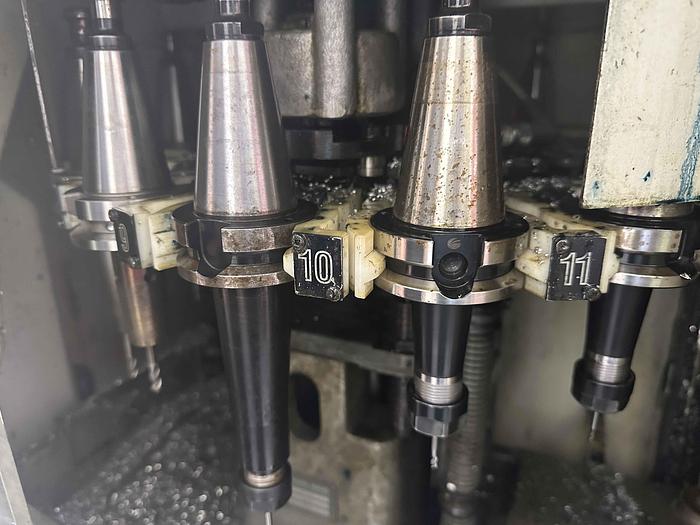

ATC: 32 Stations (2 x 16 Stations)
Max Tool Diameter: Ø130mm
Max Tool Length: 315mm
Max Tool Weight: 8kg
Machine Dimensions: 4530x2600x2500mm
Machine Weight: 9600kg (approx)
Specifications
| Manufacturer | Deckel Maho |
| Model | DMU80T 5 Axis Machining Centre |
| Year | 2002 |
| Condition | Used |

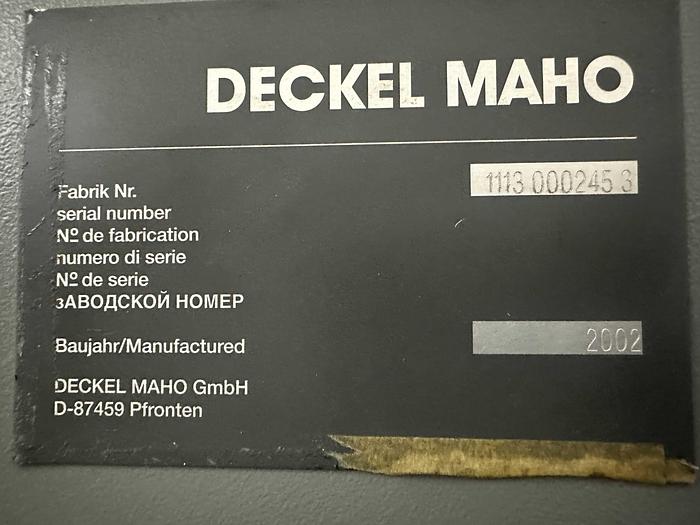

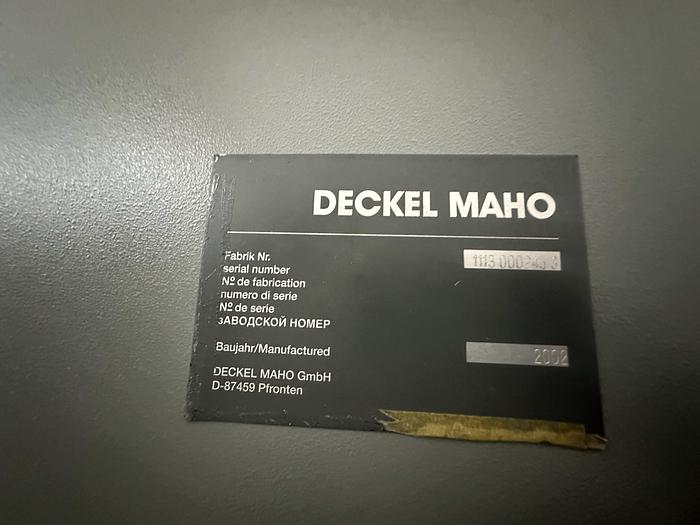

| Serial Number | 11130002453 |
| Machine Type | 5 Axis Machining Centre |
| Year | 2002 |
| Control | Heidenhain Millplus Control |
| Rotary Table Dimensions | Ø650mm |
| Table Dimensions | 1250 x 700mm |
| Max Table Load | 800kg |
| X Axis Travel | 880mm |
| Y Axis Travel | 630mm |
| Z Axis Travel | 630mm |
| B Axis Travel | 103 Deg |
| C Axis Travel | 360deg |
| Spindle Speed | 18,000rpm |
| Spindle Taper | BT40 |
| Max Tool Diameter | Ø130mm |
| Max Tool Length | 315mm |
| Max Tool Weight | 8kg |
| Machine Dimensions | 4530x2600x2500mm |
| Machine Weight | 9600kg (approx) |
