€75,000 + Vat

2004 Matsuura MAM72-25V Machining Centre

1

Cork, Ireland

orCall +353 838108745

Description

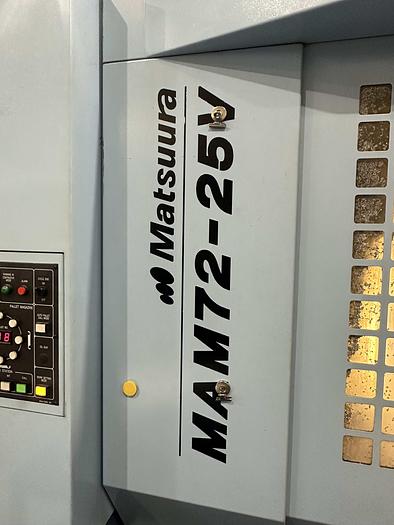

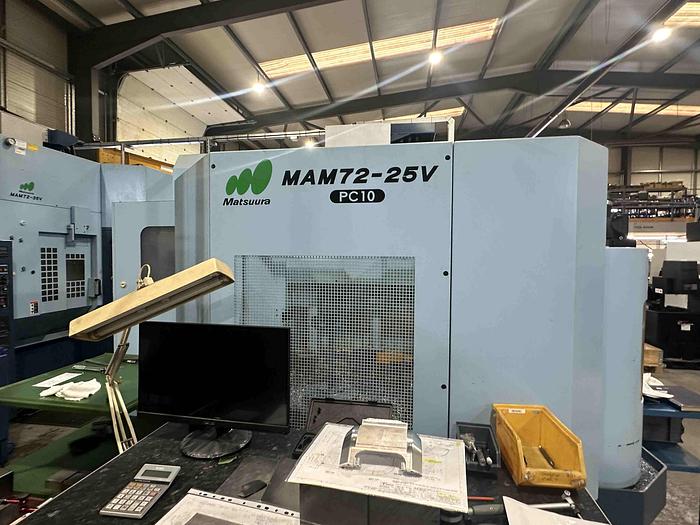

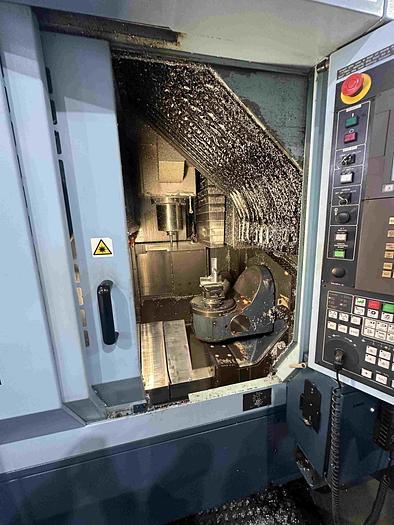

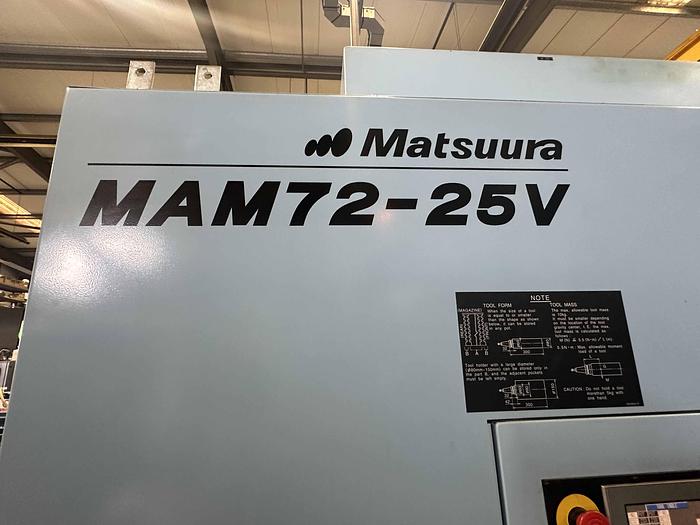

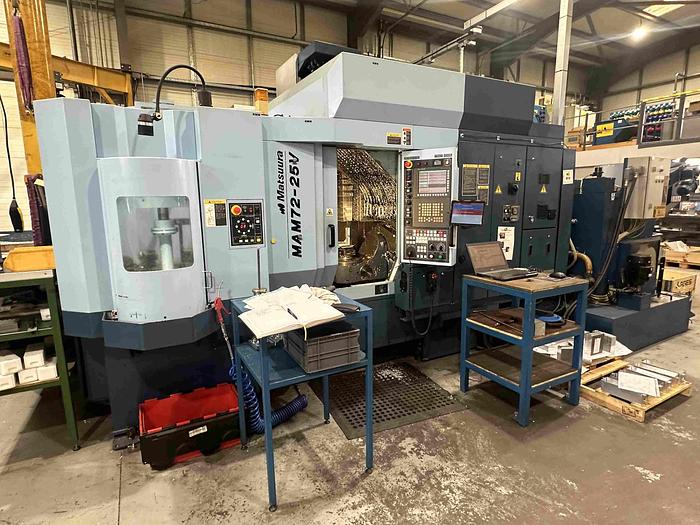

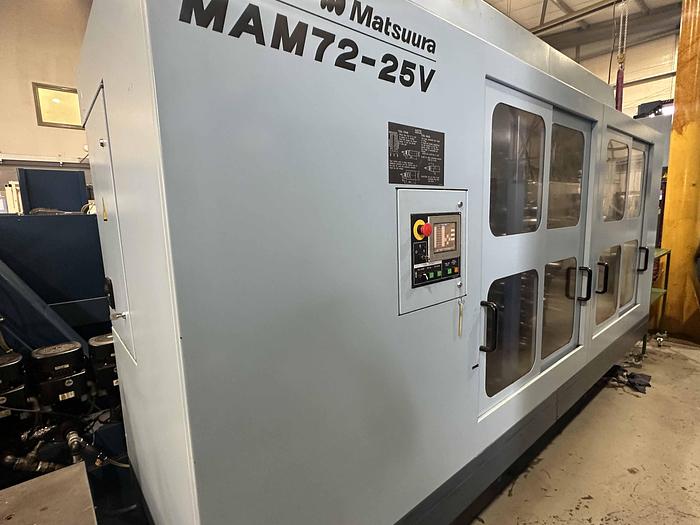

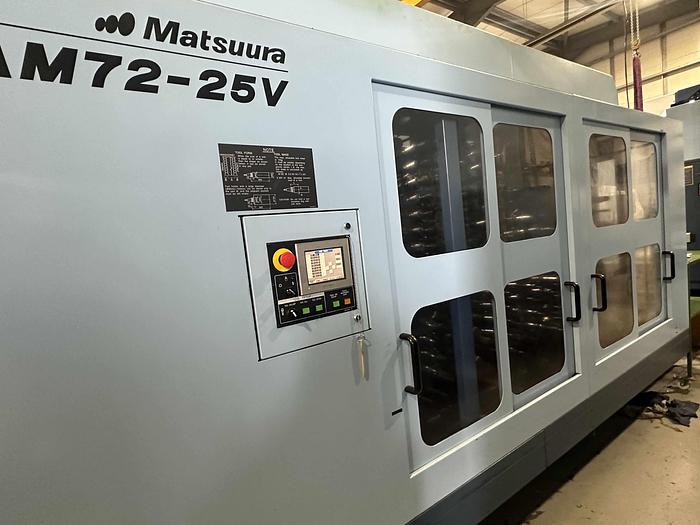

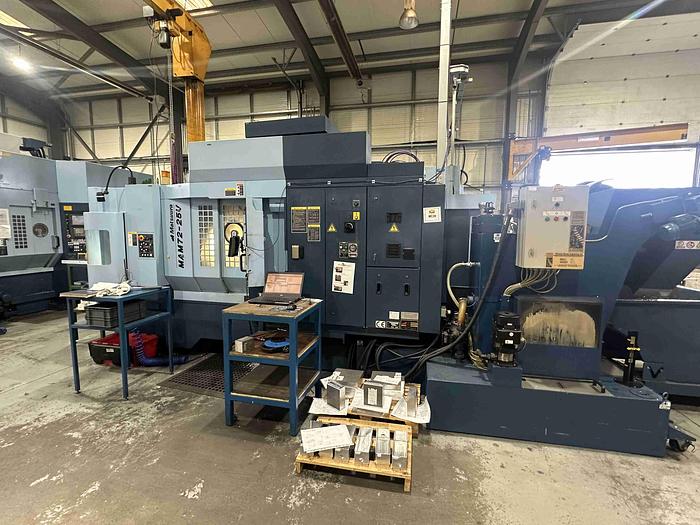

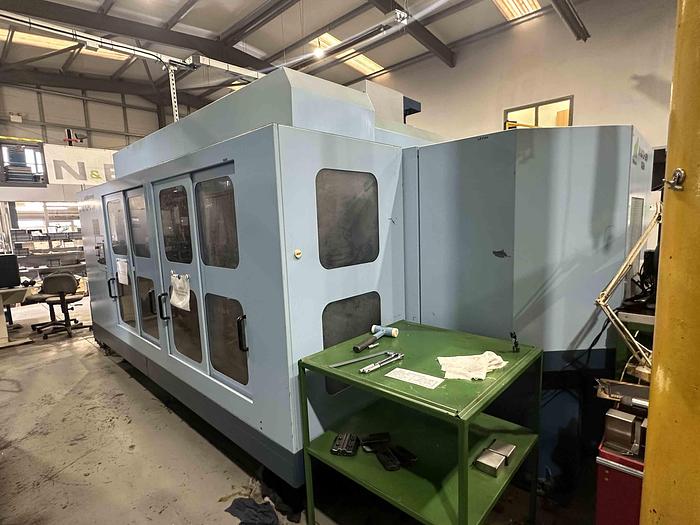

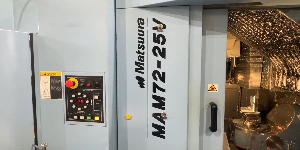

Matsuura MAM72-25V (PC10) Machining Centre


Machine Type: 5 Axis Machining Centre with Pallet Changer

Year: 2004

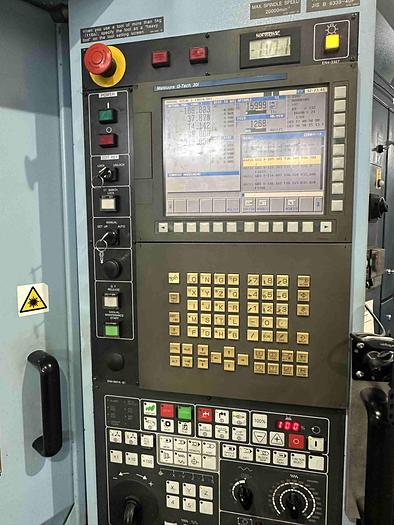

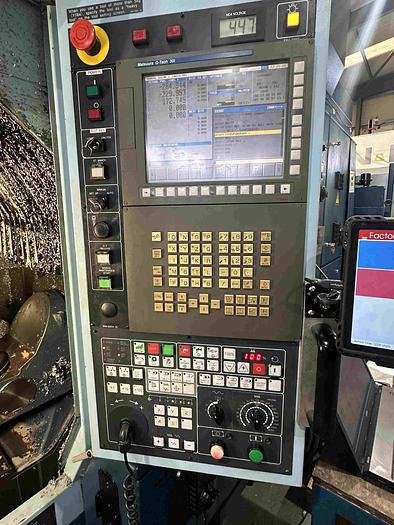

Control: Matsuura G-Tech 30i Control

Condition: Very Good


Includes

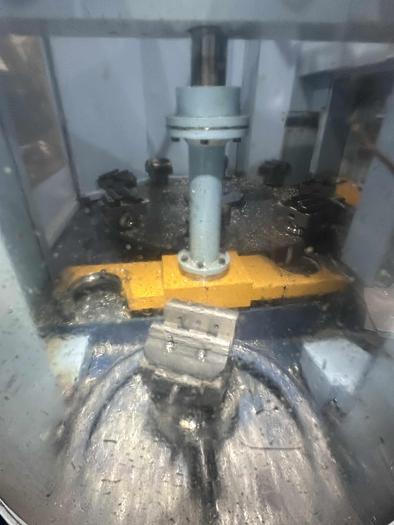

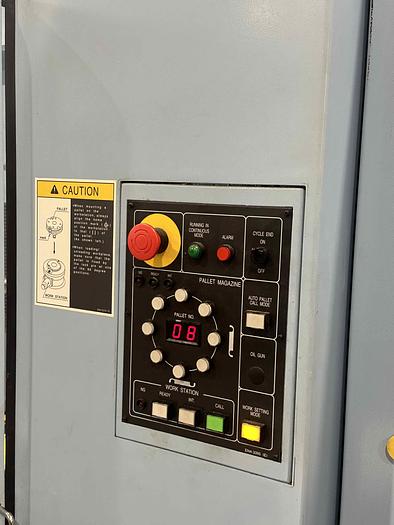

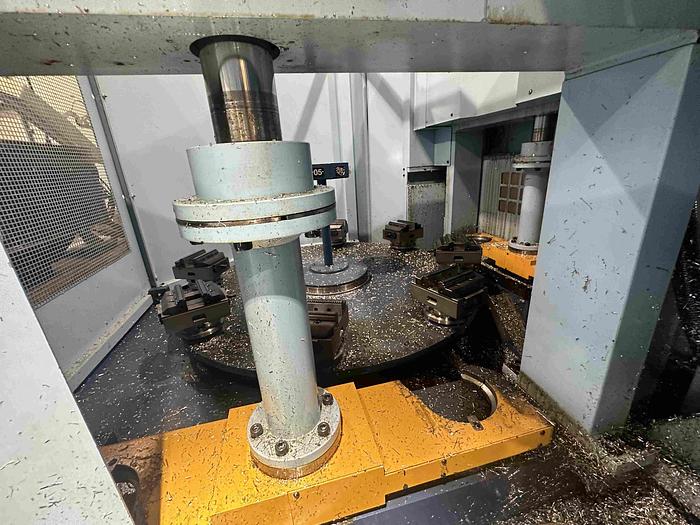

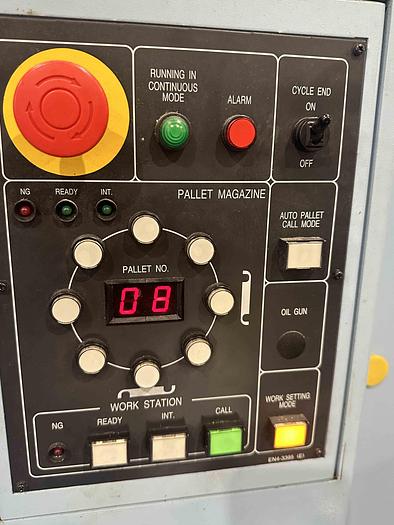

10 Station APC

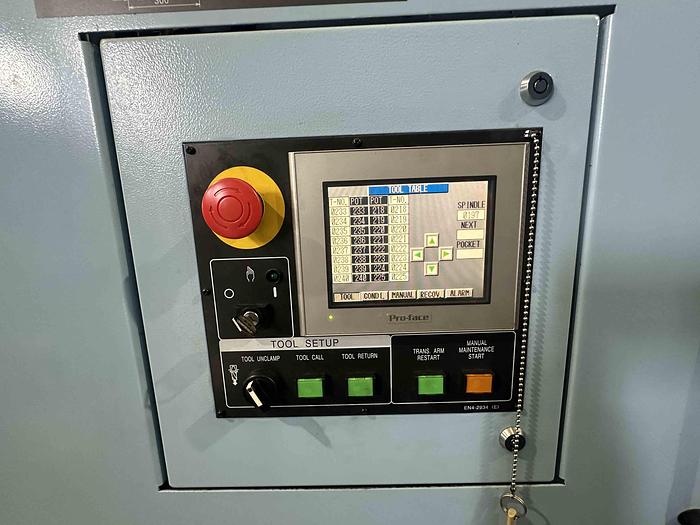

240T ATC (No Toolholders)

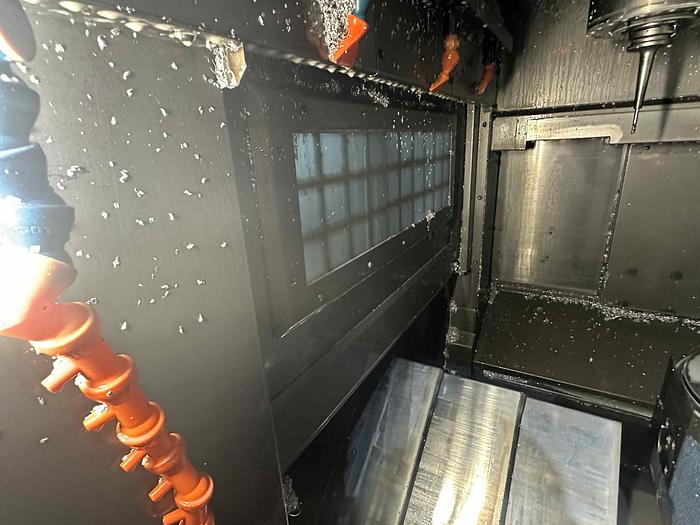

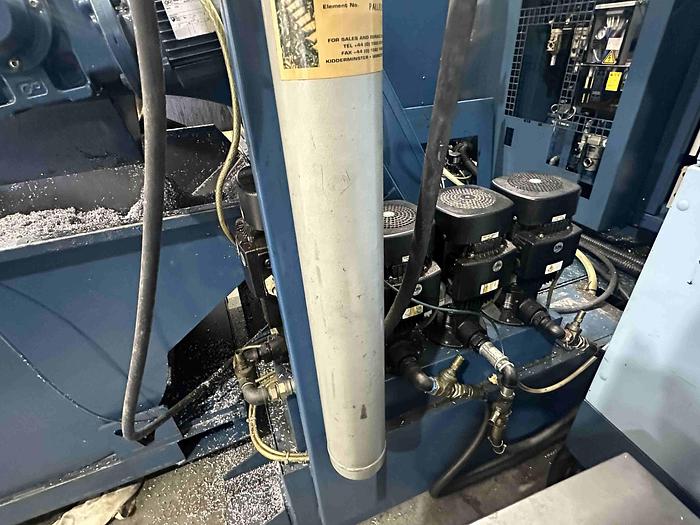

20 Bar High Pressure Coolant

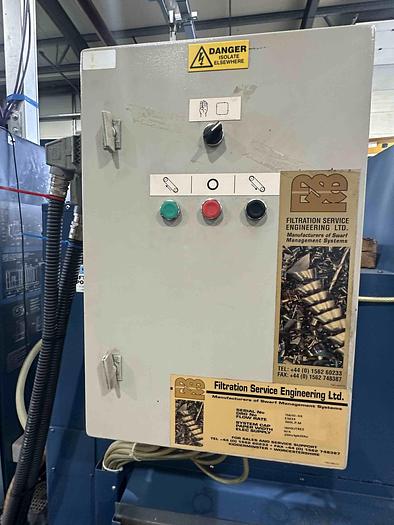

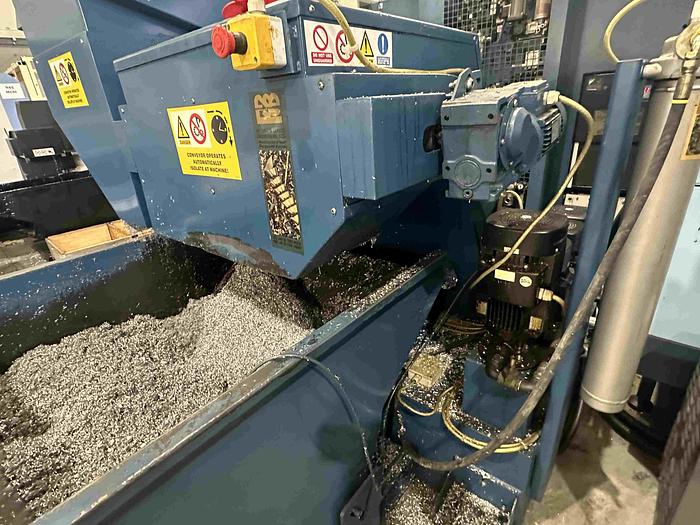

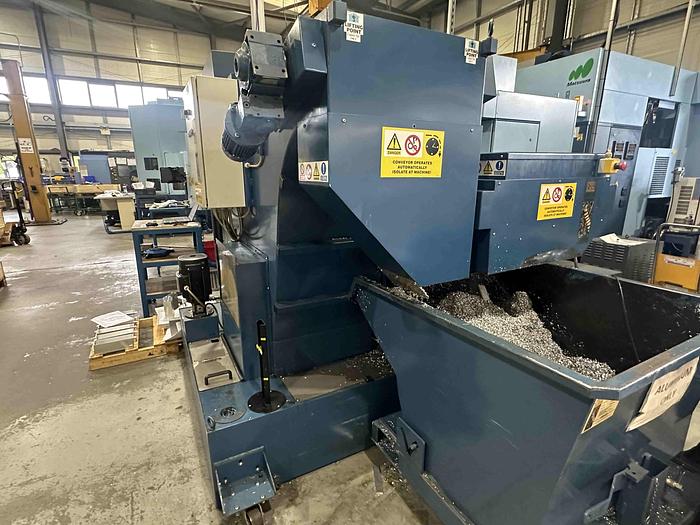

FSE Swarf Management System

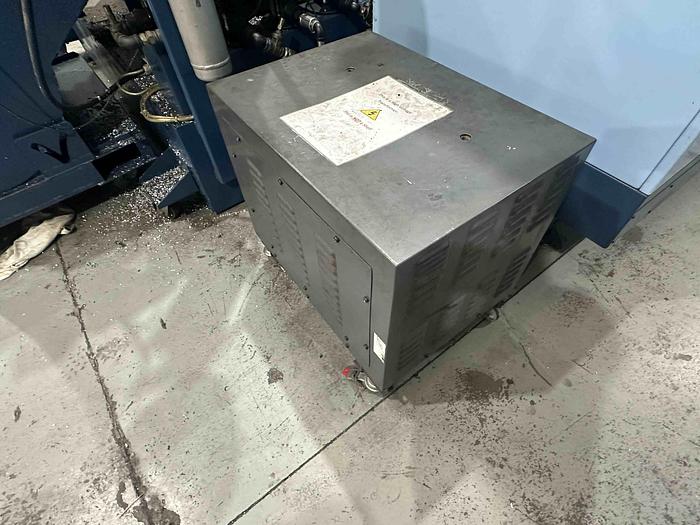

Transformer


Technical Specifications

Max Workpiece Size: Ø300 x H250mm

Max Workpiece Size in APC: Ø250 x H250mm

Max Workpiece Weight: 40kg

Working Surface: Ø130mm

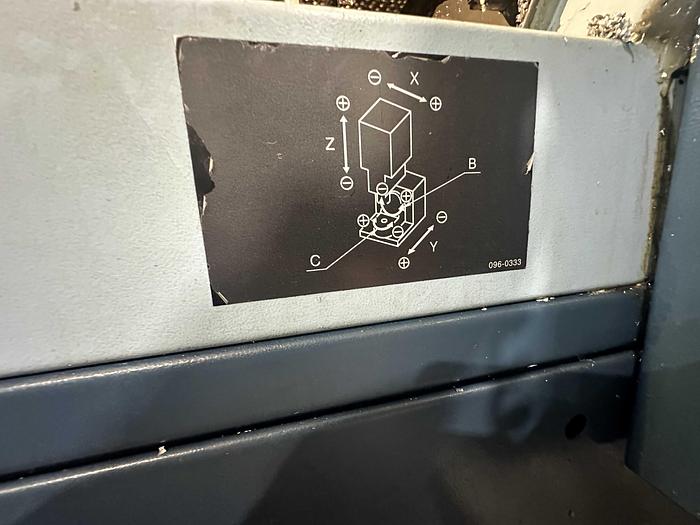

X Axis Travel: 550mm

Y Axis Travel: 410mm

Z Axis Travel: 450mm

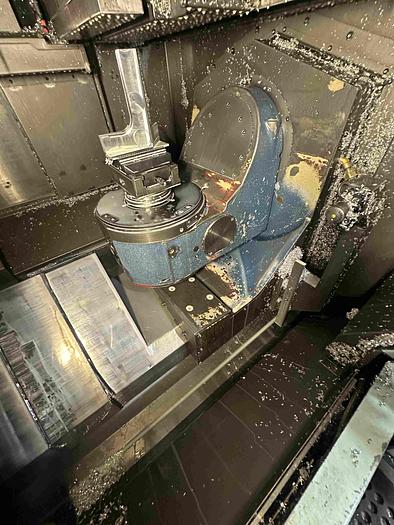

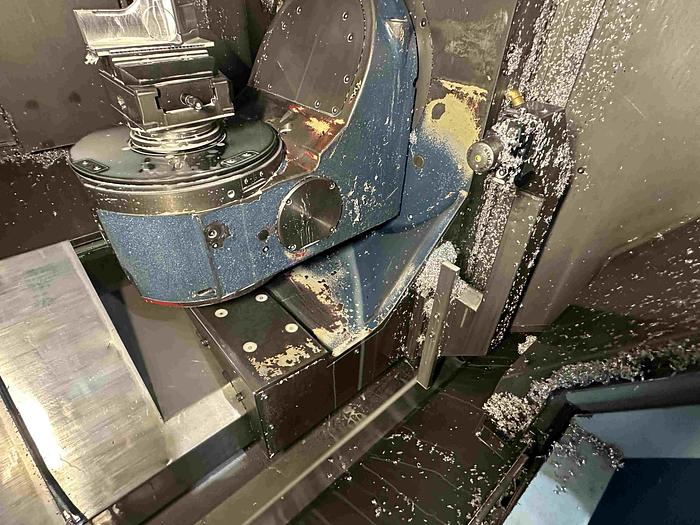

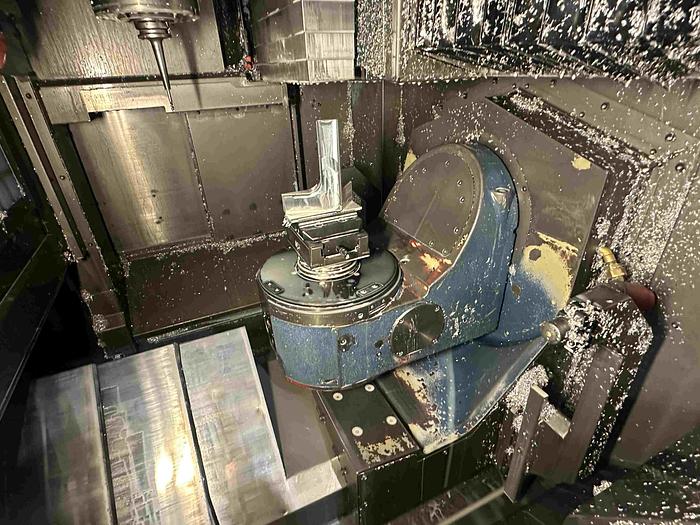

B Axis: +/- 220 Deg

C Axis: 360 Deg

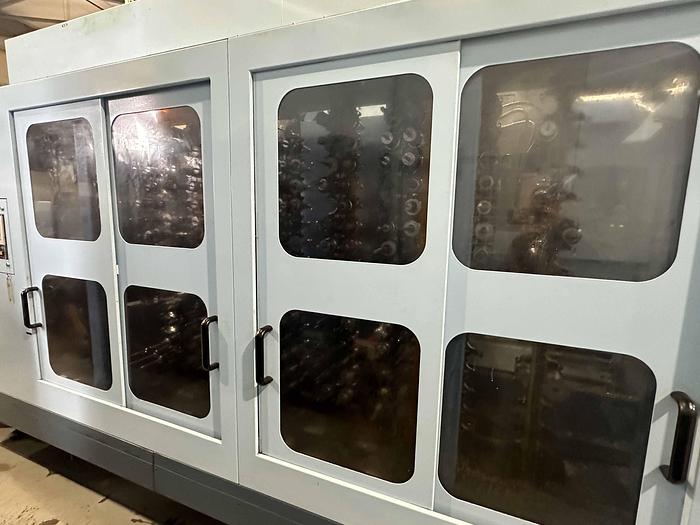

ATC: 240T Matrix Type

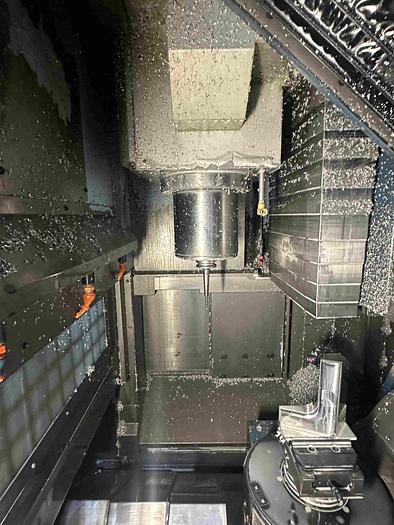

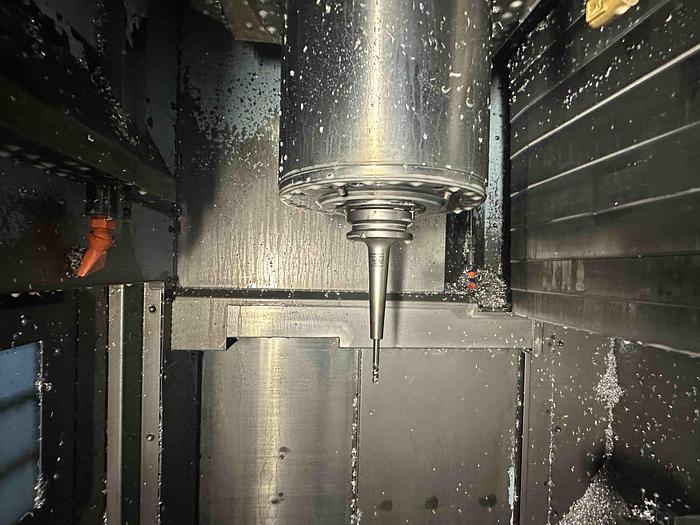

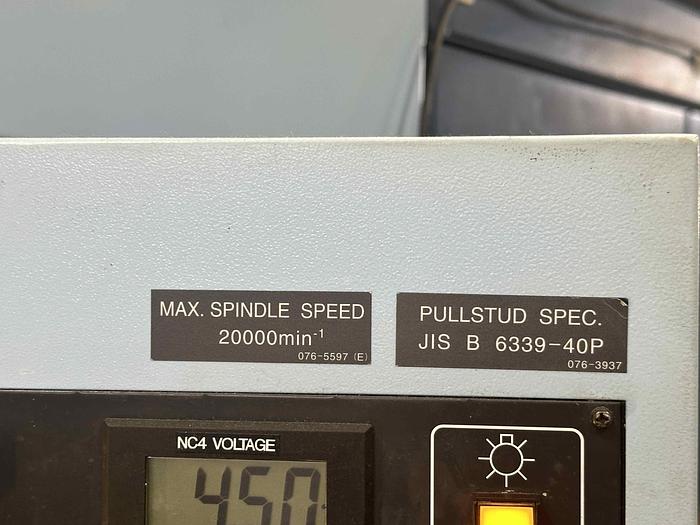

Spindle Speed: 20,000rpm

Spindle Taper: BT40

Spindle Power: 11kW(15HP)

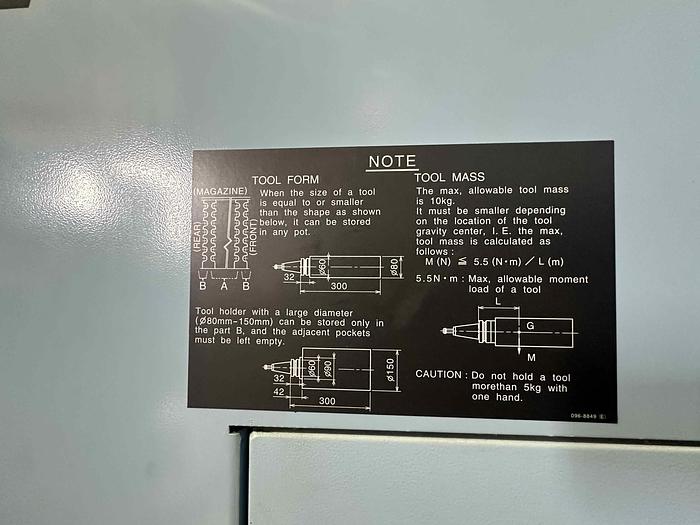

Max Tool Diameter: Ø150mm

Max Tool Length: 300mm

Max Tool Weight: 10kg

Input Power: 32kVA

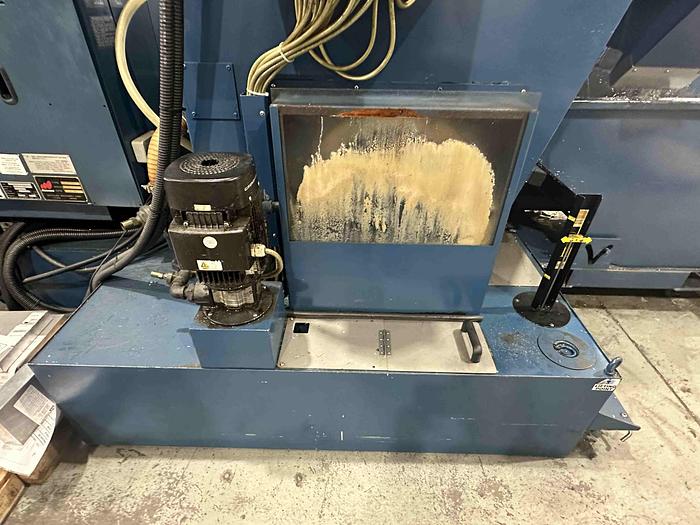

Coolant Tank Cap: 400L

Dimensions: 5120x3032x2705mm


Notes: No Toolholders or Work Holding included with the machine



Specifications

ManufacturerMatsuura
ModelMAM72-25V Machining Centre
Year2004
ConditionUsed

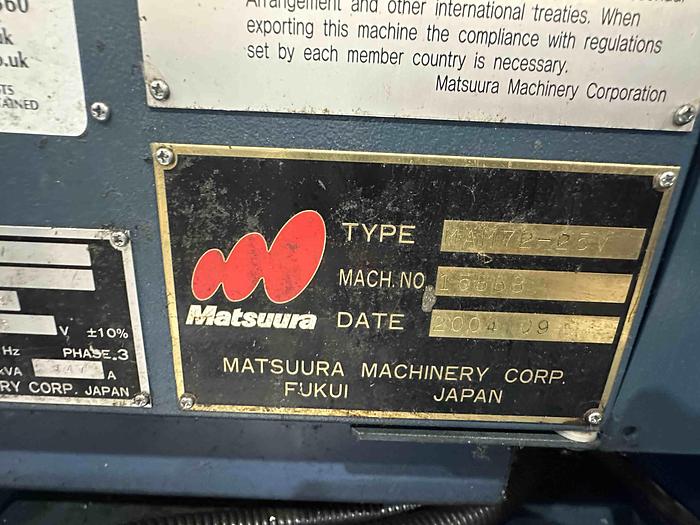

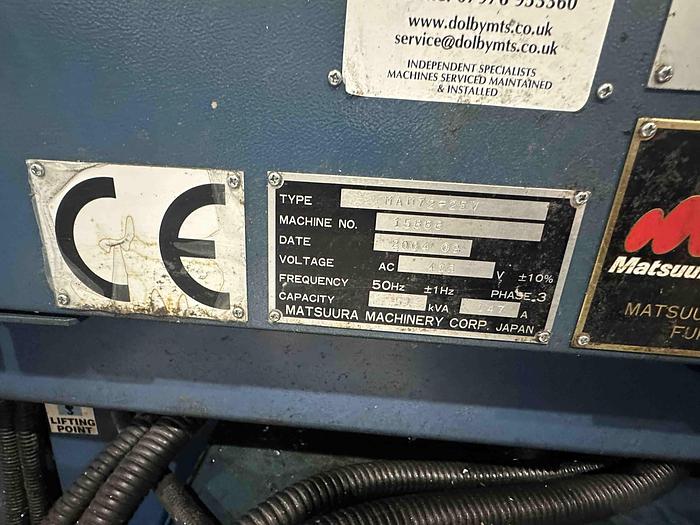

Serial Number15888
Year2004
ControlMatsuura G-Tech 30i Control
ConditionVery Good
Max Workpiece SizeØ300 x H250mm
Max Workpiece Weight40kg
Working SurfaceØ130mm
X Axis Travel550mm
Y Axis Travel410mm
Z Axis Travel450mm
B Axis+/- 220 Deg
C Axis360 Deg
ATC240T Matrix Type
Spindle Speed20,000rpm
Spindle TaperBT40
Spindle Power11kW(15HP)
Max Tool DiameterØ150mm
Max Tool Length300mm
Max Tool Weight10kg
Input Power32kVA
Coolant Tank Cap400L
Dimensions5120x3032x2705mm
