€270 + VAT @ 23%

Repar2 Lathe Carriage Guard 1TC2SM

1

Ireland

orCall +353 838108745

Description

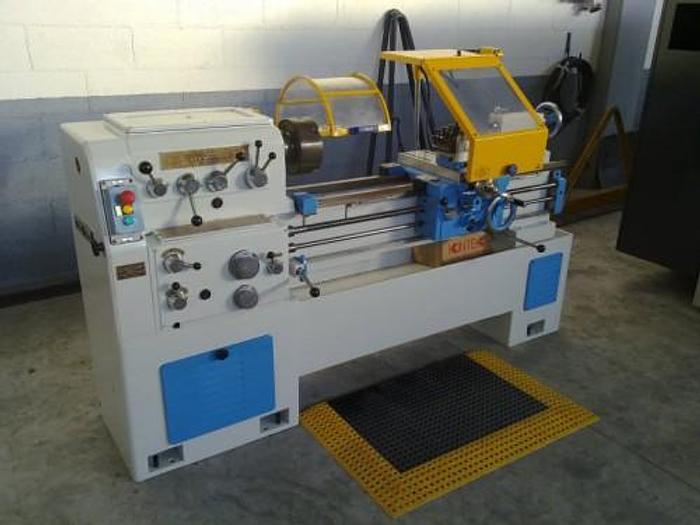

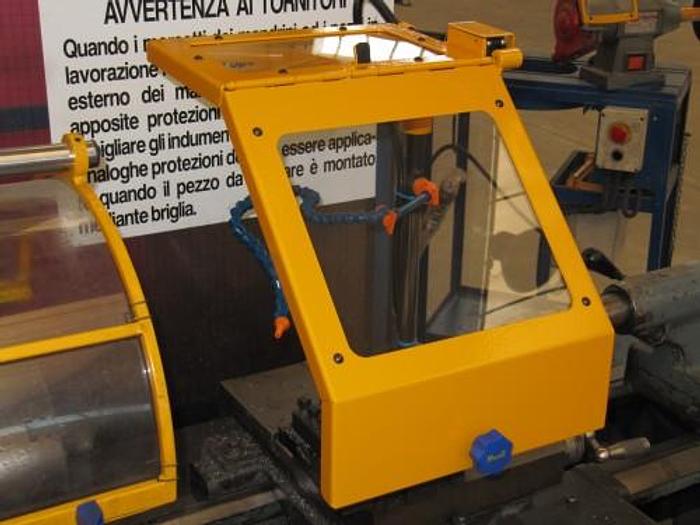

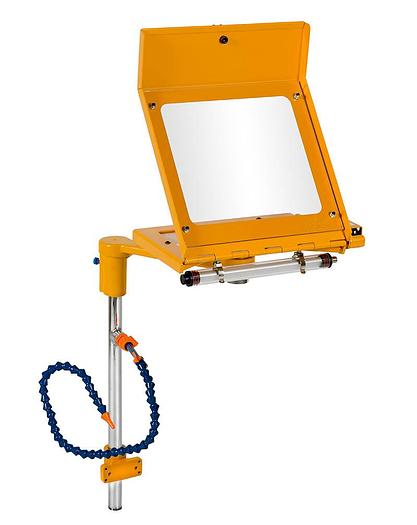

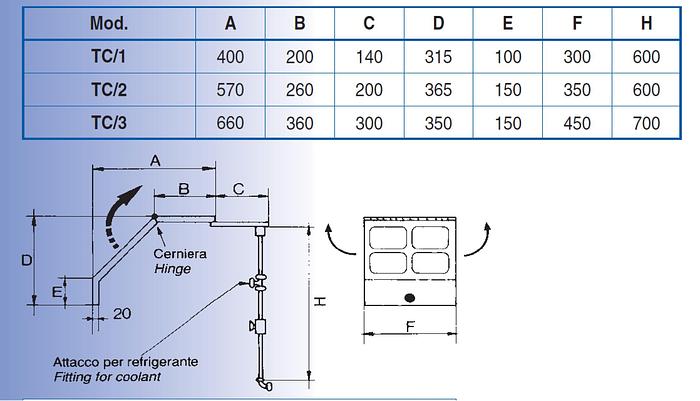

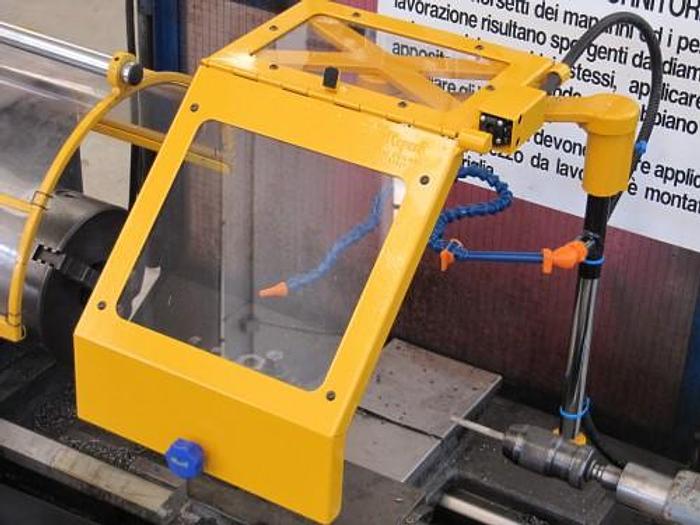

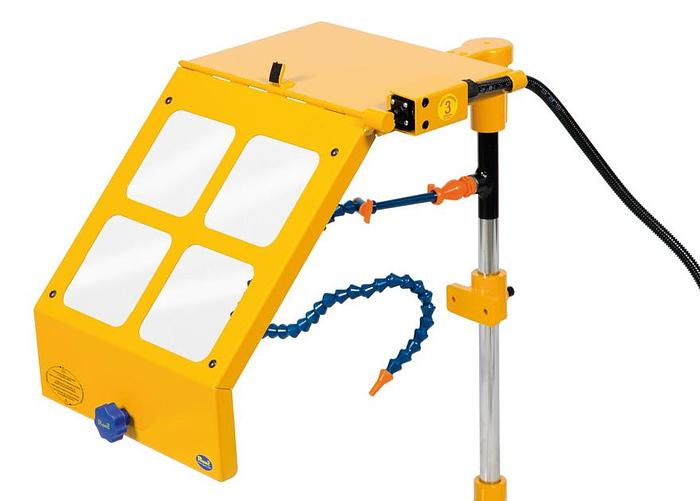

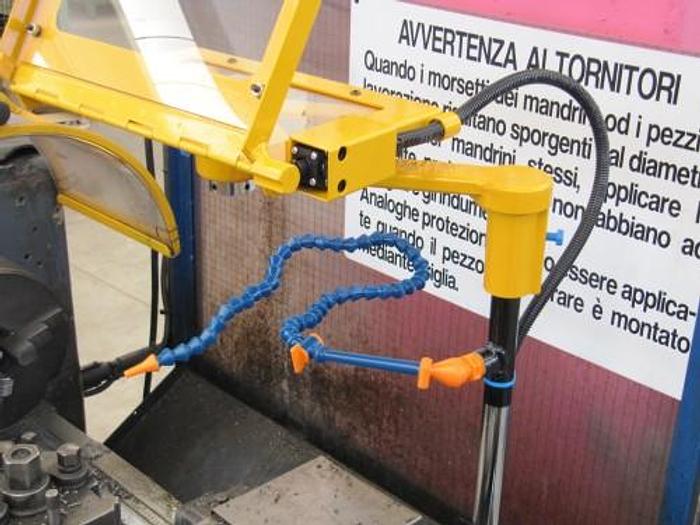

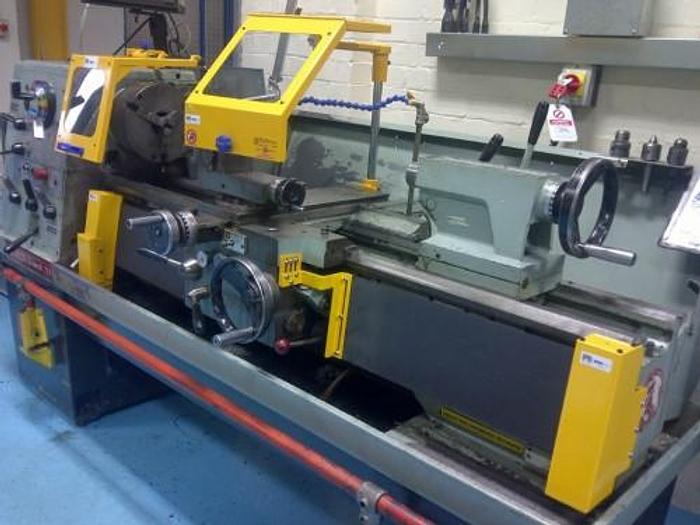

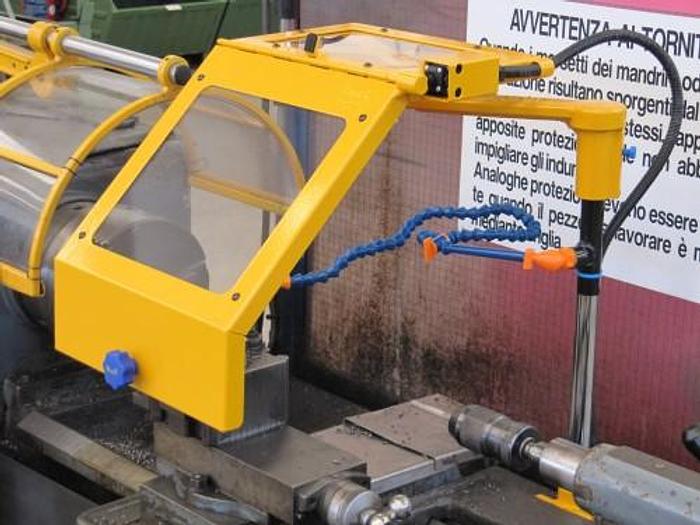

Repar2 Lathe Carriage Guard Ref: 1TC2SM Type: Mobile & Swivel without safety micro-switch Rear Side Fitting Mobile and swivelling safety guard to be fitted on the longitudinal carriage of the lathe. Steel frame with polycarbonate screen. Protection of operator against chips and coolant. Available either with or without cooling system and microswitch system. To be fitted on the rear side. Possibility to include Led Lamp 24V(LLS system)-AC/DC IP67-40.000h-outer tube Acrylic-Fast connector with 5m Cable Screen Length:570mm Screen Width: 350mm Screen Height: 375mm Leg Height: 600mm Frame Material: Powder-Coated Steel Screen Material: Poly-Carbonate Weight: 7.5kg Safety Guards for Turning machines (Lathes) – EN ISO 23125:2015 The basics for manually-operated lathes: 1) Interlocked chuck guard 2) Feed shaft and lead screw protection 3) Saddle or splash guard if the risk of ejection demands it (risk assessment) 4) Rear fixed guard 5) Emergency stop 6) Spindle braking above 1.5hp 7) Gear drive cover (fixed or interlocked) 8) Safety levers 9) Protection of hole bar passage

Specifications

ManufacturerRepar2
Model1TC2SM
ConditionNew
TypeMobile & Swivel without safety micro-switch
Screen Length570mm
Screen Width350mm
Screen Height375mm
Leg Height600mm
Frame MaterialPowder-Coated Steel
Screen MaterialPoly-Carbonate
Weight7.5kg
Safety Micro-SwitchNo
Coolant AttachmentNo
Other Sizes AvailableYes

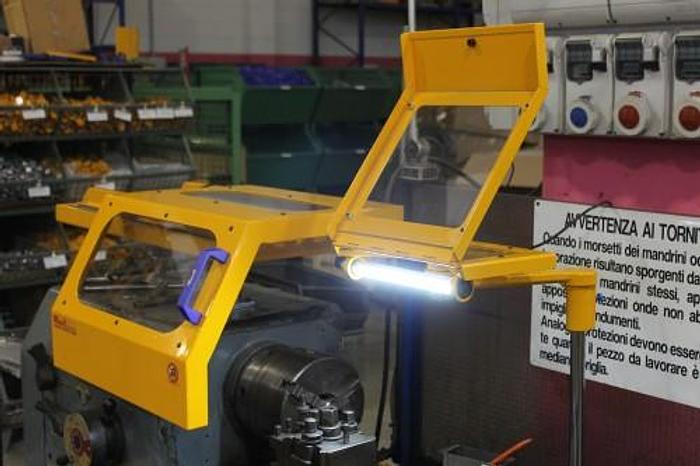

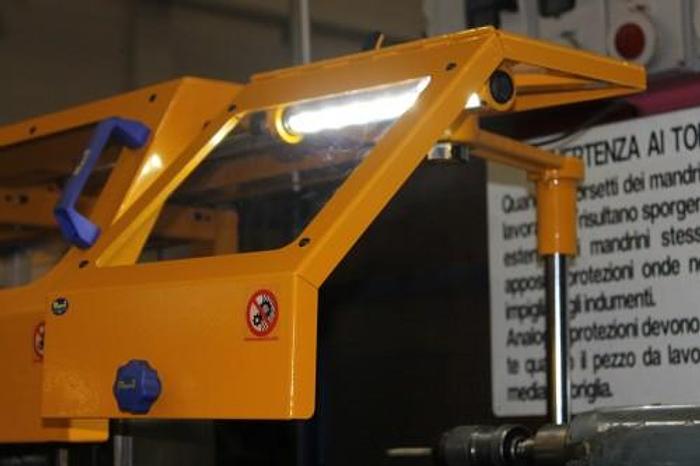

LED LightOptional @ €190.00 Extra
Ref1TC2SM
