35Kg Halter MillStacker Premium 35

Netherlands

orCall +353 838108745

Description

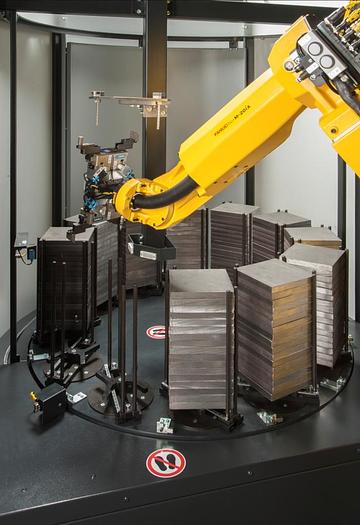

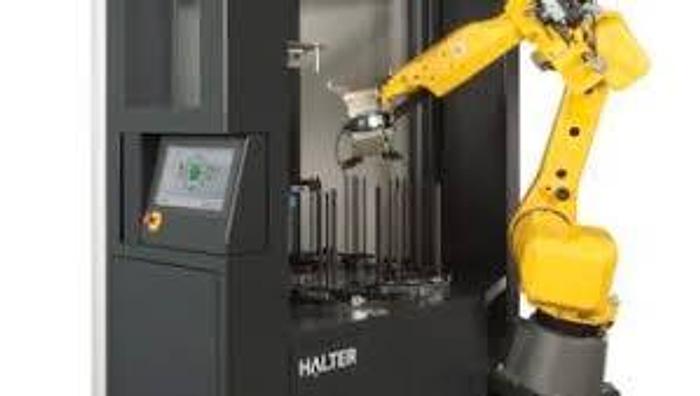

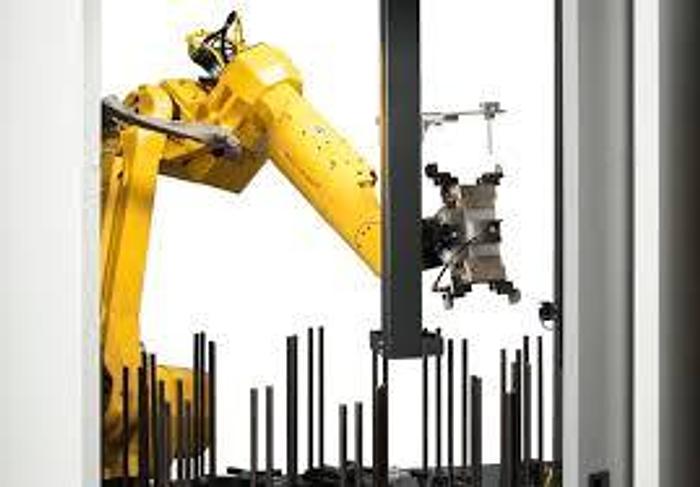

Halter LoadAssistant MillStacker Premium 35 The HALTER LoadAssistant® is a robotic system for automatic loading of your CNC machine. The CNC robot can be connected to any new or existing CNC lathe or milling machine and easily moved from one machine to another. Complete plug-and-play solution for each brand of CNC machine. Set-up time takes less than 5 minutes. No experience with robotics is required. Easily moved from one CNC machine to another. Reliable technology. Weight Capacity: 35KG Designed for Milling Machines

Specifications

ManufacturerHalter CNC Automation
ModelLoadAssistant MillStacker Premium 35
ConditionNew
Weight Capacity35Kg
ControlHalter SmartControl
Standard robot-machine interface for every CNC-machineYes
Max. number of CNC-machines to connect with4
Touch Screen Size15"
Intuitive and graphical programming in 12 stepsYes
RobotFanuc 6 Axis Robot
No. of controlled axes6
Gripper3 Finger Gripper as Standard
Other Grippers AvailableYes
Safety ScannerFanuc DCS area in combination with the Sick floor scanner
PortableYes
Minimum Workpiece (L x W)40mm x 40mm
Maximum Workpiece - Square (L x W)180mm x 180mm
Maximum Workpiece - Rectangular (L x W)80mm x 300mm
Maximum height of workpiece175 mm
Maximum load capacity robot arm35 kg
Maximum total weight on rotating table1250 kg
Maximum stacking height350 mm
Number of stacking stations (1 empty)12
Maximum weight per station115kg
Max. number of workpieces at workpiece height of 10 mm385
Max. number of workpieces at workpiece height of 20 mm187
Max. number of workpieces at workpiece height of 50 mm77
Max. number of workpieces at workpiece height of 70 mm55
Max. number of workpieces at workpiece height of 85 mm44
Max. number of workpieces at workpiece height of 110 mm33
Max. number of workpieces at workpiece height of 150 mm22
Power400V
Dimensions (L x D x H)1750 x 1434 x 2220mm
Weight1220kg
